KSIP ATEX thermoplastic with optical indicator

II2G Exia IIC T6 - T4 / II2D Exia IIIB

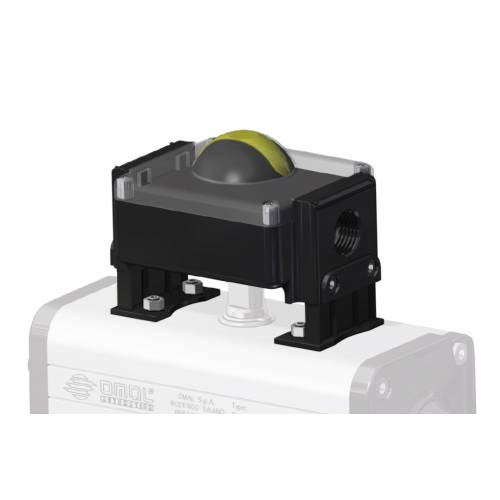

KSIP ATEX thermoplastic with optical indicator

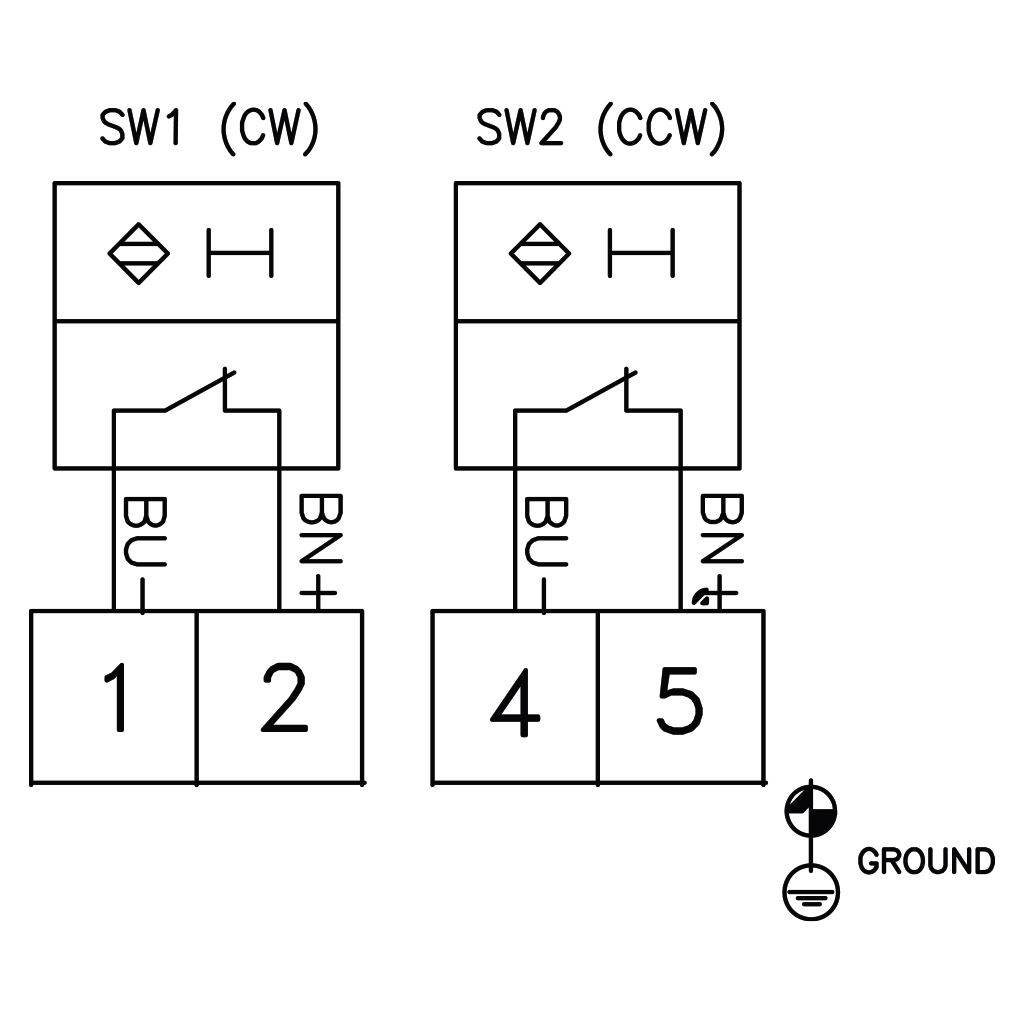

WIRING DIAGRAM

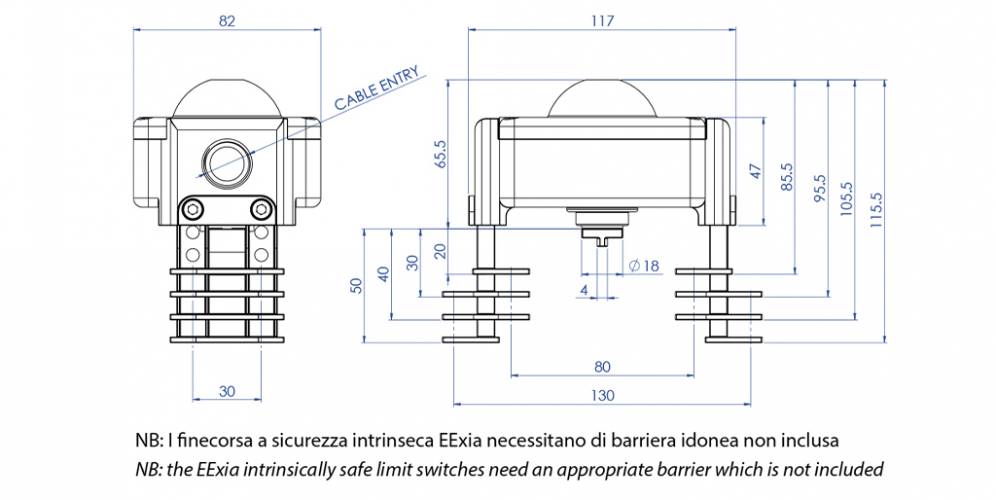

TECHNICAL FEATURES
- Made to easily verify the visual and electrical position of each valve even from long distances.
- Built according to VDI / VDE 3845 standards. (EN15714-3)
- It can contain two limit switches either mechanical "SPDT" or proximity.
- The cam of limit switch cannot slide since their regulation or other tools.
- The pre-wiring is realized means of numbered terminals: n° 6 for the two microswitches, and extra poles for eventual solenoid wiring (see wiring diagrams).
- N. 1 threaded electrical connection for cable gland
- Operating temperature: from -20°C to +80°C.
- Protection rate: IP65 (IP 67 on request).

MATERIALS
- Body: reinforced polyphenylene ether flame retardant V0
- Cover and Indicator: UV-resistant and self-extinguishing V0 polycarbonate
- Shaft: reinforced polymer
- Screws: stainless steel

CERTIFICATIONS
- ATEX: II2G Exia IIC T6 - T4 / II2D Exia IIIB
- More on request
- Up to SIL 3 Certified
