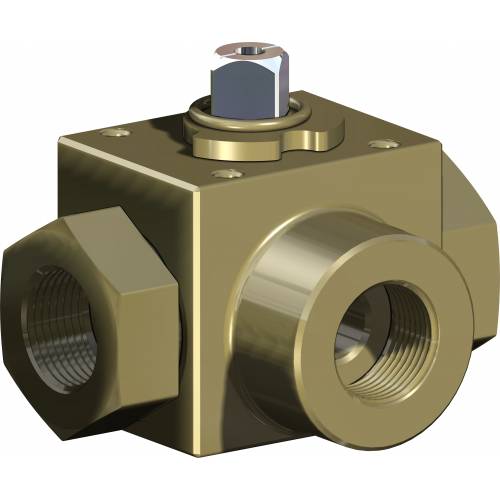

Item 541 carbon steel ball valve

Item 541 carbon steel ball valve

3-way full-bore threaded-ends high pressure carbon steel ball valve

CONFIGURE START UP
REQUEST INFORMATION
PAGE PRINT
  • features
  • dimensions
  • materials
  • diagrams and breakaway torque
  • specifications

GENERAL FEATURES:
• Threaded ends as per DIN/ISO 228
• The valve can be used as DIVERTER ONLY and must be connected at the central end only.
• Working temperature: from -10°C to + 100°C
• Working pressure: 3/8”-1/2” PN 500; 3/4”-1” PN 315.
• Field of use: oils, petroleum and petrochemical products.

ON REQUEST:
• For other applications, please contact our sales department.

CERTIFICATIONS:
• ATEX version in conformity with European Directive 2014/34/EU.
• ATEX certificate on request

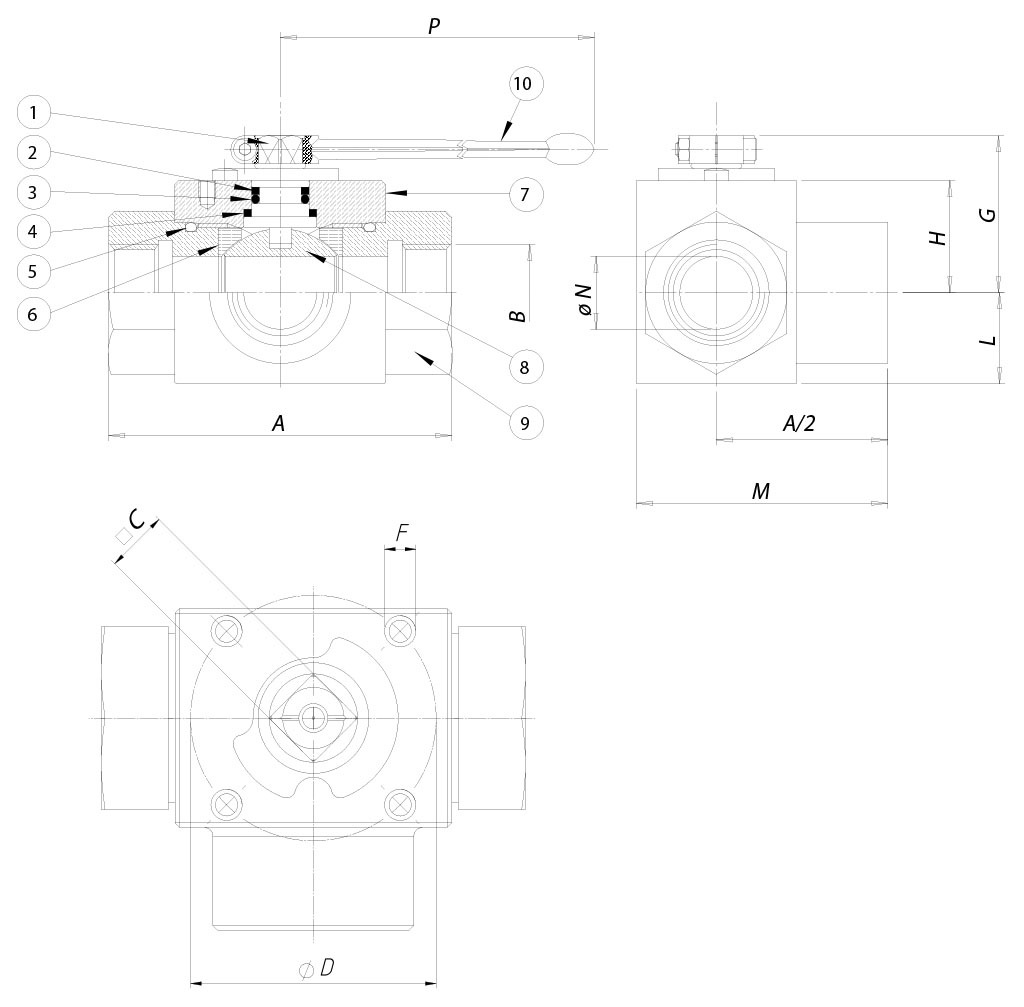

 DIMENSIONS
  SIZE
A
B
□C
D
ISO
F
G
H
L
M
øN
P
DN [mm]
[inch]
DN 10
3/8"
72
3/8”
9
36
F03
M5
34,3
20,5
17,5
52
10
115
DN 15
1/2"
83
1/2”
9
36
F03
M5
35
21
19
59
13
115
DN 20
3/4"
95
3/4”
14
50
F05
M6
50,8
32,5
24,5
72
20
200
DN 25
1"
113
1”
14
50
F05
M6
53,8
35,5
29,5
85,5
25
200

   MATERIALS
1
Shaft
Carbon steel
CF9SMn28
2*
Washer for o-ring protection
P.T.F.E.

3*
O-ring
FPM

4*
Washer
POM + MoS2

5*
O-ring
FPM

6*
Ball sealing
POM + MoS2

7
Body
Carbon steel
CF9SMn28
8
Ball
Carbon steel chromium plated
CF9SMn28
9
Threaded end
Carbon steel
CF9SMn28
10
Lever
Carbon steel

* Components of spare part kit KGBV81...

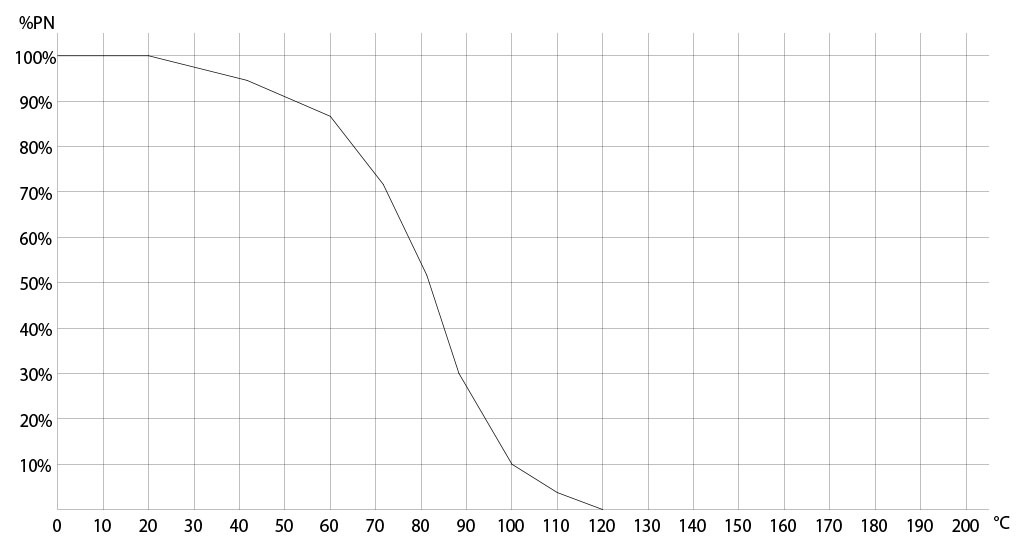

Pressure/temperature diagram

BREAKAWAY TORQUES Nm
  SIZE
DN 10 3/8"
DN 15 1/2"
DN 20 3/4"
DN 25
1"

PN 315 bar


34
37
PN 500 bar
15
18




Torque can vary depending on temperature and type of fluid; a safety factor of 1.4 must be applied. Torque can drop on high frequency of operations. The actuator/valve sizing, indicated on the following pages, are based for valves to be used with liquids or gaseous fluids, clean, and for medium temperatures. For further information, or different uses please contact our sales department.

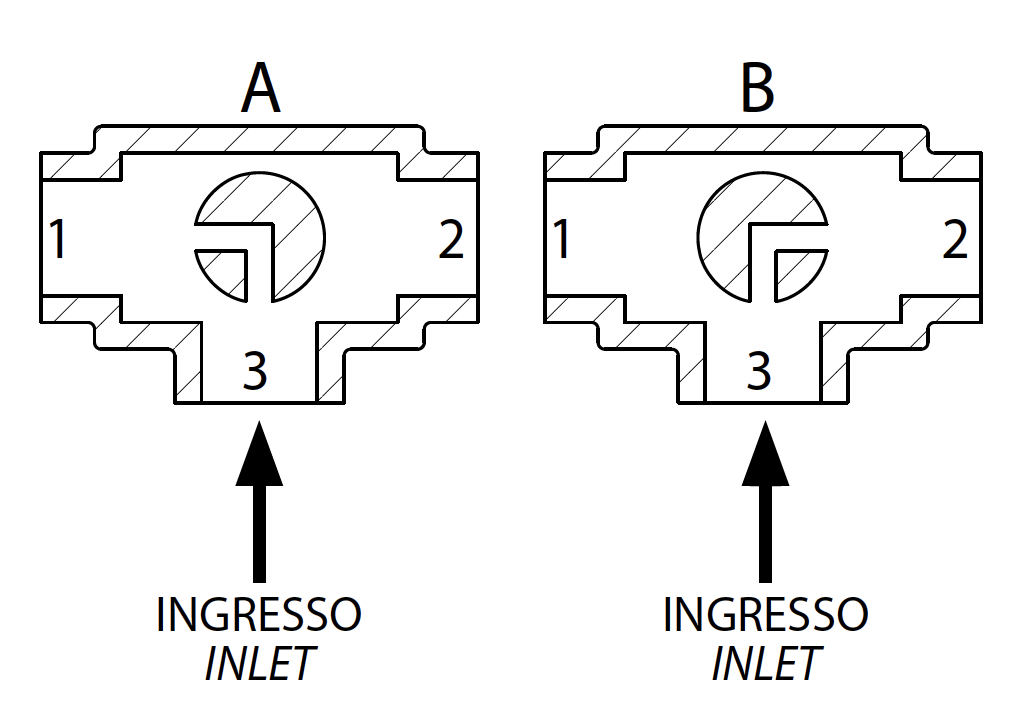

Plan for "L" port

N.B.:
A” must be the rest position of the ball with SR FAIL CLOSE actuator.
B” must be the rest position of the ball with SR FAIL OPEN actuator.

View from above
