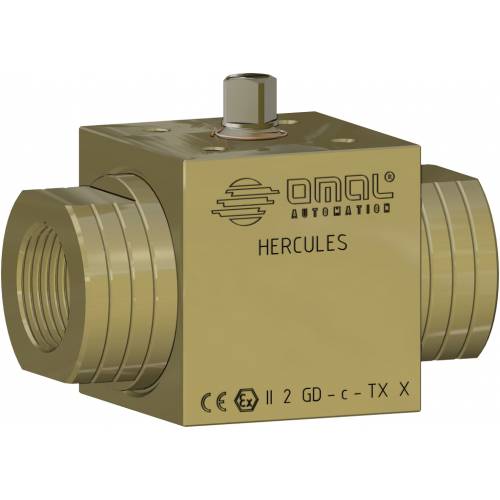

Hercules for non self-lubrificating media carbon steel ball valve

  • benefits
  • features
  • dimensions
  • materials
  • diagrams and breakaway torque
  • documents

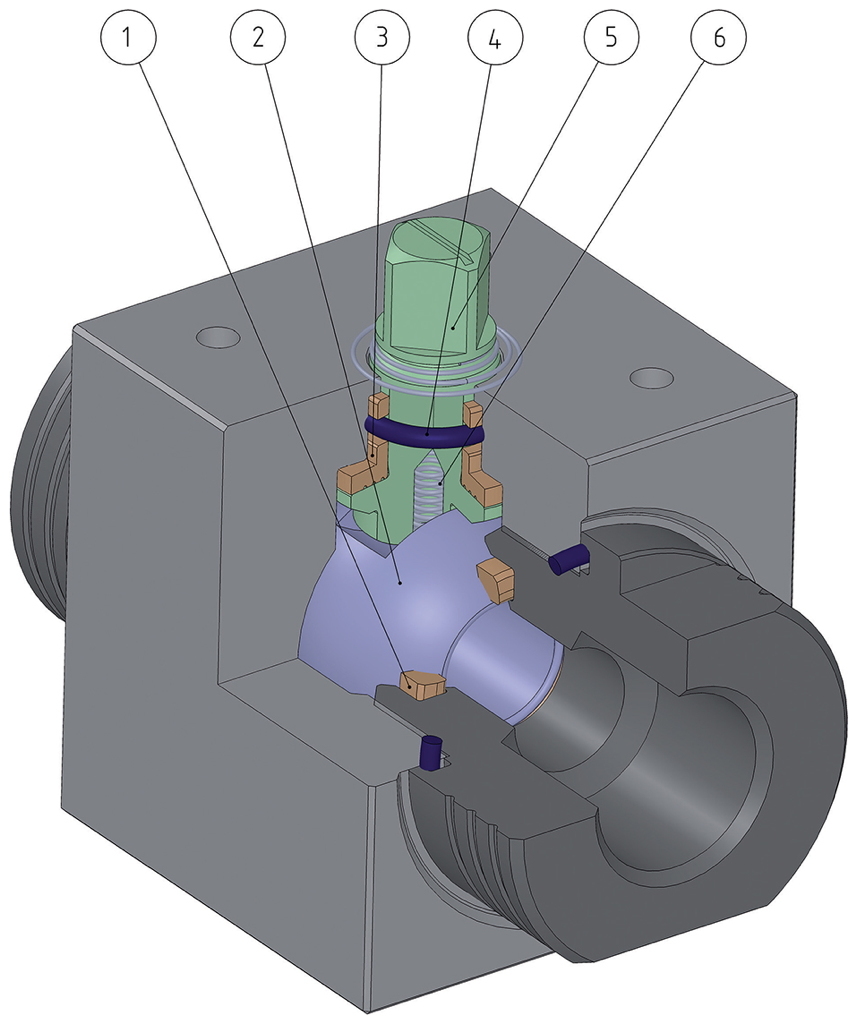

1. Seat in "LUBROSEAT"
Acetal resin compound containing self-lubricating additives.
Ideal for non-lubricating fluids.
High resistance to stress.

2. Stainless steel ball, coated with 40μm Hard Chrome
Longer seal life due to the low wear of the ball

3. “POWERAMMIDE”* stem bush
It grants a perfect alignment of the shaft on the body and prevents oscillations with high pressure
No seizing
High number of cycles

4. Elastomer O-Ring with a hardness of 90 Shore A
No deterioration with quick operations

4. Low-permeability O-ring "Rapid Gas Decompression"
Good resistance to explosive decompression

5. Stem in 17-4 PH H900
Increased mechanical strenght about 5 times more compared to a standard 316 S.S.

5.Shaft rolling
Less wear of the seals due to the low roughness (0,4 micron Ra) which facilitate the sliding of the shaft

6. Antistatic device (electrical continuity between ball, stem and body)
Static electricity is avoided which can cause sparks and fire in an inflammable/explosive environment
Contact safety throughout the entire life of the valve

PED Certificate
Full compliance with European safety standards for pressure equipment (for DN ≥ 32)

Fire safe design
Guarantees the tightness of the valve also in case of fire

Atex Certificate
Installation is possible in a potential explosive environment

UP to SIL 3 certified
Guarantee of the high level of functional safety

GENERAL FEATURES:
• Ends: Threaded ends EN ISO 228 or NPT.
• Working temperature: from -20°C to +80°C.
• Working pressure: PN400/6000 psi DN10, DN15, DN20; PN320/4500 psi DN25, DN32, DN40, DN50
• Working media: oils, petroleum and petrochemical products, water and other compatible with the constructive materials.
• Antistatic device.
• Fire safe design.

SPECIAL EXECUTION ON REQUEST:

For other applications, please contact our sales department.

CERTIFICATIONS:

• ATEX version in conformity with European Directive 2014/34/EU.
• ATEX certificate on request.
• Safety integrity level up to SIL 3 according to the IEC 61508.
• In compliance with European Directive 2014/68/EU PED.

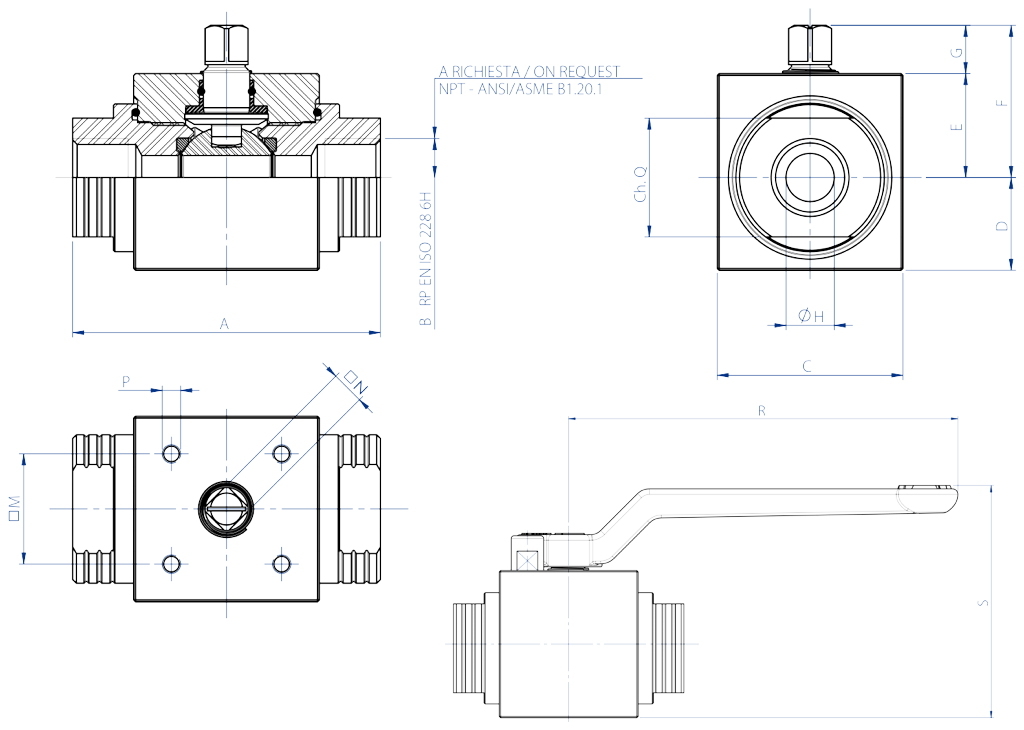

DIMENSIONI
SIZE
A
B
C
D
E
F
G
ØH
Ch.Q
□M
□N
P
R
S
DN [mm]
[inch]
DN 6
1/8"
69
1/8"
30
13
17
27
10
6
19
21x30
6
M5
103,5
56,1
DN 8
1/4"
69
1/4"
30
13
17
27
10
6
19
21x30
6
M5
103,5
56,1
DN 10
3/8"
72
3/8"
45
19,7
25,3
38,3
13
9
24
29,7 (F04)
9
M5
140
75,5
DN 15
1/2"
83
1/2"
50
25
28
41
13
13
32
29,7 (F04)
9
M5
140
83,6
DN 20
3/4"
95
3/4"
55
27,5
31
46
15
19
37
35,36 (F05)
11
M6
212
94,8
DN 25
1"
113
1"
65
32,5
35
50
15
25
45
35,36 (F05)
11
M6
212
103,8
DN 32
1"1/4
111
1"1/4
80
38
42
62
20
32
55
49,5 (F07)
14
M8
315
121,6
DN 40
1"1/2
130
1"1/2
90
44
46
66
20
38
65
49,5 (F07)
14
M8
315
131,6
DN 50
2"
140
2"
120
59
61
81
20
51
80
49,5 (F07)
17
M8
315
161,7

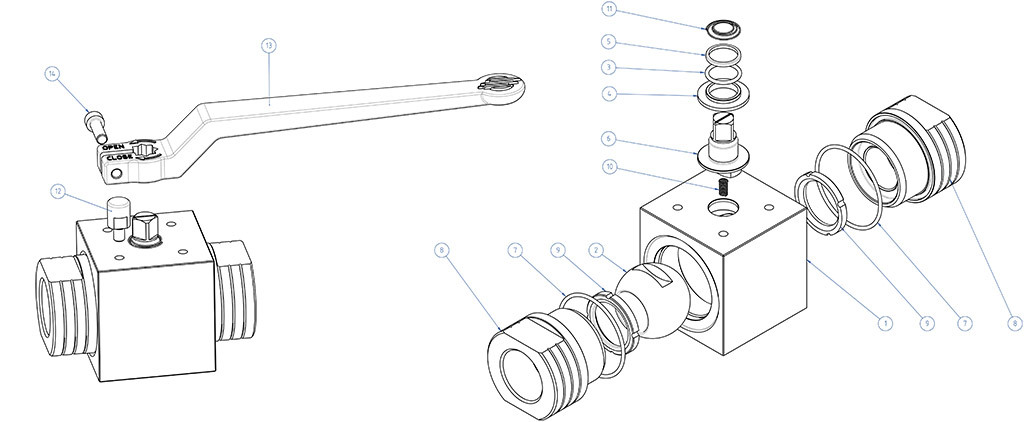

 MATERIALS
1
Body
≤DN25: 1.0737 (11SMnPb37); ≥DN32: 1.0577 (S355J2) Zinc coated
2
Ball
A217 CA15 / A479 tp. 410 / A182 F6A + Hard chromium plated
3*
O-ring
NBR (FKM on request)
4*
Lower bush
POWERAMMIDE Blend of polymers and aramid filler
5*
Upper bush
POWERAMMIDE Blend of polymers and aramid filler
6
Stem
A564 Tp 630 (17-4 PH)
7*
O-ring
NBR (FKM on request)
8
Ends
≤DN25: 1.0737 (11SMnPb37); ≥DN32: 1.0577 (S355J2) Zinc coated
9*
Seats
LUBROSEAT: Acetal resin with self-lubricating additives.
10
Antistatic device spring
1.4310 - X12CrNi17-7
11
Upper antistatic device spring
1.4310 - X12CrNi17-7
12**
Holder screw
X5CrNiMo1713 - 316 S.S.
13**
Lever
EN AB 46100 - AL SI 11 CU (FE) Painted
14**
Screw
A2 - 70
* Seals kit components
** Lever kit components

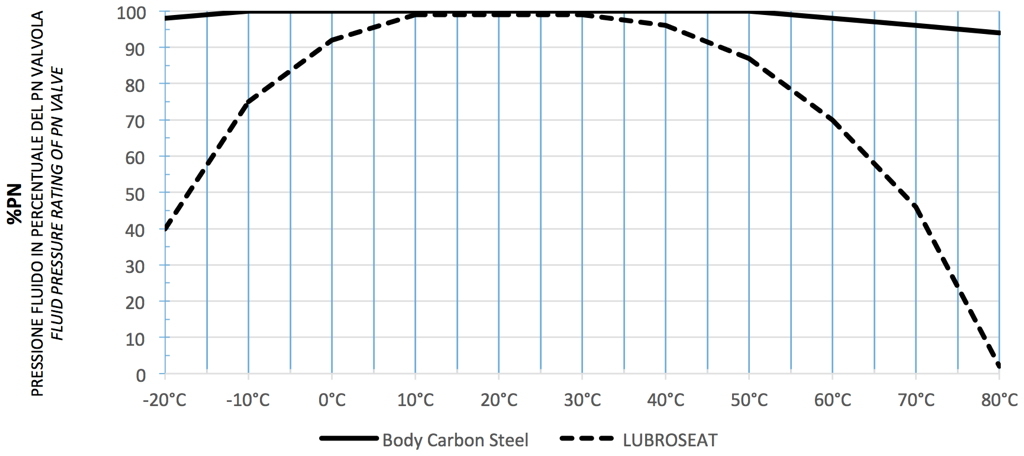

PRESSURE/TEMPERATURE DIAGRAM

DN10, DN15, DN20PN400/6000 psi
DN25, DN32, DN40, DN50PN320/4500 psi

COPPIE DI SPUNTO in Nm
PN
DN 10
3/8"
DN 15
1/2"
DN 20
3/4"
DN 25
1"
DN 32
1"1/4
DN 40
1"1/2
DN 50
2"
PN 400 bar
20
31
40




PN 320 bar
15
25
34
62
82
125
166
PN 100 bar
10
20
30
39
64
88
126
Torque can vary depending on temperature and type of fluid, a safety factor 1.4 must be applied.

  FLOW RATE KV m3/h
KV m3/h
11
20
60
100
130
170
280
Kv is the coefficient, expressed in m3/h (with water at 15°C) causing a pressure loss of 1 bar.
