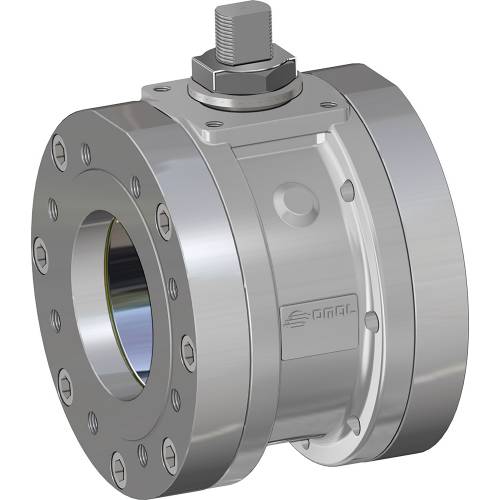

MAGNUM Split Wafer PN 16-40 ANSI 150-300 casting stainless steel ball valve

MAGNUM Split Wafer PN 16-40 ANSI 150-300 casting stainless steel ball valve
Macro Ball valves
Category MAGNUM
Subcategory MAGNUM Split Wafer

Family MAGNUM Split Wafer PN 16-40 ANSI 150-300 casting stainless steel

CONFIGURE Drive
REQUEST INFORMATION
PAGE PRINT
DECODING CODE
  • benefits
  • dimensions
  • materials
  • accessories
  • documents

1. Antistatic device ((electrical continuity between ball, stem and body)
Static electricity is avoided which can cause sparks and fire in an inflammable/explosive environment
Contact safety throughout the entire life of the valve

2. Double antifriction washer
Less Breakaway Torque is granted
Less wear comparing with the execution with the single washer

3."V" seals pack; 3 seals + o-ring
It ensures a perfect tightness even after a high number of cycles

4. Spring washer on the shaft seal
Guarantee of the recovery of the gap due to the wear caused by the rotational movement of the shaft avoiding leakage towards the outside part.
Allow to maintain energized the "chevron" seals (V), thus avoiding any leakage to the outside, against huge temperature excursions

5. Stretch Graphite seal
Tightness towards outside is granted, independently by the thermal excursions to which the valve is subjected

Greater precision in the alignment of axes due to a unique positioning in the process machining from raw material to finished valve
Longer lifetime of the valve
Less breakaway torque

Valve body in carbon steel made with NACE certified material as standard
Greater corrosion resistance
Greater ductility of the material

100% in- house manufacturing process technology
Maximum control and accuracy in all the stages of the manufacturing process
Flexibility in supply quickly special executions requested by customers

"Fire safe" Certificate
Guarantees the tightness of the valve also in case of fire

ATEX Certificate
Installation is possible in a potential explosive environment

TA LUFT fugitive emission Certificate
High level of safety of the tightness towards the outside is granted

PED Certificate
Full compliance with European Safety Standards for Pressure Equipment

UP to SIL 3 certified
Guarantee of the high level of functional safety

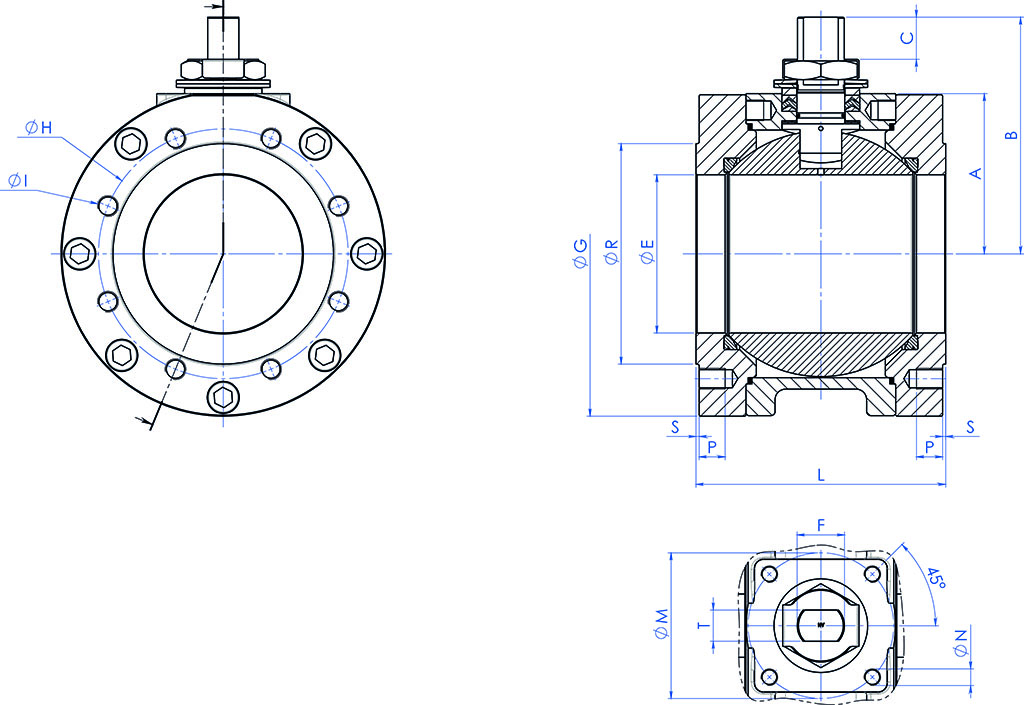

FREE SHAFT DIMENSIONS

FREE SHAFT DIMENSIONS -PN-
SIZEPNØE
ABCØG
ØR
SØH
HOLES N°ØI
PF/TATT.ISOØM
ØN
LKgSeals kit
DN [mm][inch]
DN 1506"PN16152154227,540,533221232408M202545/30F14140M1624084,4KGBV485140
DN 1506"PN25-40152154227,540,533221832508M242445/30F14140M1624086,6KGBV48514D
DN 2008"PN1618818827444,8396268329512M203052/35F14140M16314151,0KGBV485150
DN 2008"PN2520318827444,8396278331012M243052/35F14140M16314155,7KGBV485150


FREE SHAFT DIMENSIONS -ANSI-
SIZEANSIØE
ABCØG
ØR
SØH
HOLES N°
ØI
PF/TATT.ISOØM
ØN
LKgSeals kit
DN [mm][inch]
DN 1506"ANSI150152154227,540,5332215,9
1,6241,383/4"UNC2545/30F14140M1624085,4KGBV485140
DN 1506"ANSI300152154227,540,5332215,9
1,6269,7
123/4"UNC
2545/30F14140M1624087,2KGBV48514D
DN 2008"ANSI15020318827444,8396269,7
1,6298,4
83/4"UNC
3052/35F14140M16314152,9KGBV485150

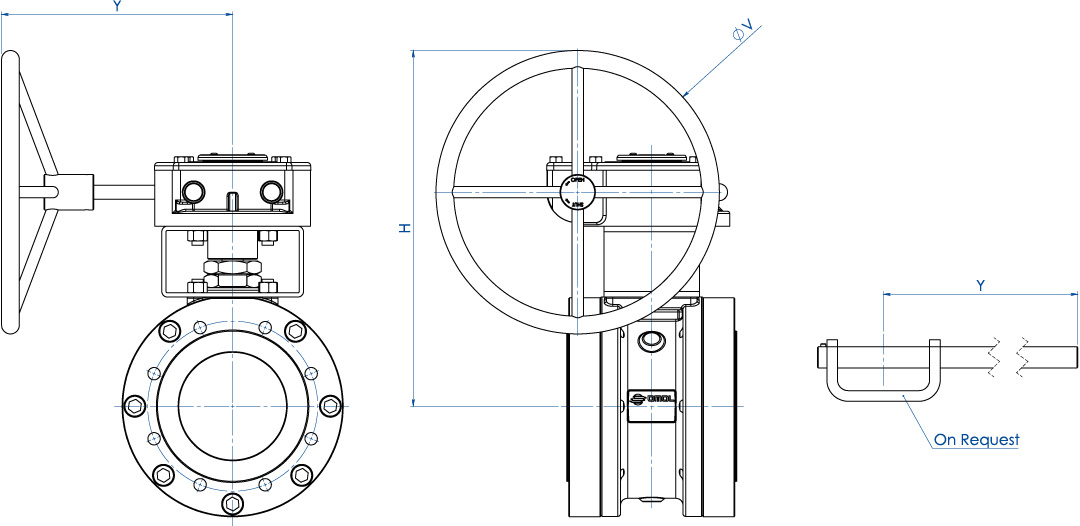

GEARBOX DIMENSIONS

GEARBOX DIMENSIONS -PN-
SIZEPNHYØV
KgLever kit
DN [mm][inch]
DN 1506"PN16522326400126---
DN 1506"PN25-40522347600147---
DN 2008"PN16516347500200---
DN 2008"PN25516347500200---

GEARBOX DIMENSIONS -ANSI-
SIZEANSIHYØV
KgLever kit
DN [mm][inch]
DN 1506"ANSI150522326400126---
DN 1506"ANSI300522347600147---
DN 2008"ANSI150516347500200---

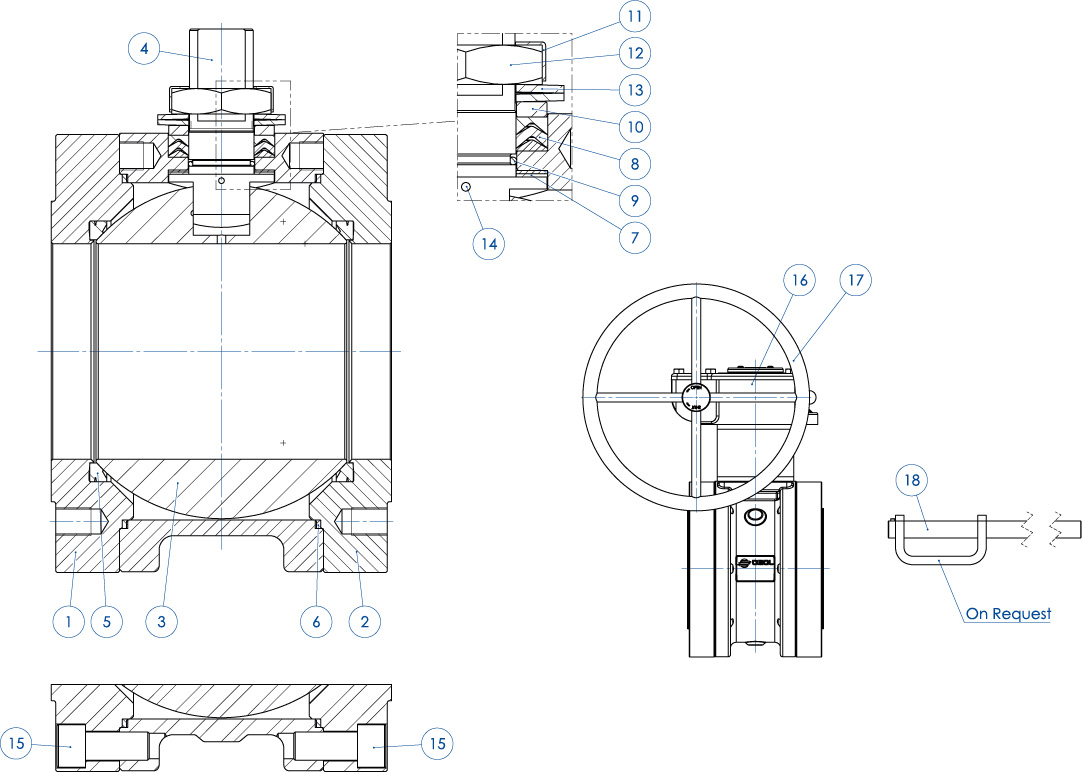

MATERIALS PN16-40 ANSI 150-300 CASTING
DESCRIPTIONCF8M STAINLESS STEEL
1Body
ASTM A351 CF8M (1.4408/Gx5CrNiMo19-12-2)
2Ring Nut
ASTM A182 F316 / A479TP.316 (1.4401 / X5CrNiMo17-12-2)
3Ball
ASTM A351 CF8M (1.4408/GX5CrNiMo19-12-2)
4Stem
A564 TP.630 (17-4PH)
5*Seat
Modified PTFE (.) (2)
6*Body-ring nut gasket
GRAFOIL
7*Stem lower sealing
Modified PTFE (.)
8*Chevron rings
Modified PTFE (.)
9*Stem o-ring
FKM (.)
10Packing gland ring
304 S.S.
11Stop nut plate
304 S.S.
12Stem nut
Carbon steel galvanized (x)
13Springs washer
Carbon steel galvanized (xx)
14Antistatic device
316 S.S.
15Body-ring nut screw
A2.70 (304 S.S)
16Gear box
Cast iron (painted)
17Handwheel
Carbon steel painted
18Lever
Fe37 Galvanized (x)
* Components of seals kit

Available on request:
(x): 304 s.s.
(xx): 301 s.s.
(2) DEVLON for DN150 PN25-40 - ANSI300

(.): Other materials available on request

CASTING STEM EXTENSION WITH LEVER

    MATERIALS
PART. N°
 DESCRIPTION
MATERIAL
1
Extension
AISI304 S.S.
2
Pin
AISI 430 F
3
Bush
DELRIN
4
O-RING
NBR
5
Lever
Fe 37 galvanized (*)
6
Nut
galvanized carbon steel (*)
7
Holder Lever
galvanized carbon steel (*)
8
Holder screw
A2-70
9
Spacer
PTFE Carbon Filled


(*): On request available in Aisi 304 s.s.

DIMENSIONS
ISO VALVE
ØA
ØB
ØM
ØN
F/T
X
Y
F03
36
5,5365,5
10/638,5141,5
F04
425,542M512/845,5151,5
F05
506,5506,516/1048,5276,5
F07
708,5708,522/1457,5351,5
F10
102111021130/1879,5451,5


NOTE: Code of the spindle extension depending from drive’s type and valve’s connection; to be requested at the order.

CASTING STEM EXTENSION FOR ACTUATORS

 MATERIALS
PART. N°
 DESCRIPTION
MATERIAL
1
Extension
ASTM A351 CF8M
2
Pin
AISI 430 F
3
Bush
DELRIN
4
O-RING
NBR


NOTE: Code of the spindle extension depending from drive’s type and valve’s connection; to be requested at the order

WELDED STEM EXTENSION WITH LEVER

MATERIALS
PART. N°
DESCRIPTION
MATERIAL
1
Extension
304 s.s.
2
Pin
AISI 430 F
3
Bush
DELRIN
4
O-Ring
NBR
5
Lever
Fe 37 galvanized (*)
6
Nut
galvanized carbon steel  (*)
7
Holder Lever
galvanized carbon steel  (*)
8
Holder screw
A2-70
9
Holder nut
A2-70 (**)
10
Spacer
PTFE Carbon Filled


(*): On request available in Aisi 304 s.s.

(**): No available on valves with Iso connection F04

DIMENSIONS
ISO VALVE
ØA
ØB
ØM
ØN
F/T
X
Y
F03
36
5,5365,510/638,5141,5
F04
425,542M512/845,5151,5
F05
506,5506,516/1048,5276,5
F07
70970922/1457,5351,5
F10
102111021130/1879,5451,5


NOTE: Code of the stem extension depending from drive’s type and valve’s connection; to be requested at the order.

WELDED STEM EXTENSION FOR ACTUATORS

MATERIALS
PART. N°
DESCRIPTION
MATERIAL
1
Extension
304 S.S.
2
Pin
AISI 430 F
3
Bush
DELRIN
4
O-RING
NBR


NOTE: Code of the stem extension depending from drive’s type and valve’s connection; to be requested at the order.

STEM EXTENSION WITH ADDITIONAL SEAL

 MATERIALS
PART. N°
 DESCRIPTION
 MATERIAL
1
Extension
304 s.s.
2
Pin
A564 TP.630 (17-4ph)
3
Bottom Sealing
TFM1600
4
O-Ring
FKM
5
Chevron Ring
TFM1600
6
Packing Gland Ring
304 s.s.
7
Spring Washer
50CrV4 Galvanized
8
Stem Nut
UNI 3740-1 6S Galvanized
9
Stop Nut Plate
304 s.s.
10
Gasket
GRAFOIL


DIMENSIONS
ISO VALVE
ØA
ØB
ØM
ØN
F/T
CD
F03
36
5,5
36M510/6
2010,2
F04
42
5,5
42M512/8
2615,1
F05
50
6,550M616/10
3521,2
F07
70
8,570M822/14
47,528,4
F10
102
10,5102M1030/18
6135,2

NOTE: Code of the spindle extension depending from drive’s type and valve’s connection; to be requested at the order.
