Item 420 stainless steel ball valves

Item 420 stainless steel ball valves
Macro Ball valves

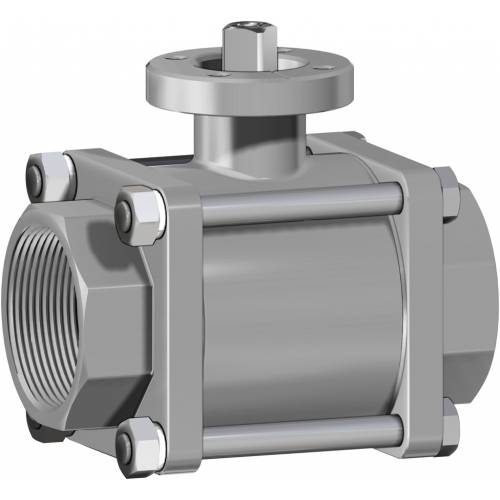

2-way full-bore three piece stainless steel ball valve, threaded-ends or butt weld

CONFIGURE Drive
REQUEST INFORMATION
PAGE PRINT
  • features
  • dimensions
  • materials
  • diagrams and breakaway torque

GENERAL FEATURES:
• The valve is manufactured in 316L stainless steel.
• Manufactured in three pieces to facilitate replacement on plants which requires frequent maintenance.
• Threaded ends as per ISO 7/1 specifications; socket welding; butt welding.
• Working temperature: from -20°C to +150°C
• Working pressure: see diagram.
• Fluid range: air, water, gas, petroleum and petrochemical products, aggressive media.
• ISO 5211 flange connection.
• The manual version (with lever) doesn't have the ISO 5211 flange connection and its therefore not possible to mount on it any kind of actuators.

ON REQUEST:

• Threaded: NPT
• Seals made of: PTFE glass filled / PTFE with carbon graphite
• For other applications, please contact our sales department.

CERTIFICATIONS:
• ATEX version in conformity with directive 2014/34/EU on request.
• ATEX certificate on request.

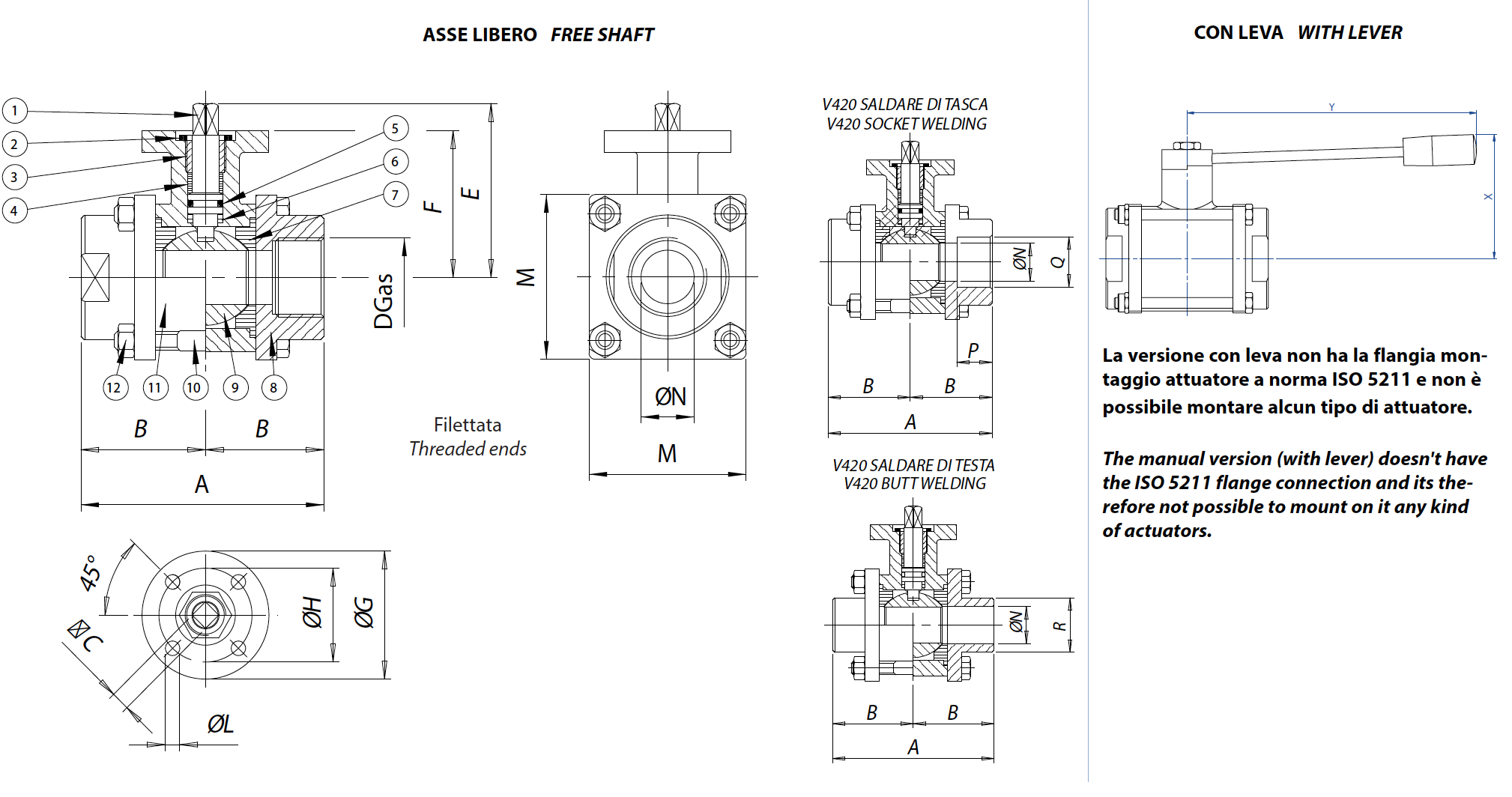

DIMENSIONS
SIZE
A
B
□C
D
E
F
øG
øH
øL
□M
øN
Q
P
R
XY
DN [mm]
[inch]
DN 10
3/8"
70
35
6
3/8”
49,5
41,5
46
36
6
40
10
17,8
9,7
18
55110
DN 15
1/2"
70
35
6
1/2”
49,5
41,5
46
36
6
40
15
22
9,7
22,5
55110
DN 20
3/4"
80
40
6
3/4”
53
45
46
36
6
45
20
27,3
12,7
28
60110
DN 25
1"
90
45
9
1”
64,5
51,5
65
50
7
60
25
42,8
12,7
34,5
70160
DN 32
1" 1/4
100
50
9
1" 1/4
69,5
56,5
65
50
7
70
32
42,8
12,7
43,5
80160
DN 40
1" 1/2
114
57
14
1" 1/2
89
76
65
50
7
80
40
48,9
12,7
49,5
95190
DN 50
2"
136
68
14
2”
95
82
65
50
7
90
50
61,4
15,8
61,5
100190

MATERIALS
1Shaft316L S.S.1.4401
UNI X2CrNiMo 17 12
2Nut303 S.S.

3Ring nut304L S.S. (303 S.S.)

4*Shaft sealP.T.F.E.

5*Shaft o-ringFKM

6*Shaft sealP.T.F.E.

7*Ball sealP.T.F.E.

8Flange316L S.S.1.4401
UNI X2CrNiMo 17 12
9Ball316L S.S.1.4401
UNI X2CrNiMo 17 12
10Screws303 S.S.

11 Body316L S.S.1.4401
UNI X2CrNiMo 17 12
12 Nut303 S.S.

* Components of spare part kit  KGBV55...

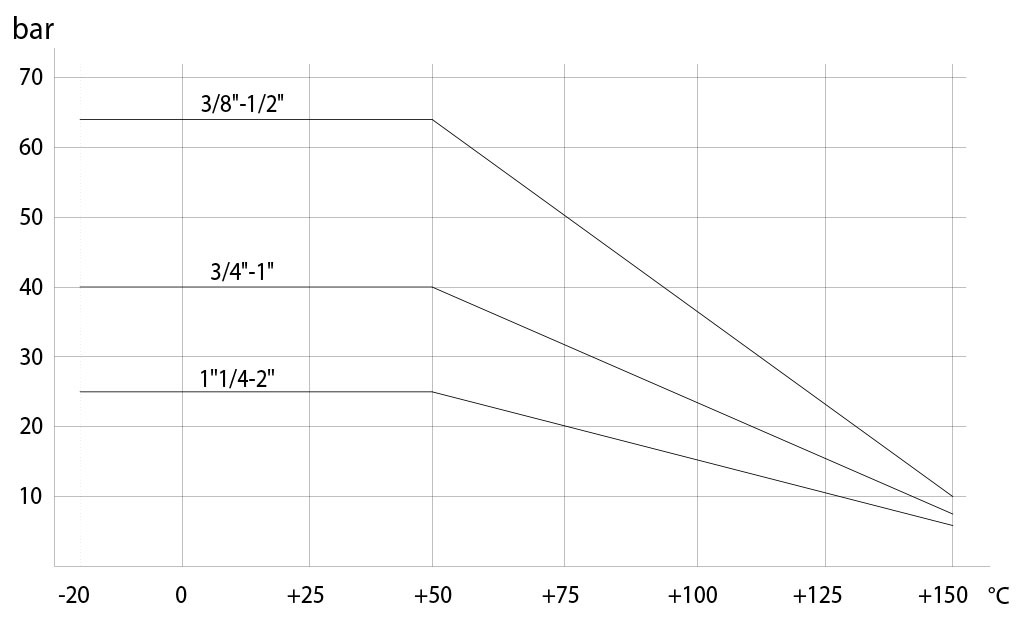

Pressure/temperature diagram

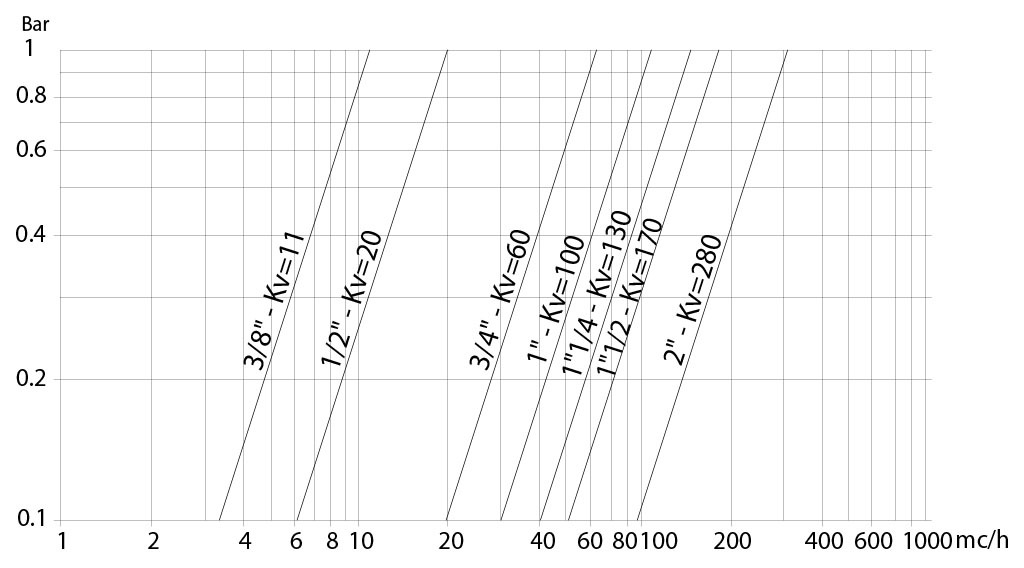

Flow/pressure loss diagram and Kv nominal coefficient

Kv is the coefficient, expressed in m3/h (with water at 15°C) causing a pressure loss of 1 bar.

BREAKAWAY TORQUES Nm
SIZE
DN 10
3/8"
DN 15
1/2"
DN 20
3/4"
DN 25
1"
DN 32
1"1/4
DN 40
1 "1/2
DN 50
2"
PN 25 bar




20
29
40
PN 40 bar


10
14



PN 63 bar
7
8







Torque can vary depending on temperature and type of fluid; a safety factor of 1.4 must be applied. Torque can drop on high frequency of operations. The actuator/valve sizing, indicated on the following pages, are based for valves to be used with liquids or gaseous fluids, clean, and for medium temperatures. For further information, or different uses please contact our sales department.
