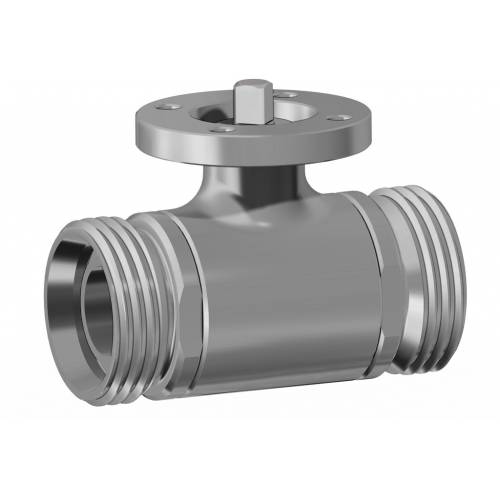

2-way full-bore stainless steel ball valve, DIN 11851 threaded-ends

CONFIGURE Drive
REQUEST INFORMATION
PAGE PRINT
  • features
  • dimensions
  • materials
  • diagrams and breakaway torque

GENERAL FEATURES:
• The valve is manufactured in 316L stainless steel and suggested for particular hygienic conditions (food industry applications).
• Ends: as per DIN 11851 specifications.
• Working temperature: from -20°C to +150°C
• Working pressure: see diagram.
• Fluid range: food industries.
• ISO 5211 flange connection.
The manual version (with lever) doesn't have the ISO 5211 flange connection and its therefore not possible to mount on it any kind of actuators.

ON REQUEST:

• Connection: SMS - MACON - DIN male.
• Seals made of:

  • PTFE glass filled,
  • PTFE with carbon graphite,
  • High-molecular weight polyethylene.
• For other applications, please contact our sales department.

CERTIFICATIONS:
• ATEX version in conformity with European Directive 2014/34/EU.
• ATEX certificate on request.
• In compliance with European Directive 2014/68/EU PED.

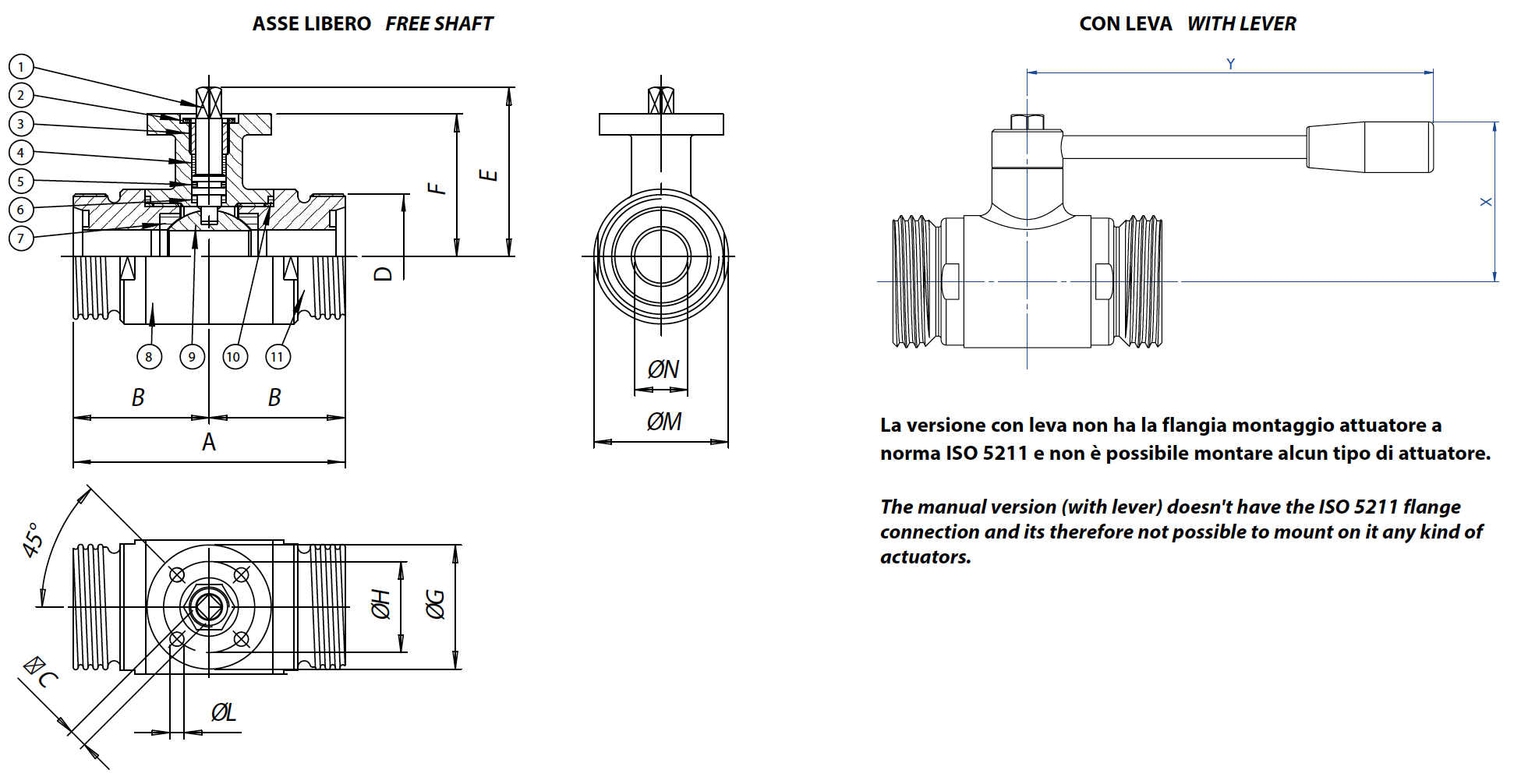

DIMENSIONS
SIZE
A
B
□C
D
E
F
øG
øH
øL
øM
øN
XY
DN [mm]
[inch]
DN 10
3/8"
88
44
6
28
47
39
46
36
6
30
10
50110
DN 15
1/2"
92
46
6
34
49,5
41,5
46
36
6
35
15
55110
DN 20
3/4"
102
51
6
44
53
45
46
36
6
42
20
60110
DN 25
1"
106
53
9
52
64,5
51,5
65
50
7
52
25
65160
DN 32
1" 1/4
112
56
9
58
69,5
56,5
65
50
7
60
32
70160
DN 40
1" 1/2
126
63
14
65
89
76
65
50
7
74
40
80190
DN 50
2"
136
68
14
78
97
84
65
50
7
90
50
90190
DN 65
2" 1/2
154
68
17
95
109,5
94,5
90
70
9
110
65
110220
DN 80
3"
184
92
17
110
121
106
90
70
9
141
80
130285
DN 100
4"
190
95
17
130
135
120
125
102
11
160
100
150310

MATERIALS
1Shaft316L S.S.1.4401UNI X2CrNiMo 17 12
2Nut303 S.S.

3Gland nut ring
304L S.S. (303 S.S.)

4*Top tight ringP.T.F.E.

5*Shaft o-ringFKM

6*Washer
P.T.F.E.

7*SealsP.T.F.E.

8Body316L S.S.1.4401UNI X2CrNiMo 17 12
9Ball316L S.S.1.4401UNI X2CrNiMo 17 12
10*End sealingsP.T.F.E.

11End316L S.S.1.4401UNI X2CrNiMo 17 12
* Components of spare part kit KGBV63...

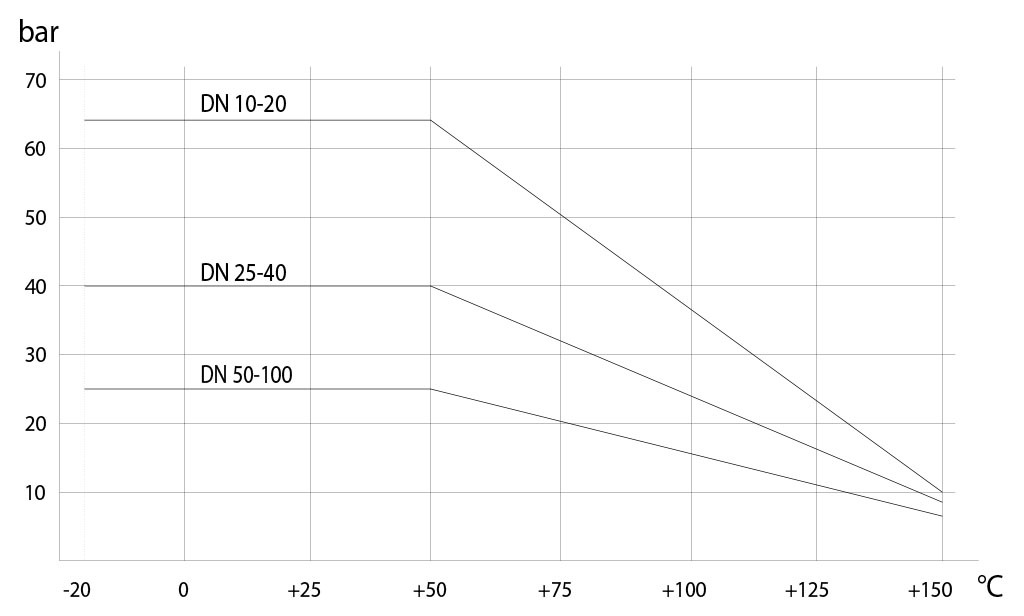

Pressure/temperature diagram

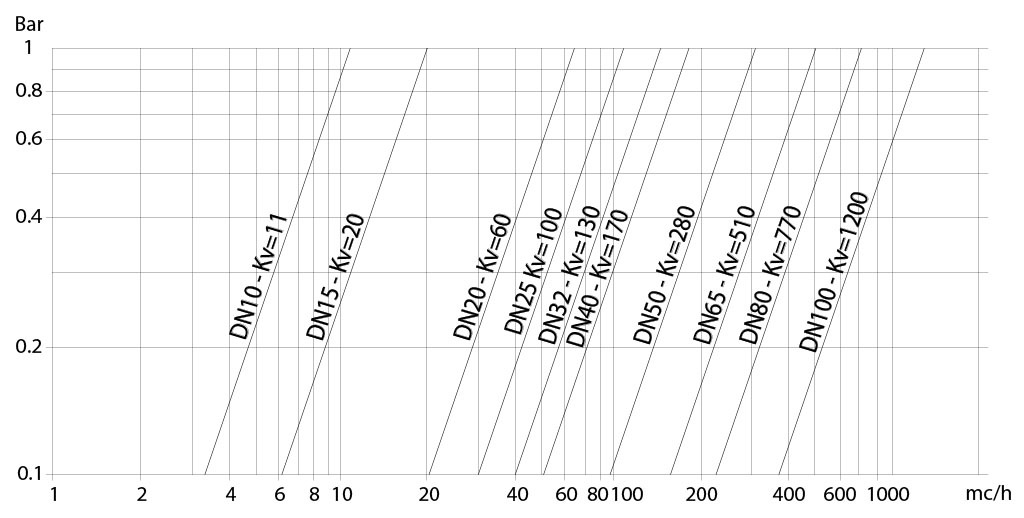

Flow/pressure loss diagram and Kv nominal coefficient

Kv is the coefficient, expressed in m3/h (with water at 15°C) causing a pressure loss of 1 bar.

  BREAKAWAY TORQUES Nm
SIZE
DN 10 3/8"
DN 15
1/2"
DN 20
3/4"
DN 25
1"
DN 32 1"1/4
DN 40 1"1/2
DN 50
2"
DN 65 2"1/2
DN 80
3"
DN 100
4"
PN 25 bar






41
63
95
148
PN 40 bar



15
20
28




PN 63 bar
7
8
11









Torque can vary depending on temperature and type of fluid; a safety factor of 1.4 must be applied. Torque can drop on high frequency of operations. The actuator/valve sizing, indicated on the following pages, are based for valves to be used with liquids or gaseous fluids, clean, and for medium temperatures. For further information, or different uses please contact our sales department.
