Item 448 stainless steel ball valves

Item 448 stainless steel ball valves
Macro Ball valves

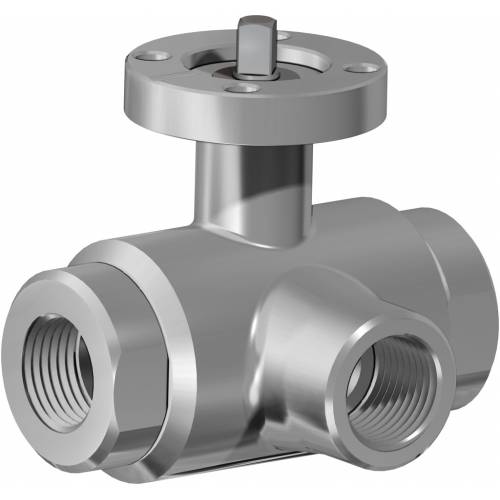

3-way full-bore threaded-ends stainless steel ball valve, “L” port

CONFIGURE Drive
REQUEST INFORMATION
PAGE PRINT
  • features
  • dimensions
  • materials
  • diagrams and breakaway torque
  • specifications

GENERAL FEATURES:
The valve can be used as diverted only and the in let can be from the central way, only; see plan.
• The valve is manufactured in 316L stainless steel.
• Working temperature: from -20°C to +150°C
• Working pressure: see table.
• Fluid range: air, water, gas, oils, petroleum and petrochemical products, aggressive media.
• Female threaded ends as per ISO 228 specifications.
• ISO 5211 flange connection.
The manual version (with lever) doesn't have the ISO 5211 flange connection and its therefore not possible to mount on it any kind of actuators.

ON REQUEST:
• Seals made of:

  • PTFE glass filled,
  • PTFE with carbon graphite,
  • High-molecular weight polyethylene.
• For other applications, please contact our sales department.

CERTIFICATIONS:
•
ATEX version in conformity with European Directive 2014/34/EU.
• ATEX certificate on request

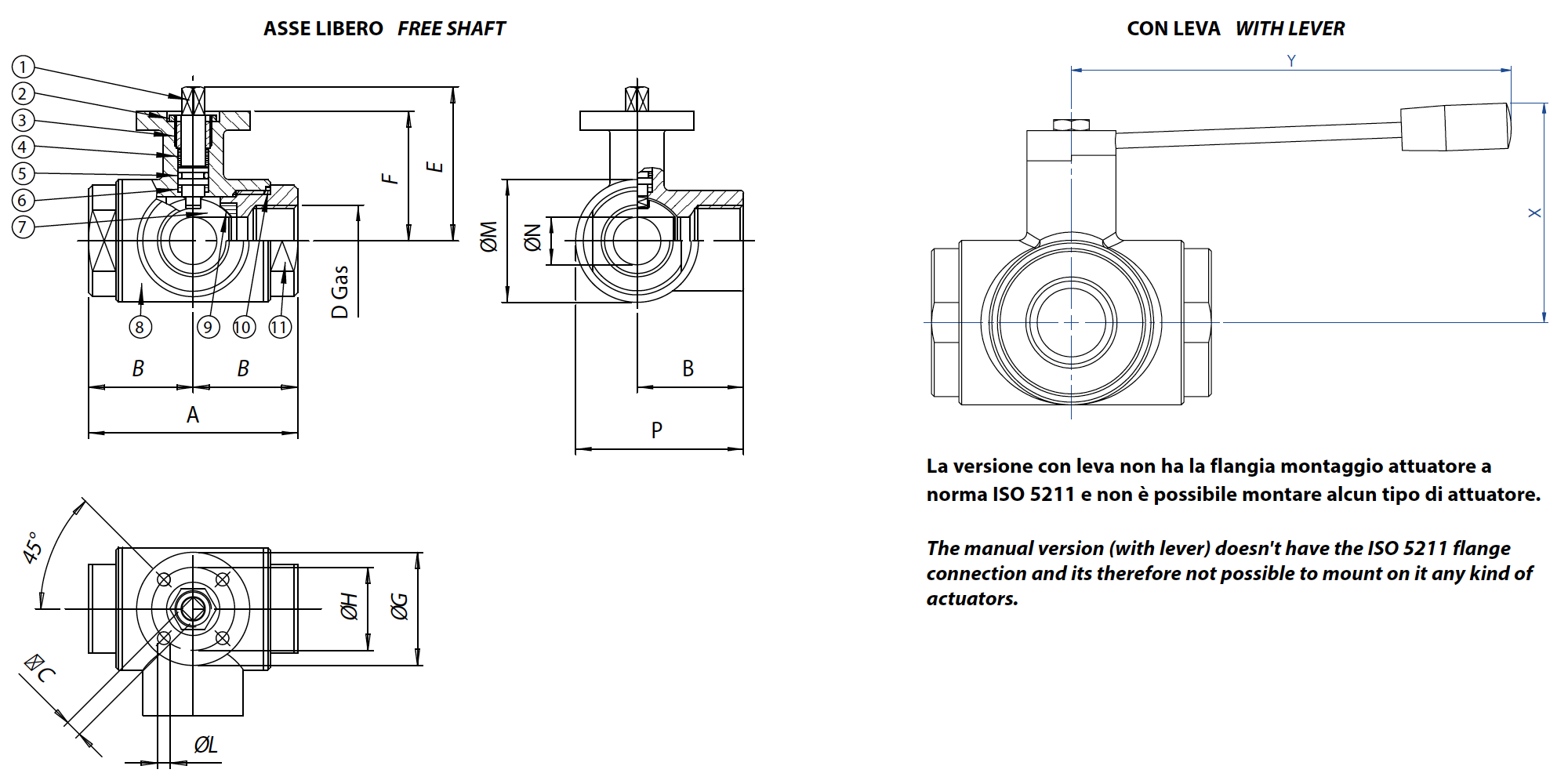

DIMENSIONS
SIZE
A
B
□C
D
E
F
øG
øH
øL
øM
øN
P
XY
DN [mm]
[inch]
DN 10
3/8"
72
36
6
3/8”
54
46
46
36
6
35
10
53,5
60110
DN 15
1/2"
82
41
6
1/2”
57
49
46
36
6
42
15
62
65110
DN 20
3/4"
92
46
9
3/4”
69,5
56,5
65
36
7
52
20
72
70160
DN 25
1"
102
51
9
1”
74
61
65
50
7
60
25
81
80160
DN 32
1" 1/4
118
59
14
1" 1/4
94,5
81,5
65
50
7
72,5
32
95,3
95190
DN 40
1" 1/2
134
67
14
1" 1/2
102
89
65
50
7
88
40
111
110190
DN 50
2"
144
72
17
2”
106,5
91,5
65
70
9
101,5
50
122,8
120220
DN 65
2" 1/2
160
80
17
2" 1/2
116,5
101,5
90
70
9
121
65
140,5
130285
DN 80
3"
200
100
17
3”
131
116
125
102
11
150
80
175
145310
DN 100
4"
240
120
17
4”
146
131
125
102
11
182
100
211
160310

MATERIALS
1Shaft316L S.S.1.4401UNI X2CrNiMo 17 12
2Nut303 S.S.

3Gland nut ring304 S.S. (303 S.S.)

4*Top tight ringP.T.F.E.

5*Shaft o-ringFKM

6*WasherP.T.F.E.

7Ball316L S.S.1.4401UNI X2CrNiMo 17 12
8Body316L S.S.1.4401UNI X2CrNiMo 17 12
9*SealsP.T.F.E.

10*End sealingsP.T.F.E.

11End316L S.S.1.4401UNI X2CrNiMo 17 12
* Components of spare part kit KGBV66...

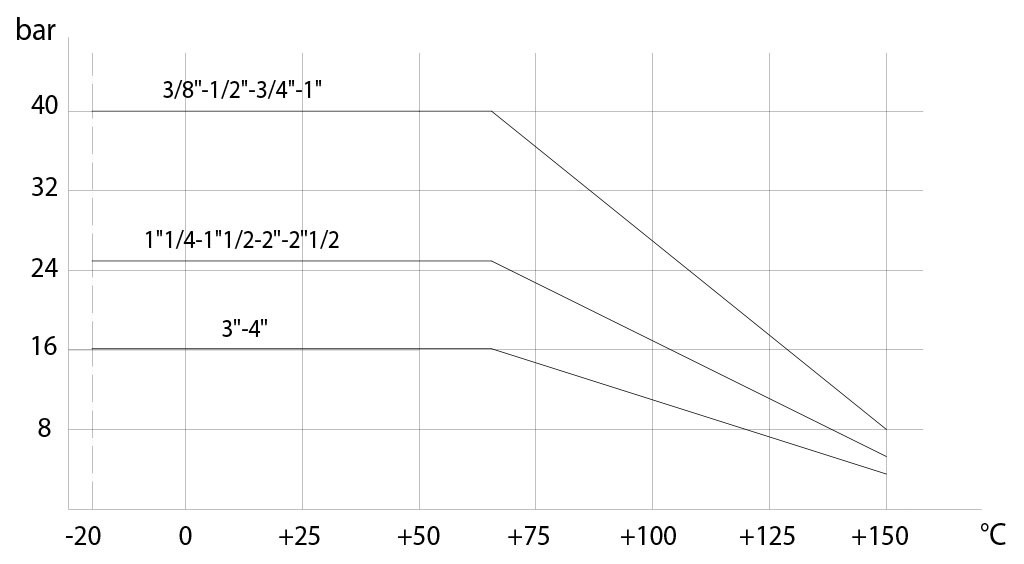

Pressure/temperature diagram

 BREAKAWAY TORQUES Nm
  SIZE
DN 10 3/8"
DN 15 1/2"
DN 20 3/4"
DN 25
1"
DN 32 1"1/4
DN 40 1"1/2
DN 50
2"
DN 65 2"1/2
DN 80
3"
DN 100
4"

PN 16 bar








140
215
PN 25 bar




28
41
61
90


PN 40 bar
7
10
14
20








Torque can vary depending on temperature and type of fluid; a safety factor of 1.4 must be applied. Torque can drop on high frequency of operations. The actuator/valve sizing, indicated on the following pages, are based for valves to be used with liquids or gaseous fluids, clean, and for medium temperatures. For further information,or different uses please contact our sales department.

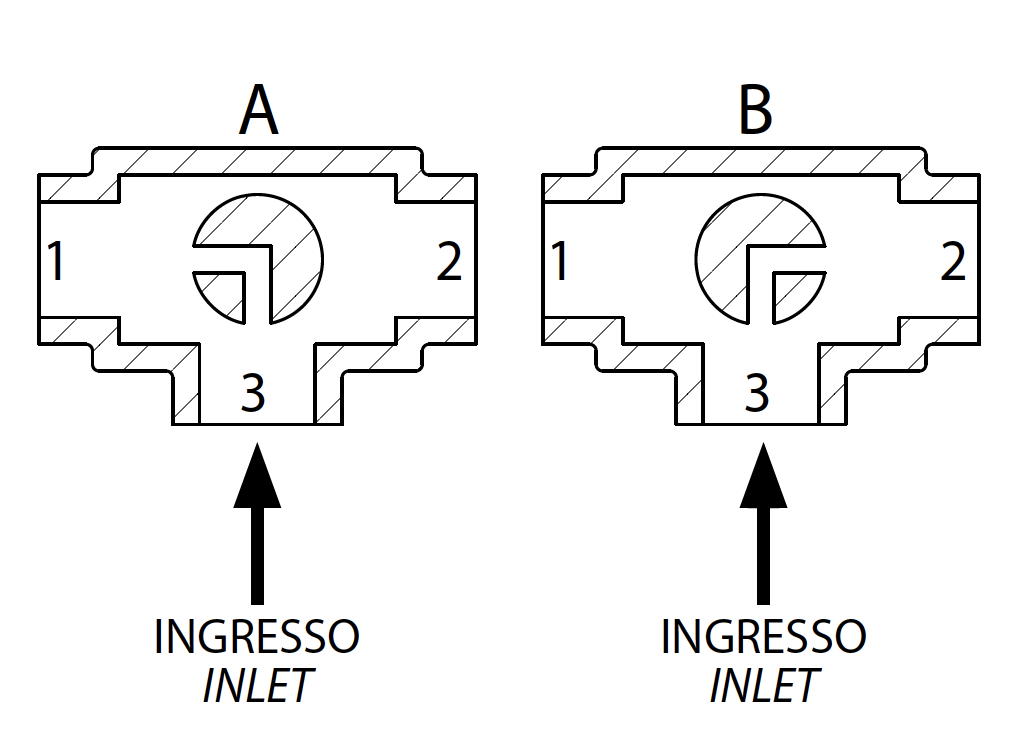

Plan for "L" port

N.B.:
A” must be the rest position of the ball with SR FAIL CLOSE actuator.
B” must be the rest position of the ball with SR FAIL OPEN actuator.

View from above
