TECHNICAL DATA

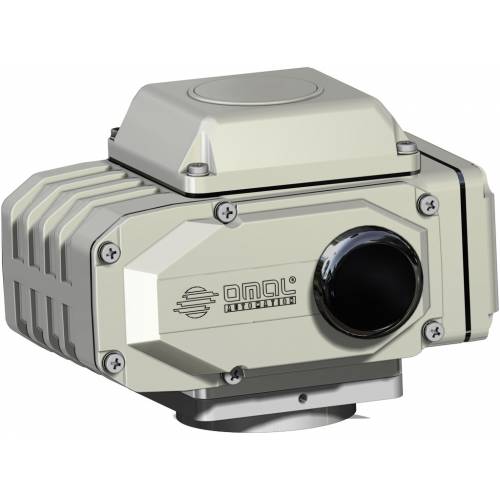

Electronic control MODULATING Actuator
Working angle 90° (100° Max.)
Maximum torque from 20 to 1960 Nm. (see the table)
Voltage 230 Vac 1Ph 50/60 Hz.
Input signal 4~20 mA (1~5 Vdc).
Output signal 4~20 mA (1~5 Vdc AM 20).
High resolution 1/250 (adjustable 1/200 ~ 1/400).
Adjustable zero/span.
Direct/reverse function selector.
Mode selector without OPEN-CLOSE-STOP signal
Insulation resistance 100 M /500 Vdc
Tension insulation 1500 Vac/1 minute
Motor with Class E insulation
Working temperature from –25°C to + 55°C (for use in temperatures below 0°C,
we suggest anti-condensate elements)
Protection according to NEMA 4,4X rules (IP65)
Coupling flange for the valve from F03 to F14: ISO 5211.
Auto-reset thermostatic protection in the motor.
Open/close limit switches with cams adjustable along the whole stroke
Limit switches with adjustable cams.
Safety adjustable mechanical limit switches.
Graduated visual position indicator
Detachable lever for manual operation
Electric connections with screw terminals
Locking of supply cables by means of cable presses
Maximum working noise <70 dB (A).
OPTIONAL (MUST BE REQUESTED WHEN PLACING THE ORDER)
Feeding voltage 115 Vac - 24 Vac. (*)
Input signal 4~12 mA (1~3 Vdc) - 12~20 mA (3~5 Vdc).
Auxiliary limit switches.
Torque limiters.
Space heater.
Drive socket.
Emergency gear box. (**)
* AM 50-AM 100
** AM 50-AM 100-AM 200
| DATA SHEET | |||||||||
| MODEL | AM 20 | AM 50 | AM 100 | AM 200 | AM 400 | AM 500 | AM 1000 | AM 1500 | AM 2000 |
| Torque Nm | 20 | 49 | 98 | 196 | 390 | 490 | 980 | 1470 | 1960 |
| Time of cycle (50 Hz) sec. | 15 | 15 | 30 | 15 | 30 | 15 | 30 | 45 | 60 |
| Time of cycle (60 Hz) sec. | 12,5 | 12,5 | 25 | 12,5 | 25 | 12,5 | 25 | 38 | 50 |
| Power consumption 230Vac 50/60Hz A | 0,4/0,5 | 0,35/0,4 | 0,35/0,4 | 0,9/1 | 0,9/1 | 1,3/1,4 | 1,3/1,4 | 1,3/1,4 | 1,3/1,4 |
| Power consumption 115Vac 50/60Hz A | 0,8/0,9 | 0,6/0,7 | 0,6/0,7 | 1,9/2 | 1,9/2 | 2,5/2,6 | 2,5/2,6 | 2,5/2,6 | 2,5/2,6 |
| Power consumption 24Vac 50/60Hz A | ---- | 1,7/1,8 | 1,7/1,8 | ---- | ---- | ---- | ---- | ---- | ---- |
DIMENSIONS | |||||||||
| MODEL | AM 20 | AM 50 | AM 100 | AM 200 | AM 400 | AM 500 | AM 1000 | AM 1500 | AM 2000 |
| A mm. | 165,8 | 207,5 | 207,5 | 256,5 | 256,5 | 381 | 381 | 381 | 381 |
| B mm. | 114,5 | 122,5 | 122,5 | 156,5 | 156,5 | 242 | 242 | 253,5 | 253,5 |
| C mm. | 119,5 | 163,5 | 163,5 | 185 | 185 | 234 | 234 | 234 | 234 |
| D mm. | 83,3 | 110 | 110 | 133,5 | 133,5 | 199,5 | 199,5 | 199,5 | 199,5 |
| E mm. | 51 | 54,5 | 54,5 | 62,5 | 62,5 | 105 | 105 | 105 | 105 |
| ØF mm. | ---- | 28 | 28 | 36 | 36 | 56 | 56 | 56 | 56 |
| G mm. | ---- | 6 | 6 | 8 | 8 | 10 | 10 | 10 | 10 |
| H mm. | ---- | 16,5 | 16,5 | 21,3 | 21,3 | 31,3 | 31,3 | 31,3 | 31,3 |
| I mm. | 1 | 11,5 | 11,5 | 12 | 12 | 8 | 8 | 8 | 8 |
| K mm. | 16 | 29 | 29 | 34 | 34 | 54 | 54 | 54 | 54 |
| L mm. | 12 | 40,5 | 40,5 | 46 | 46 | 62 | 62 | 62 | 62 |
| ØM mm. | 26 | 35 | 35 | 40 | 40 | 65 | 65 | 65 | 65 |
| ØP mm. | 50-F05 | 70-F07 | 70-F07 | 102-F10 | 102-F10 | 125-F12* | 125-F12* | 140-F14 | 140-F14 |
| ØQ mm. | 36-F03 | 50-F05 | 50-F05 | 70-F07 | 70-F07 | 102-F10* | 102-F10* | ---- | ---- |
| R x prof. depth mm. | M6x12 | M8x12 | M8x12 | M10x16 | M10x16 | M12x20* | M12x20* | M16x25 | M16x25 |
| S x prof. depth mm. | M5x10 | M6x10 | M6x10 | M8x13 | M8x13 | M10x20* | M10x20* | ---- | ---- |
| T mm. | 80 | 98 | 98 | 135 | 135 | 160 | 160 | 160 | 160 |
| U mm. | 72 | 86 | 86 | 106 | 106 | 140 | 140 | 140 | 140 |
| V mm. | 40 | 44 | 44 | 44 | 44 | ---- | ---- | ---- | ---- |
| Weight Kg. | 3,1 | 4,5 | 4,5 | 8,7 | 8,7 | 22,8 | 22,8 | 22,8 | 22,8 |
| MATERIALS | ||
| 1 | Body | Aluminium |
| 2 | Gear box cap | Aluminium |
| 3 | Position indicator | Glass |
| 4 | Electric-set cap | Aluminium |
| 5 | Terminal-box cap | Aluminium |
| 6 | Cable gland | Zinc alloy |
| 7 | Lever connection | Steel |
| 8 | Female shaft | Zinc alloy (AM 1500-AM 2000:Steel) |
| 9 | Security stops | Stainless steel |
| 10 | Protections for lever connection | NBR |
| 11 | Lever (not represented) | Stainless steel |
| MAXIMUM CONFIGURATION FOR THE SUPPLY OF ACTUATORS | |||||||
| AP(1-2-3) | AT1/AT2 AT5/AT6 | ASH | ARI | ASC | AHW | AL2 | |
| AE 10 - AE 40 Voltage AC - DC | YES | YES(T1) | YES | NO | NO | NO | STD |
| AE 100 - AE 200 Voltage AC | YES | YES | YES | NO | YES | YES | STD |
| AE 100 - AE 200 Voltage AC | NO | YES | YES | YES | NO | YES | STD |
| AE 100 - AE 200 Voltage DC | YES | YES | YES | NO | NO | YES | STD |
| AE 400 ÷ AE 2000 Voltage AC | YES | YES | YES | NO | YES | NO | STD |
| AE 400 ÷ AE 2000 Voltage AC | YES | YES | YES | YES | NO | NO | STD |
| AM 20 | NO | NO | NO | NO | NO | NO | NO |
| AM 50 ÷ AM 200 | NO | YES | NO | NO | NO | YES | YES |
| AM 50 ÷ AM 200 | NO | YES | YES | NO | NO | YES | NO |
| AM 400 ÷ AM 2000 | NO | YES | YES | NO | NO | NO | YES |
AM Vac
Electrical actuator Modulating AM type
Example of standard connection circuit with alternative tension feeding.
| EXTRA ACCESSORIES FOR ELECTRICAL ACTUATORS AND CORRESPONDANT IDENTIFICATION | |
| DESCRIPTION | CONFIGURATOR |
| 2 auxiliary limit-switches | AL2 |
| Potentiometer 135 ohm | AP1 |
| Potentiometer 500 ohm | AP2 |
| Potentiometer 1000 ohm | AP3 |
| R/I convertor 4÷20 mA | ARI |
| Speed control | ASC |
| Close torque limiter | AT1 - (AT5 AE600÷2000 AM 500÷2000) |
| Open and close torque limiter | AT2 - (AT6 AE600÷2000 AM 500÷2000) |
| Anti-condensate element | ASH |
| Wheel for manual operation | AHW |
