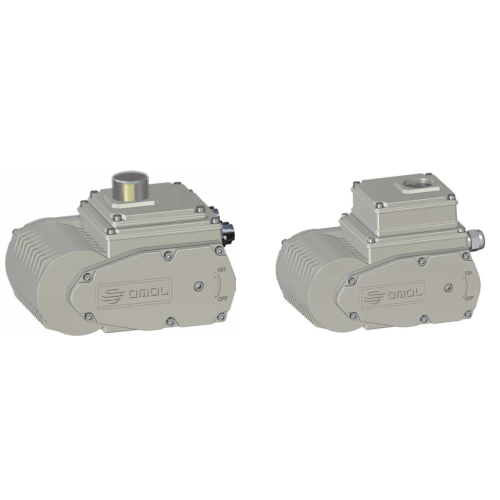

EA ON-OFF rotary type electric actuator

TECHNICAL DATA
Nominal working angle: 90º, adjustable between 20º and 95º.
Type of setting: continuous by means of self-locking cams and electromechanical limtswitches.
Nominal working torque: from 35 to 240 Nm.

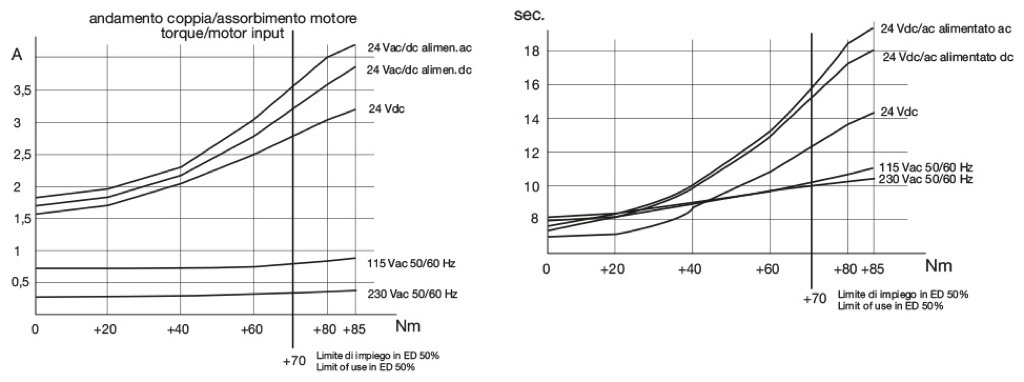

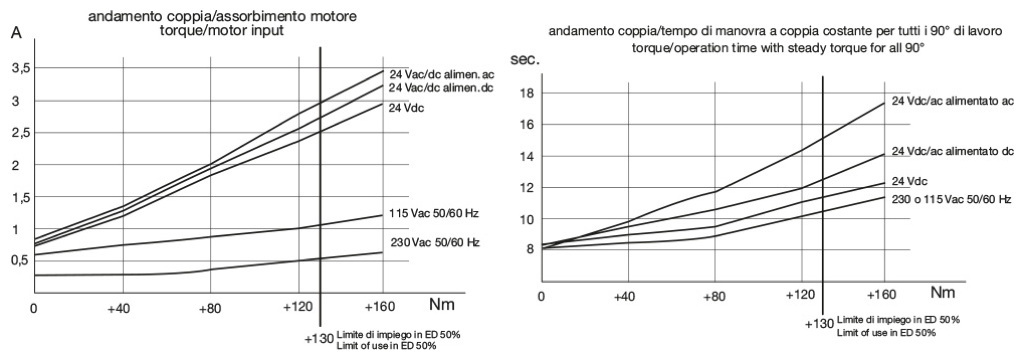

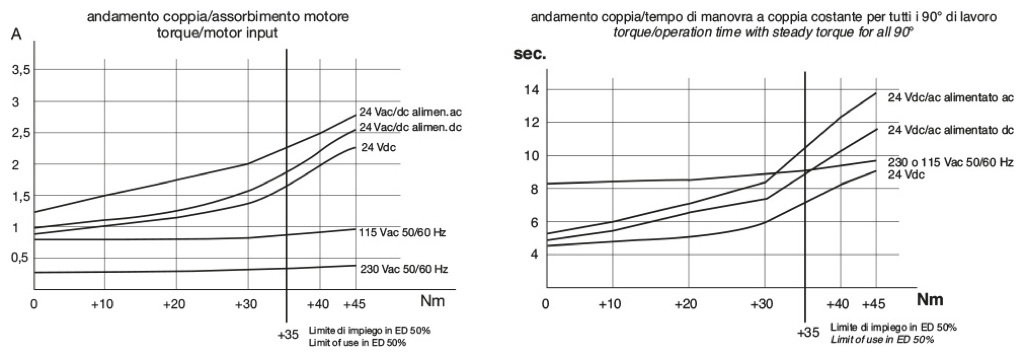

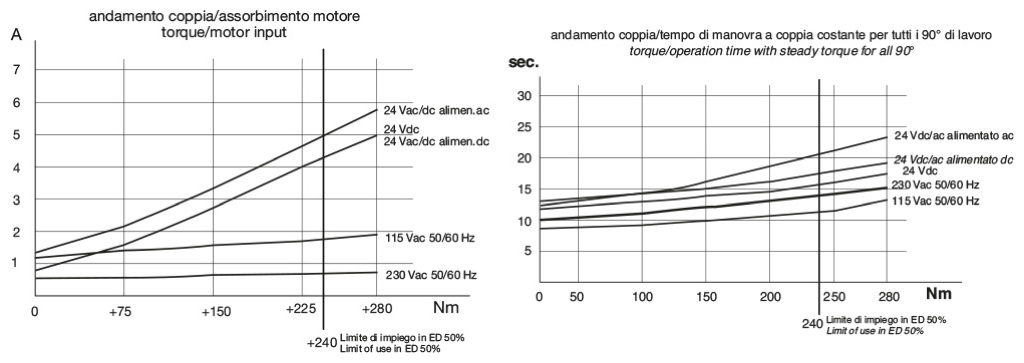

Operation time (0° - 90°): see diagram.
Service: S3 ED 50% in compliance with CEI 60043.
Applicable regulations: Low Voltage Directive 2014/35/UE; Electromagnetic Compatibility Directive 2014/30/CE.
Enclosure: IP67 in compliance with EN60529.
Working temperature: -25º +60ºC.
Storage temperature: -40º +90ºC.
Motor built-in auto-reset thermostatic protection.
Motor with Class F insulation (155ºC) .
Rotor supported by ball bearings.
Connection for emergengy manual lever (hexagonal wrench in equipment).
External visual position indicator with graduated top.
Space heater (standard).
IP67 connectors also available, on request with pre-wired cable.
No. 2 SPDT auxiliary electromechanical limit switches with cams adjustable all along the stroke.
Maximum working noise: <70 dB (A).

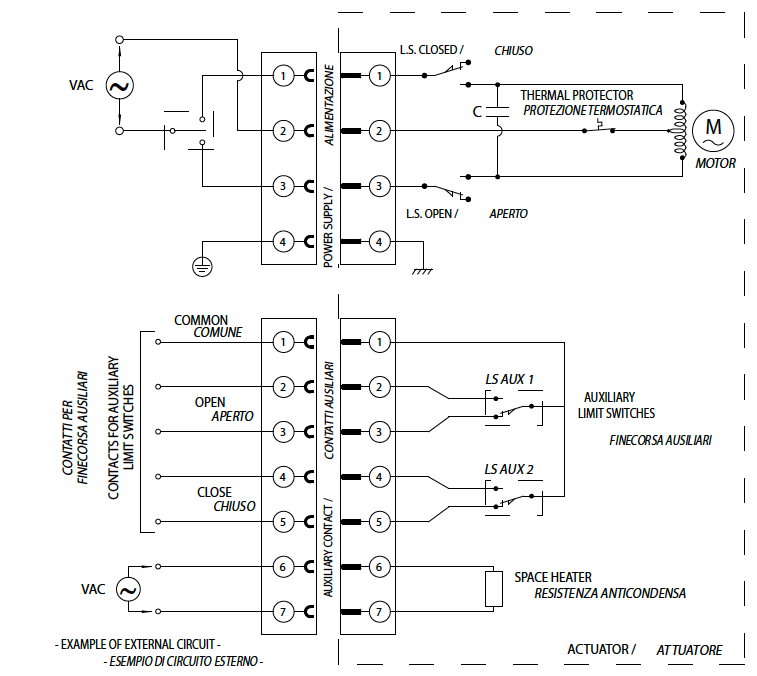

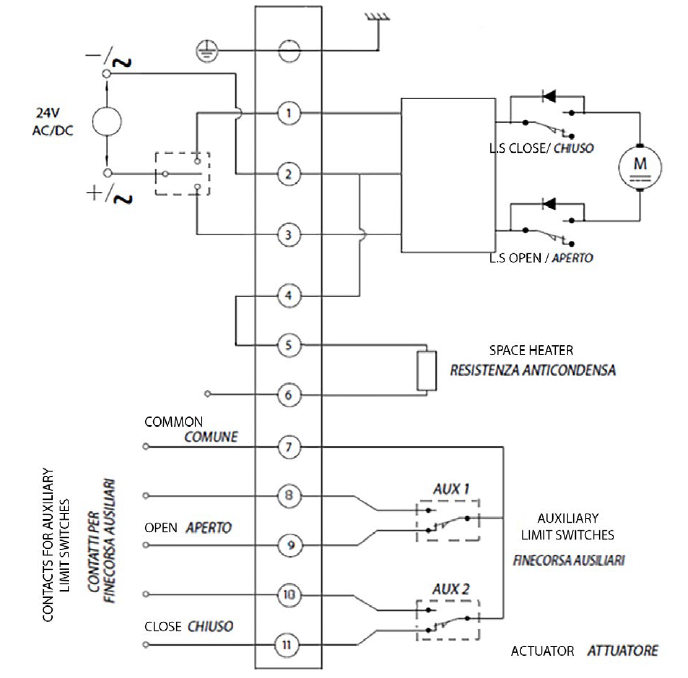

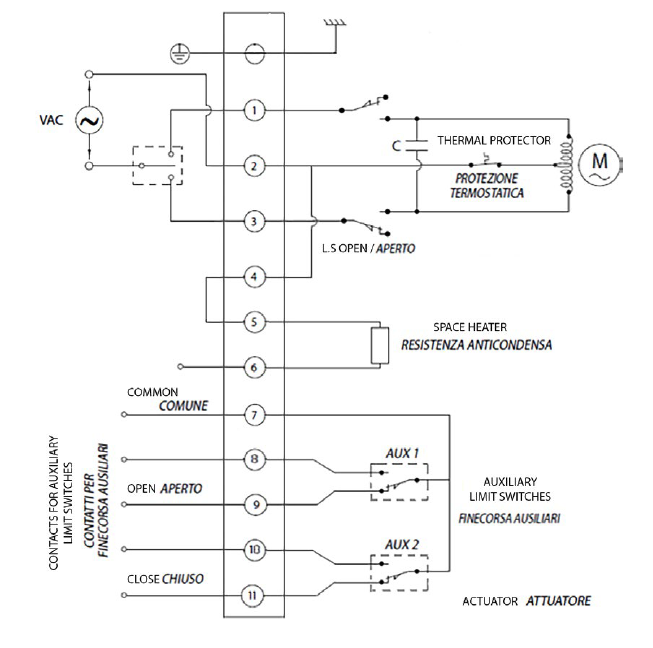

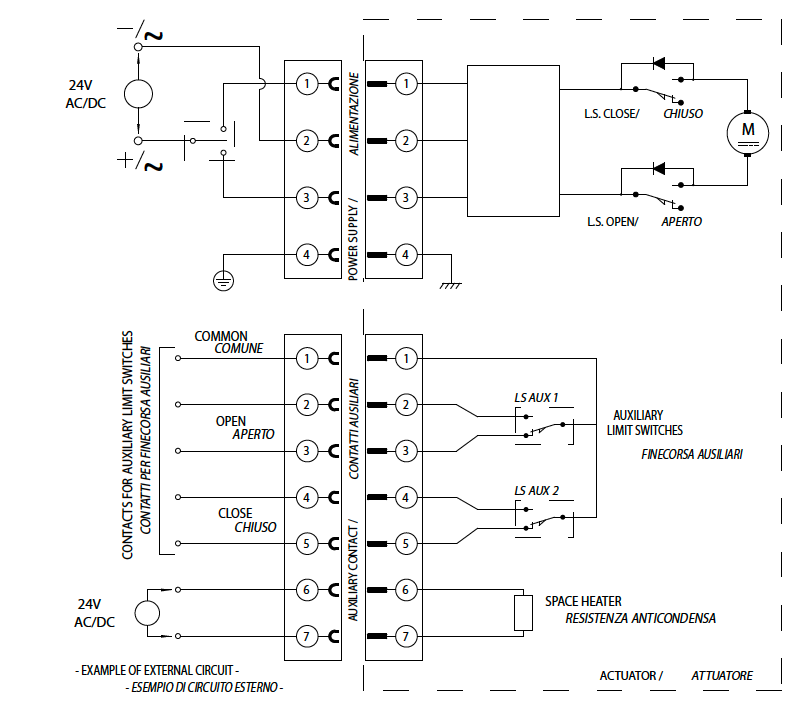

Supply voltage: 230 Vac ±10%, 50/60 Hz monophase; 115 Vac ±10%, 50/60 Hz monophase; 24 V ac/dc ±10%; 24 V dc ±5%.
