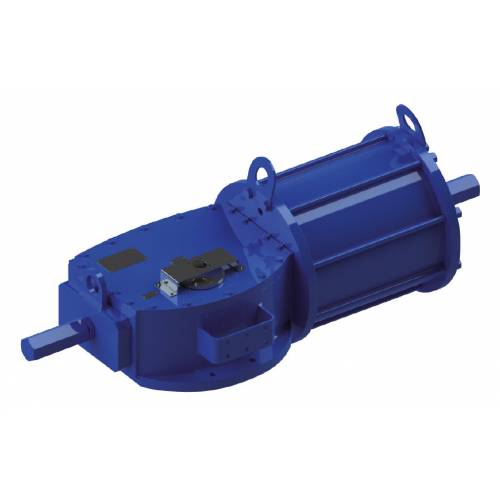

Double acting DA type Heavy Duty carbon steel actuator

  • benefits
  • features
  • materials

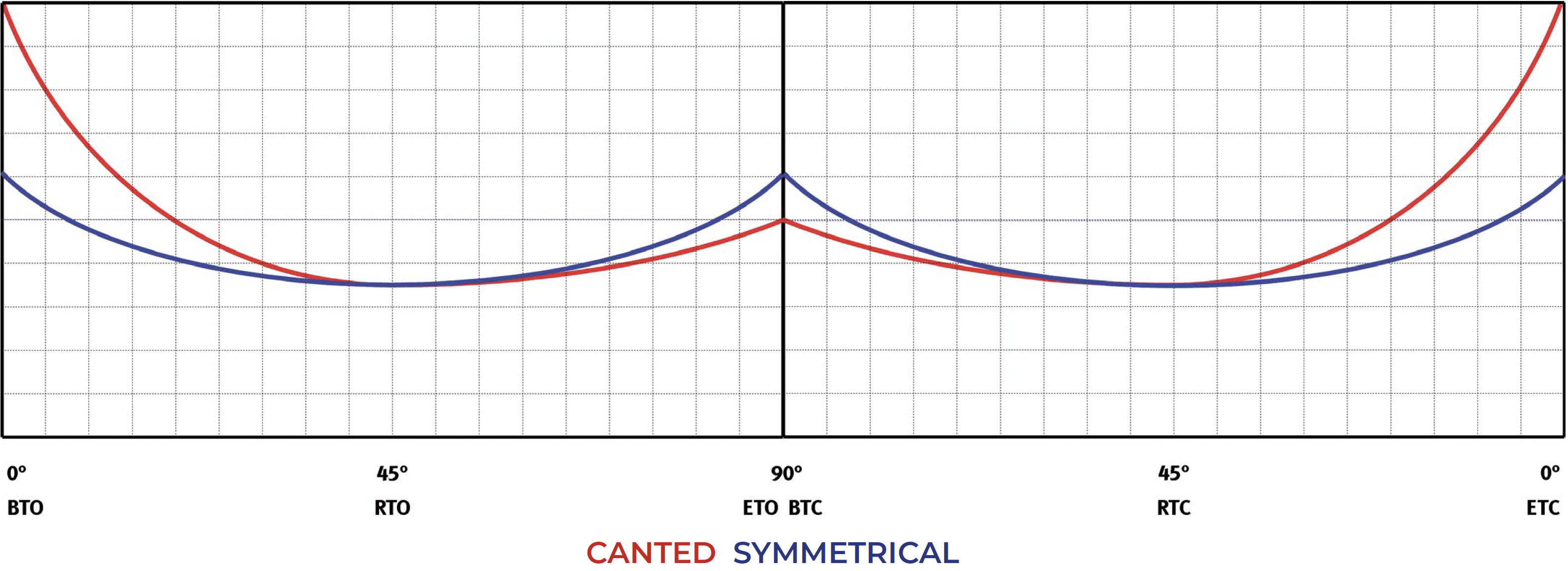

  • diagrams and breakaway torque
  • specifications
  • accessories
  • documents

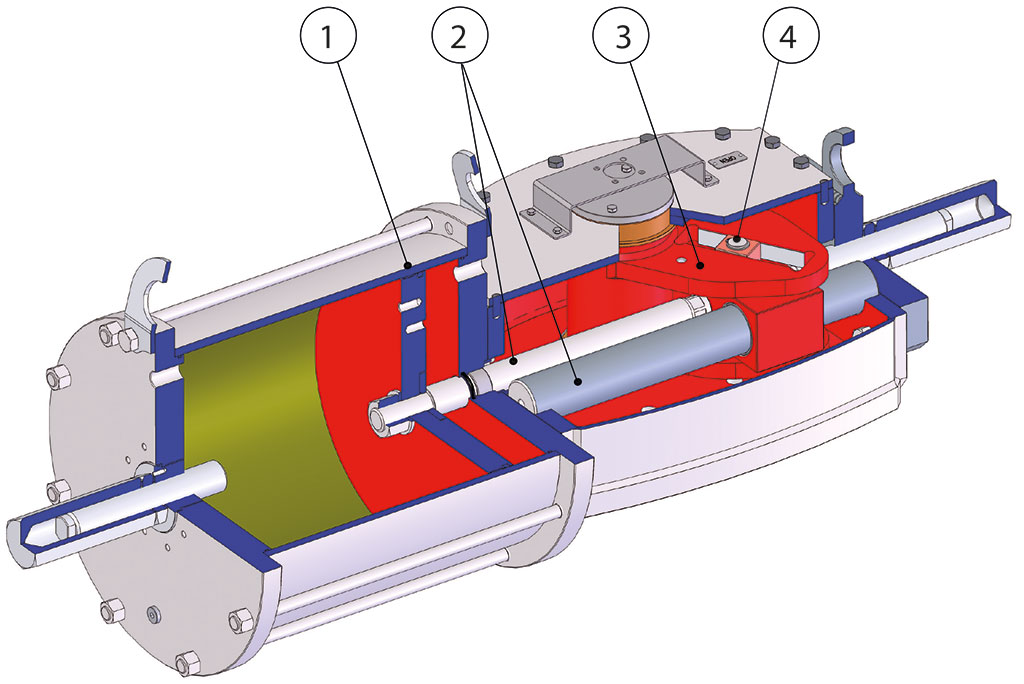

1 Energized and self-lubricated strips
Less friction between piston and cylinder
It prevents the bonding of the seal to the cylinder even after long periods of inactivity
Reduce the “stick-slip” effect

2 Slots, bushes and pins made i chromed steel with hardness about 200 HB
Higher corrosion’s resistance
Less friction between stem, guide bar and sliding bushings with consequently less wear  on the relevant parts

3 System motion conversion from linear to rotary separated from the piloting fluid of the actuator.
Ability to power the actuator with gases
It prevents explosive atmospheres

4 Scotch yoke system with rolling friction (conversion of linear motion to rotary system with no gears).
Reduced friction between piston and shaft with consequently less wear on the relevant parts
Empowered Break Away Torque (BTO & BTC)

Bronze bushes
They guarantee less wear than other bushings materials

ATEX Certificate
Installation is allowed in a potential explosive environment

SIL 3 Certified
Guarantee of the high level of functional safety.

Technical Data:
Nominal Torque : from 2000 Nm up to 30.000 Nm .
Flange according to DIN / ISO 5211 , DIN 3337.
Angle of rotation: 90° with stroke adjustment -5° +95°.
Air supply pressure: from 3bar up to 8,5bar (for the Torque, see Tabs)
For Double Acting version, the torque is directly proportional to the air supply pressure of the actuator
For the Spring Return version the “return torque” (no air supply pressure in the actuator) depends only by the Spring and it’s not related to the air supply pressure
Available versions: Double Acting, Spring Return Normally Closed (NC) , Spring Return Normally Open (NO).

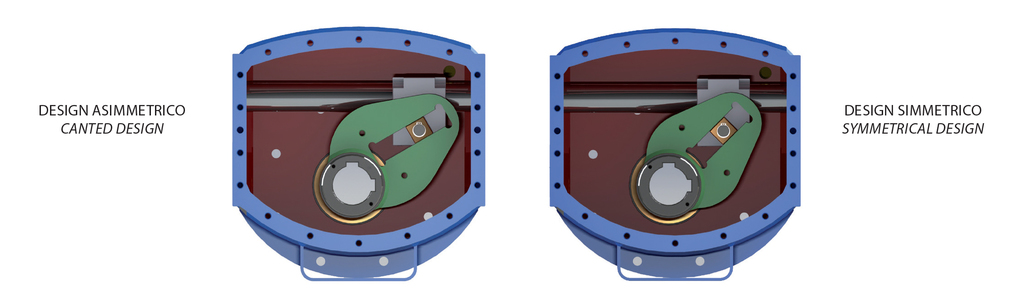

Cetral body versions: Scotch Yoke “Symmetrical” or Scotch Yoke “Canted

Working Conditions:
Temperature Range: Standard version: from -20° C a up to +80° C (Seals material: NBR) .
High Temperature version: from -20° C up to +150° C (Seals material: FKM/Viton).
Supply Media: Filtered compressed air, not necessarily lubricated, inert gases, technical gas
For temperature lower than 0°C please use dry air
In case of lubricate air, please use non detergent oil compatible with the seals

Design regulations:
Design according to EN 15714-3 , ISO 5211 , ISO 12490.

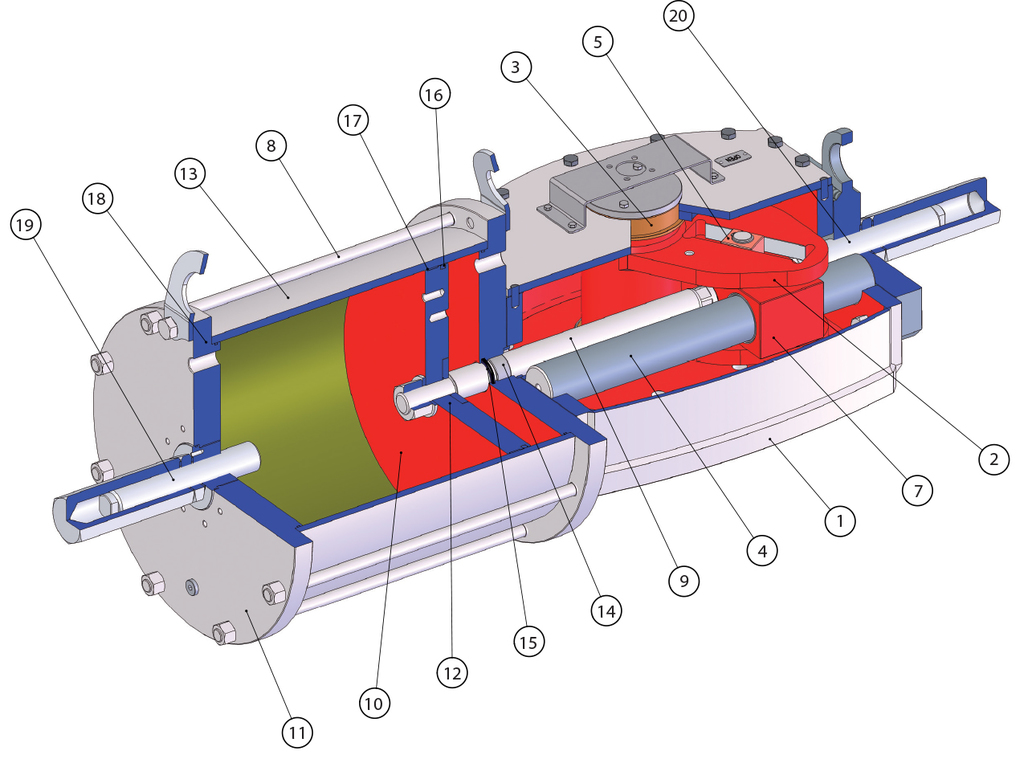

PosDescriptionMaterials
1Central bodyCarbon steel
2YokeCarbon steel
3Yoke bushingBronze
4Thrust barAlloy steel (chromium plated)
5Sliding blockBronze
6Vent valve (not shown)Brass
7Guide blockCarbon steel
8Tie rodAlloy steel
9Piston rodAlloy steel (chromium plated)
10PistonCarbon steel
11End flangeCarbon steel
12O-ringNBR
13Cylinder tubeCarbon steel (nickel-plated)
14Rod bushingSteel+bronze+PTFE
15SealNBR+Polyurethane
16O-ringNBR
17Sliding ringPTFE + graphite
18O-ringNBR
19Stop setting screwAlloy steel
20Stop setting screwAlloy steel

Double Acting - Torque Table

Model NumberMax torque Nm3 BAR CANTED
Torque Output (Nm)
BTORTOETOBTCRTCETC
DAHG-085C-235A-D19.0002.3279081.2891.2298952.528
DAHG-085C-280A-D19.0003.3041.2901.8301.7541.2783.607
DAHG-085C-335A-D19.0004.7301.8472.6202.5131.8305.167
DAHG-085C-385A-D19.0006.2692.4483.4723.3402.4336.867
DAHG-085C-435A-D19.0008.0303.1354.4484.2863.1228.812
DAHG-100C-335A-D118.0005.6372.2293.1222.9952.2386.157
DAHG-100C-385A-D118.0007.4712.9554.1383.9802.9748.183
DAHG-100C-435A-D118.0009.5703.7855.3005.1073.81610.502
DAHG-100C-485A-D118.00011.8964.7056.5896.3574.75013.071
DAHG-100C-535A-D118.00014.4415.6657.9217.6645.62515.794
DAHG-130C-385A-D132.0009.8083.8305.4335.2123.79710.715
DAHG-130C-435A-D132.00012.5644.9066.9606.6774.86413.728
DAHG-130C-485A-D132.00015.6186.0988.6518.3196.06017.102
DAHG-130C-535A-D132.00019.0697.44610.56310.1737.41020.914
DAHG-130C-585A-D132.00022.8778.93312.67212.2198.90125.121
DAHG-130C-635A-D132.00027.04610.56114.98214.45910.53329.725

Model NumberMax torque Nm3 BAR SYMMETRICAL
Torque Output (Nm)
BTORTOETOBTCRTCETC
DAHG-085S-235A-D19.0001.4829201.6201.4579061.593
DAHG-085S-280A-D19.0002.1041.3062.3002.0791.2932.273
DAHG-085S-335A-D19.0003.0121.8703.2932.9791.8523.256
DAHG-085S-385A-D19.0003.9922.4784.3643.9592.4624.327
DAHG-085S-435A-D19.0005.1143.1745.5905.0803.1605.553
DAHG-100S-335A-D118.0003.5852.2253.9183.5322.1973.861
DAHG-100S-385A-D118.0004.7512.9495.1934.6992.9225.136
DAHG-100S-435A-D118.0006.0863.7786.6526.0203.7446.580
DAHG-100S-485A-D118.0007.5654.6968.2697.4994.6648.197
DAHG-100S-535A-D118.0009.1725.73210.1169.1075.69210.044
DAHG-100S-585A-D118.00010.9666.85412.09510.9016.81312.024
DAHG-130S-385A-D132.0006.2473.8776.8286.1783.8426.753
DAHG-130S-435A-D132.0008.0024.9678.7467.9154.9228.651
DAHG-130S-485A-D132.0009.9476.17410.8739.8606.13210.777
DAHG-130S-535A-D132.00012.1457.53913.27512.0587.49913.180
DAHG-130S-585A-D132.00014.5709.04415.92614.4839.00815.831
DAHG-130S-635A-D132.00017.22510.69218.82817.13810.65918.733

Model NumberMax torque Nm3,5 BAR CANTED
Torque Output (Nm)
BTORTOETOBTCRTCETC
DAHG-085C-235A-D19.0002.7251.0641.5091.4391.0482.960
DAHG-085C-280A-D19.0003.8681.5102.1432.0541.4964.223
DAHG-085C-335A-D19.0005.5372.1623.0672.9422.1436.049
DAHG-085C-385A-D19.0007.3352.8644.0633.9082.8478.035
DAHG-085C-435A-D19.000





DAHG-100C-335A-D118.0006.5892.5733.6503.4892.5417.173
DAHG-100C-385A-D118.0008.7293.4084.8354.6383.3799.536
DAHG-100C-435A-D118.00011.1764.3646.1905.9404.32712.211
DAHG-100C-485A-D118.00013.8795.4897.6877.4175.54215.250
DAHG-100C-535A-D118.000





DAHG-130C-385A-D132.00011.4764.4816.3576.0994.44312.538
DAHG-130C-435A-D132.00014.6945.7378.1397.8095.68916.055
DAHG-130C-485A-D132.00018.2667.13210.1189.7297.08720.001
DAHG-130C-535A-D132.00022.2908.70412.34711.8918.66224.447
DAHG-130C-585A-D132.00026.72910.43714.80614.27610.40029.350
DAHG-130C-635A-D132.000






Model NumberMax torque Nm3,5 BAR SYMMETRICAL
Torque Output (Nm)
BTORTOETOBTCRTCETC
DAHG-085S-235A-D19.0001.7351.0771.8971.7061.0611.865
DAHG-085S-280A-D19.0002.4631.5292.6932.4351.5142.661
DAHG-085S-335A-D19.0003.5262.1893.8553.4872.1693.812
DAHG-085S-385A-D19.0004.6712.9005.1064.6322.8815.063
DAHG-085S-435A-D19.0005.9813.7126.5385.9423.6956.495
DAHG-100S-335A-D118.0004.1962.6054.5874.1352.5724.520
DAHG-100S-385A-D118.0005.5593.4516.0765.4983.4196.010
DAHG-100S-435A-D118.0007.1174.4187.7807.0404.3797.695
DAHG-100S-485A-D118.0008.8485.4929.6718.7705.4559.587
DAHG-100S-535A-D118.00010.7006.68811.80210.6256.64111.718
DAHG-100S-585A-D118.00012.7947.99614.11112.7187.94914.027
DAHG-130S-385A-D132.0007.3094.5377.9897.2294.4967.901
DAHG-130S-435A-D132.0009.3585.80910.2299.2565.75710.118
DAHG-130S-485A-D132.00011.6337.22112.71611.5317.17212.604
DAHG-130S-535A-D132.00014.1968.81215.51714.0958.76615.406
DAHG-130S-585A-D132.00017.02310.56718.60716.92110.52418.496
DAHG-130S-635A-D132.00020.11512.48621.98720.01312.44821.876

Model NumberMax torque Nm4 BAR CANTED
Torque Output (Nm)
BTORTOETOBTCRTCETC
DAHG-085C-235A-D19.0003.1221.2191.7291.6491.2013.391
DAHG-085C-280A-D19.0004.4321.7302.4552.3531.7144.839
DAHG-085C-335A-D19.0006.3452.4773.5143.3712.4566.931
DAHG-085C-385A-D19.000





DAHG-085C-435A-D19.000





DAHG-100C-335A-D118.0007.5612.9904.1884.0173.0018.259
DAHG-100C-385A-D118.00010.0123.9595.5455.3343.98510.967
DAHG-100C-435A-D118.00012.8135.0687.0976.8395.11014.062
DAHG-100C-485A-D118.00015.9286.2998.8228.5126.36017.503
DAHG-100C-535A-D118.000





DAHG-130C-385A-D132.00013.1455.1327.2816.9855.08914.361
DAHG-130C-435A-D132.00016.8236.5699.3198.9416.51318.383
DAHG-130C-485A-D132.00020.9138.16611.58411.1398.11422.900
DAHG-130C-535A-D132.00025.5129.96214.13213.6109.91427.980
DAHG-130C-585A-D132.000





DAHG-130C-635A-D132.000






Model NumberMax torque Nm4 BAR SYMMETRICAL
Torque Output (Nm)
BTORTOETOBTCRTCETC
DAHG-085S-235A-D19.0001.9881.2342.1731.9551.2162.137
DAHG-085S-280A-D19.0002.8231.7523.0852.7901.7353.049
DAHG-085S-335A-D19.0004.0412.5084.4173.9962.4854.368
DAHG-085S-385A-D19.0005.3503.3215.8485.3053.3005.799
DAHG-085S-435A-D19.0006.8484.2517.4856.8034.2317.436
DAHG-100S-335A-D118.0004.8082.9855.2564.7392.9475.180
DAHG-100S-385A-D118.0006.3673.9526.9606.2973.9176.883
DAHG-100S-435A-D118.0008.1495.0588.9078.0615.0138.811
DAHG-100S-485A-D118.00010.1306.28811.07310.0426.24610.976
DAHG-100S-535A-D118.00012.2297.64313.48812.1437.58913.392
DAHG-100S-585A-D118.00014.6229.13916.12714.5359.08516.031
DAHG-130S-385A-D132.0008.3715.1969.1508.2805.1509.050
DAHG-130S-435A-D132.00010.7146.65111.71110.5986.59211.584
DAHG-130S-485A-D132.00013.3198.26814.55813.2038.21214.431
DAHG-130S-535A-D132.00016.24810.08617.76016.13210.03317.633
DAHG-130S-585A-D132.00019.47612.08921.28819.36012.04121.161
DAHG-130S-635A-D132.00023.00514.28025.14622.88914.23625.019

Model NumberMax torque Nm4,5 BAR CANTED
Torque Output (Nm)
BTORTOETOBTCRTCETC
DAHG-085C-235A-D19.0003.5531.3941.9491.8571.3633.826
DAHG-085C-280A-D19.0005.0441.9782.7662.6531.9475.468
DAHG-085C-335A-D19.0007.2202.8323.9603.8162.8017.865
DAHG-085C-385A-D19.000





DAHG-085C-435A-D19.000





DAHG-100C-335A-D118.0008.4933.3324.6594.4903.2959.253
DAHG-100C-385A-D118.00011.2184.4006.1535.9464.36412.254
DAHG-100C-435A-D118.00014.3215.6187.8557.5725.55715.605
DAHG-100C-485A-D118.000





DAHG-100C-535A-D118.000





DAHG-130C-385A-D132.00014.8335.7928.2167.8835.74216.206
DAHG-130C-435A-D132.00018.9747.40910.51010.0857.34720.733
DAHG-130C-485A-D132.00023.5869.21013.06512.5639.15225.829
DAHG-130C-535A-D132.00028.70111.20715.89915.31111.15331.478
DAHG-130C-585A-D132.000





DAHG-130C-635A-D132.000






Model NumberMax torque Nm4,5 BAR SYMMETRICAL
Torque Output (Nm)
BTORTOETOBTCRTCETC
DAHG-085S-235A-D19.0002.2561.4102.4892.2061.3792.433
DAHG-085S-280A-D19.0003.2032.0023.5333.1531.9713.478
DAHG-085S-335A-D19.0004.5852.8665.0574.5352.8345.002
DAHG-085S-385A-D19.0006.0563.7856.6796.0063.7546.624
DAHG-085S-435A-D19.0007.7314.8328.5277.6814.8018.472
DAHG-100S-335A-D118.0005.3943.3715.9495.3353.3355.885
DAHG-100S-385A-D118.0007.1254.4537.8587.0664.4167.793
DAHG-100S-435A-D118.0009.0955.68510.0328.9985.6249.924
DAHG-100S-485A-D118.00011.3067.06712.47011.2097.00612.363
DAHG-100S-535A-D118.00013.7588.59915.17413.6608.53815.067
DAHG-100S-585A-D118.000





DAHG-130S-385A-D132.0009.4465.86410.3269.3445.81110.213
DAHG-130S-435A-D132.00012.0847.50113.20811.9547.43513.066
DAHG-130S-485A-D132.00015.0229.32516.42014.8919.26216.277
DAHG-130S-535A-D132.00018.31611.37020.02118.18511.31019.877
DAHG-130S-585A-D132.00021.94413.62223.98621.81313.56723.843
DAHG-130S-635A-D132.00025.90716.08128.31825.77616.03228.175

Model NumberMax torque Nm5 BAR CANTED
Torque Output (Nm)
BTORTOETOBTCRTCETC
DAHG-085C-235A-D19.0003.9161.5292.1692.0691.5074.255
DAHG-085C-280A-D19.0005.5602.1713.0802.9532.1516.070
DAHG-085C-335A-D19.0007.9593.1084.4094.2293.0818.695
DAHG-085C-385A-D19.000





DAHG-085C-435A-D19.000





DAHG-100C-335A-D118.0009.4713.6985.2465.0153.65310.311
DAHG-100C-385A-D118.00012.5354.8946.9436.6624.85313.696
DAHG-100C-435A-D118.00015.9946.2458.8608.5016.19317.476
DAHG-100C-485A-D118.000





DAHG-100C-535A-D118.000





DAHG-130C-385A-D132.00016.4816.4359.1298.7596.38018.007
DAHG-130C-435A-D132.00021.0828.23211.67811.2058.16323.037
DAHG-130C-485A-D132.00026.20710.23314.51713.95910.16928.699
DAHG-130C-535A-D132.000





DAHG-130C-585A-D132.000





DAHG-130C-635A-D132.000






Model NumberMax torque Nm5 BAR SYMMETRICAL
Torque Output (Nm)
BTORTOETOBTCRTCETC
DAHG-085S-235A-D19.0002.4941.5482.7262.4531.5252.681
DAHG-085S-280A-D19.0003.5412.1983.8703.5002.1773.825
DAHG-085S-335A-D19.0005.0693.1465.5415.0133.1185.479
DAHG-085S-385A-D19.0006.7084.1647.3336.6524.1377.271
DAHG-085S-435A-D19.000





DAHG-100S-335A-D118.0006.0323.7446.5935.9453.6976.498
DAHG-100S-385A-D118.0007.9834.9558.7267.8964.9118.631
DAHG-100S-435A-D118.00010.2126.33911.16310.1026.28311.042
DAHG-100S-485A-D118.00012.6957.88013.87612.5847.82713.756
DAHG-100S-535A-D118.00015.2869.55416.86015.1789.48616.741
DAHG-100S-585A-D118.000





DAHG-130S-385A-D132.00010.4966.51511.47310.3826.45711.348
DAHG-130S-435A-D132.00013.4278.33414.67613.2828.26114.518
DAHG-130S-485A-D132.00016.69110.36118.24416.54610.29118.086
DAHG-130S-535A-D132.00020.35112.63322.24520.20612.56722.086
DAHG-130S-585A-D132.00024.38215.13526.65124.23715.07426.492
DAHG-130S-635A-D132.00028.78517.86831.46428.64017.81331.306

Model NumberMax torque Nm5,5 BAR CANTED
Torque Output (Nm)
BTORTOETOBTCRTCETC
DAHG-085C-235A-D19.0004.3421.7032.3822.2691.6654.677
DAHG-085C-280A-D19.0006.1642.4183.3813.2432.3806.684
DAHG-085C-335A-D19.000





DAHG-085C-385A-D19.000





DAHG-085C-435A-D19.000





DAHG-100C-335A-D118.00010.3814.0725.6945.4874.02811.309
DAHG-100C-385A-D118.00013.7115.3787.5217.2675.33414.977
DAHG-100C-435A-D118.000





DAHG-100C-485A-D118.000





DAHG-100C-535A-D118.000





DAHG-130C-385A-D132.00018.1497.08710.0539.6457.02619.830
DAHG-130C-435A-D132.00023.2129.06312.85812.3378.98725.364
DAHG-130C-485A-D132.00028.85511.26715.98415.37011.19631.598
DAHG-130C-535A-D132.000





DAHG-130C-585A-D132.000





DAHG-130C-635A-D132.000






Model NumberMax torque Nm5,5 BAR SYMMETRICAL
Torque Output (Nm)
BTORTOETOBTCRTCETC
DAHG-085S-235A-D19.0002.7471.7053.0032.7021.6802.953
DAHG-085S-280A-D19.0003.9002.4214.2633.8552.3974.213
DAHG-085S-335A-D19.0005.5833.4656.1025.5213.4346.035
DAHG-085S-385A-D19.0007.3884.5868.0757.3264.5568.008
DAHG-085S-435A-D19.000





DAHG-100S-335A-D118.0006.6444.1247.2626.5484.0727.157
DAHG-100S-385A-D118.0008.7915.4579.6098.6955.4089.505
DAHG-100S-435A-D118.00011.2446.97912.29011.1226.91812.157
DAHG-100S-485A-D118.000





DAHG-100S-535A-D118.000





DAHG-100S-585A-D118.000





DAHG-130S-385A-D132.00011.5597.17512.63411.4327.11112.496
DAHG-130S-435A-D132.00014.7839.17616.15914.6239.09515.984
DAHG-130S-485A-D132.00018.37711.40720.08718.21711.33019.913
DAHG-130S-535A-D132.00022.40213.90624.48722.24313.83424.313
DAHG-130S-585A-D132.00026.83516.65729.33226.67516.59129.157
DAHG-130S-635A-D132.000








Model NumberMax torque Nm6 BAR CANTED
Torque Output (Nm)
BTORTOETOBTCRTCETC
DAHG-085C-235A-D19.0004.7111.8392.6092.4891.8135.118
DAHG-085C-280A-D19.0006.6882.6113.7043.5522.5877.302
DAHG-085C-335A-D19.000





DAHG-085C-385A-D19.000





DAHG-085C-435A-D19.000





DAHG-100C-335A-D118.00011.3934.4486.3116.0334.39512.403
DAHG-100C-385A-D118.00015.0425.8738.3327.9945.82416.435
DAHG-100C-435A-D118.000





DAHG-100C-485A-D118.000





DAHG-100C-535A-D118.000





DAHG-130C-385A-D132.00019.8177.73810.97710.5327.67221.653
DAHG-130C-435A-D132.00025.3419.89514.03813.4709.81227.692
DAHG-130C-485A-D132.000





DAHG-130C-535A-D132.000





DAHG-130C-585A-D132.000





DAHG-130C-635A-D132.000






Model NumberMax torque Nm6 BAR SYMMETRICAL
Torque Output (Nm)
BTORTOETOBTCRTCETC
DAHG-085S-235A-D19.0003.0001.8623.2792.9511.8353.225
DAHG-085S-280A-D19.0004.2592.6444.6564.2102.6184.602
DAHG-085S-335A-D19.0006.0973.7856.6646.0303.7506.591
DAHG-085S-385A-D19.000





DAHG-085S-435A-D19.000





DAHG-100S-335A-D118.0007.2564.5047.9317.1514.4477.816
DAHG-100S-385A-D118.0009.5995.95910.4939.4955.90510.378
DAHG-100S-435A-D118.00012.2757.62013.41812.1437.55213.273
DAHG-100S-485A-D118.000





DAHG-100S-535A-D118.000





DAHG-100S-585A-D118.000





DAHG-130S-385A-D132.00012.6217.83413.79612.4837.76413.645
DAHG-130S-435A-D132.00016.13910.01817.64115.9659.93017.451
DAHG-130S-485A-D132.00020.06312.45421.93019.88912.37021.740
DAHG-130S-535A-D132.00024.45415.18026.73024.28015.10126.539
DAHG-130S-585A-D132.00029.28818.18032.01329.11318.10831.823
DAHG-130S-635A-D132.000








Model NumberMax torque Nm7 BAR CANTED
Torque Output (Nm)
BTORTOETOBTCRTCETC
DAHG-085C-235A-D19.0005.5052.1493.0492.9092.1195.981
DAHG-085C-280A-D19.0007.8163.0524.3294.1513.0248.534
DAHG-085C-335A-D19.000





DAHG-085C-385A-D19.000





DAHG-085C-435A-D19.000





DAHG-100C-335A-D118.00013.3335.2737.3847.0845.29314.566
DAHG-100C-385A-D118.000





DAHG-100C-435A-D118.000





DAHG-100C-485A-D118.000





DAHG-100C-535A-D118.000





DAHG-130C-385A-D132.00023.1549.04112.82612.3058.96425.298
DAHG-130C-435A-D132.00029.60111.55816.39715.73411.46132.346
DAHG-130C-485A-D132.000





DAHG-130C-535A-D132.000





DAHG-130C-585A-D132.000





DAHG-130C-635A-D132.000






Model NumberMax torque Nm7 BAR SYMMETRICAL
Torque Output (Nm)
BTORTOETOBTCRTCETC
DAHG-085S-235A-D19.0003.5062.1763.8323.4482.1453.769
DAHG-085S-280A-D19.0004.9783.0905.4414.9203.0605.378
DAHG-085S-335A-D19.0007.1254.4237.7887.0474.3837.703
DAHG-085S-385A-D19.000





DAHG-085S-435A-D19.000





DAHG-100S-335A-D118.0008.4795.2639.2688.3575.1989.135
DAHG-100S-385A-D118.00011.2156.96212.25911.0936.90012.126
DAHG-100S-435A-D118.00014.1488.84315.60513.9978.74815.438
DAHG-100S-485A-D118.000





DAHG-100S-535A-D118.000





DAHG-100S-585A-D118.000





DAHG-130S-385A-D132.00014.7469.15316.11814.5859.07215.943
DAHG-130S-435A-D132.00018.85211.70220.60618.64911.59920.384
DAHG-130S-485A-D132.00023.43514.54725.61623.23214.44925.394
DAHG-130S-535A-D132.00028.55717.72731.21528.35417.63530.993
DAHG-130S-585A-D132.000





DAHG-130S-635A-D132.000








Model NumberMax torque Nm8,5 BAR CANTED
Torque Output (Nm)
BTORTOETOBTCRTCETC
DAHG-085C-235A-D19.0006.6972.6153.7103.5392.5787.276
DAHG-085C-280A-D19.000





DAHG-085C-335A-D19.000





DAHG-085C-385A-D19.000





DAHG-085C-435A-D19.000





DAHG-100C-335A-D118.00016.1906.4038.9668.6026.42717.687
DAHG-100C-385A-D118.000





DAHG-100C-435A-D118.000





DAHG-100C-485A-D118.000





DAHG-100C-535A-D118.000





DAHG-130C-385A-D132.00028.15810.99515.59814.96510.90230.767
DAHG-130C-435A-D132.000





DAHG-130C-485A-D132.000





DAHG-130C-535A-D132.000





DAHG-130C-585A-D132.000





DAHG-130C-635A-D132.000






Model NumberMax torque Nm8,5 BAR SYMMETRICAL
Torque Output (Nm)
BTORTOETOBTCRTCETC
DAHG-085S-235A-D19.0004.2652.6474.6624.1952.6094.585
DAHG-085S-280A-D19.0006.0553.7586.6195.9853.7226.542
DAHG-085S-335A-D19.000





DAHG-085S-385A-D19.000





DAHG-085S-435A-D19.000





DAHG-100S-335A-D118.00010.3156.40311.27410.1666.32311.112
DAHG-100S-385A-D118.00013.4588.41114.84313.3468.34214.720
DAHG-100S-435A-D118.000





DAHG-100S-485A-D118.000





DAHG-100S-535A-D118.000





DAHG-100S-585A-D118.000





DAHG-130S-385A-D132.00017.93311.13219.60217.73811.03319.389
DAHG-130S-435A-D132.00022.92114.22825.05422.67414.10324.784
DAHG-130S-485A-D132.00028.49317.68731.14528.24617.56830.875
DAHG-130S-535A-D132.000





DAHG-130S-585A-D132.000





DAHG-130S-635A-D132.000






OMAL STANDARD PAINT SPECIFICATION
The Painting of the Heavy Duty Actuqtors (Standard OMAL), mentioned in the Tab, allows th outdoor installation of the actuators; chemical plants, gas pipelines, refineries and Off-Shore applications. On request are available painting cycles according to customer’s specifications

SURFACE PREPARATION  SANDBLASTING TO GRADE SA 2.1/2
CoatType of paint DRY FILM THICKNESS
Primer coatInorganic zinc primer 75 µ
 Iintermediate coatEpoxy110 µ
Final coatPolyurethan40 µ

TOTAL DRY FILM THICKNESS 225 µ
Standard: RAL

CENTRAL BODY - AVAILABLE CONFIGURATION

Canted design
Very high Break to Open Torque, with a huge drop during the final step of the opening operation (ETO). Break to Close Torque much lower than the Break to Open Torque.

Symmetrical design
The curve of the Torque is more balanced; the BTO (break to open) – ETO (end to open) –BTC (break to close) – ETC (end to close) values are similar.

MANUAL HYDRAULIC OVERRIDE

Compact pump
Hydraulic cylinder
Oil tank
Check valve
Relief valve

MANUAL HANDWHEEL OVERRIDE DECLUTCHABLE FOR DOUBLE ACTING ACTUATOR

Spool piece – Stem extension

The actuator design has taken into consideration mounting pad connections conforming to the latest international standards for easy and direct assemblage onto valves and ancillaries. Omal completes its service with customized mounting kits, spool piece and stem extension.

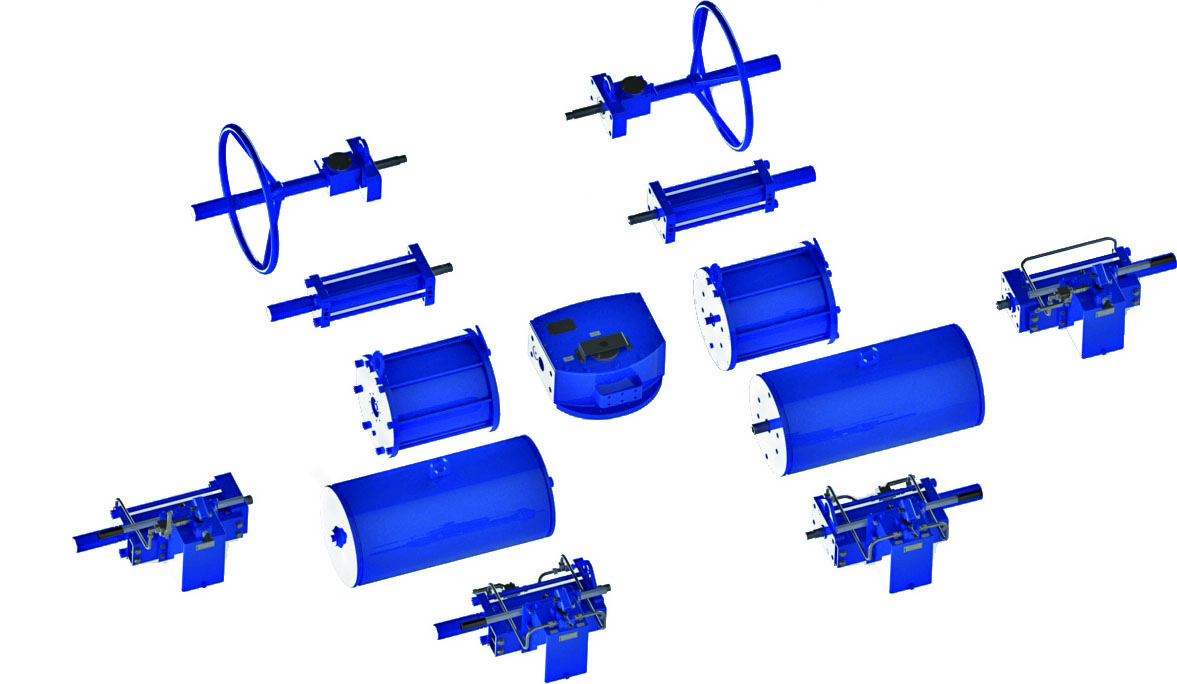

Modular Constuction Design

Heavy Duty Omal actuators modular design ensures a complete versatility application.
Modular construction allows assembling the components according with the application requirements.

X CLOSE

NEXT EVENT

32nd LPG FORUM 2019
32nd LPG FORUM 2019
Amsterdam, 24-26 september 2019
