1.Energized and self-lubricated strips Less friction between piston and cylinder It prevents the bonding of the seal to the cylinder even after long periods of inactivity
2.Slots, bushes and pins made by steel with hardness higher than 50 HRC Higher resistance to the forces inside the actuator
3.Rolling friction between piston and slot Less friction
4.Scotch yoke with rolling friction (transforming rotary motion into linear motion using piston and shaft without teeths/gears) Reduced friction between piston and shaft with consequently less wear on the relevant parts Empowered Breakaway Torque (BTO & BTC) Smaller volume/size than rack and pinion actuators (with the same torque) therefore less space required for installation Less weight than the rack and pinion (-30% kg / Nm), with consequent savings on the construction sizing of the plant/equipment Lower air consumption compared to the rack and pinion actuators (-40% air cm3/Nm for Double Acting and -20% air cm3/Nm for Spring Return) therefore less load on the compressor or the possibility of using a smaller compressor's size. 5.Rolled cylinder Less wear of the energized ties thanks to the low roughness of the surface
From sizes bigger than DAN15, NAMUR interface for solenoid valve is already integrated. No need for extra plate.
100% in- house manufacturing process technology Maximum control and accuracy in all the stages of the manufacturing process
ATEX Certificate Installation is allowed in a potential explosive environment
Up to SIL 3 Certified Guarantee of the high level of functional safety.

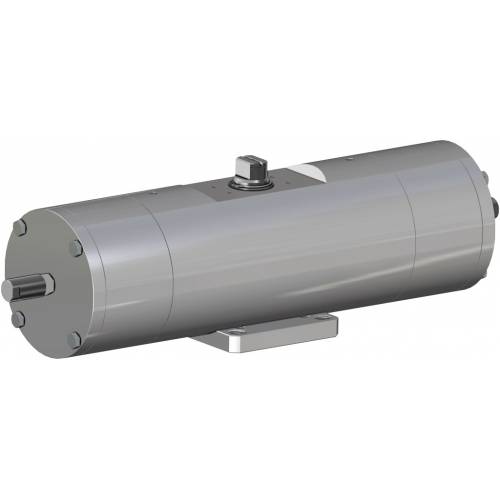

TECHNICAL FEATURES Torque from 360 Nm to 960 Nm. Mounting flange according to EN ISO 5211; F10 - F12 - F14 - F16. In compliance with EN 15714-3. Rotation angle: 92° (-1°, +91°) Torque: the return torque depends on spring action only notwithstanding the air supply. The spring is provided in four different sizes (see table - general catalogue pneumatic actuator SR). The code numbers after the letters SR, always correspond to the breakaway torque in Nm by 5,6 bar air supply. The actuator automatic closing takes place in clockwise direction by means of its springs. ATEX version in conformity with directive 2014/34/EU. Please add YX at the end of the code for ATEX version. WORKING CONDITION Temperature: from -20°C to +80°C. Air supply: 5,6 bar; maximum 8,4 bar. Actuating media: filtered dry compressed air, not necessarily lubricated. In case of lubricated air, either non detergent oil, NBR compatible oil, must be used.

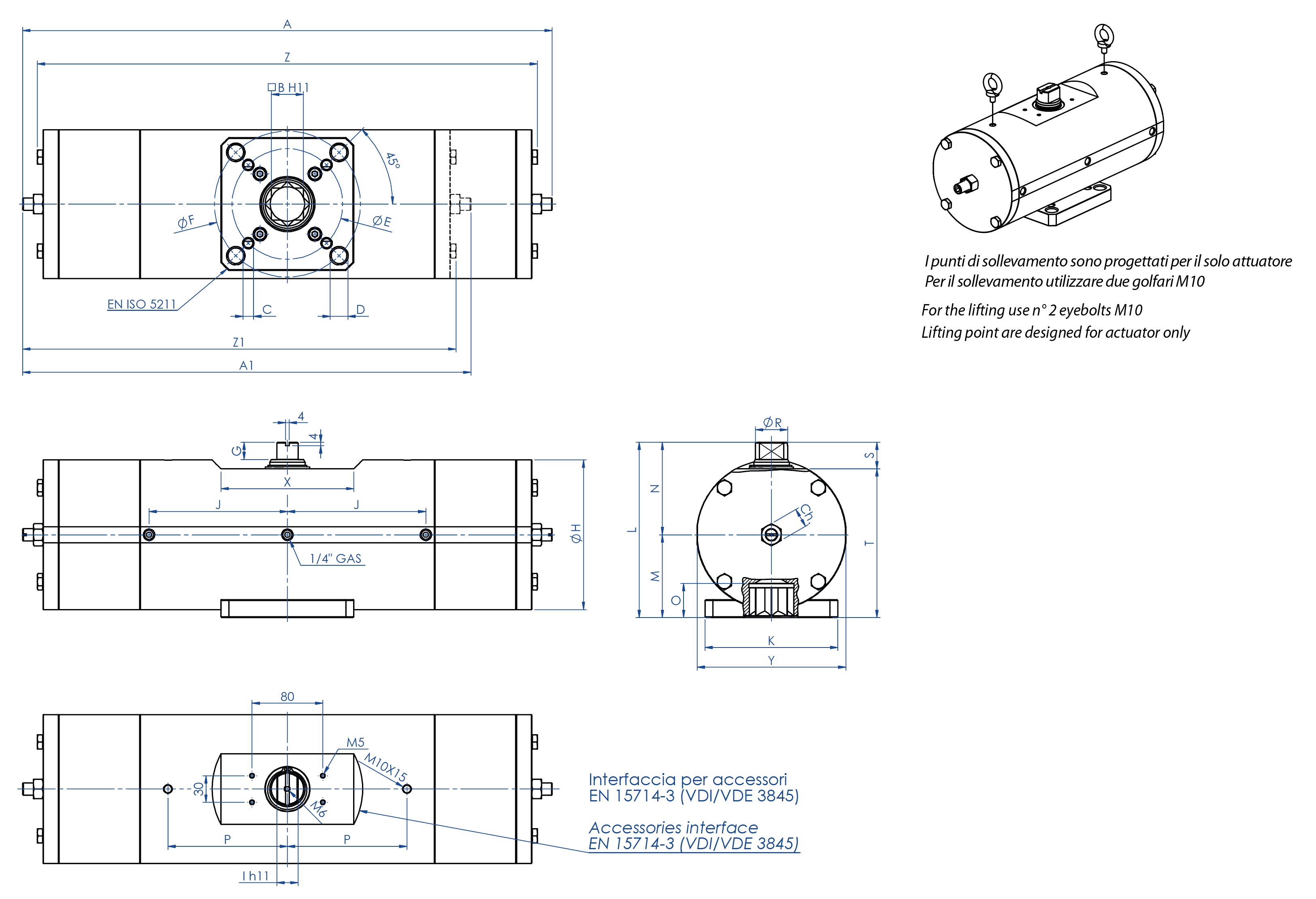

DATA SHEET
Code
SR0360416S
SR0480416S
SR0720424S
SR0720416S
SR0960416S
Spare seals
KGXI0023
KGXI0024
KGXI0025
KGXI0025
KGXI0026
Size
SR0360 F10/F12
SR0480 F12/F16
SR0720 F12
SR0720 F14
SR0960 F12/F16
A
565,5
598
736,8
736,8
769,6
A1 (2,8 Bar)
483,5
506
630,8
630,8
645
B
27
36
36
36
46
C x depth
M10x11,5
M12x20
M12x18
M16x18
M12x23
D x depth
M12x11,5
M20x20
-
-
M20x23
ØE
102
125
125
140
125
ØF
125
165
-
-
165
G
19,5
19,5
19,5
19,5
18,5
ØH
156
169
188
188
211
I
22
24
27
27
32
J
138,5
156,3
179,5
179,5
192
K
115
150
130
130
150
L
178
198
216
216
237,7
M
78,5
93,5
101,5
101,5
114,7
N
99,5
104,5
114,5
114,5
123
O
29,5
38,5
38,5
38,5
48,5
P
116
135
160
160
160
Q
-
-
-
-
-
Q2
-
-
-
-
-
ØR
31,8
36,5
41
41
46
S
30
30
30
30
30
S2
-
-
-
-
-
T
148
168
186
186
207,7
T2
-
-
-
-
-
X
150
150
150
150
150
Y
155
168
187
187
209
Z
525,8
565
685
685
718,4
Z1 (2,8 Bar)
435,8
473
559,4
559,4
593,8
Ch
22
22
24
24
24
Ch1 (2,8 Bar)
24
24
30
30
30
Weight (Kg)
45,5
60
82,5
82,5
112
Weight (2,8 Bar) (Kg)
37,5
51
77
77
96
Air (dm3/cycle) (l/cycle)
2,00
2,8
4,20
4,20
5,9

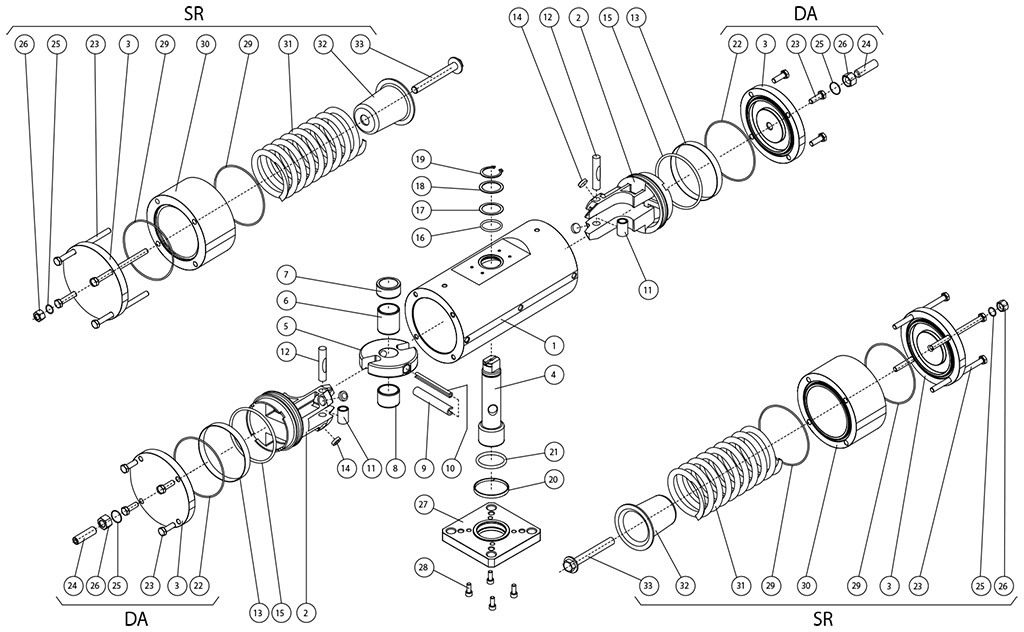

316 FROM BAR DOUBLE ACTING AND SPRING RETURN PNEUMATIC ACTUATOR COMPONENTS
