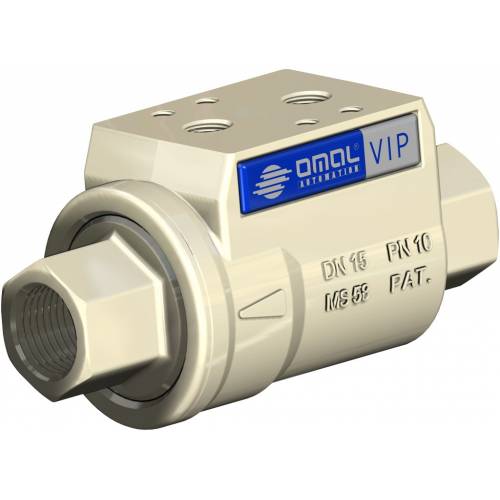

VIP - Pneumatic Coaxial Valve

  • benefits
  • features
  • dimensions
  • materials

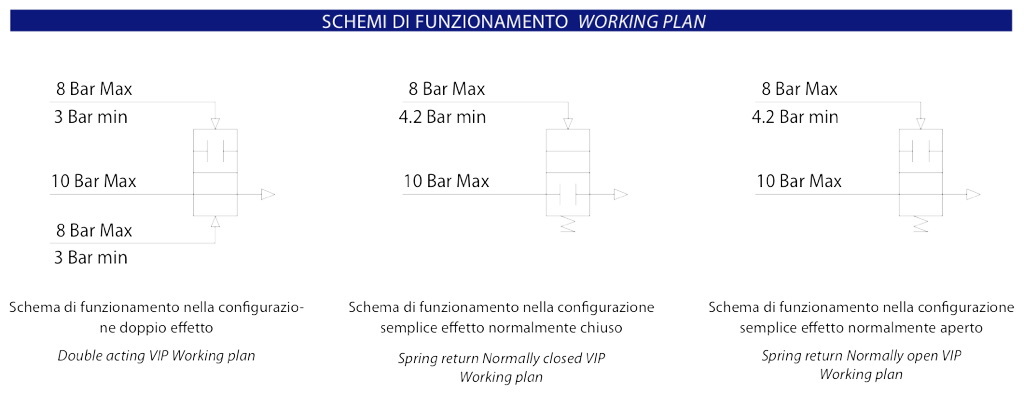

  • diagrams and working plan
  • specifications
  • accessories
  • documents

1. Internal diameter equal to the diameter of the pipe
High flow capacity

2. Pneumatic actuator integrated in the valve
Space saving (-60%) and reduced costs compared to an automated valve

3. Piston with chemical nickel plating (20-25 micron)
Lower wear of the seals due to the increase of the surface hardness (400 -550 HV)

4. Lip seals
Less wear of the seal comparing with an o-ring

Several seal materials available
Maximum compatibility with different types of fluids depending by the seals used

No external moving parts

Maximum safety
Easy mounting

Long life time granted
Lifetime 10 times longer than a ball valve with with reduced maintenance costs

100% in- house manufacturing process technology
Maximum control and accuracy in all the stages of the manufacturing process

Less Air consumption
80% less air consumption compared to an actuated valve with SR pneumatic actuator therefore less load on the compressor or the possibility of using a smaller compressor's size.

ATEX Certificate
Installation is allowed in a potential explosive environment

PED Certificate

Full compliance with European Safety Standards for Pressure Equipment

GENERAL FEATURES:
Both Double Acting and Spring Return VIP valves (either Normally Open or Normally Closed) are available in sizes ranging from 3/8” to 2”.
Unidirectional flow.
GAS threaded ends as per EN 10226-1 Rp (Ex ISO 7/1) - DIN 2999 (NPT threads on request) with control fluid connections as per NAMUR interface.

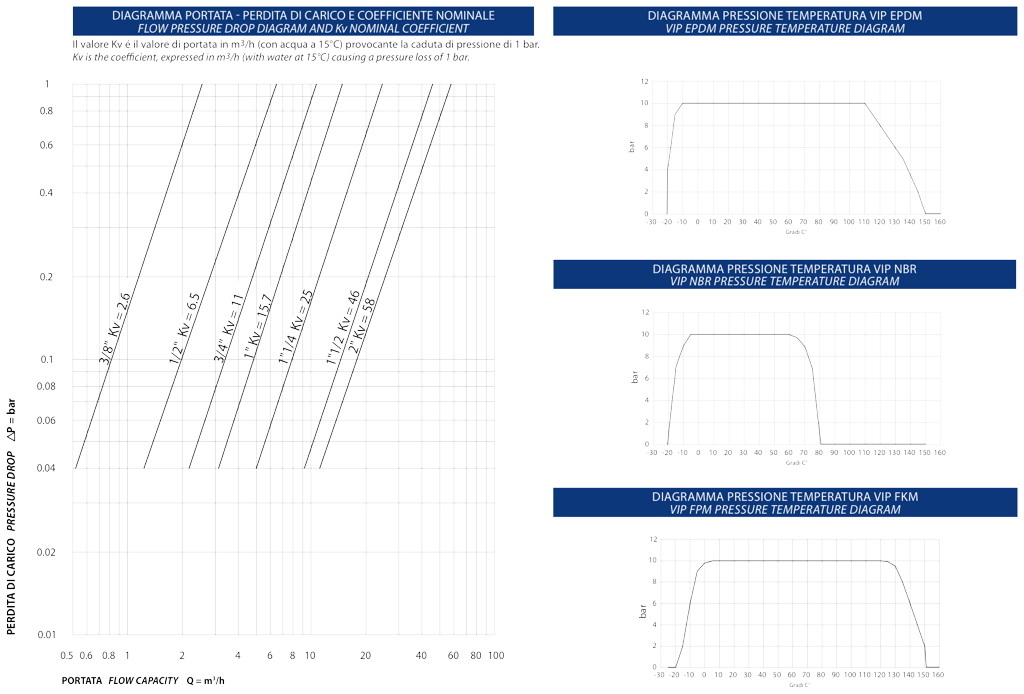

Improved fluid dynamics allow minimum pressure losses. See Flow Pressure Diagram.
VIP valves can be used in any mounting position (horizontal, vertical or oblique).
They can be provided with seals in NBR, FKM or EPDM:
- NBR: suitable for air, gas, oils, water etc..
- FKM: perfectly suitable for most fluid. Unsuitable for steam.
- EPDM: perfectly suitable for hot water and steam. Unsuitable for mineral products (oils, grease, etc..).
For further information about gas, explosive fluids, material compatibilities etc. please contact our technical department.
Possibility to check open / close valve position thanks to inductive limit switches (magnetic contact) available on request. Internal magnet needs to be requested at VIP order phase.
According to 2014/68/EU “PED”.
2014/34/EU ATEX configuration to request at time of order.

CONTROL MEDIA:

Filtered compressed air, not necessarily lubricated. At temperatures from -20°C to 0°C, use dry air. In case of lubricated air, seal compatible oil must be used.
Air supply:
3 bar min.- 8 bar max. in Double Acting execution.
4,2 bar min.- 8 bar max. in Spring Return execution.

OPERATING MEDIA:
Pressure: 10 bar max, see diagram
Temperature: from -20°C to +80°C (NBR); from -20°C to +150°C (FKM); from -20°C to +150°C (EPDM).
Vacuum tightness: 97% vacum (about 30 mbar absolut, -980 mbarg)

    DIMENSIONS
DN nominal diameter  mm.
10
15
20
25
32
40
50
size F GAS.
3/8”
1/2”
3/4”
1”
1”1/4
1”1/2
2”
 bore mm.
10
15
20
25
32
40
50
A mm.
54
60
70
76
92
102
115
øB  mm.
46
51,7
63,5
69
86
96
109
C mm.
98
112
135
143
165
180
207
ch. D  mm.
22
27
33
41
50
60
75
E  mm.
31
34
39
42
49
54
60
double acting air    dm3/cycle
0,024
0,035
0,063
0,080
0,150
0,219
0,310
spring return air   dm3/cycle
0,012
0,017
0,031
0,040
0,075
0,109
0,155
weight double acting “DA”   Kg.
0,80
1
1,59
1,8
3,13
3,5
5,5
weight spring return “SR”  Kg.
0,85
1,05
1,69
1,88
3,41
3,7
5,8

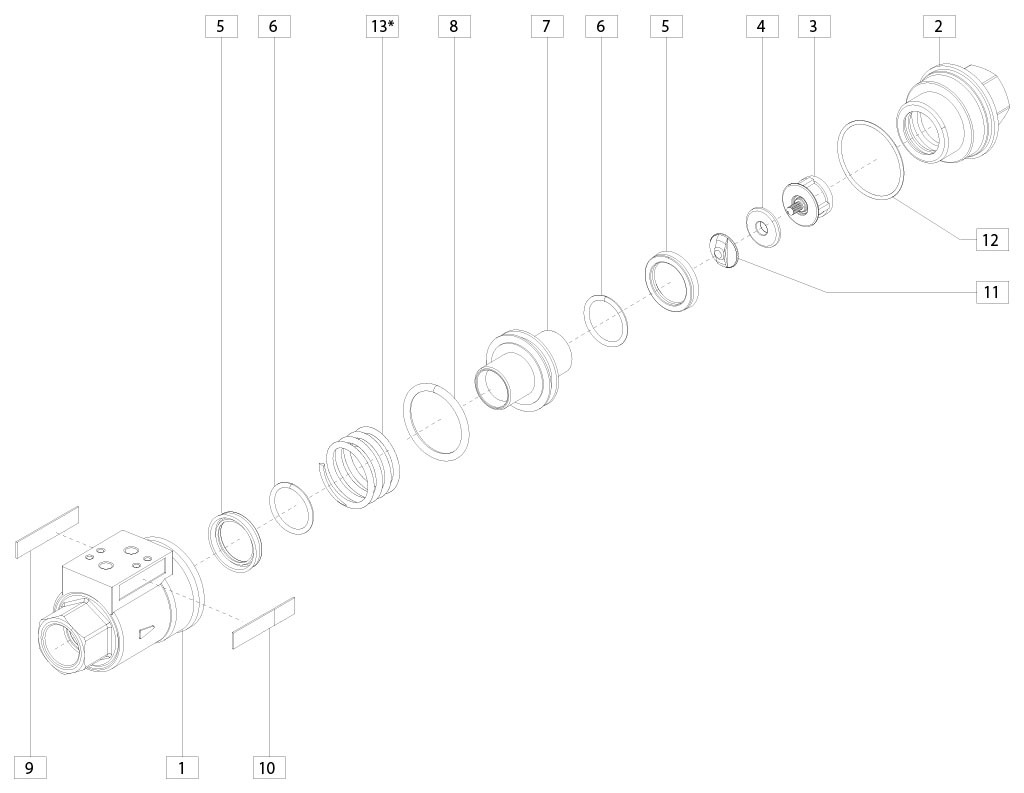

 MATERIALS
Pos.
Description
Q.ty
Material
Treatment
1
Body
1
Brass CW617N
nickel plated
2
Sleeve
1
Brass CW617N
nickel plated
3
Seat
1
Brass CW617N
nickel plated
4**
Seat-seal
1
NBR/FKM/EPDM

5**
Lip seal
2
NBR/FKM/EPDM

6**
O-ring
2
NBR/FKM/EPDM

7
Piston
1
Brass CW617N
nickel plated
8**
Piston O-ring
1
NBR/FKM/EPDM

9
Technical label
1
Polyestere

10
OMAL label
1
Polyestere

11
Seat nut
1
Brass CW614N
nickel plated
12**
Sleeve O-ring
1
NBR/FKM/EPDM

13
Spring (only for SR)
1
Stainless steel


**Components of spare part kit

WORKING PRINCIPLE
A VIP valve (patented by OMAL exclusively) is a proper automatic valve embodying both interception device (between pipe C-D) and control device (A-B).
It works thanks to the internal movement of a piston supplied with air. At the end of its stroke (a VIP valve is an ON/OFF valve), the piston presses on the seat seal or moves away from it letting the intercepted fluid flow or stopping it from flowing. As the seat is perfectly tight and the intercepted fluid pressures discharge on it, the pressure necessary to move the piston is completely independent of the fluid pressure. As a result OMAL has been able to design a light space saving and lasting valve. Its full bore and its improved internal dynamics allow minimum pressure losses, too.

Closed valve
Supplying the hole “A” with air (the hole “B” must be discharging) at the end of its stroke the piston presses on the seat seal: the valve is closed.
As in Spring Return N.C. executions the spring is in “A”, if there is no control, the piston will touch the seat seal: therefore, the preferable position is the closed one.

Transitionary phase
During the transitionary phase (the picture shows the opening transition in a Double Acting execution), one of the two holes is supplied. The piston moves axially changing the previous closed or open state. In Spring Return N.C. executions, the closing is caused by the spring (if there is no control). In Spring Return N.O. executions, the opening is caused by the spring (if there is no control). Both opening and closing transitionary phases last less than a second.

Opened valve
Supplying the hole “B” with air (the hole “A” must be discharging) at the end of its stroke the piston is at maximum distance from the seat seal: the valve is open.
As in Spring Return N.O. executions the spring is in “B”, if there is no control, the piston will be away from the seat seal: therefore, the preferable position is the open one.

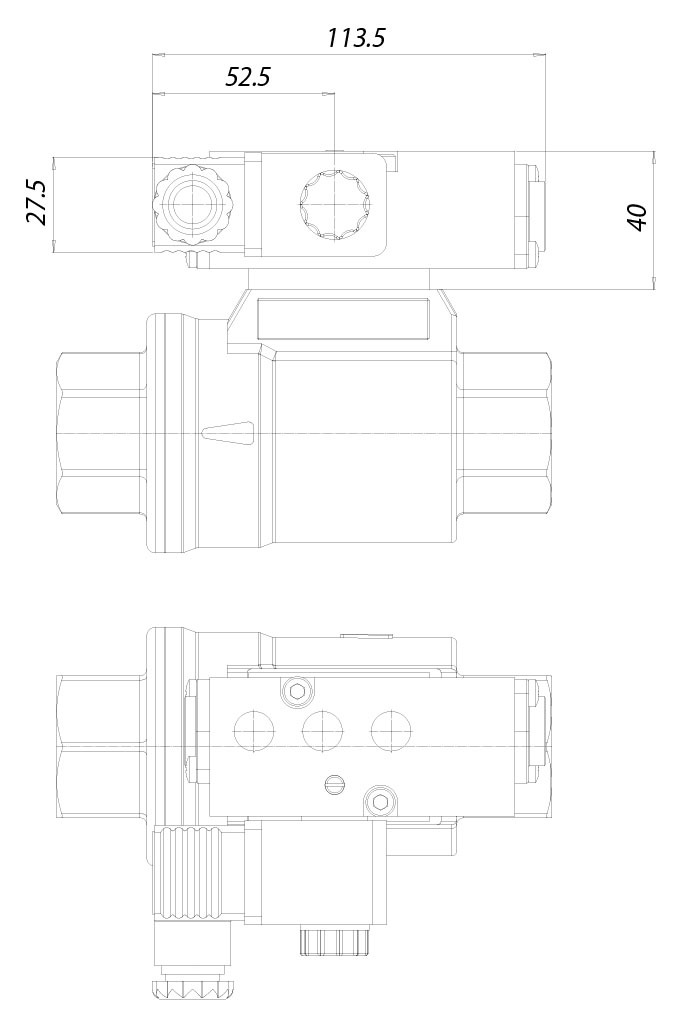

VIP with NAMUR solenoid valve

Solenoid valve 5/2 as per NAMUR
This solenoid valve is designed for the selection of the functions 5/2 and
3/2, which is realized by using wing the appropriate plate.
Full-working input power - D.C.: 2,5 W
Full-working input power - A.C.: 2 W
Supply voltage tolerances: +/- 10%
Coil insulation: F-class
Protection with connector: IP65
Electric connection: PG 9
Pneumatic connections: inlet 1/4”; outlet 1/4” ISO 228
Max. pressure: 10 bar
Operating media temperature: from -10°C to +80°C
Ambient temperature: from -10°C to +50°C

  NAMUR SOLENOID VALVE
 Solenoid valve
ER8188A2
ER8188A4
ER8188A5
ER8188C2
ER8188C4
 Voltage
24V AC
115V AC
230V AC
24V DC
110V DC

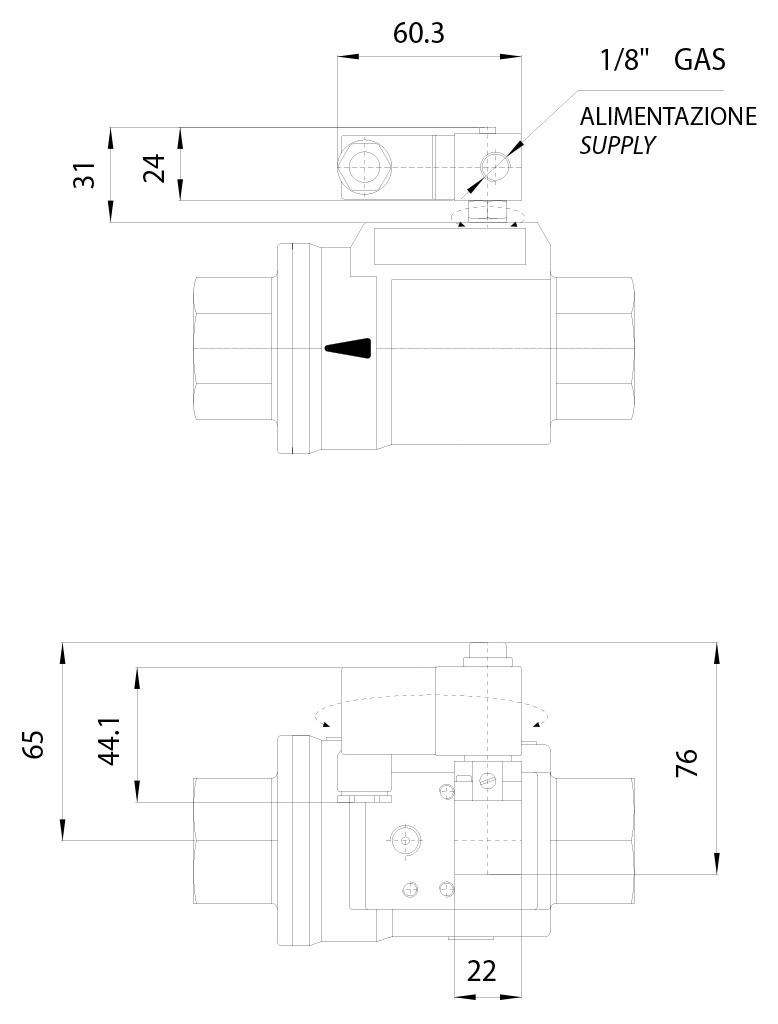

VIP with microsolenoid valve

Micro solenoid valve :
This solenoid valve is connected by a joint which fits directly to the actuator air intake, without other fittings or fixing screws.
3/2 solenoid valve, with solenoid available in the
following voltages: 24-110-220V AC; 12-24V DC.
Starting input power - A.C.: 9 VA
Full-working input power - D.C.: 5 W
Full-working input power - A.C.: 6 VA
Supply voltage tolerances: +/- 10%
Copper wire insulation: H-class
Coil insulation: F-class
Protection with connector: IP65
Electric connection: PG 9 any orientation acceptable 360°
Pneumatic connections:1/8” ISO 228 any orientation acceptable 360°
Max. pressure: 10 bar
Operating media temperature: from -10°C to +50°C
Ambient temperature: from -10°C to +50°C
ø Bore 1,3 mm

 MICRO SOLENOID VALVE
 Solenoid valve
EP415024
EP415110
EP415220
EP412012
EP412024
 Voltage
24V AC
115V AC
230V AC
12V DC
24V DC

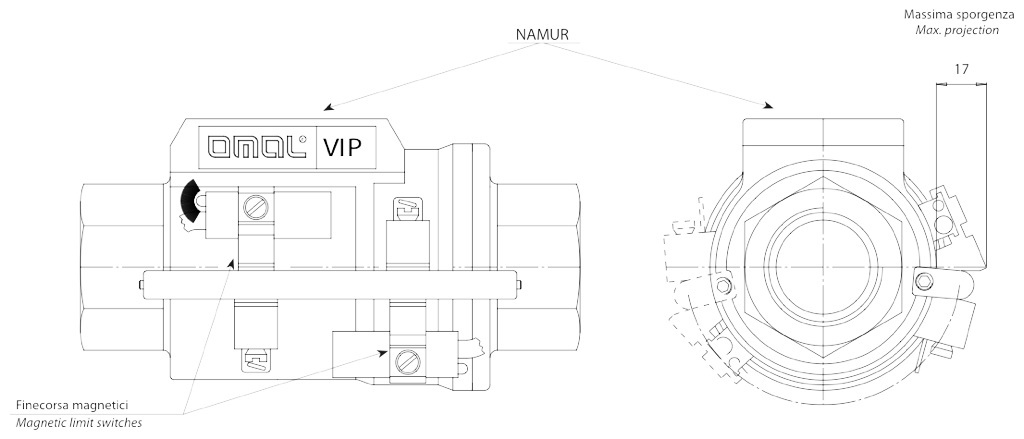

VIP can be provided with magnetic contact inductive limit switches and signalling LED. Limit switches are supplied with a KIT which makes it possible to fix them on the outside easily and quickly. Since the magnets are situated inside the valve, they must be assembled while mounting the VIP and not afterwards. That’s the reason why the limit switches must be requested on ordering the valve.

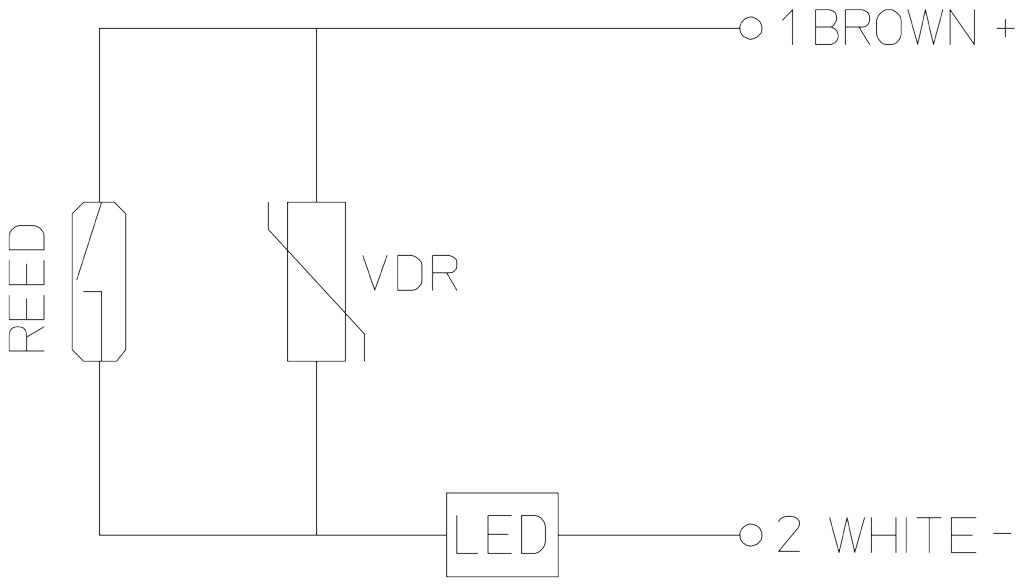

Limit-switch electric plan

LIMIT-SWITCH ELECTRICAL FEATURES
Switch indicator
LED
Protection level
IP 67
Nominal voltage with direct current
3÷250 V dc
Nominal voltage with alternating current
3÷250 V ac
Maximum voltage drop
2,5 V
Maximum power with direct current
50 W
Maximum power with alternating current
50 VA
Maximum current at 25°C (resistive load)
1 A
Protection against inductive tension peaks
250 VR
Inverse polarity protection
·
Maximum applicable load (coil with overvoltage suppressor)
10 W
Maximum applicable load (simple coil)
10 W
Maximum applicable load (PLC)
·
Electric life (resistive load 20% max. power short distance between load and switch)
10x106
Repeatability
0,1 mm
Operating time (resistive load)
2 ms
TeRelease time (resistive load)
0,1 ms
Working temperature
-30÷+80 °C
Impact resistance (11ms)
50 g
Vibration resistance
1000 Hz
Sensor type
1
Connecting cable 2m
n° 2 fili
