KFN6 ATEX Explosion proof limit switch

II2GD ExdIIC

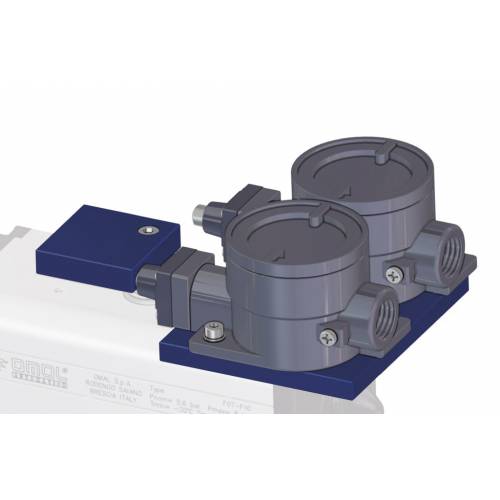

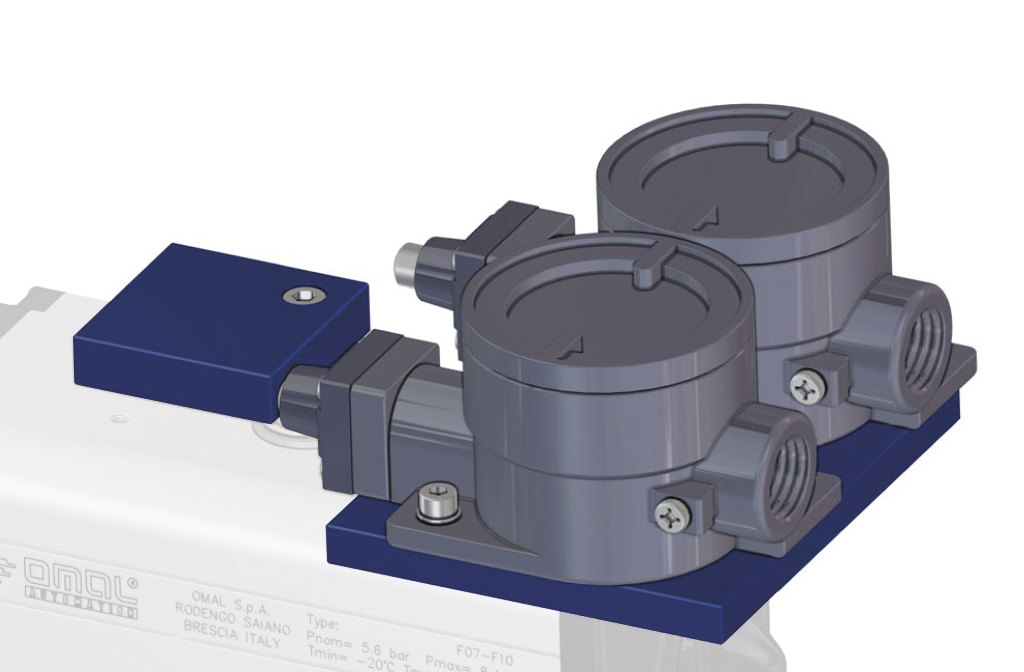

KFN61 - KFN62 A KIT + LIMIT SWITCH

CODES TABLE - KIT+LIMIT SWITCHES
Actuator
DAN15÷DAN120
SRN15 ÷ SRN60
DAN180 ÷ DAN1920
SRN90 ÷ SRN960
Code kit with1 limit switch
KFN61015
KFN61060
Code kit with 2 limit switches
KFN62015
KFN62060

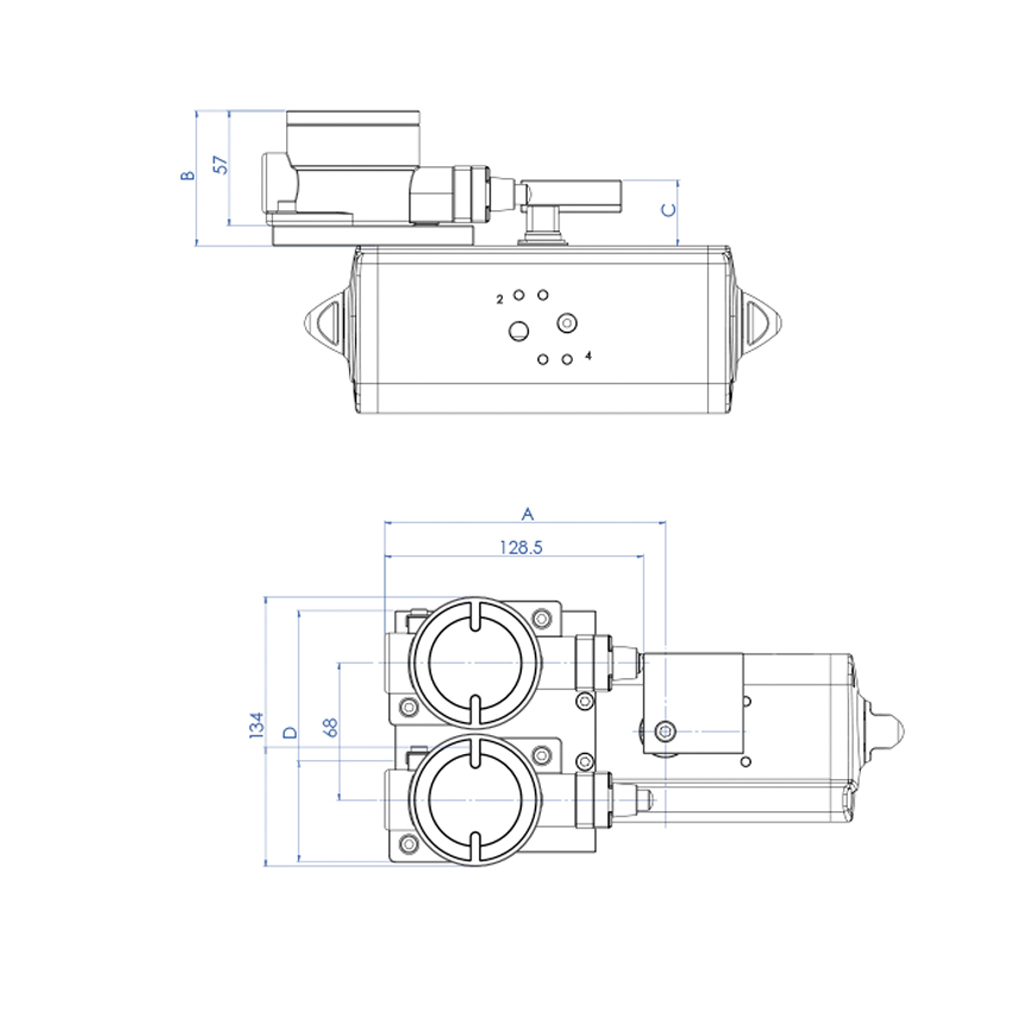

A mm.
7686
B mm.
3141
C mm.
3848
D mm.
6070

ATEX EXPLOSION PROOF LIMIT SWITCH - FE660000

CODES TABLE - LIMIT SWITCHES
Actuator
DAN15÷DAN120
SRN15 ÷ SRN60
DAN180÷DAN480 SRN90÷SRN240
DAN720 ÷ DAN1920
SRN360 ÷ SRN960
Code
FE660000
Supplier code
PS-C5-11-N - Coelbo

TECHNICAL FEATURES
- Explosion-proof limit switch with light-alloy housing, stainless steel screws, vinyl-epoxy painted, RAL 7000
- Working temperature: from -10°C to +60°C
- Nr. Of cycles: max. 300/h

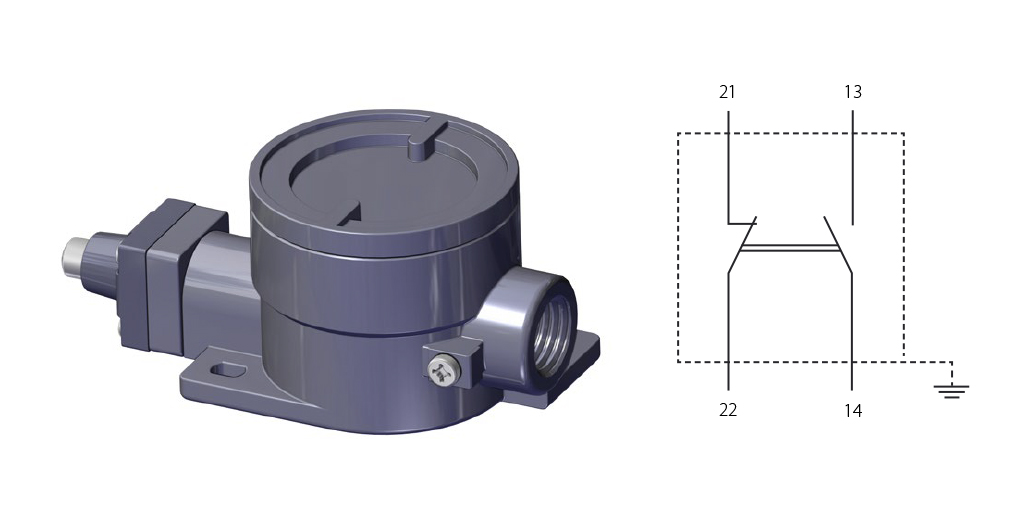

- Unipolar contact element, 1NA+1NC: Imax 10A Vmax 220Vca 220Vcc
- Connection: screw terminal, section 2,5 mm2 max
- Protection rate: IP65
- Electrical connection: 1/2” NPT
- Explosion protection: ATEX II2GD Exd IIC
- Mounting kit included on DAN and SRN models. It is composed by a plate fixed on the body of the actuator and a cam mounted on its shaft
