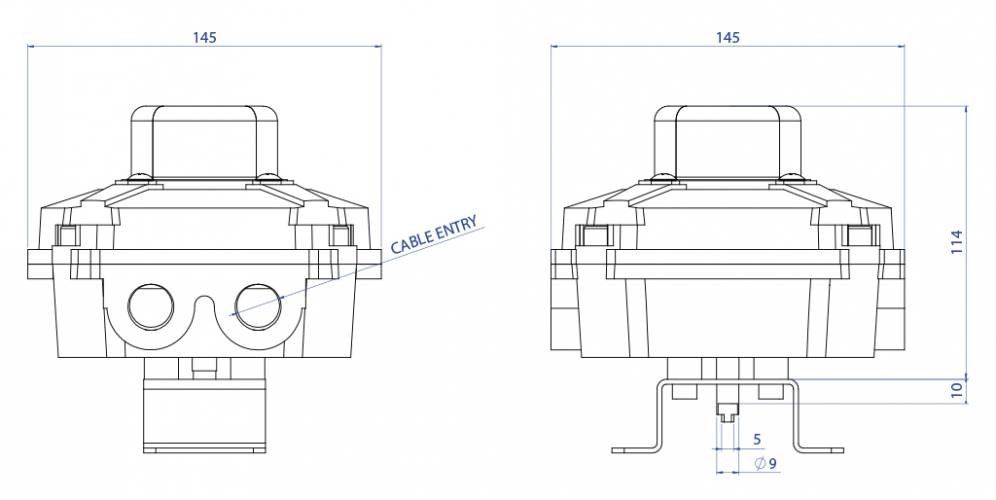

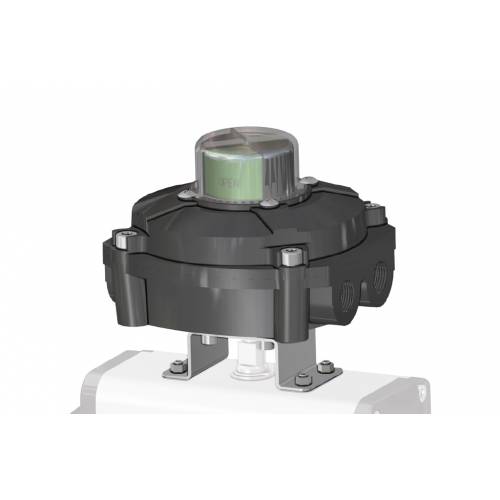

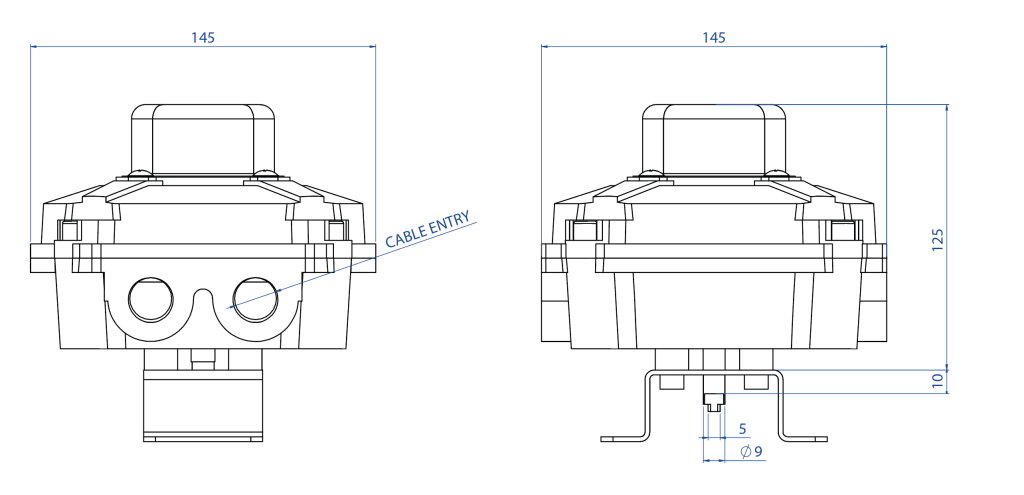

KS2L ATEX aluminium with optical indicator

II2GD Exd IIC T6
KS2L ATEX aluminium with optical indicator

TECHNICAL FEATURES
- Made to easily verify the visual and electrical position of each valve even from long distances.
- Built according to VDI / VDE 3845 standards. (EN15714-3)
- It can contain two limit switches either mechanical "SPDT" or proximity.
- Precise cam adjustment via "Miller" system.
- 10 positions terminal block.
- N. 2 threaded electrical connections for cable gland.
- Operating temperature: from -20°C to +60°C (NBR).
- Protection rate: IP66/67.

MATERIALS
- Body and cover: Low-Copper Aluminum Die Coated with Double Epoxy Coating*.
- Indicator: polycarbonate and ABS
- Shaft: Stainless steel
- Screws: Stainless steel

* On request also in stainless steel CF8M

CERTIFICATIONS
- CE declaration of conformity on request
- ATEX, IEC Ex II2GD Exd IIC T6
- Up to SIL 2 Certified

TYPES OF LIMIT SWITCHES CONTAINED IN BOX KS2L

CODE*
DESCRIPTION
VERSION
WIRING DIAGRAM
M2
SPDT Electromechanical microswitches with silver plated contacts (OMRON D3V o CHERRY D44)

Max: 250 Vac 11A -250 Vdc 0.3A - 30 Vdc 3A
Standard
S1
Magnetic proximity microswitches SPDT HSR 834 W

Max: 240 Vac 0.416A -240 Vdc 0.416A - 33 Vdc 3A
On request
42
SPDT Electromechanical microswitches SPDT with gold plated contacts (HONEYWELL V7)

Max: 250 Vac 11A
On request
73
3-wire amplified proximity microswitches PNP NO P+F NBB2 V3 E2,

10÷30 VDC; 100 mA - opereting current 0 - 100 mA
On request
75
2-wire amplified proximity microswitches IFM IS 5026

5÷36 Vdc; 4÷200 mA
On request


NOTE: DPDT version available on request 4 x SPDT (electromechanical only)

* The symbol that identifies the type of limit switches used, appears in the code box in the 6th and 7th position.

CONNECTION BRACKET BETWEEN ACTUATOR AND LIMIT SWITCHES BOX

KS3L - KS2L

TYPE OF BRACKET*
DESCRIPTION

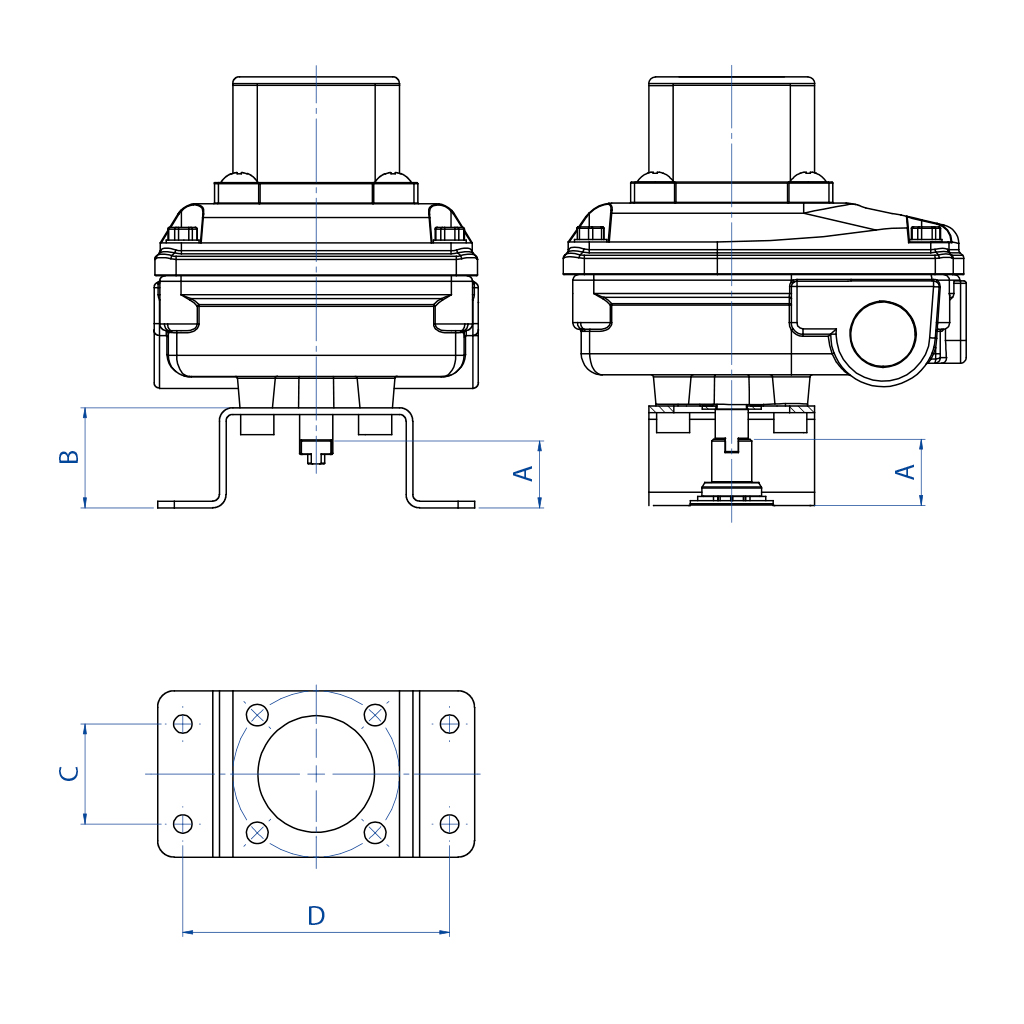

0NAMUR connection 25x50x20* (*20= height of the actuator shaft, dimension A as per picture)
1NAMUR connection 30x80x20* (*20=height of the actuator shaft, dimension A as per picture)
3NAMUR connection 30x80x30* (*30=height of the actuator shaft, dimension A as per picture)
4NAMUR connection 30x80x30* (*30=height of the actuator shaft, dimension A as per picture)
5NAMUR connection 30x130x30* (*30=height of the actuator shaft, dimension A as per picture)
* The bracket appears in the last position of the limit switches box code. If you need to order only the bracket, please refer to the OMAL code.

FOR ALUMINIUM ACTUATORS
SIZEDAN15÷DAN120 SRN15÷SRN60
DAN180÷DAN960 SRN90÷SRN480
DAN1440÷DAN1920 SRN720÷SRN960
DA2880÷DA8000 SR1440÷SR4000
CodeKCPL1015
KCPL1060
KCPL2060
KCPL1A04

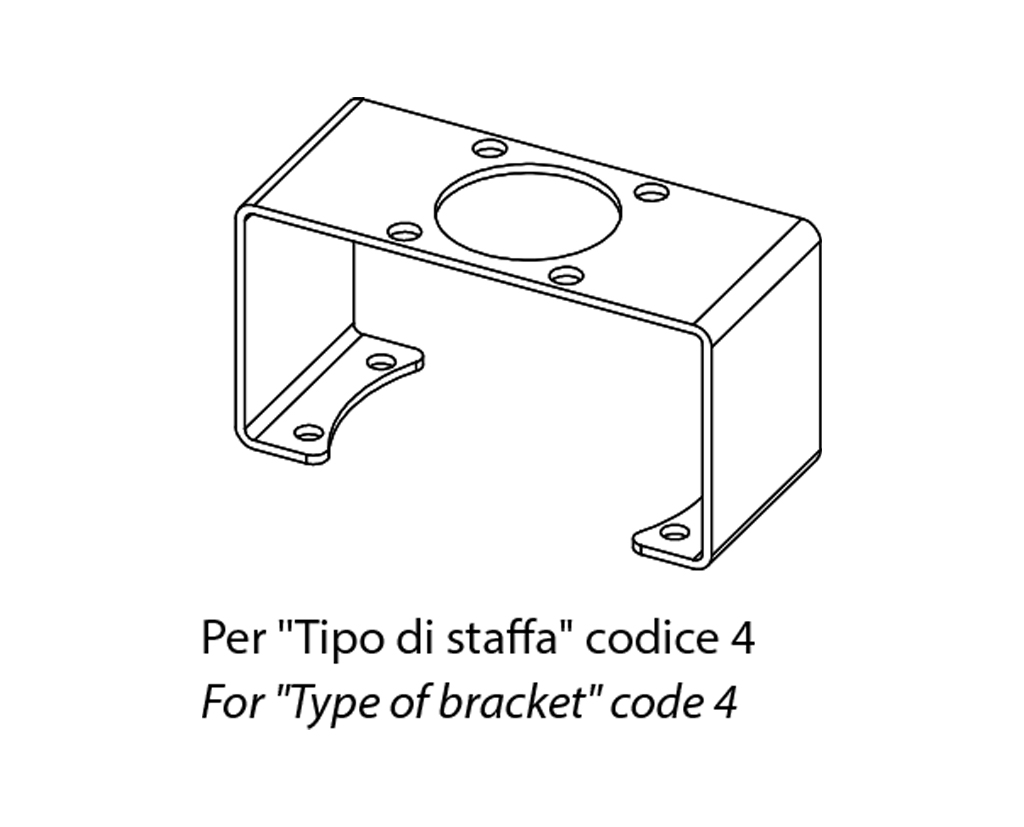

Type of bracket
1345
A (mm)
20303030
B (mm)
30404040
C (mm)
30303030
D (mm)
808080130

FOR STAINLESS STEEL ACTUATORS
SIZEDA15**÷DA30**
SR15**
DA60
SR30
DA120÷DA960 SR60÷SR480
DA1440÷DA1920 SR720÷SR960
CodeKCPL0015KCPL1060
KCPL2060
Type of bracket
0034
A (mm)
20203030
B (mm)
30304040
C (mm)
25253030
D (mm)
50508080
** Use connection bracket for actuator: KBVI4015

BOX CABLE ENTRIES THREAD
Type of cable gland thread***
Description
Notes
1
1/2” NPT
ON REQUEST
2
M 20x1,5
STANDARD
*** Thread is indicated in 8th digit in the code of the box.
CABLE GLANDS: Not included.

SEARCH CODE
