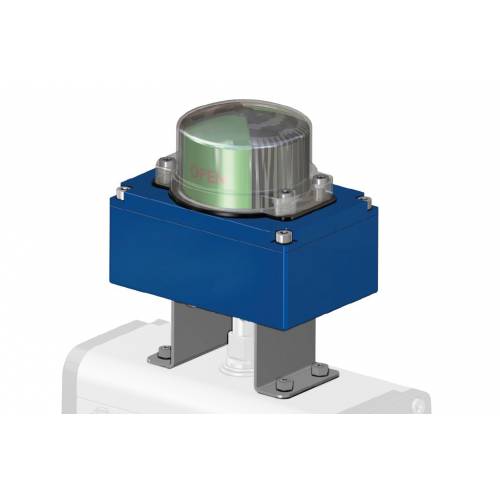

KS3F ATEX aluminium with optical indicator

II3D Ex TD A22 IP65 T85°C
KS3F ATEX aluminium with optical indicator

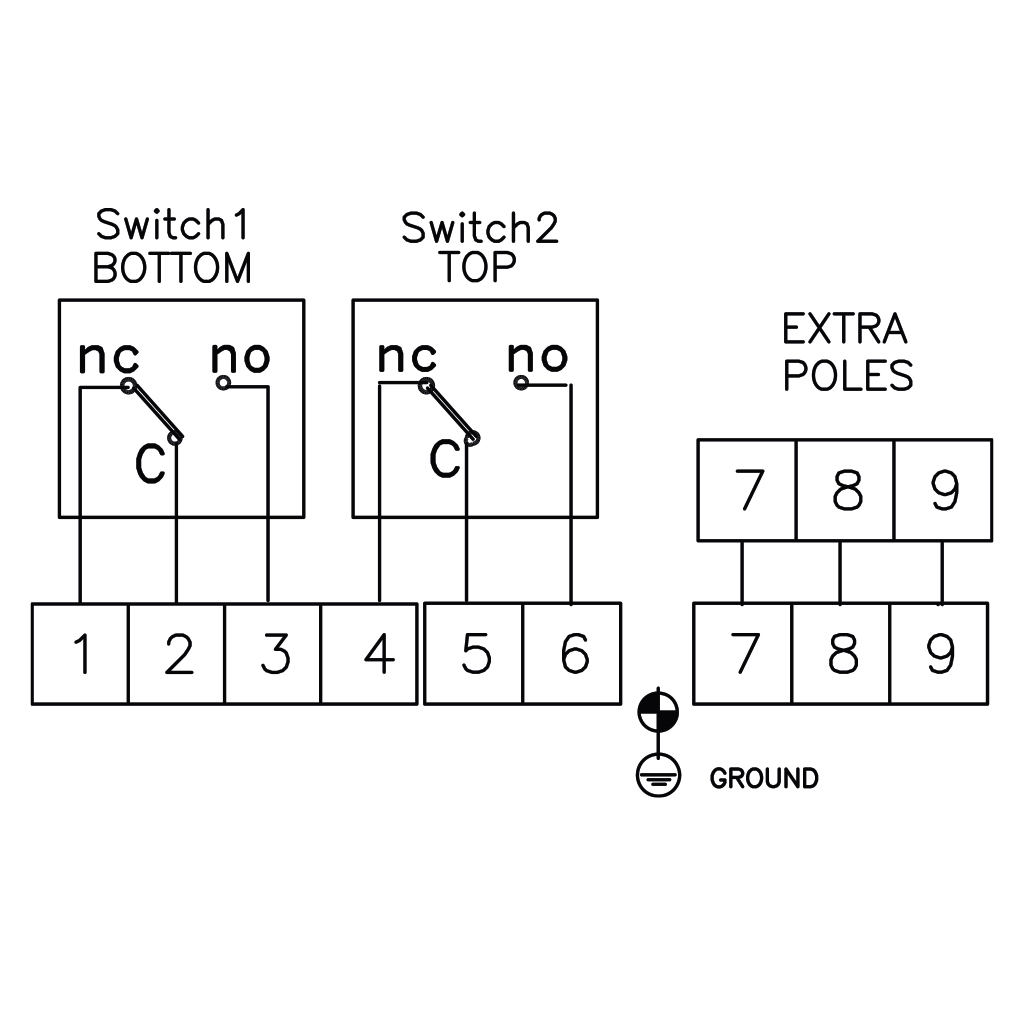

WIRING DIAGRAM

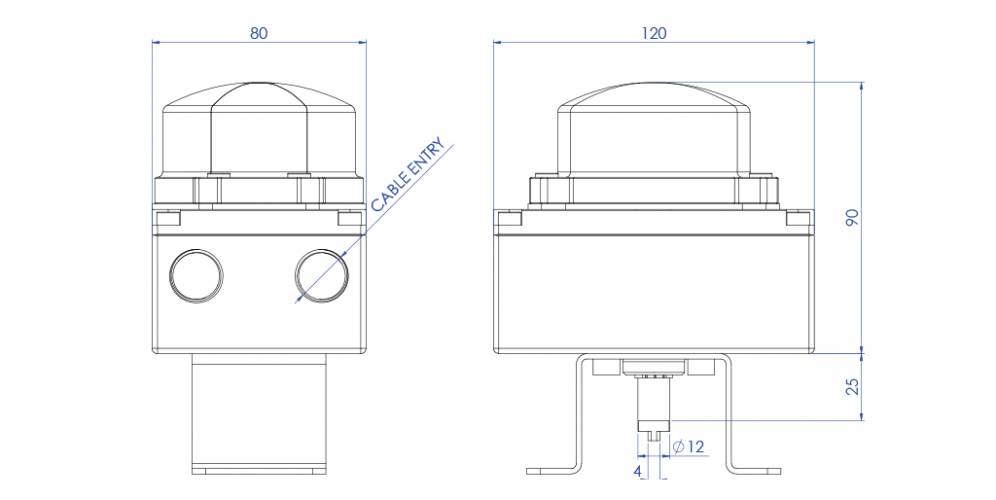

TECHNICAL FEATURES
- Made to easily verify the visual and electrical position of each valve even from long distances.
- Built according to VDI / VDE 3845 standards. (EN15714-3).
- It can contain two limit switches either mechanical "SPDT" or proximity.
- The cam of limit switch cannot slide since their regulation or other tools.
- The pre-wiring is realized means of numbered terminals: n° 6 for the two microswitches, and extra poles for eventual solenoid wiring (see wiring diagrams).
- N. 2 threaded electrical connections for cable gland.
- Operating temperature: from -40°C to + 80°C.
- Protection rate: IP65

MATERIALS
- Body and cover: die-cast aluminum coated with polyester powder.
- Indicator: UV-resistant and self-extinguishing polycarbonate class V0.
- Shaft: Stainless steel
- Screws: Stainless steel

CERTIFICATIONS
- ATEX: II3D Ex tD A22 IP65 T85°C
- More on request
- Up to SIL 3 Certified

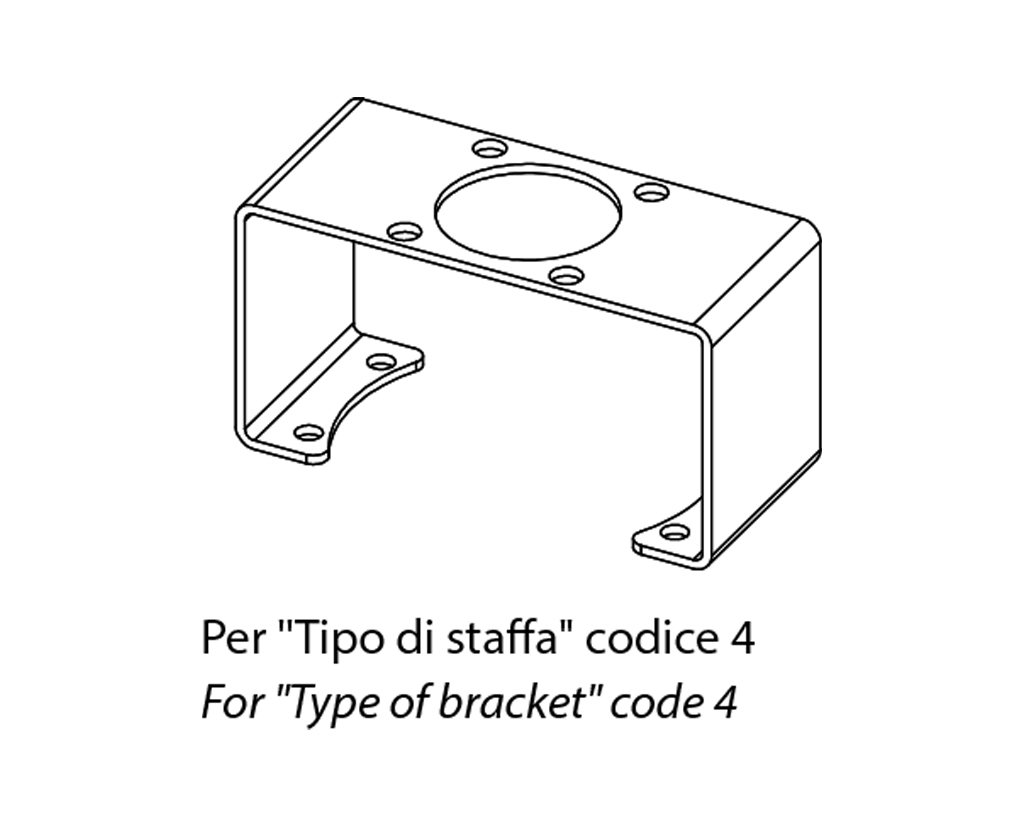

CONNECTION BRACKET BETWEEN ACTUATOR AND LIMIT SWITCHES BOX

KSIB - KSIF - KS3F


TYPE OF BRACKET*
DESCRIPTION
0NAMUR connection 25x50x20* (*20= height of the actuator shaft, dimension A as per picture)
1NAMUR connection 30x80x20* (*20=height of the actuator shaft, dimension A as per picture)
3NAMUR connection 30x80x30* (*30=height of the actuator shaft, dimension A as per picture)
4NAMUR connection 30x80x30* (*30=height of the actuator shaft, dimension A as per picture)
5NAMUR connection 30x130x30* (*30=height of the actuator shaft, dimension A as per picture)
*The bracket appears in the last position of the limit switches box code. If you need to order only the bracket, please refer to the OMAL code.

FOR ALUMINIUM ACTUATORS
SIZEDAN15÷DAN120
SRN15÷SRN60
DAN180÷DAN960
SRN90÷SRN480
DAN1440÷DAN1920
SRN720÷SRN960
DA2880÷DA8000
SR1440÷SR4000
CodeKCPN1015
KCPN1060
KCPN2060
KCPN1A04
Type of bracket
1345
A (mm)
20303030
B (mm)
45555555
C (mm)
30303030
D (mm)
808080130

FOR STAINLESS STEEL ACTUATORS
SIZEDA15**÷DA30**
SR15**
DA60
SR30
DA120÷DA960 SR60÷SR480
DA1440÷DA1920 SR720÷SR960
CodeKCPN0015KCPN1060
KCPN2060
Type of bracket
0034
A (mm)
20203030
B (mm)
45455555
C (mm)
25253030
D (mm)
50508080
** Use connection bracket for actuator: KBVI4015

BOX CABLE ENTRIES THREAD
Type of cable gland thread***
Description
Notes
1
1/2” NPT
ON REQUEST
2
M 20x1,5
STANDARD
*** Thread is indicated in 8th digit in the code of the box.
CABLE GLANDS: Not included.
