KFE3A Electromechanical limit switch with cable

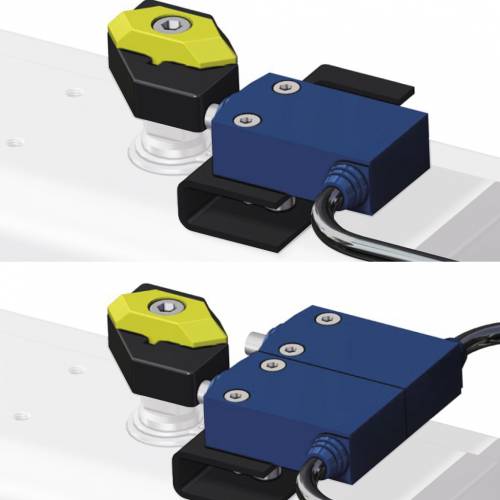

KFE3A KIT + LIMIT SWITCH

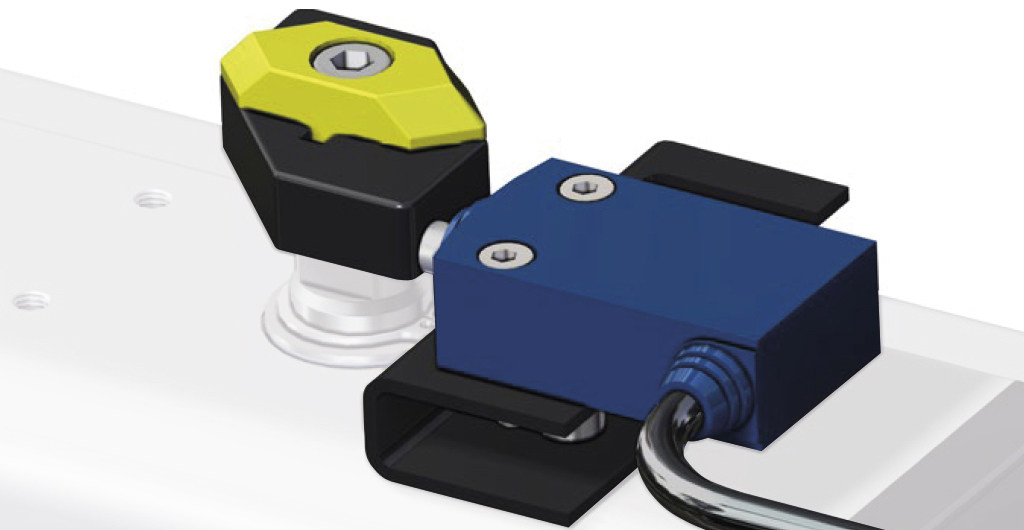

Example Kit with 1 Limit Switch

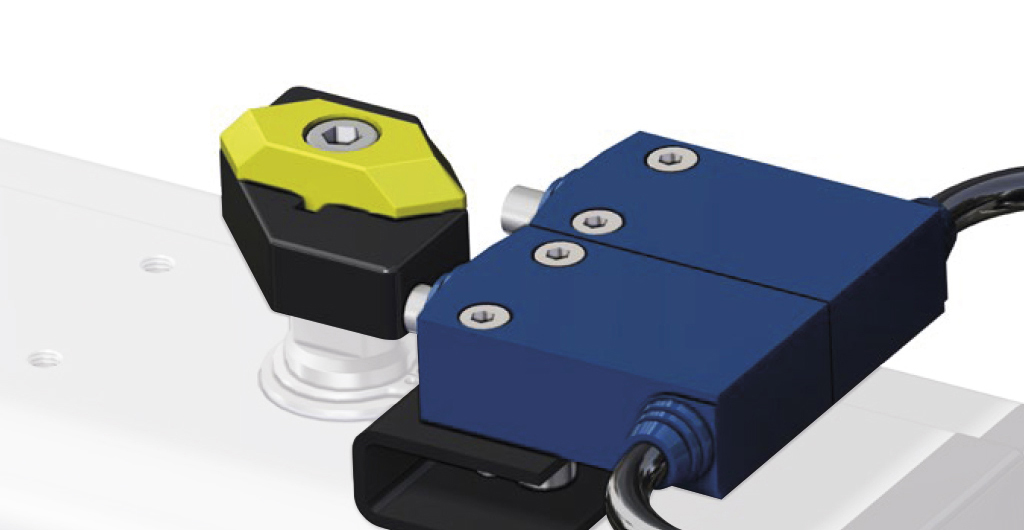

Example Kit with 2 Limit Switch

CODES TABLE - KIT + LIMIT SWITCHES
Actuator
DAN15÷DAN120
SRN15 ÷ SRN60
DAN180÷DAN480
SRN90÷SRN240
DAN720 ÷ DAN1920
SRN360 ÷ SRN960
Code kit with 1 limit switch
KFE3A1015
KFE3A1120  KFE3A1720
Code kit with 2 limit switches
KFE3A2015
KFE3A2120  KFE3A2720

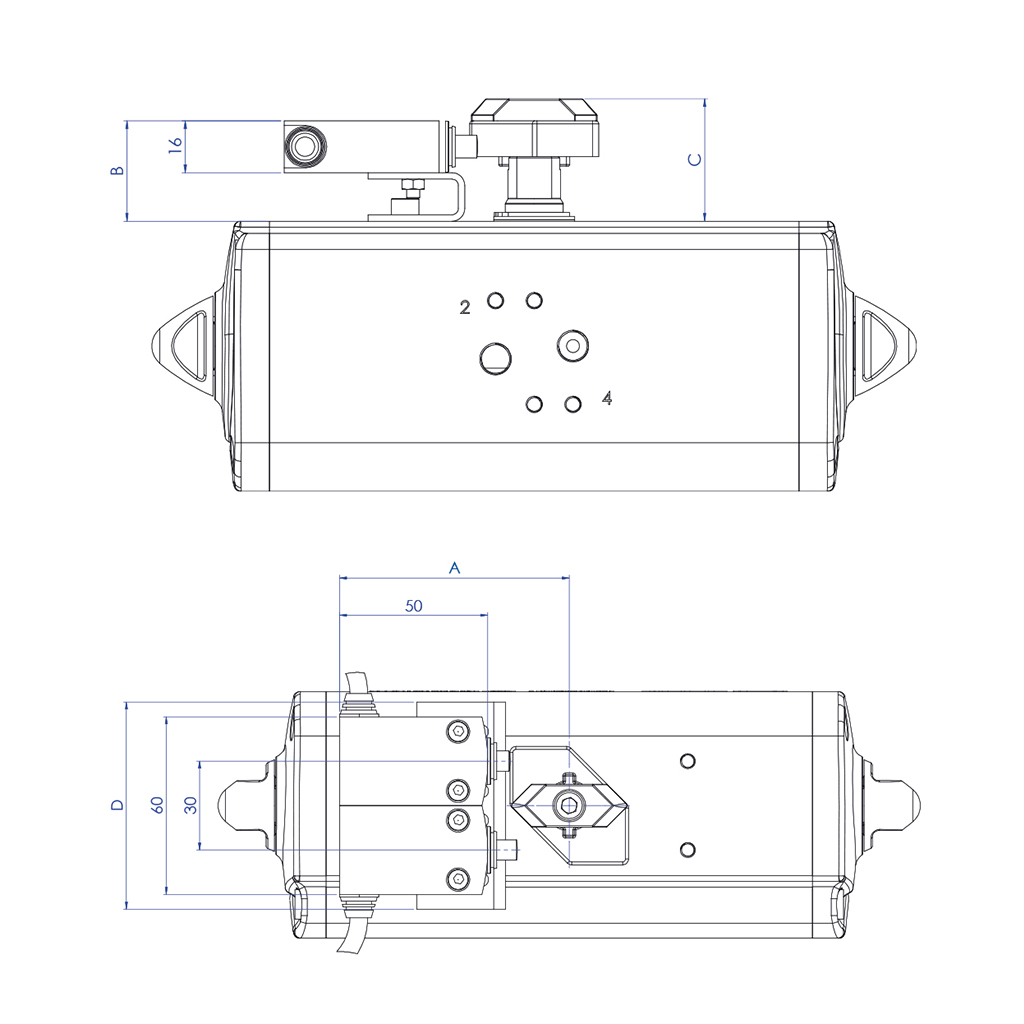

A mm.7676 86
B mm.3141 41
C mm.3848 48
D mm.6070  70

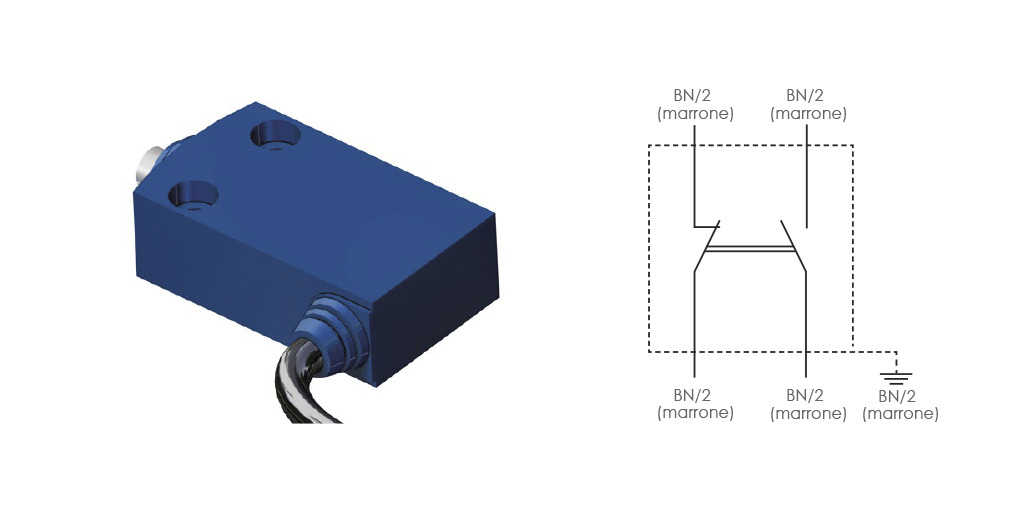

ELECTROMECHANICAL LIMIT SWITCH - FE3A0000

CODES TABLE - LIMIT SWITCHES
Actuator
DAN15÷DAN120
SRN15 ÷ SRN60
DAN180÷DAN480
SRN90÷SRN240
DAN720 ÷ DAN1920
SRN360 ÷ SRN960
Code
FE3A0000
Supplier code
XCMN2110L1 - Telemecanique


TECHNICAL FEATURES
- Mechanical, button limit switches as per:
- machinery:IEC 60947-5-1, EN 60 947-5-1, UL 508, CSA C22-2 n°14
- product: IEC 60204-1; EN 60204-1
- Body in technopolymer
- Protection: IP65 as per IEC 60529
- Flexible output cable with 4 conductors (lenght 1 m)
- Working temperature: from -25°C to +70°C
- It can be fixed on DAN and SRN models using a kit composed by plate fixed to the actuator body and a cam mounted on the shaft.
