KFN4 Electromechanical limit switch

KFN41 - KFN42 KIT + LIMIT SWITCH

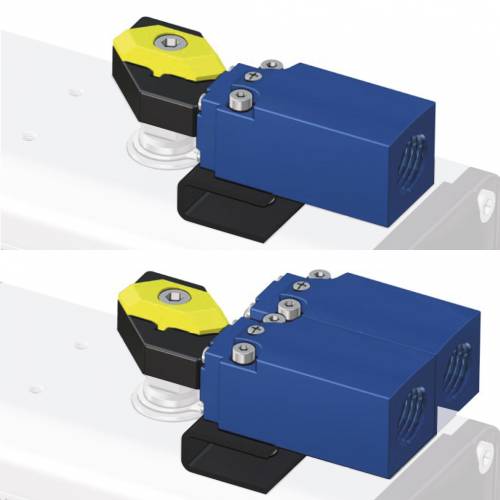

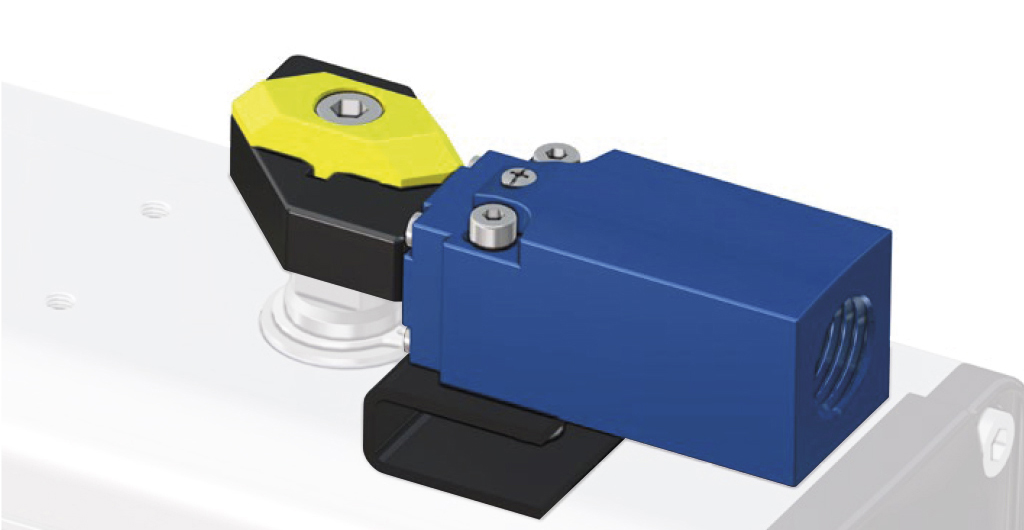

Example Kit with 1 Limit Switch

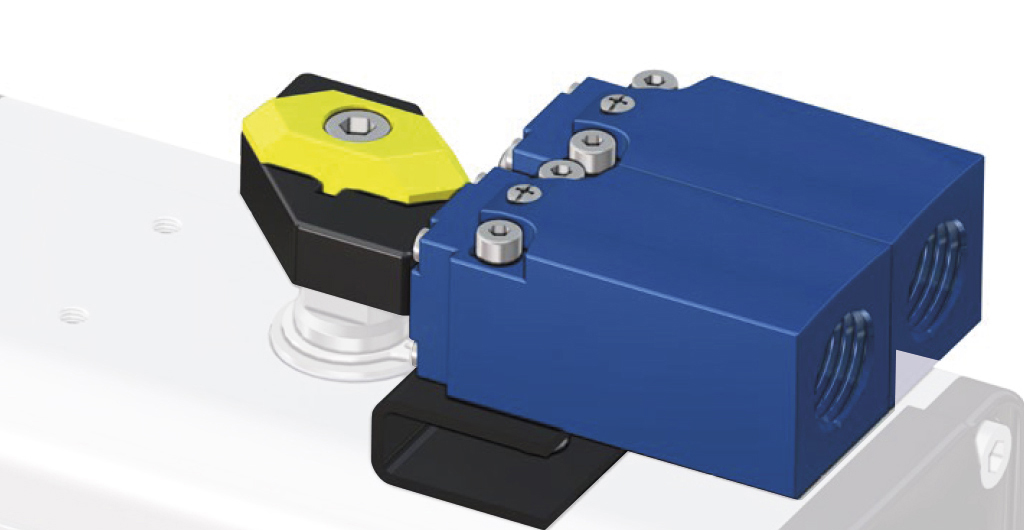

Example Kit with 2 Limit Switch

CODES TABLE - KIT + LIMIT SWITCHES
Actuator
DAN15÷DAN120
SRN15 ÷ SRN60
DAN180÷DAN480
SRN90÷SRN240
DAN720 ÷ DAN1920
SRN360 ÷ SRN960
Code kit with 1 limit switch
KFN41015
KFN41120  KFN41960
Code kit with 2 limit switches
KFN42015
KFN42120  KFN42960

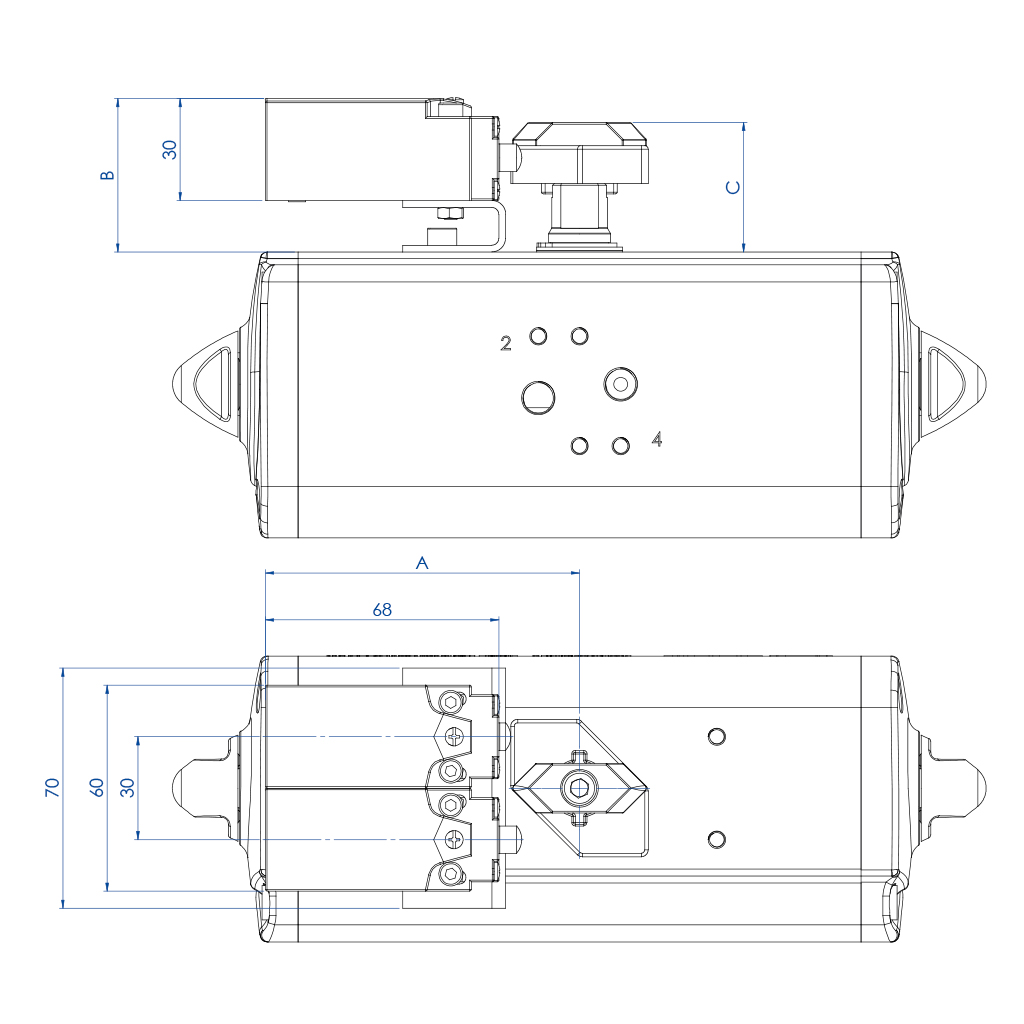

A mm.9090100
B mm.455555
C mm.384848
D mm.607070

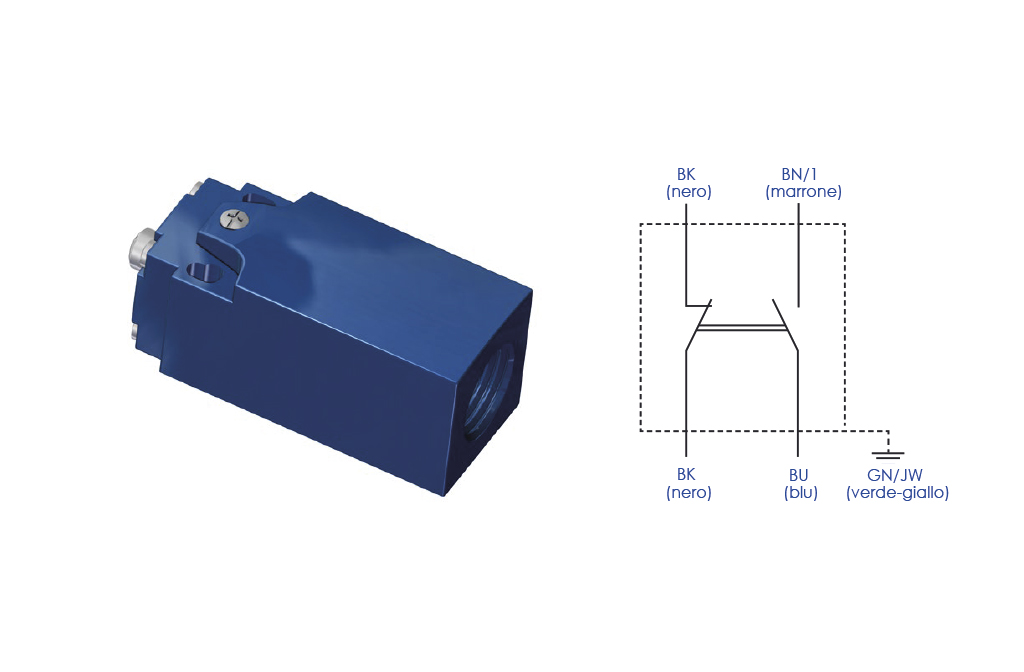

ELECTROMECHANICAL LIMIT SWITCH - FE360000

CODES TABLE - LIMIT SWITCHES
Actuator
DAN15÷DAN120
SRN15 ÷ SRN60
DAN180÷DAN480
SRN90÷SRN240
DAN720 ÷ DAN1920
SRN360 ÷ SRN960
CodeFE360000
Supplier code
XCKN2110G11 - Telemecanique

TECHNICAL FEATURES
- Mechanical button limit switch according to IEC 947-5-1, EN 60 945-5-1, UL 508, CSA A300-UL 300 approved Listed
- Protection rate: IP 67
- Threaded cable input Pg 11
- Working temperature: from -25°C to +70°C
- Mounting kit included on DAN and SRN models. It is composed by a plate fixed on the body of the actuator and a cam mounted on its shaft.
