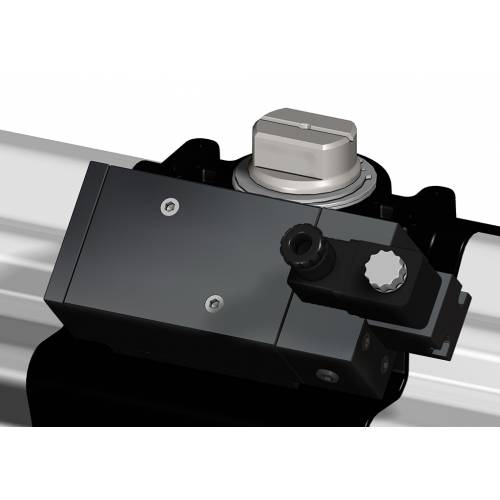

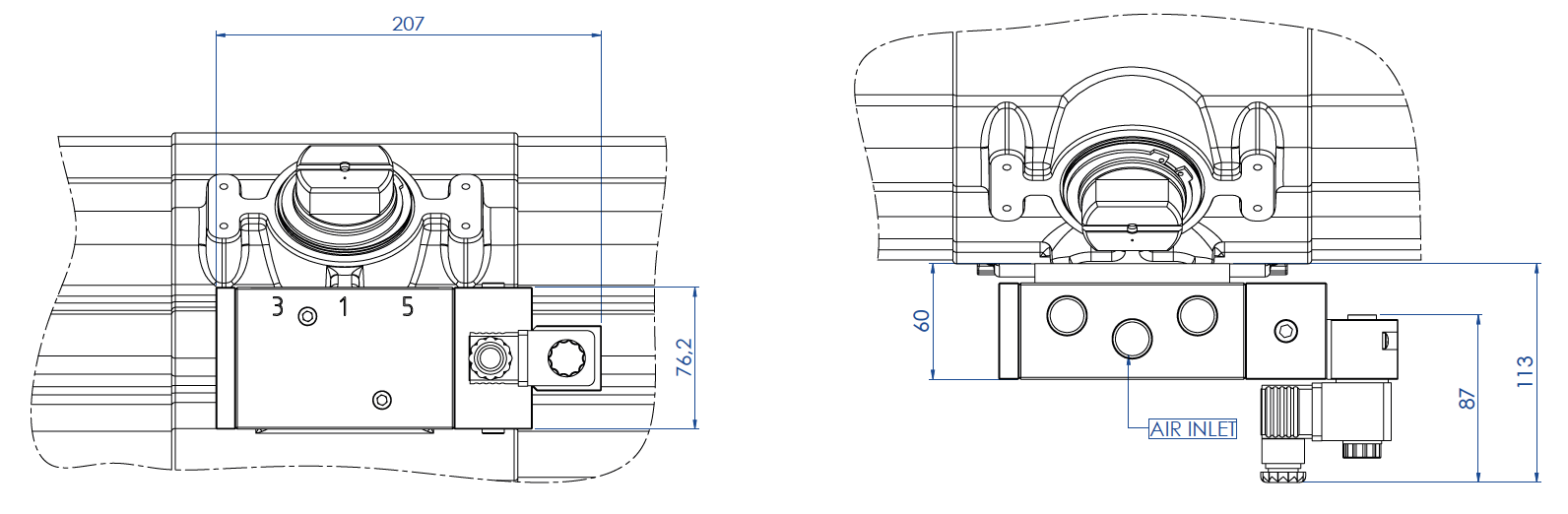

NAMUR II monostable solenoid valve with CNOMO coil

FOR DA2880÷DA8000 / SR1440÷4000 ACTUATORS

TECHNICAL FEATURES
- Solenoid valve designed for direct mounting onto 1/4 turn pneumatically operated valve actuators meeting NAMUR II standard fixing dimensions.
- The solenoid valve is designed for the selection between the 5/2 and 3/2 function which is realized by using one of 2 different interfacing plates.
- Interchangeable CNOMO interface operators.
- Integrated exhaust to spring (ETS) feature in 3/2 position.
- G 1/2’’ mains air and exhaust ports.
- Electric connection PG9
- Solenoid/spring or solenoid/solenoid functions.
- Manual bistable screw control
- Flow capacity: 3534 l/min a 6 bar Δp 1 bar
- Operating pressure: 3 to 10 bar
- Ambient temperature: from -20°C to +80°C

MATERIALS
- Body and caps: anodized aluminum DURAL; AISI316 stainless steel on request
- Spool: PTFE impregnated anodized aluminum
- Seals: nitrile
- Spring: stainless steel
- Screws: stainless steel
- 3/2 conversion plate - 5/2 fiberglass reinforced nylon 66 (30%)

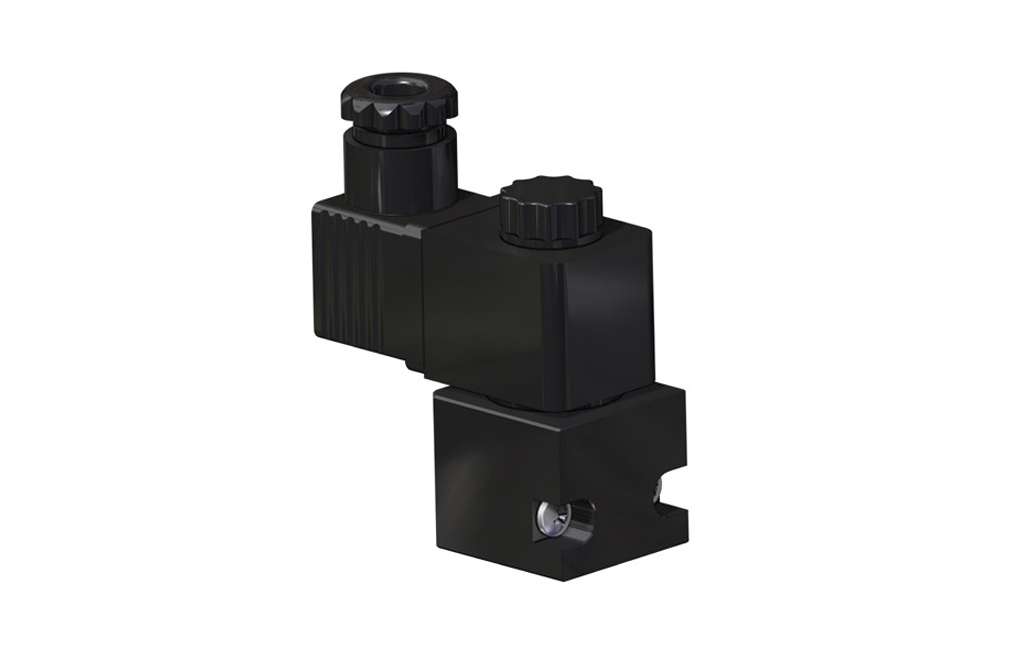

COIL CNOMO (MC30 - PLUG AND SOCKET) FOR SOLENOID VALVE ER85 - ER86 - ER8187

ENCODING

COIL CODE
DESCRIPTION
BBR92024
Supply 24 Vdc
BBR91024
Supply 24 Vac 50/60 Hz
BBR91110
Supply 110 Vac 50/60 Hz
BBR91220
Supply 230 Vac 50/60 Hz

TECHNICAL FEATURES
- Input power: 2 W (DC)
- Input power: 5 VA (9 VA max. in AC)
- Supply voltage tolerance: ±10 %
- Coil insulation: F-class
- Yield (duty cycle): 100%
- Protection rate: IP65
- Electrical connection: PG.9
- Temperature: -20°C to +60°C

MATERIALS
- Body: Thermoplastic
