MAGNUM Split Wafer PN 63-100 ANSI 600 stainless steel ball valve

MAGNUM
MAGNUM Wafer
MAGNUM Split Wafer
MAGNUM Split Wafer 3 ways 4 seals
THOR
PROCHEMIE 60
STARK & SPARTAN
HERCULES
KRATOS
SUPREME TRUNNION
OTHER BRASS BALL VALVES
OTHER CAST IRON BALL VALVES
OTHER STAINLESS STEEL BALL VALVES
OTHER CARBON STEEL BALL VALVES
OTHER PVC BALL VALVES
Download General catalogue
Download Sales conditions
Decoding MAGNUM & THOR
Configure your product
Download 2D and 3D files in various formats

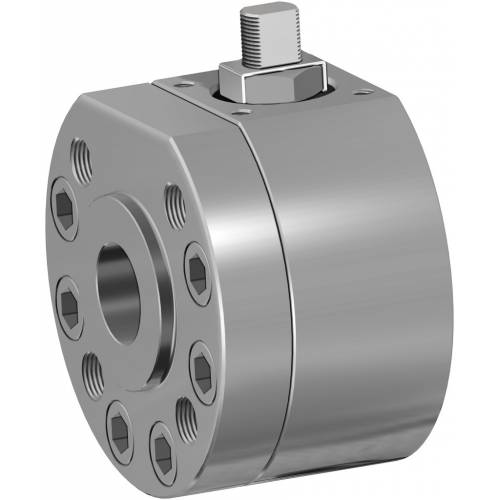

MAGNUM Split Wafer PN 63-100 ANSI 600 stainless steel ball valve
Macro Ball valves
Category MAGNUM
Subcategory MAGNUM Split Wafer

Family MAGNUM Split Wafer PN 63-100 ANSI 600

CONFIGURE Drive
REQUEST INFORMATION
PAGE PRINT
DECODING CODE
  • benefits
  • features
  • dimensions
  • materials
  • diagrams and breakaway torque
  • accessories
  • documents

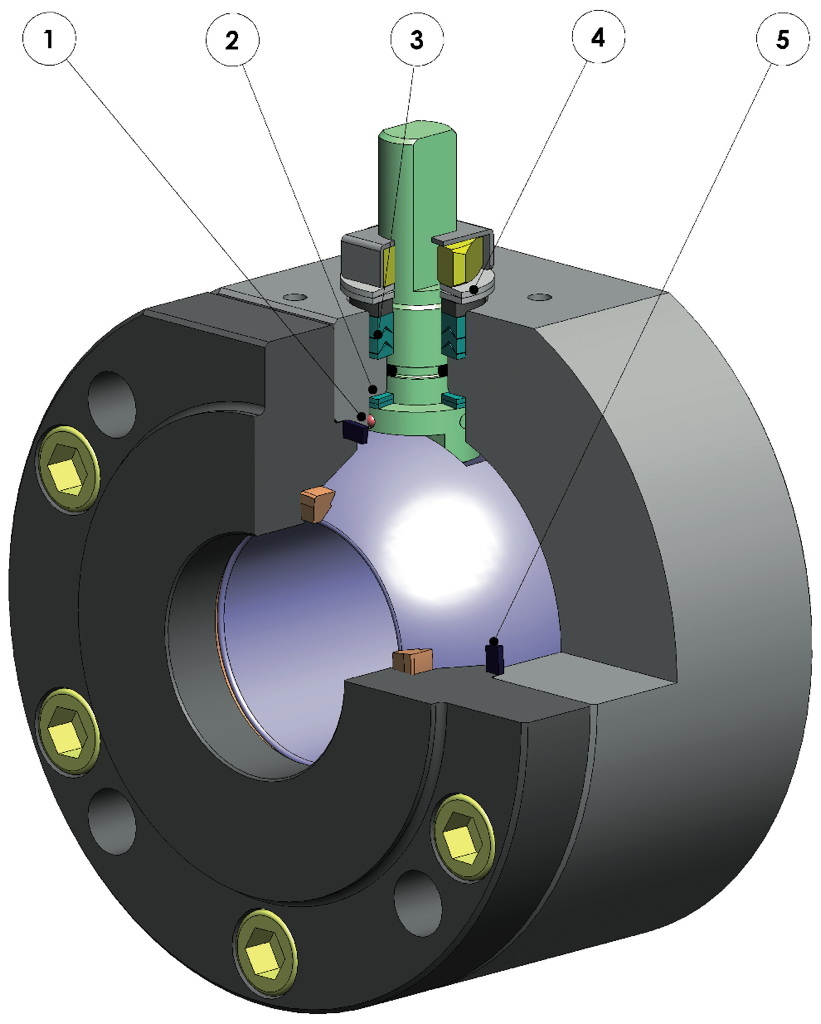

MAGNUM Split Wafer PN 63-100 ANSI 600 stainless steel ball valve - benefits -

1. Antistatic device ((electrical continuity between ball, stem and body)
Static electricity is avoided which can cause sparks and fire in an inflammable/explosive environment
Contact safety throughout the entire life of the valve

2. Double antifriction washer
Less Breakaway Torque is granted
Less wear comparing with the execution with the single washer

3."V" seals pack; 3 seals + o-ring
It ensures a perfect tightness even after a high number of cycles

4. Spring washer on the shaft seal
Guarantee of the recovery of the gap due to the wear caused by the rotational movement of the shaft avoiding leakage towards the outside part.
Allow to maintain energized the "chevron" seals (V), thus avoiding any leakage to the outside, against huge temperature excursions

5. Stretch Graphite seal
Tightness towards outside is granted, independently by the thermal excursions to which the valve is subjected

Greater precision in the alignment of axes due to a unique positioning in the process machining from raw material to finished valve
Longer lifetime of the valve
Less breakaway torque

Valve body in carbon steel made with NACE certified material as standard
Greater corrosion resistance
Greater ductility of the material

100% in- house manufacturing process technology
Maximum control and accuracy in all the stages of the manufacturing process
Flexibility in supply quickly special executions requested by customers

"Fire safe" Certificate
Guarantees the tightness of the valve also in case of fire

ATEX Certificate
Installation is possible in a potential explosive environment

TA LUFT fugitive emission Certificate
High level of safety of the tightness towards the outside is granted

PED Certificate
Full compliance with European Safety Standards for Pressure Equipment

UP to SIL 3 certified
Guarantee of the high level of functional safety

STANDARD FEATURES
• No protuding floating ball, full bore
• Soft-seat seal: DEVLON
• Standard for connecting flanges: EN 1092-1; ANSI B16.5
• Operating temperature see temperature pressure diagram
• Pressure class: PN 63-100; ANSI 600
• Tightness Class: EN12266-1 rate A
• Intercepted fluid: petrochemical products, self-lubricating fluids (liquid and gaseous), compatible with the constructive materials. For others application please contact our sales department.
• Antistatic device EN12266-2
• Stem seal: TFM 1600 V-pack
• Additional seal on stem with FKM O-ring
• Anti Blow-out stem
• Actuator connection as per standard ISO 5211
• Closing angle >7°

FEATURES ON REQUEST
• For other flange types please contact our sales department.
• Sealing in: PTFE reinforced with glass (RPTFE-GF), PTFE reinforced with carbongraphite (RPTFE-CF). For other types of materials please contact our sales department
• Mono-directional version with pressure-relief hole in the ball
• Stainless steel lever
• Stainless steel Stem nuts and springs
• For versions in materials different from the standard (body, ball, stem), please contact our sales department.
• Marking and certificate ATEX ON REQUEST

CERTIFICATIONS
• In compliance with European Directive 2014/68/EU PED; Fugitive Emission ISO 15848 (ISO FE BH-C03-SSA 0); TA-LUFT VDI 2440; FIRE SAFE: ISO 10497 / API 607
• Safety integrity level up to SIL3 according to the IEC 61508
• In compliance with ATEX 2014/34/EU Directive , ATEX certificate ON REQUEST.

ENGINEERING STANDARD
• Body thickness in compliance with: ASME B16.34, ASME VIII div.1, EN 12516.
• Materials and rating in compliance with ASME B16.34 for ANSI valves and EN 12516 for PN valves

MAGNUM Split Wafer PN 63-100 ANSI 600 stainless steel ball valve - dimensions -

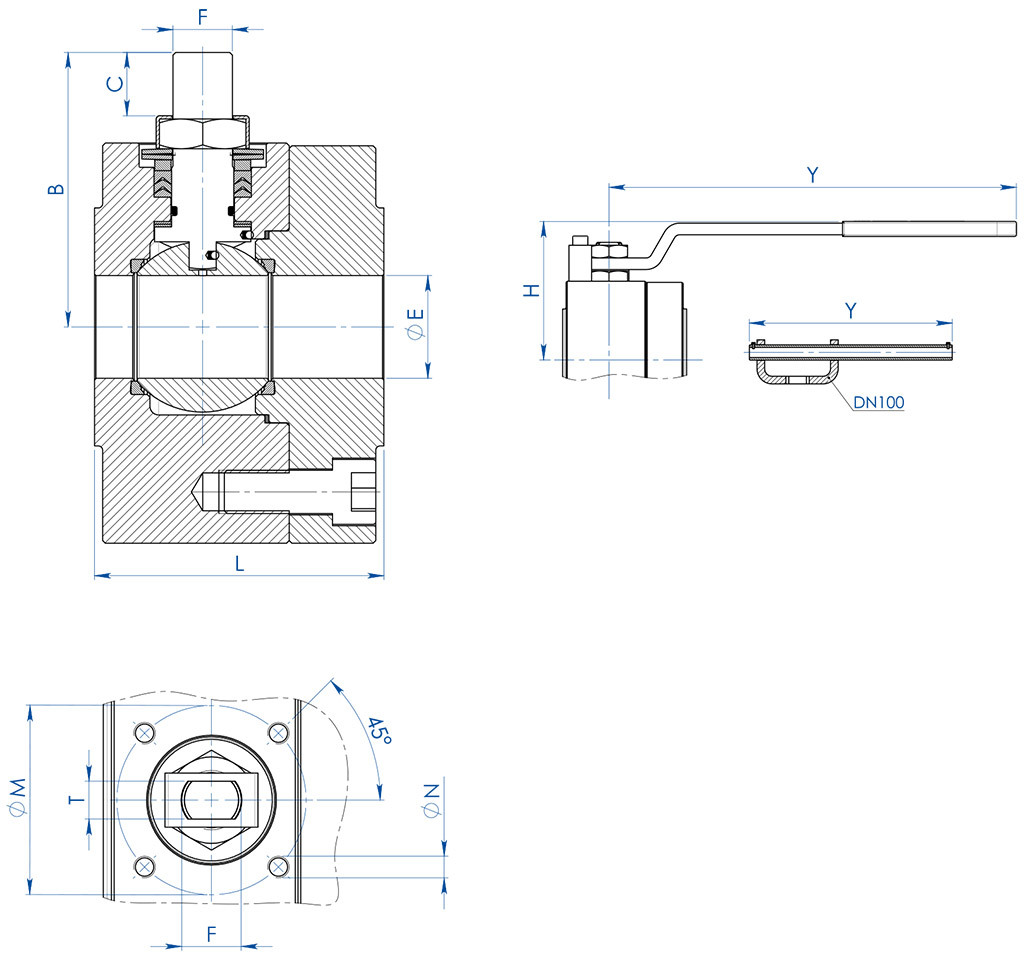

DIMENSIONS
SIZE
∅E
L
B
C
ATT.ISO
∅M
∅N
F/T
H
Y
LEVER KIT

DN [mm]
[inch]
DN 15
1/2"
13
68
54,5
95
F04
42
M5
12/8
80
150
KLV58006
DN 20
3/4"
19
72
57,5
95
F04
42
M5
12/8
83
150
KLV58006
DN 25
1"
25
87
71,5
14,6
F05
50
M6
16/10
95
275
KLV58008
DN 32
1" 1/4
32
92
76,5
14,6
F05
50
M6
16/10
100
275
KLV58008
DN 40
1" 1/2
38
107
98,5
20,4
F07
70
M8
22/14
120
350
KLV58010
DN 50
2"
51
115
107,5
20,4
F07
70
M8
22/14
129
350
KLV58010
DN 65
2" 1/2
64
140
144
25,1
F10
102
M10
30/18
180
450
KLV58012
DN 80
3"
76
150
151,5
25,1
F10
102
M10
30/18
188
450
KLV58012
DN 100
4"
102
190
196,5
40,5
F14
140
M16
45/30
233
800
KLV58014

MAGNUM Split Wafer PN 63-100 ANSI 600 stainless steel ball valve - dimensions -

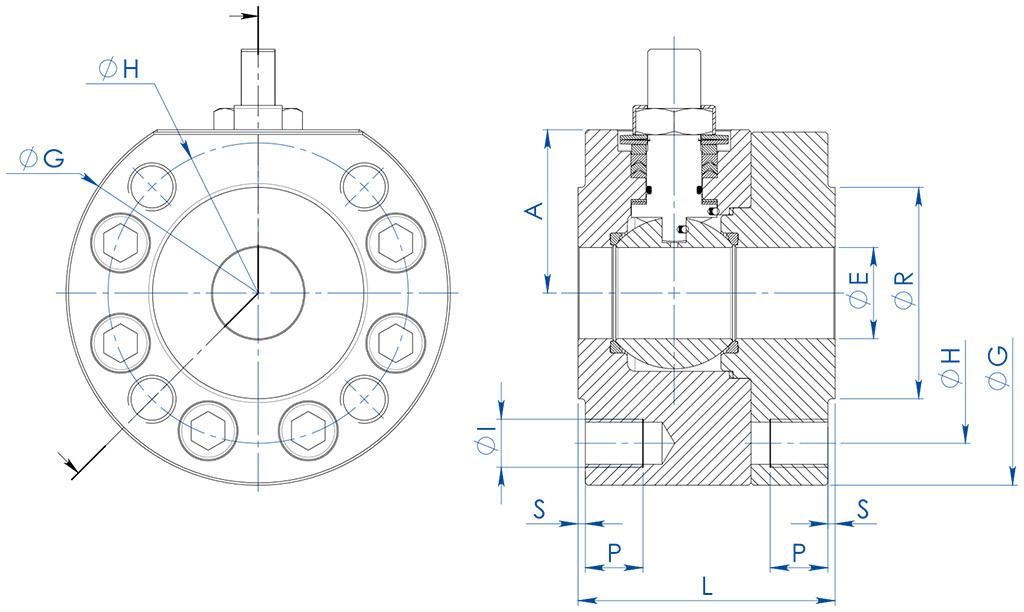

DIMENSIONS -PN-
SIZE
PN
A
G
R
S
H
HOLES N°
I
P
Kg
L
SEALS KIT
DN [mm]
[inch]
DN 15
1/2"
PN 63-100
40
95
45
2
75
4
M12
16
4,2
68
KGBV472040
DN 20
3/4"
PN 63-100
45
115
58
2
90
4
M16
20
6,7
72
KGBV472050
DN 25
1"
PN 63-100
50
125
68
2
100
4
M16
20
6,9
87
KGBV472060
DN 32
1" 1/4
PN 63-100
55
145
78
2
110
4
M20
24
9,3
92
KGBV472070
DN 40
1" 1/2
PN 63-100
68
160
88
3
125
4
M20
24
13,5
107
KGBV472080
DN 50
2"
PN 63
79
170
102
3
135
4
M20
24
16,5
115
KGBV472090
DN 50
2"
PN 100
79
185
102
3
145
4
M24
28
19,5
115
KGBV472090
DN 65
2" 1/2
PN 63
94
208
122
3
160
8
M20
25
29,5
140
KGBV472100
DN 65
2" 1/2
PN 100
101
220
122
3
170
8
M24
30
33,2
140
KGBV472100
DN 80
3"
PN 63
101,5
220
138
3
170
8
M20
25
34,9
150
KGBV472110
DN 80
3"
PN 100
108,5
235
138
3
180
8
M24
30
40,3
150
KGBV472110
DN 100
4"
PN 63
123
275
162
3
200
8
M24
30
67,5
190
KGBV472120
DN 100
4"
PN 100
123
275
162
3
210
8
M27
32
67,2
190
KGBV472120

DIMENSIONS   -ANSI-
SIZE
ANSI
A
G
R
S
H
HOLES N°
I
P
Kg
L
SEALS KIT
DN [mm]
[inch]
DN 15
1/2"
ANSI 600
40
95
34,9
6,3
66,7
4
1/2”UNC
16
4,1
68
KGBV472040
DN 20
3/4"
ANSI 600
45
115
42,9
6,3
82,6
4
5/8”UNC
20
4,4
72
KGBV472050
DN 25
1"
ANSI 600
50
125
50,8
6,3
88,9
4
5/8”UNC
20
6,3
87
KGBV472060
DN 32
1" 1/4
ANSI 600
55
135
63,5
6,3
98,4
4
5/8”UNC
20
7,6
92
KGBV472070
DN 40
1" 1/2
ANSI 600
68
155
73
6,3
114,3
4
3/4”UNC
24
11,2
107
KGBV472080
DN 50
2"
ANSI 600
79
170
92,1
6,3
127
8
5/8”UNC
20
15,5
115
KGBV472090
DN 65
2" 1/2
ANSI 600
94
208
104,8
6,3
149,2
8
3/4”UNC
25
28,3
140
KGBV472100
DN 80
3"
ANSI 600
101,5
220
127
6,3
168,3
8
3/4”UNC
25
33,8
150
KGBV472110
DN 100
4"
ANSI 600
126
279
157,2
6,3
215,9
8
7/8”UNC
30
68,2
190
KGBV472120

MAGNUM Split Wafer PN 63-100 ANSI 600 stainless steel ball valve - materials -

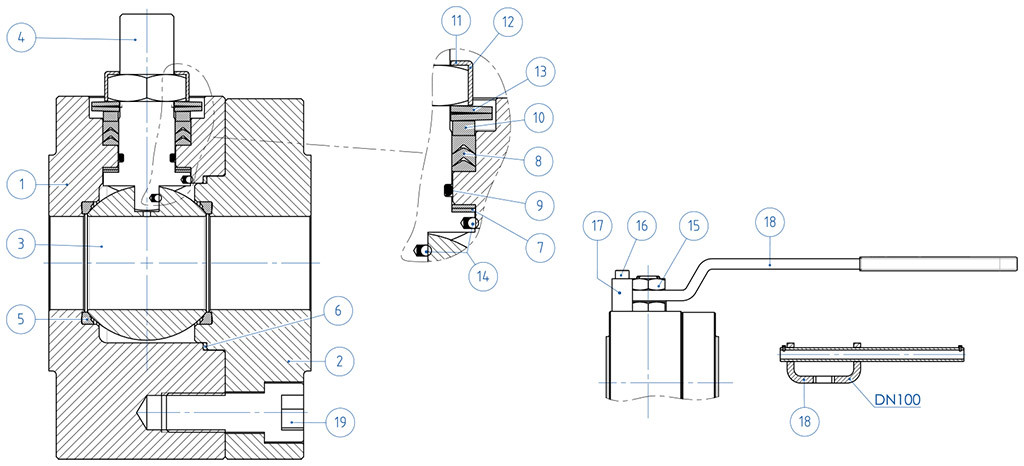

 MATERIALS
SPLIT WAFER PN63-100  ANSI 600 stainless steel
N°
Description
316 Stainless steel
1
Body
ASTM A182 F316 / A479TP.316 (x) (1.4401 / X5CrNiMo17-12-2)
2
Ring nut
3
Ball
ASTM A351 CF8M (1.4408/GX5CrNiMo19-12-2)
4
Stem
A564 TP.630 (17-4PH)
5*
Seat
DEVLON
6*
Body-ring nut gasket
GRAFOIL
7*
Stem lower sealing
TFM1600 (.)
8*
Chevron rings
TFM1600 (.)
9*
Stem o-ring
FKM (.)
10
Packing gland ring
304 S.S.
11
Stop nut plate
304 S.S.
12
Stem nut
UNI 3740-1 6S Galvanized (x)
13
Springs washer
50CrV4 Galvanized (xx)
14
Antistatic device
316 S.S.
19
Body-ring nut screw
A2-70 UNI 3740 (304 S.S.)
15
Lock nut
UNI 3740-1 6S Galvanized (x)
16
Holder screw
A2-70 UNI 3740 (304 S.S.)
17
Holder screw
Carbon steel galvanized (x)
18
Lever
Fe37 Galvanized (x)
* Components of seals kit

 Available on request:
(x): 304 s.s.
(xx): 301 s.s.
:  for ≤DN32 available only in DEVLON
(.): Other materials available on request

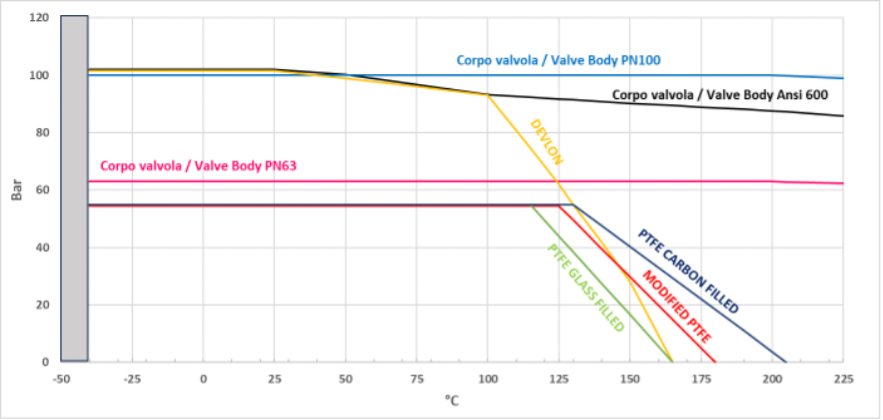

Temperature/pressure diagram for carbon steel valve

MAGNUM Split Wafer PN 63-100 ANSI 600 stainless steel ball valve - diagrams and breakaway torque - Temperature/pressure diagram for carbon steel valve

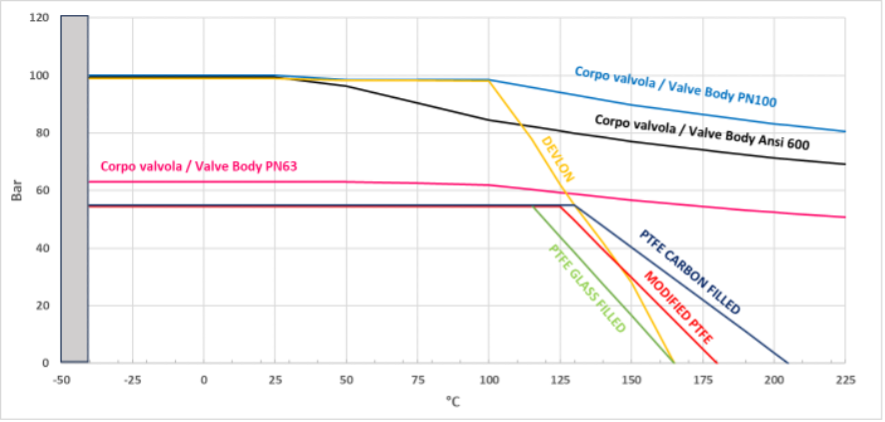

Temperature/pressure diagram for stainless steel valve

MAGNUM Split Wafer PN 63-100 ANSI 600 stainless steel ball valve - diagrams and breakaway torque - Temperature/pressure diagram for stainless steel valve

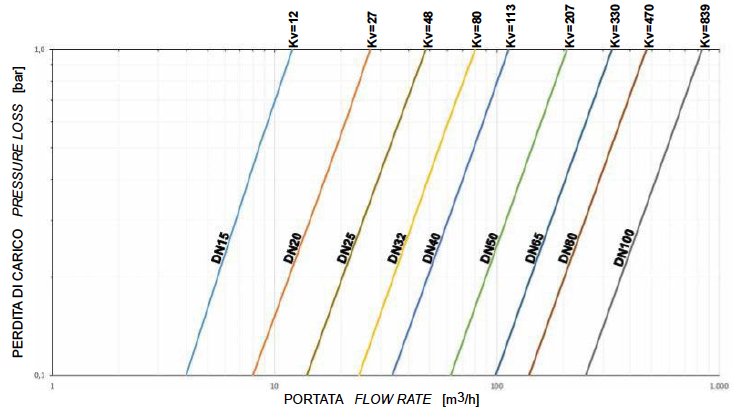

Flow/pressure loss diagram and Kv nominal coefficient

MAGNUM Split Wafer PN 63-100 ANSI 600 stainless steel ball valve - diagrams and breakaway torque - Flow/pressure loss diagram and Kv nominal coefficient

Kv is the coefficient, expressed in m3/h (with water at 15°C) causing a pressure loss of 1 bar.

The sizing of pneumatic actuators has been done considering a minimum supply pressure of 5,6 barg.

CASTING STEM EXTENSION WITH LEVER

MAGNUM Split Wafer PN 63-100 ANSI 600 stainless steel ball valve - accessories - CASTING STEM EXTENSION WITH LEVER

    MATERIALS
PART. N°
 DESCRIPTION
MATERIAL
1
Extension
AISI304 S.S.
2
Pin
AISI 430 F
3
Bush
DELRIN
4
O-RING
NBR
5
Lever
Fe 37 galvanized (*)
6
Nut
galvanized carbon steel (*)
7
Holder Lever
galvanized carbon steel (*)
8
Holder screw
A2-70
9
Spacer
PTFE Carbon Filled


(*): On request available in Aisi 304 s.s.

DIMENSIONS
ISO VALVE
ØA
ØB
ØM
ØN
F/T
X
Y
F03
36
5,5365,5
10/638,5141,5
F04
425,542M512/845,5151,5
F05
506,5506,516/1048,5276,5
F07
708,5708,522/1457,5351,5
F10
102111021130/1879,5451,5


NOTE: Code of the spindle extension depending from drive’s type and valve’s connection; to be requested at the order.

CASTING STEM EXTENSION FOR ACTUATORS

MAGNUM Split Wafer PN 63-100 ANSI 600 stainless steel ball valve - accessories - CASTING STEM EXTENSION FOR ACTUATORS

 MATERIALS
PART. N°
 DESCRIPTION
MATERIAL
1
Extension
ASTM A351 CF8M
2
Pin
AISI 430 F
3
Bush
DELRIN
4
O-RING
NBR


NOTE: Code of the spindle extension depending from drive’s type and valve’s connection; to be requested at the order

WELDED STEM EXTENSION WITH LEVER

MAGNUM Split Wafer PN 63-100 ANSI 600 stainless steel ball valve - accessories - WELDED STEM EXTENSION WITH LEVER

MATERIALS
PART. N°
DESCRIPTION
MATERIAL
1
Extension
304 s.s.
2
Pin
AISI 430 F
3
Bush
DELRIN
4
O-Ring
NBR
5
Lever
Fe 37 galvanized (*)
6
Nut
galvanized carbon steel  (*)
7
Holder Lever
galvanized carbon steel  (*)
8
Holder screw
A2-70
9
Holder nut
A2-70 (**)
10
Spacer
PTFE Carbon Filled


(*): On request available in Aisi 304 s.s.

(**): No available on valves with Iso connection F04

DIMENSIONS
ISO VALVE
ØA
ØB
ØM
ØN
F/T
X
Y
F03
36
5,5365,510/638,5141,5
F04
425,542M512/845,5151,5
F05
506,5506,516/1048,5276,5
F07
70970922/1457,5351,5
F10
102111021130/1879,5451,5


NOTE: Code of the stem extension depending from drive’s type and valve’s connection; to be requested at the order.

WELDED STEM EXTENSION FOR ACTUATORS

MAGNUM Split Wafer PN 63-100 ANSI 600 stainless steel ball valve - accessories - WELDED STEM EXTENSION FOR ACTUATORS

MATERIALS
PART. N°
DESCRIPTION
MATERIAL
1
Extension
304 S.S.
2
Pin
AISI 430 F
3
Bush
DELRIN
4
O-RING
NBR


NOTE: Code of the stem extension depending from drive’s type and valve’s connection; to be requested at the order.

STEM EXTENSION WITH ADDITIONAL SEAL

MAGNUM Split Wafer PN 63-100 ANSI 600 stainless steel ball valve - accessories - STEM EXTENSION WITH ADDITIONAL SEAL

 MATERIALS
PART. N°
 DESCRIPTION
 MATERIAL
1
Extension
304 s.s.
2
Pin
A564 TP.630 (17-4ph)
3
Bottom Sealing
TFM1600
4
O-Ring
FKM
5
Chevron Ring
TFM1600
6
Packing Gland Ring
304 s.s.
7
Spring Washer
50CrV4 Galvanized
8
Stem Nut
UNI 3740-1 6S Galvanized
9
Stop Nut Plate
304 s.s.
10
Gasket
GRAFOIL


DIMENSIONS
ISO VALVE
ØA
ØB
ØM
ØN
F/T
CD
F03
36
5,5
36M510/6
2010,2
F04
42
5,5
42M512/8
2615,1
F05
50
6,550M616/10
3521,2
F07
70
8,570M822/14
47,528,4
F10
102
10,5102M1030/18
6135,2

NOTE: Code of the spindle extension depending from drive’s type and valve’s connection; to be requested at the order.

CONFIGURE DRIVE
Select the search standards
FIND ITEM
X CLOSE

NEXT EVENT

Chem Uk 2021
Chem Uk 2021
NEC, Birmingham, 15th - 16th September 2021
