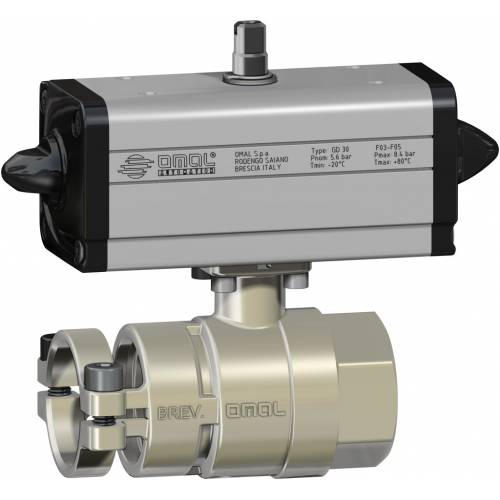

Item D122 brass ball valve

Item D122 brass ball valve
Macro Ball valves

Ball valve with quick coupling for zootechnical use - full bore

CONFIGURE Drive
REQUEST INFORMATION
PAGE PRINT
  • features
  • dimensions
  • materials

GENERAL FEATURES:
• Operating Temperature: from -15°C to +100°C
• Operating Pressure: 10 bar max at ambient temperature
• Media: air, water, fluids for pigs feeding
• Application: Zootechnical equipments
• Threaded ends: female UNI/ISO 228/1; quick coupling with locking by screws (patented system)

ON REQUEST:
• For other applications, please contact our sales department.

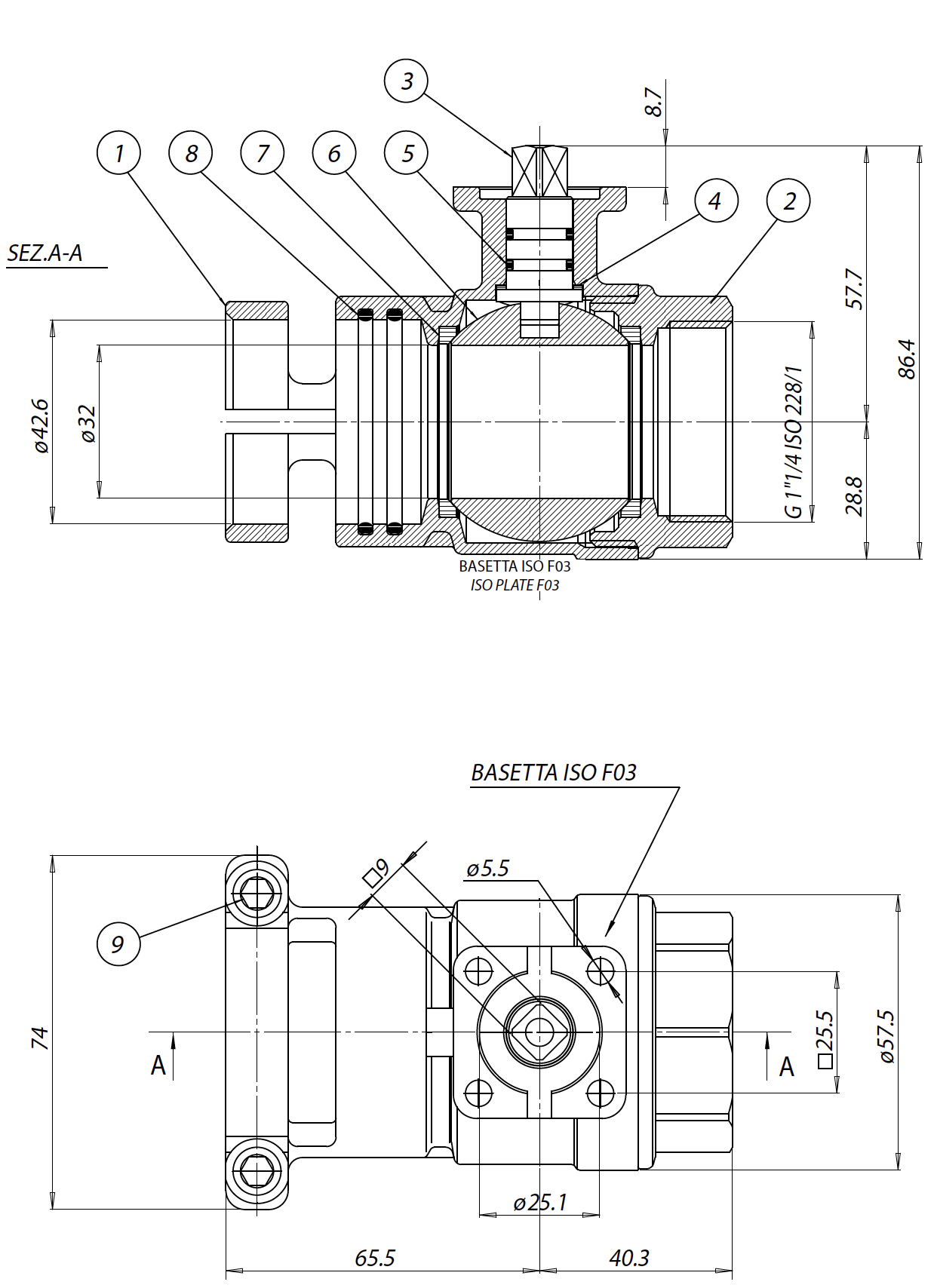

DIMENSIONS
ValveFemale threaded ends - quick coupling (F/R)V122N997
Nominal Diametermm.32
Female threaded sleeveGas1"1/4
Nominal bore ∅Pmm.32
WeightKg1,7

MATERIALS
1
Body with quick coupling *
Brass
Nickel plated
EN 12164 CW617N
2
Female threaded sleeve *
Brass
Nickel plated
EN 12164 CW617N
3
Shaft
Brass

EN 12164 CW614N
4
Antifriction disc
P.T.F.E.


5
Stem o-ring 1,78x11,11 (OR114)
NBR


6
Ball
Brass chromium plated

EN 12164 CW614N
7
Seats
P.T.F.E.


8
O-ring 2,62x42,52 (OR3168)
NBR


9
Screws M8x20
304 S.S.


* Surface treatment: bright nickel plating
