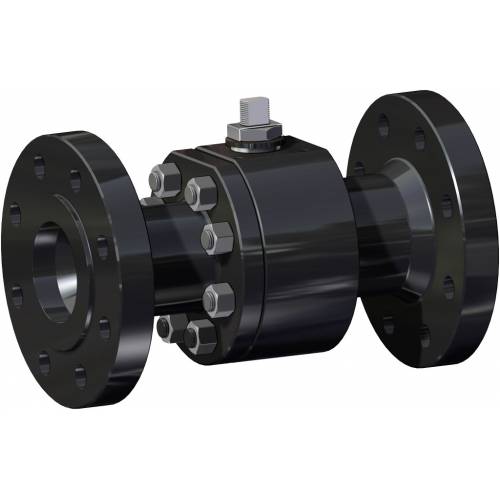

THOR Split Body ANSI 600 reduced bore carbon steel ball valve

THOR Split Body ANSI 600 reduced bore carbon steel ball valve
Category THOR
Subcategory THOR Split Body

Family THOR Split Body ANSI 600 reduced bore

CONFIGURE Drive
REQUEST INFORMATION
PAGE PRINT
DECODING CODE
  • benefits
  • dimensions
  • materials
  • accessories
  • documents

1. Antistatic device (electrical continuity between ball, stem and body)
Static electricity is avoided which can cause sparks and fire in an inflammable/explosive environment
Contact safety throughout the entire life of the valve

2. Double antifriction washer
Less Breakaway Torque is granted
Less wear comparing with the execution with the single washer

3. "V" seals pack; 3 seals + o-ring
It ensures a perfect tightness even after a high number of cycles

4. Spring washer on the shaft seal
Guarantee of the recovery of the gap due to the wear caused by the rotational movement of the shaft avoiding leakage towards the outside part.
Allow to maintain energized the "chevron" seals (V), thus avoiding any leakage to the outside, against huge temperature excursions

5. Stretch Graphite seal
Tightness towards outside is granted, independently by the thermal excursions to which the valve is subjected

Greater precision in the alignment of axes due to a unique positioning in the process machining from raw material to finished valve
Longer lifetime of the valve
Less breakaway torque

Easy maintainance directly on site
Reduced maintainance costs

Valve body in carbon steel made with NACE certified material as standard
Greater corrosion resistance
Greater ductility of the material

100% in- house manufacturing process technology
Maximum control and accuracy in all the stages of the manufacturing process
Flexibility in supply quickly special executions requested by customers

"Fire safe" Certificate
Guarantees the tightness of the valve also in case of fire

ATEX Certificate
Installation is possible in a potential explosive environment

TA LUFT fugitive emission Certificate
High level of safety of the tightness towards the outside is granted

API6D Certificate
Can be used in Oil & Gas and Petrochemical applications
Max traceability of the manufacturing process and of the Product itself.

PED Certificate
Full compliance with European Safety Standards for Pressure Equipment

UP to SIL 3 certified
Guarantee of the high level of functional safety

DIMENSIONS
SIZE
ANSI
A
B
C
∅E
Att. ISO
∅M
∅N
F/T
∅G
∅R
S
∅H
HOLES N°
∅I
P
Kg
L
HYLEVER KIT
SEALS KIT
DN [mm]
[inch]
20x15
3/4”x1/2”
600
40
54,5
9,6
19
F04
42
M5
12/8
115
42,9
6,3
82,6
4
19
22,5
6,8
190
80
150
KLV58006
KGBV472040
25x20
1”x3/4”
600
45
57,5
9,6
25
F04
42
M5
12/8
125
50,8
6,3
88,9
4
19
24,3
8
216
88
150
KLV58006
KGBV472050
32x25
1”1/4x1”
600
50
71,5
14,6
32
F05
50
M6
16/10
135
63,5
6,3
98,4
4
19
27,3
10,8
229
95
275
KLV58008
KGBV472060
40x32
1”1/2x1”1/4
600
55
76,5
14,6
38
F05
50
M6
16/10
155
73
6,3
114,3
4
22
29
14,1
241
100
275
KLV58008
KGBV472070
50x40
2”x1”1/2
600
68
98,5
20,4
51
F07
70
M8
22/14
165
92,1
6,3
127
8
19
32,3
21,5
292
120
350
KLV58010
KGBV472080
65x50
2”1/2x2”
600
74
107,5
20,4
64
F07
70
M8
22/14
190
104,8
6,3
149,2
8
22
36
28,8
330
129
350
KLV58010
KGBV472090
80x65
3”x2”1/2
600
94
144
25,1
76
F10
102
M10
30/18
210
127
6,3
168,3
8
22
39
49
356
180
450
KLV58012
KGBV472100
100x80
4”x3”
600
101,5
151,5
25,1
102
F10
102
M10
30/18
275
157,2
6,3
215,9
8
25,5
45,3
75,3
432
188
450
KLV58012
KGBV472110
150x100
6”x4”
600
126
196,5
40,5
152
F14
140
M16
45/30
355
215,9
6,3
292,1
12
28,6
54,3
160
559
243
800
KLV58014
KGBV472120

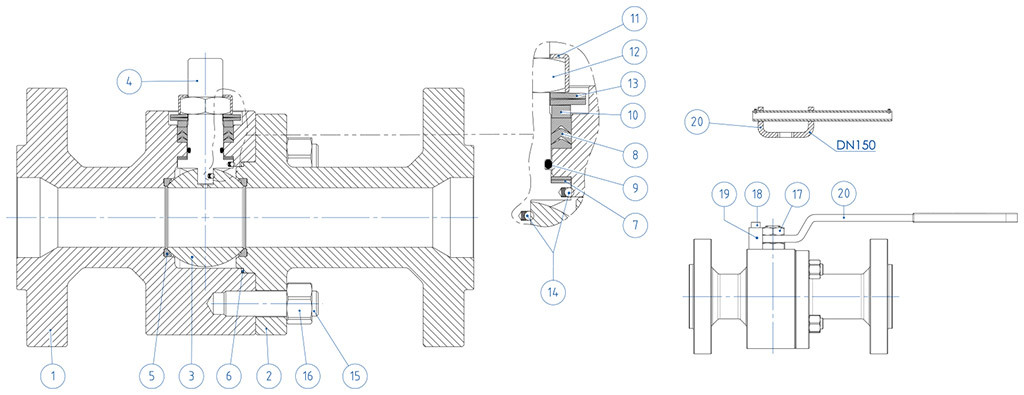

MATERIALS

SPLIT BODY ANSI 600 carbon steel

DescriptionA105 Carbon steelLF2 Carbon steel
1BodyASTM A105ASTM A350 LF2
2Connector
3BallASTM A351 CF8 (*)(**) (1.4308/Gx5CrNi19-10)ASTM A351 CF8 (*)(**) (1.4308/Gx5CrNi19-10)
4StemA564 TP.630 (17-4PH)A564 TP.630 (17-4PH)
5*SeatDEVLON (.)DEVLON (.)
6*dy-connector gasketGRAFOILGRAFOIL
7*Stem lower sealingTFM1600 (.)TFM1600 (.)
8*Chevron ringsTFM1600 (.)TFM1600 (.)
9*Stem o-ringFKM (.)FKM (.)
10Packing gland ringCarbon steel galvanized (x) (1)Carbon steel galvanized (x) (1)
11Stop nut plate304 S.S.304 S.S.
12Stem nutUNI 3740-1 6S Galvanized (x)UNI 3740-1 6S Galvanized (x)
13Springs washer50CrV4 Galvanized (xx)50CrV4 Galvanized (xx)
14tistatic device316 S.S.316 S.S.
15Stud boltASTM A193-B7ASTM A320-L7M
16NutASTM A194-Gr.2HASTM A194-Gr.7M
17Lock nutUNI 3740-1 6S Galvanized (x)UNI 3740-1 6S Galvanized (x)
18Holder screwA2-70 UNI 3740 (304 S.S.)A2-70 UNI 3740 (304 S.S.)
19Holder screwCarbon steel galvanized (x)Carbon steel galvanized (x)
20LeverFe37 Galvanized (x)Fe37 Galvanized (x)
* Components of seals kit


Available on request:
(*): A351 CF8M
(**): For DN≤40x32 available only in CF8M
(x): 304 s.s.
(xx): 301 s.s.
: for DN≤40x32 available only in DEVLON
(1): for DN150x100 available only in 304
(.): Other materials available on request

CASTING STEM EXTENSION WITH LEVER

    MATERIALS
PART. N°
 DESCRIPTION
MATERIAL
1
Extension
AISI304 S.S.
2
Pin
AISI 430 F
3
Bush
DELRIN
4
O-RING
NBR
5
Lever
Fe 37 galvanized (*)
6
Nut
galvanized carbon steel (*)
7
Holder Lever
galvanized carbon steel (*)
8
Holder screw
A2-70
9
Spacer
PTFE Carbon Filled


(*): On request available in Aisi 304 s.s.

DIMENSIONS
ISO VALVE
ØA
ØB
ØM
ØN
F/T
X
Y
F03
36
5,5365,5
10/638,5141,5
F04
425,542M512/845,5151,5
F05
506,5506,516/1048,5276,5
F07
708,5708,522/1457,5351,5
F10
102111021130/1879,5451,5


NOTE: Code of the spindle extension depending from drive’s type and valve’s connection; to be requested at the order.

CASTING STEM EXTENSION FOR ACTUATORS

 MATERIALS
PART. N°
 DESCRIPTION
MATERIAL
1
Extension
ASTM A351 CF8M
2
Pin
AISI 430 F
3
Bush
DELRIN
4
O-RING
NBR


NOTE: Code of the spindle extension depending from drive’s type and valve’s connection; to be requested at the order

WELDED STEM EXTENSION WITH LEVER

MATERIALS
PART. N°
DESCRIPTION
MATERIAL
1
Extension
304 s.s.
2
Pin
AISI 430 F
3
Bush
DELRIN
4
O-Ring
NBR
5
Lever
Fe 37 galvanized (*)
6
Nut
galvanized carbon steel  (*)
7
Holder Lever
galvanized carbon steel  (*)
8
Holder screw
A2-70
9
Holder nut
A2-70 (**)
10
Spacer
PTFE Carbon Filled


(*): On request available in Aisi 304 s.s.

(**): No available on valves with Iso connection F04

DIMENSIONS
ISO VALVE
ØA
ØB
ØM
ØN
F/T
X
Y
F03
36
5,5365,510/638,5141,5
F04
425,542M512/845,5151,5
F05
506,5506,516/1048,5276,5
F07
70970922/1457,5351,5
F10
102111021130/1879,5451,5


NOTE: Code of the stem extension depending from drive’s type and valve’s connection; to be requested at the order.

WELDED STEM EXTENSION FOR ACTUATORS

MATERIALS
PART. N°
DESCRIPTION
MATERIAL
1
Extension
304 S.S.
2
Pin
AISI 430 F
3
Bush
DELRIN
4
O-RING
NBR


NOTE: Code of the stem extension depending from drive’s type and valve’s connection; to be requested at the order.

STEM EXTENSION WITH ADDITIONAL SEAL

 MATERIALS
PART. N°
 DESCRIPTION
 MATERIAL
1
Extension
304 s.s.
2
Pin
A564 TP.630 (17-4ph)
3
Bottom Sealing
TFM1600
4
O-Ring
FKM
5
Chevron Ring
TFM1600
6
Packing Gland Ring
304 s.s.
7
Spring Washer
50CrV4 Galvanized
8
Stem Nut
UNI 3740-1 6S Galvanized
9
Stop Nut Plate
304 s.s.
10
Gasket
GRAFOIL


DIMENSIONS
ISO VALVE
ØA
ØB
ØM
ØN
F/T
CD
F03
36
5,5
36M510/6
2010,2
F04
42
5,5
42M512/8
2615,1
F05
50
6,550M616/10
3521,2
F07
70
8,570M822/14
47,528,4
F10
102
10,5102M1030/18
6135,2

NOTE: Code of the spindle extension depending from drive’s type and valve’s connection; to be requested at the order.
