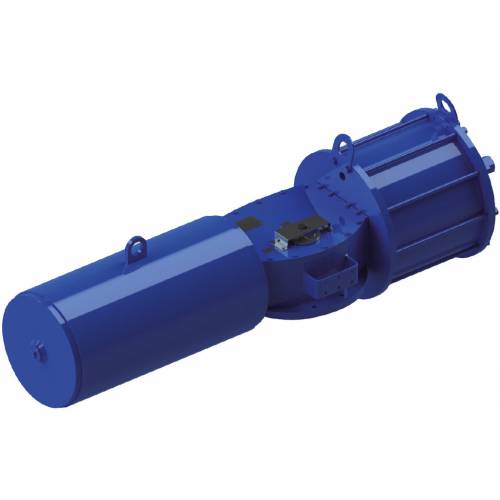

Spring return SR type Heavy Duty carbon steel actuator

  • benefits
  • features
  • materials

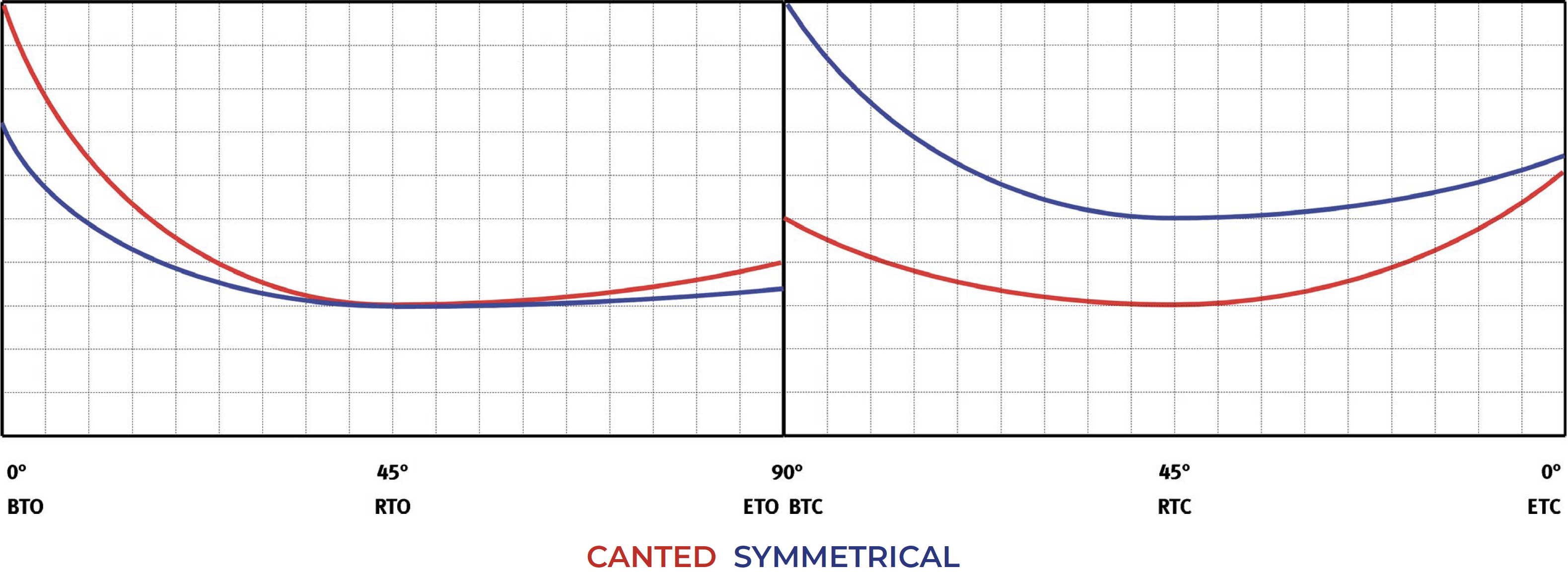

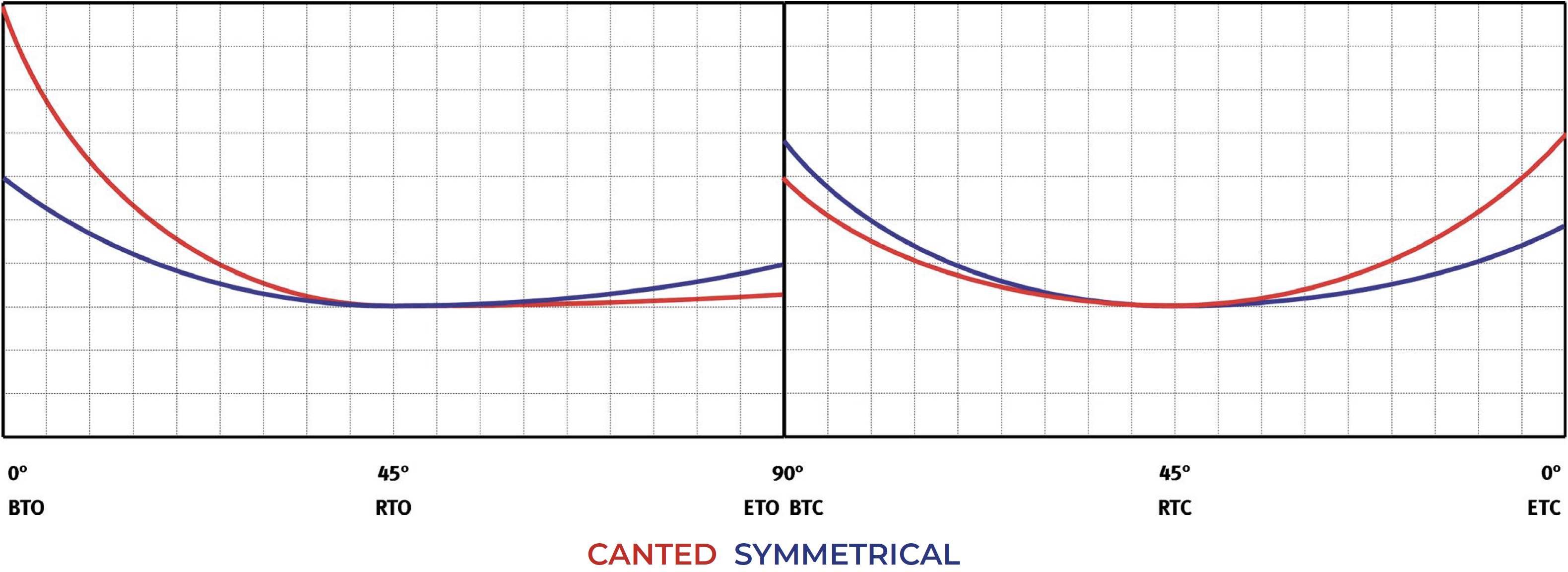

  • diagrams and breakaway torque
  • specifications
  • accessories
  • documents

1 Energized and self-lubricated strips
Less friction between piston and cylinder
It prevents the bonding of the seal to the cylinder even after long periods of inactivity
Reduce the “stick-slip” effect

2 Slots, bushes and pins made i chromed steel with hardness about 200 HB
Higher corrosion’s resistance
Less friction between stem, guide bar and sliding bushings with consequently less wear  on the relevant parts

3 System motion conversion from linear to rotary separated from the piloting fluid of the actuator.
Ability to power the actuator with gases
It prevents explosive atmospheres

4 Scotch yoke system with rolling friction (conversion of linear motion to rotary system with no gears).
Reduced friction between piston and shaft with consequently less wear on the relevant parts
Empowered Break Away Torque (BTO & BTC)

Bronze bushes
They guarantee less wear than other bushings materials

ATEX Compliance
Installation is allowed in a potential explosive environment

Up to SIL 3 Certified
Guarantee of the high level of functional safety.

Technical Data:
Nominal Torque : from 2000 Nm up to 32.000 Nm .
Flange according to DIN / ISO 5211 , DIN 3337.
Rotation angle: 100° (-5°, +95°).
Double adjusting +5° and -5° for each end position (0° and 90°).
Air supply pressure: from 3bar up to 8,5bar (for the Torque, see Tabs)
For Double Acting version, the torque is directly proportional to the air supply pressure of the actuator
For the Spring Return version the “return torque” (no air supply pressure in the actuator) depends only by the Spring and it’s not related to the air supply pressure
Available versions: Double Acting, Spring Return Normally Closed (NC) , Spring Return Normally Open (NO).
Cetral body versions: Scotch Yoke “Symmetrical” or Scotch Yoke “Canted

Working Conditions:
Temperature Range: Standard version: from -20° C a up to +80° C (Seals material: NBR).
Supply Media: Filtered compressed air, not necessarily lubricated, inert gases, technical gas
For temperature lower than 0°C please use dry air
In case of lubricate air, please use non detergent oil compatible with the seals

Design regulations:
Design according to EN 15714-3 , ISO 5211 , ISO 12490.

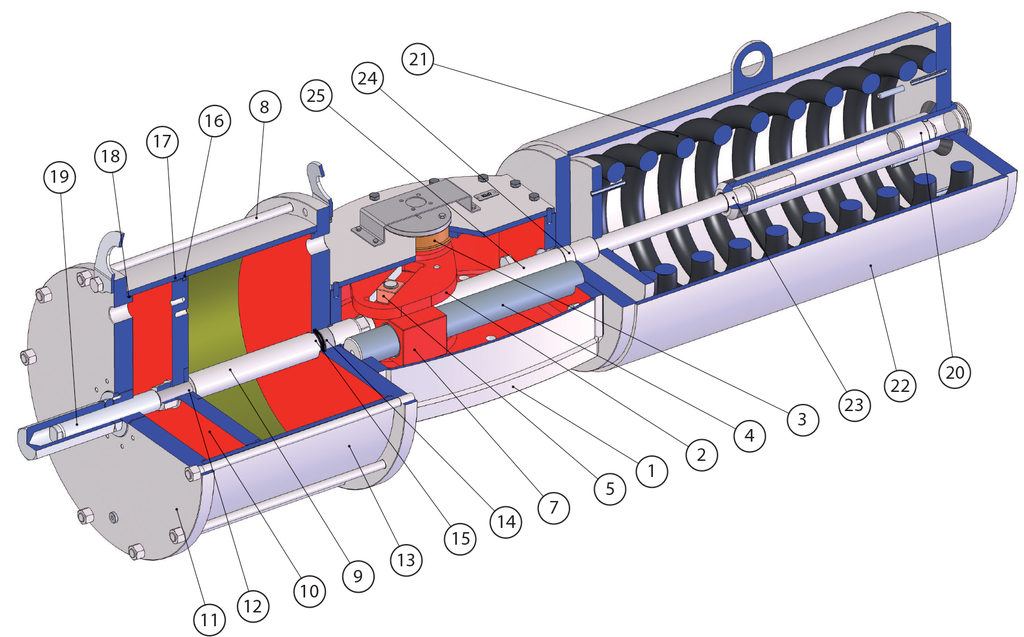

PosDescriptionMaterials
1Central bodyCarbon steel
2YokeCarbon steel
3Yoke bushingBronze
4Thrust barSteel Alloy (chromium plated)
5Sliding blockBronze
6Vent valve (not shown)Brass
7Guide blockCarbon steel
8Tie rodSteel Alloy
9Piston rodSteel Alloy (chromium plated)
10PistonCarbon steel
11End flangeCarbon steel
12O-ringNitrilic rubber
13Cylinder tubeCarbon steel (nickel-plated)
14Rod bushingSteel+bronze+PTFE
15SealNBR+Polyurethane
16O-ringNitrilic rubber
17Sliding ringPTFE + graphite
18O-ringNitrilic rubber
19Stop setting screwSteel Alloy
20Stop setting screwSteel Alloy
21SpringSteel Alloy
22Spring CartridgeCarbon steel
23BushingSteel+bronze+PTFE
24BushingSteel+bronze+PTFE
25Spring Cartridge StemAlloy steel (chromium plated)

Spring Return Normally Closed Torque Table

Model NumberMax torque Nm3 BAR CANTED - Normally closed Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085C-280A-C29.000





SRHG-085C-335A-C29.000





SRHG-085C-385A-C29.0003.8021.0011.1142.0001.2052.324
SRHG-085C-435A-C29.0005.5631.7042.0901.9961.2022.315
SRHG-085C-335A-C39.000





SRHG-085C-385A-C39.000





SRHG-085C-435A-C39.000





SRHG-085C-335A-C59.000





SRHG-085C-385A-C59.000





SRHG-085C-435A-C59.000





SRHG-085C-385A-C69.000





SRHG-085C-435A-C69.000





SRHG-100C-385A-C118.000





SRHG-100C-435A-C118.000





SRHG-100C-485A-C118.000





SRHG-100C-385A-C218.000





SRHG-100C-435A-C218.000





SRHG-100C-485A-C218.000





SRHG-100C-535A-C218.000





SRHG-100C-585A-C218.00010.1032.2112.2196.4173.8117.099
SRHG-100C-535A-C318.000





SRHG-100C-585A-C318.000





SRHG-100C-535A-C418.000





SRHG-100C-585A-C418.000





SRHG-130C-435A-C132.000





SRHG-130C-485A-C132.000





SRHG-130C-535A-C132.000





SRHG-130C-585A-C132.00012.4193.0553.2588.1385.01710.196
SRHG-130C-635A-C132.00016.5884.7455.5678.1655.03710.251
SRHG-130C-385A-C232.000





SRHG-130C-435A-C232.000





SRHG-130C-485A-C232.000





SRHG-130C-535A-C232.000





SRHG-130C-585A-C232.000





SRHG-130C-635A-C232.00015.0833.3293.35210.1096.09211.756
SRHG-130C-485A-C532.000





SRHG-130C-535A-C532.000





SRHG-130C-585A-C532.000





SRHG-130C-635A-C532.000





SRHG-130C-685A-C532.00017.0754.4574.93110.8596.78014.156
SRHG-130C-735A-C532.00021.8376.3707.56910.8426.76714.121
SRHG-130C-535A-C632.000





SRHG-130C-585A-C632.000





SRHG-130C-635A-C632.000





SRHG-130C-685A-C632.000





SRHG-130C-735A-C632.000






Model NumberMax torque Nm3 BAR SYMMETRICAL - Normally closed Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085S-280A-C29.000





SRHG-085S-335A-C29.0001.4413933832.3361.1231.475
SRHG-085S-385A-C29.0002.4211.1381.4542.3261.1161.464
SRHG-085S-435A-C29.0003.5431.8482.6812.3211.1131.459
SRHG-085S-335A-C39.000





SRHG-085S-385A-C39.000





SRHG-085S-435A-C39.0002.6529249153.7821.8012.340
SRHG-085S-335A-C59.000





SRHG-085S-385A-C59.000





SRHG-085S-435A-C59.0002.2955445254.1052.0072.692
SRHG-085S-385A-C69.000





SRHG-085S-435A-C69.000





SRHG-100S-385A-C118.000





SRHG-100S-435A-C118.000





SRHG-100S-485A-C118.000





SRHG-100S-535A-C118.0005.8342.2812.3176.3152.7643.228
SRHG-100S-585A-C118.0007.6793.5114.3336.3272.7733.242
SRHG-100S-385A-C218.000





SRHG-100S-435A-C218.000





SRHG-100S-485A-C218.000





SRHG-100S-535A-C218.0004.5899989567.4413.4954.460
SRHG-100S-585A-C218.0006.4342.6942.9727.4543.5034.474
SRHG-100S-535A-C318.000





SRHG-100S-585A-C318.000





SRHG-100S-535A-C418.000





SRHG-100S-585A-C418.000





SRHG-130S-435A-C132.000





SRHG-130S-485A-C132.000





SRHG-130S-535A-C132.0005.4841.6691.6409.4664.6946.407
SRHG-130S-585A-C132.0007.9093.5544.2919.4834.7056.426
SRHG-130S-635A-C132.00010.5645.2537.1939.5154.7256.460
SRHG-130S-385A-C232.000





SRHG-130S-435A-C232.000





SRHG-130S-485A-C232.000





SRHG-130S-535A-C232.000





SRHG-130S-585A-C232.0006.9501.6401.58211.7255.6267.374
SRHG-130S-635A-C232.0009.6054.0404.48411.7575.6467.409
SRHG-130S-685A-C232.00012.4245.8767.56611.7385.6347.388
SRHG-130S-485A-C532.000





SRHG-130S-535A-C532.000





SRHG-130S-585A-C532.000





SRHG-130S-635A-C532.0008.0543.2223.36112.6866.4088.942
SRHG-130S-685A-C532.00010.8745.0816.44312.6686.3968.922
SRHG-130S-735A-C532.00013.9077.0109.75812.6476.3838.899
SRHG-130S-535A-C632.000





SRHG-130S-585A-C632.000





SRHG-130S-635A-C632.000





SRHG-130S-685A-C632.000





SRHG-130S-735A-C632.00011.9834.5884.56916.9438.17910.802



Model NumberMax torque Nm3,5 BAR CANTED - Normally closed Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085C-280A-C29.000





SRHG-085C-335A-C29.0003.0706967092.0081.2112.340
SRHG-085C-385A-C29.0004.8681.4291.7052.0001.2052.324
SRHG-085C-435A-C29.0006.9252.2412.8441.9961.2022.315
SRHG-085C-335A-C39.000





SRHG-085C-385A-C39.000





SRHG-085C-435A-C39.0005.5261.3361.4113.2541.9503.713
SRHG-085C-335A-C59.000





SRHG-085C-385A-C59.000





SRHG-085C-435A-C59.0004.9661.0941.1013.5262.1514.272
SRHG-085C-385A-C69.000





SRHG-085C-435A-C69.000





SRHG-100C-385A-C118.000





SRHG-100C-435A-C118.000





SRHG-100C-485A-C118.000





SRHG-100C-385A-C218.000





SRHG-100C-435A-C218.000





SRHG-100C-485A-C218.000





SRHG-100C-535A-C218.0009.6561.9761.9716.4063.8037.076
SRHG-100C-585A-C218.00013.0323.4443.8416.4173.8117.099
SRHG-100C-535A-C318.000





SRHG-100C-585A-C318.000





SRHG-100C-535A-C418.000





SRHG-100C-585A-C418.0009.8992.1141.6868.8815.36510.614
SRHG-130C-435A-C132.000





SRHG-130C-485A-C132.000





SRHG-130C-535A-C132.00011.8332.8082.9338.1245.00710.167
SRHG-130C-585A-C132.00016.2714.6185.3918.1385.01710.196
SRHG-130C-635A-C132.00021.1266.5448.0818.1655.03710.251
SRHG-130C-385A-C232.000





SRHG-130C-435A-C232.000





SRHG-130C-485A-C232.000





SRHG-130C-535A-C232.000





SRHG-130C-585A-C232.00014.7653.1783.17610.0826.07311.701
SRHG-130C-635A-C232.00019.6215.2315.86510.1096.09211.756
SRHG-130C-485A-C532.000





SRHG-130C-535A-C532.000





SRHG-130C-585A-C532.000





SRHG-130C-635A-C532.00017.1864.5024.99210.8756.79214.189
SRHG-130C-685A-C532.00022.3566.5767.85610.8596.78014.156
SRHG-130C-735A-C532.00027.9178.77610.93710.8426.76714.121
SRHG-130C-535A-C632.000





SRHG-130C-585A-C632.000





SRHG-130C-635A-C632.000





SRHG-130C-685A-C632.000





SRHG-130C-735A-C632.00024.8976.2206.69614.5638.80817.139

Model NumberMax torque Nm3,5 BAR SYMMETRICAL - Normally closed Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085S-280A-C29.000





SRHG-085S-335A-C29.0001.9558359452.3361.1231.475
SRHG-085S-385A-C29.0003.1001.5692.1972.3261.1161.464
SRHG-085S-435A-C29.0004.4102.3923.6282.3211.1131.459
SRHG-085S-335A-C39.000





SRHG-085S-385A-C39.000





SRHG-085S-435A-C39.0003.5191.5641.8633.7821.8012.340
SRHG-085S-335A-C59.000





SRHG-085S-385A-C59.000





SRHG-085S-435A-C59.0003.1621.3291.4734.1052.0072.692
SRHG-085S-385A-C69.000





SRHG-085S-435A-C69.000





SRHG-100S-385A-C118.000





SRHG-100S-435A-C118.000





SRHG-100S-485A-C118.0005.4451.9081.8916.3112.7623.225
SRHG-100S-535A-C118.0007.3943.3274.0226.3152.7643.228
SRHG-100S-585A-C118.0009.5444.7046.3726.3272.7733.242
SRHG-100S-385A-C218.000





SRHG-100S-435A-C218.000





SRHG-100S-485A-C218.000





SRHG-100S-535A-C218.0006.1492.5012.6617.4413.4954.460
SRHG-100S-585A-C218.0008.2993.9115.0117.4543.5034.474
SRHG-100S-535A-C318.0005.5482.0311.4469.1394.3865.400
SRHG-100S-585A-C318.0007.5503.1863.3869.1394.3865.400
SRHG-100S-535A-C418.000





SRHG-100S-585A-C418.0006.3802.5112.25210.3635.1516.750
SRHG-130S-435A-C132.000





SRHG-130S-485A-C132.0004.9721.1241.0809.4624.6916.403
SRHG-130S-535A-C132.0007.5353.3103.8829.4664.6946.407
SRHG-130S-585A-C132.00010.3625.1256.9729.4834.7056.426
SRHG-130S-635A-C132.00013.4547.07410.3529.5154.7256.460
SRHG-130S-385A-C232.000





SRHG-130S-435A-C232.000





SRHG-130S-485A-C232.000





SRHG-130S-535A-C232.000





SRHG-130S-585A-C232.0009.4033.9054.26311.7255.6267.374
SRHG-130S-635A-C232.00012.4955.9227.64311.7575.6467.409
SRHG-130S-685A-C232.00015.7888.01111.24211.7385.6347.388
SRHG-130S-485A-C532.000





SRHG-130S-535A-C532.000





SRHG-130S-585A-C532.0007.8523.0813.14012.6556.3888.908
SRHG-130S-635A-C532.00010.9455.1266.52012.6866.4088.942
SRHG-130S-685A-C532.00014.2377.21810.11912.6686.3968.922
SRHG-130S-735A-C532.00017.7799.44513.99012.6476.3838.899
SRHG-130S-535A-C632.000





SRHG-130S-585A-C632.000





SRHG-130S-635A-C632.000





SRHG-130S-685A-C632.00012.3134.8344.93016.9638.19210.824
SRHG-130S-735A-C632.00015.8557.1988.80116.9438.17910.802



Model NumberMax torque Nm4 BAR CANTED - Normally closed Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085C-280A-C29.000





SRHG-085C-335A-C29.0003.8781.0321.1562.0081.2112.340
SRHG-085C-385A-C29.0005.9341.8512.2962.0001.2052.324
SRHG-085C-435A-C29.0008.2862.7753.5981.9961.2022.315
SRHG-085C-335A-C39.000





SRHG-085C-385A-C39.000





SRHG-085C-435A-C39.0006.8871.8932.1653.2541.9503.713
SRHG-085C-335A-C59.000





SRHG-085C-385A-C59.000





SRHG-085C-435A-C59.0006.3271.6671.8553.5262.1514.272
SRHG-085C-385A-C69.000





SRHG-085C-435A-C69.000





SRHG-100C-385A-C118.000





SRHG-100C-435A-C118.000





SRHG-100C-485A-C118.00010.5642.4162.4745.4533.0955.117
SRHG-100C-385A-C218.000





SRHG-100C-435A-C218.000





SRHG-100C-485A-C218.0008.8551.9791.7136.5433.8337.076
SRHG-100C-535A-C218.00012.1063.0663.3296.4063.8037.076
SRHG-100C-585A-C218.00015.6364.3325.1556.5433.8337.076
SRHG-100C-535A-C318.00010.8772.4482.1837.8514.6158.491
SRHG-100C-585A-C318.00014.4263.6803.9847.8514.6158.491
SRHG-100C-535A-C418.0009.0611.8231.2618.8815.36510.614
SRHG-100C-585A-C418.00012.6103.0553.0638.8815.36510.614
SRHG-130C-435A-C132.000





SRHG-130C-485A-C132.00010.4552.1732.1698.1205.00410.159
SRHG-130C-535A-C132.00015.0544.1304.7178.1245.00710.167
SRHG-130C-585A-C132.00020.1226.1487.5258.1385.01710.196
SRHG-130C-635A-C132.00025.6648.33210.5948.1655.03710.251
SRHG-130C-385A-C232.000





SRHG-130C-435A-C232.000





SRHG-130C-485A-C232.000





SRHG-130C-535A-C232.000





SRHG-130C-585A-C232.00018.6174.8225.30910.0826.07311.701
SRHG-130C-635A-C232.00024.1587.0508.37910.1096.09211.756
SRHG-130C-485A-C532.000





SRHG-130C-535A-C532.000





SRHG-130C-585A-C532.00016.1824.0914.43610.8496.77214.134
SRHG-130C-635A-C532.00021.7246.3257.50610.8756.79214.189
SRHG-130C-685A-C532.00027.6368.66610.78110.8596.78014.156
SRHG-130C-735A-C532.00033.99711.16714.30410.8426.76714.121
SRHG-130C-535A-C632.000





SRHG-130C-585A-C632.000





SRHG-130C-635A-C632.000





SRHG-130C-685A-C632.00024.6166.1046.54114.5818.82117.175
SRHG-130C-735A-C632.00030.9778.68810.06414.5638.80817.139

Model NumberMax torque Nm4 BAR SYMMETRICAL - Normally closed Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085S-280A-C29.000





SRHG-085S-335A-C29.0002.4691.1691.5072.3361.1231.475
SRHG-085S-385A-C29.0003.7791.9972.9392.3261.1161.464
SRHG-085S-435A-C29.0005.2772.9334.5762.3211.1131.459
SRHG-085S-335A-C39.000





SRHG-085S-385A-C39.0002.8881.1411.1733.7881.8052.345
SRHG-085S-435A-C39.0004.3862.1222.8103.7821.8012.340
SRHG-085S-335A-C59.000





SRHG-085S-385A-C59.0002.5327967844.1102.0102.698
SRHG-085S-435A-C59.0004.0291.8942.4214.1052.0072.692
SRHG-085S-385A-C69.000





SRHG-085S-435A-C69.0003.4781.3261.3205.0162.4353.238
SRHG-100S-385A-C118.000





SRHG-100S-435A-C118.0004.7461.1651.1276.3362.7793.252
SRHG-100S-485A-C118.0006.7272.8893.2936.3112.7623.225
SRHG-100S-535A-C118.0008.9554.3295.7286.3152.7643.228
SRHG-100S-585A-C118.00011.4105.8828.4116.3272.7733.242
SRHG-100S-385A-C218.000





SRHG-100S-435A-C218.000





SRHG-100S-485A-C218.0005.4821.9481.9327.4383.4924.456
SRHG-100S-535A-C218.0007.7103.5314.3677.4413.4954.460
SRHG-100S-585A-C218.00010.1655.0977.0507.4543.5034.474
SRHG-100S-535A-C318.0007.0102.8742.8639.1394.3865.400
SRHG-100S-585A-C318.0009.2974.1935.0799.1394.3865.400
SRHG-100S-535A-C418.0005.8402.1991.72910.3635.1516.750
SRHG-100S-585A-C418.0008.1273.5183.94510.3635.1516.750
SRHG-130S-435A-C132.000





SRHG-130S-485A-C132.0006.6582.7252.9239.4624.6916.403
SRHG-130S-535A-C132.0009.5874.6326.1259.4664.6946.407
SRHG-130S-585A-C132.00012.8156.6729.6539.4834.7056.426
SRHG-130S-635A-C132.00016.3448.88413.5119.5154.7256.460
SRHG-130S-385A-C232.000





SRHG-130S-435A-C232.000





SRHG-130S-485A-C232.000





SRHG-130S-535A-C232.0008.6283.3693.41611.7085.6157.356
SRHG-130S-585A-C232.00011.8565.5116.94411.7255.6267.374
SRHG-130S-635A-C232.00015.3857.75710.80211.7575.6467.409
SRHG-130S-685A-C232.00019.15110.12614.91811.7385.6347.388
SRHG-130S-485A-C532.000





SRHG-130S-535A-C532.0007.0772.3222.29312.6386.3778.889
SRHG-130S-585A-C532.00010.3054.7145.82112.6556.3888.908
SRHG-130S-635A-C532.00013.8356.9649.67912.6866.4088.942
SRHG-130S-685A-C532.00017.6009.33313.79512.6686.3968.922
SRHG-130S-735A-C532.00021.65111.86818.22312.6476.3838.899
SRHG-130S-535A-C632.000





SRHG-130S-585A-C632.000





SRHG-130S-635A-C632.00011.9114.5124.49016.9828.20410.845
SRHG-130S-685A-C632.00015.6777.0828.60616.9638.19210.824
SRHG-130S-735A-C632.00019.7289.67713.03416.9438.17910.802

Model NumberMax torque Nm4,5 BAR CANTED - Normally closed Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085C-280A-C29.000





SRHG-085C-335A-C29.0004.7431.3211.5892.0821.2462.406
SRHG-085C-385A-C29.0006.9252.0782.6962.0821.2462.406
SRHG-085C-435A-C29.000





SRHG-085C-335A-C39.000





SRHG-085C-385A-C39.0005.8111.4401.4943.4272.0123.709
SRHG-085C-435A-C39.0008.2952.3022.7553.4272.0123.709
SRHG-085C-335A-C59.000





SRHG-085C-385A-C59.000





SRHG-085C-435A-C59.0007.8672.1542.5373.6702.1904.210
SRHG-085C-385A-C69.000





SRHG-085C-435A-C69.0006.9971.6311.5414.7832.8175.227
SRHG-100C-385A-C118.000





SRHG-100C-435A-C118.0009.0532.0401.8135.6273.1695.189
SRHG-100C-485A-C118.00012.3323.1783.4785.6273.1695.189
SRHG-100C-385A-C218.000





SRHG-100C-435A-C218.000





SRHG-100C-485A-C218.00010.7192.6252.6596.5433.8337.076
SRHG-100C-535A-C218.00014.3553.8874.5046.5433.8337.076
SRHG-100C-585A-C218.000





SRHG-100C-535A-C318.00013.1443.2353.3347.8514.6158.491
SRHG-100C-585A-C318.00017.1374.6205.3607.8514.6158.491
SRHG-100C-535A-C418.00011.3292.6102.4128.8815.36510.614
SRHG-100C-585A-C418.00015.3213.9954.4398.8815.36510.614
SRHG-130C-435A-C132.000





SRHG-130C-485A-C132.000





SRHG-130C-535A-C132.000





SRHG-130C-585A-C132.000





SRHG-130C-635A-C132.000





SRHG-130C-385A-C232.000





SRHG-130C-435A-C232.000





SRHG-130C-485A-C232.000





SRHG-130C-535A-C232.000





SRHG-130C-585A-C232.000





SRHG-130C-635A-C232.000





SRHG-130C-485A-C532.000





SRHG-130C-535A-C532.000





SRHG-130C-585A-C532.000





SRHG-130C-635A-C532.000





SRHG-130C-685A-C532.000





SRHG-130C-735A-C532.000





SRHG-130C-535A-C632.000





SRHG-130C-585A-C632.000





SRHG-130C-635A-C632.000





SRHG-130C-685A-C632.000





SRHG-130C-735A-C632.000






Model NumberMax torque Nm4,5 BAR SYMMETRICAL - Normally closed Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085S-280A-C29.0001.7367157192.3571.1361.498
SRHG-085S-335A-C29.0003.0571.4771.9992.3361.1231.475
SRHG-085S-385A-C29.0004.4632.2883.3622.3261.1161.464
SRHG-085S-435A-C29.0006.0643.2124.9142.3211.1131.459
SRHG-085S-335A-C39.0002.3398395533.7971.8112.356
SRHG-085S-385A-C39.0003.7451.6501.9163.7881.8052.345
SRHG-085S-435A-C39.0005.3462.5743.4683.7821.8012.340
SRHG-085S-335A-C59.000





SRHG-085S-385A-C59.0003.4681.4911.6484.1102.0102.698
SRHG-085S-435A-C59.0005.0702.4153.2004.1052.0072.692
SRHG-085S-385A-C69.000





SRHG-085S-435A-C69.0004.282
1.938
2.310
5.0162.4353.238
SRHG-100S-385A-C118.000





SRHG-100S-435A-C118.0005.8342.3912.3796.3362.7793.252
SRHG-100S-485A-C118.0007.9483.6104.4276.3112.7623.225
SRHG-100S-535A-C118.00010.2914.9626.6986.3152.7643.228
SRHG-100S-585A-C118.00012.8646.4469.1926.3152.7643.228
SRHG-100S-385A-C218.000





SRHG-100S-435A-C218.0004.7941.7911.3717.4633.5084.483
SRHG-100S-485A-C218.0006.9083.0103.4197.4383.4924.456
SRHG-100S-535A-C218.0009.2514.3625.6907.4413.4954.460
SRHG-100S-585A-C218.00011.8245.8468.1847.4543.5034.474
SRHG-100S-535A-C318.0008.4713.7174.2799.1394.3865.400
SRHG-100S-585A-C318.00011.0445.2016.7739.1394.3865.400
SRHG-100S-535A-C418.0007.3013.0423.14510.3635.1516.750
SRHG-100S-585A-C418.0009.8744.5265.63910.3635.1516.750
SRHG-130S-435A-C132.000





SRHG-130S-485A-C132.000





SRHG-130S-535A-C132.000





SRHG-130S-585A-C132.000





SRHG-130S-635A-C132.000





SRHG-130S-385A-C232.000





SRHG-130S-435A-C232.000





SRHG-130S-485A-C232.000





SRHG-130S-535A-C232.000





SRHG-130S-585A-C232.000





SRHG-130S-635A-C232.000





SRHG-130S-685A-C232.000





SRHG-130S-485A-C532.000





SRHG-130S-535A-C532.000





SRHG-130S-585A-C532.000





SRHG-130S-635A-C532.000





SRHG-130S-685A-C532.000





SRHG-130S-735A-C532.000





SRHG-130S-535A-C632.000





SRHG-130S-585A-C632.000





SRHG-130S-635A-C632.000





SRHG-130S-685A-C632.000





SRHG-130S-735A-C632.000








Model NumberMax torque Nm5 BAR CANTED - Normally closed Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085C-280A-C29.0003.0937067222.0261.2242.378
SRHG-085C-335A-C29.0005.4921.6762.0512.0081.2112.340
SRHG-085C-385A-C29.0008.0672.6893.4772.0001.2052.324
SRHG-085C-435A-C29.000





SRHG-085C-335A-C39.000





SRHG-085C-385A-C39.0006.6681.8052.0443.2581.9533.722
SRHG-085C-435A-C39.000





SRHG-085C-335A-C59.000





SRHG-085C-385A-C59.0006.1081.5771.7333.5302.1544.281
SRHG-085C-435A-C59.0009.0492.7543.3633.5262.1514.272
SRHG-085C-385A-C69.000





SRHG-085C-435A-C69.0008.1832.1942.4694.3102.6175.137
SRHG-100C-385A-C118.0007.3041.4339255.6273.1695.189
SRHG-100C-435A-C118.00010.6922.4722.5455.4743.1105.160
SRHG-100C-485A-C118.00014.6134.3754.7075.4633.1515.122
SRHG-100C-385A-C218.000





SRHG-100C-435A-C218.0008.9382.0071.7556.5433.8337.076
SRHG-100C-485A-C218.00012.6363.2833.6226.4033.8017.070
SRHG-100C-535A-C218.00016.6224.6745.6556.5433.8337.076
SRHG-100C-585A-C218.000





SRHG-100C-535A-C318.00015.4124.0224.4857.8514.6158.491
SRHG-100C-585A-C318.000





SRHG-100C-535A-C418.00013.5963.3973.5638.8815.36510.614
SRHG-100C-585A-C418.000





SRHG-130C-435A-C132.00010.6242.2652.2638.1485.02410.216
SRHG-130C-485A-C132.00015.7504.4095.1028.1205.00410.159
SRHG-130C-535A-C132.00021.4966.6918.2868.1245.00710.167
SRHG-130C-585A-C132.00027.8259.18011.7928.1385.01710.196
SRHG-130C-635A-C132.00034.74011.89215.6228.1655.03710.251
SRHG-130C-385A-C232.000





SRHG-130C-435A-C232.000





SRHG-130C-485A-C232.00014.2442.8942.88710.0646.05911.664
SRHG-130C-535A-C232.00019.9915.3816.07010.0686.06211.672
SRHG-130C-585A-C232.00026.3207.9089.57610.0826.07311.701
SRHG-130C-635A-C232.00033.23410.63713.40710.1096.09211.756
SRHG-130C-485A-C532.000





SRHG-130C-535A-C532.00017.5564.6525.19710.8346.76114.105
SRHG-130C-585A-C532.00023.8857.1838.70310.8496.77214.134
SRHG-130C-635A-C532.00030.8009.91112.53410.8756.79214.189
SRHG-130C-685A-C532.000





SRHG-130C-735A-C532.000





SRHG-130C-535A-C632.000





SRHG-130C-585A-C632.00020.8654.4664.46314.5708.81317.153
SRHG-130C-635A-C632.00027.7807.4008.29314.5968.83317.207
SRHG-130C-685A-C632.000





SRHG-130C-735A-C632.000






Model NumberMax torque Nm5 BAR SYMMETRICAL - Normally closed Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085S-280A-C29.0001.9708459612.3571.1361.498
SRHG-085S-335A-C29.0003.4981.8202.6312.3361.1231.475
SRHG-085S-385A-C29.0005.1372.8464.4232.3261.1161.464
SRHG-085S-435A-C29.0007.0104.0146.4712.3211.1131.459
SRHG-085S-335A-C39.0002.8261.1201.0253.7971.8112.356
SRHG-085S-385A-C39.0004.2462.0332.6583.7881.8052.345
SRHG-085S-435A-C39.0006.1203.2164.7053.7821.8012.340
SRHG-085S-335A-C59.0002.2504964764.1202.0162.708
SRHG-085S-385A-C59.0003.8901.8052.2684.1102.0102.698
SRHG-085S-435A-C59.0005.7632.9924.3164.1052.0072.692
SRHG-085S-385A-C69.0003.3381.1781.1675.0212.4383.243
SRHG-085S-435A-C69.0005.2112.4793.2155.0162.4353.238
SRHG-100S-385A-C118.0004.5809889466.3422.7833.259
SRHG-100S-435A-C118.0006.8092.9443.3826.3362.7793.252
SRHG-100S-485A-C118.0009.2924.5446.0966.3112.7623.225
SRHG-100S-535A-C118.00012.0766.3019.1396.3152.7643.228
SRHG-100S-585A-C118.000





SRHG-100S-385A-C218.000





SRHG-100S-435A-C218.0005.5642.0352.0217.4633.5084.483
SRHG-100S-485A-C218.0008.0473.7484.7357.4383.4924.456
SRHG-100S-535A-C218.00010.8315.5177.7787.4413.4954.460
SRHG-100S-585A-C218.00013.8967.44311.1297.4543.5034.474
SRHG-100S-535A-C318.0009.9324.5605.6959.1394.3865.400
SRHG-100S-585A-C318.00012.7916.2098.4669.1394.3865.400
SRHG-100S-535A-C418.0008.7623.8854.56110.3635.1516.750
SRHG-100S-585A-C418.00011.6215.5347.33210.3635.1516.750
SRHG-130S-435A-C132.0006.7662.7993.0419.4954.7126.439
SRHG-130S-485A-C132.00010.0304.9146.6099.4624.6916.403
SRHG-130S-535A-C132.00013.6907.22210.6109.4664.6946.407
SRHG-130S-585A-C132.00017.7219.74415.0169.4834.7056.426
SRHG-130S-635A-C132.00022.12512.49219.8299.5154.7256.460
SRHG-130S-385A-C232.000





SRHG-130S-435A-C232.000





SRHG-130S-485A-C232.0009.0713.6793.90011.7045.6127.351
SRHG-130S-535A-C232.00012.7316.0727.90111.7085.6157.356
SRHG-130S-585A-C232.00016.7628.62612.30711.7255.6267.374
SRHG-130S-635A-C232.00021.16611.38917.12011.7575.6467.409
SRHG-130S-685A-C232.00025.87714.33422.27111.7385.6347.388
SRHG-130S-485A-C532.0007.5212.7932.77712.6336.3748.884
SRHG-130S-535A-C532.00011.1805.2776.77812.6386.3778.889
SRHG-130S-585A-C532.00015.2117.83211.18412.6556.3888.908
SRHG-130S-635A-C532.00019.61510.59515.99712.6866.4088.942
SRHG-130S-685A-C532.00024.32713.53921.14712.6686.3968.922
SRHG-130S-735A-C532.00029.39516.70026.68812.6476.3838.899
SRHG-130S-535A-C632.000





SRHG-130S-585A-C632.00013.2885.5055.99416.9508.18410.810
SRHG-130S-635A-C632.00017.6918.37910.80816.9828.20410.845
SRHG-130S-685A-C632.00022.40311.37015.95816.9638.19210.824
SRHG-130S-735A-C632.00027.47214.55721.49816.9438.17910.802



Model NumberMax torque Nm5,5 BAR CANTED - Normally closed Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085C-280A-C29.0003.6579421.0342.0261.2242.378
SRHG-085C-335A-C29.0006.2991.9952.4982.0081.2112.340
SRHG-085C-385A-C29.0009.1333.1074.0672.0001.2052.324
SRHG-085C-435A-C29.000





SRHG-085C-335A-C39.0004.9011.0641.0653.2661.9593.738
SRHG-085C-385A-C39.0007.7342.2322.6343.2581.9533.722
SRHG-085C-435A-C39.000





SRHG-085C-335A-C59.000





SRHG-085C-385A-C59.0007.1752.0082.3243.5302.1544.281
SRHG-085C-435A-C59.000





SRHG-085C-385A-C69.0006.3091.4121.4304.3152.6205.146
SRHG-085C-435A-C69.000





SRHG-100C-385A-C118.0008.4781.8411.5215.6273.1695.189
SRHG-100C-435A-C118.00012.3123.1513.4435.4743.1105.160
SRHG-100C-485A-C118.00016.0594.4725.3705.6273.1695.189
SRHG-100C-385A-C218.000





SRHG-100C-435A-C218.00010.3572.3262.3606.4243.8177.114
SRHG-100C-485A-C218.000





SRHG-100C-535A-C218.000





SRHG-100C-585A-C218.000





SRHG-100C-535A-C318.000





SRHG-100C-585A-C318.000





SRHG-100C-535A-C418.00015.8634.1834.7148.8815.36510.614
SRHG-100C-585A-C418.000





SRHG-130C-435A-C132.00012.7543.1943.4438.1485.02410.216
SRHG-130C-485A-C132.00018.3975.4656.5698.1205.00410.159
SRHG-130C-535A-C132.00024.7187.95910.0708.1245.00710.167
SRHG-130C-585A-C132.00031.67710.69113.9258.1385.01710.196
SRHG-130C-635A-C132.000





SRHG-130C-385A-C232.000





SRHG-130C-435A-C232.000





SRHG-130C-485A-C232.00016.8914.1094.35410.0646.05911.664
SRHG-130C-535A-C232.00023.2126.6737.85510.0686.06211.672
SRHG-130C-585A-C232.00030.1719.43111.71010.0826.07311.701
SRHG-130C-635A-C232.000





SRHG-130C-485A-C532.00014.4573.3673.48010.8306.75814.097
SRHG-130C-535A-C532.00020.7775.9486.98210.8346.76114.105
SRHG-130C-585A-C532.00027.7378.70510.83710.8496.77214.134
SRHG-130C-635A-C532.000





SRHG-130C-685A-C532.000





SRHG-130C-735A-C532.000





SRHG-130C-535A-C632.000





SRHG-130C-585A-C632.00024.7176.1456.59614.5708.81317.153
SRHG-130C-635A-C632.00032.3189.22410.80714.5968.83317.207
SRHG-130C-685A-C632.000





SRHG-130C-735A-C632.000






Model NumberMax torque Nm5,5 BAR SYMMETRICAL - Normally closed Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085S-280A-C29.0002.3291.0791.3542.3571.1361.498
SRHG-085S-335A-C29.0004.0122.1423.1932.3361.1231.475
SRHG-085S-385A-C29.0005.8163.2705.1662.3261.1161.464
SRHG-085S-435A-C29.0007.8774.5547.4182.3211.1131.459
SRHG-085S-335A-C39.0003.1211.3011.4283.7971.8112.356
SRHG-085S-385A-C39.0004.9252.4643.4003.7881.8052.345
SRHG-085S-435A-C39.0006.9863.7605.6533.7821.8012.340
SRHG-085S-335A-C59.0002.7641.0431.0384.1202.0162.708
SRHG-085S-385A-C59.0004.5692.2383.0104.1102.0102.698
SRHG-085S-435A-C59.0006.6303.5365.2634.1052.0072.692
SRHG-085S-385A-C69.0004.0171.7031.9105.0212.4383.243
SRHG-085S-435A-C69.0006.0783.0304.1625.0162.4353.238
SRHG-100S-385A-C118.0005.3881.8481.8296.3422.7833.259
SRHG-100S-435A-C118.0007.8413.6164.5106.3362.7793.252
SRHG-100S-485A-C118.00010.5745.3557.4986.3112.7623.225
SRHG-100S-535A-C118.00013.6367.28010.8446.3152.7643.228
SRHG-100S-585A-C118.000





SRHG-100S-385A-C218.000





SRHG-100S-435A-C218.0006.5962.8023.1497.4633.5084.483
SRHG-100S-485A-C218.0009.3294.5676.1377.4383.4924.456
SRHG-100S-535A-C218.00012.3916.4999.4847.4413.4954.460
SRHG-100S-585A-C218.00015.3187.86211.5717.4413.4954.460
SRHG-100S-535A-C318.00011.3935.4037.1119.1394.3865.400
SRHG-100S-585A-C318.00014.5387.21710.1599.1394.3865.400
SRHG-100S-535A-C418.00010.2234.7285.97710.3635.1516.750
SRHG-100S-585A-C418.00013.3686.5429.02510.3635.1516.750
SRHG-130S-435A-C132.0008.1223.6934.5249.4954.7126.439
SRHG-130S-485A-C132.00011.7165.9818.4529.4624.6916.403
SRHG-130S-535A-C132.00015.7428.50712.8529.4664.6946.407
SRHG-130S-585A-C132.00020.17411.27517.6979.4834.7056.426
SRHG-130S-635A-C132.00025.01514.29322.9889.5154.7256.460
SRHG-130S-385A-C232.000





SRHG-130S-435A-C232.0007.1631.8671.81511.7375.6347.387
SRHG-130S-485A-C232.00010.7574.8005.74311.7045.6127.351
SRHG-130S-535A-C232.00014.7837.37610.14311.7085.6157.356
SRHG-130S-585A-C232.00019.21510.16614.98811.7255.6267.374
SRHG-130S-635A-C232.00024.05613.19620.28011.7575.6467.409
SRHG-130S-685A-C232.00029.24116.43225.94711.7385.6347.388
SRHG-130S-485A-C532.0009.2073.9984.62012.6336.3748.884
SRHG-130S-535A-C532.00013.2326.5839.02012.6386.3778.889
SRHG-130S-585A-C532.00017.6649.37313.86512.6556.3888.908
SRHG-130S-635A-C532.00022.50512.40219.15612.6866.4088.942
SRHG-130S-685A-C532.00027.69015.63724.82412.6686.3968.922
SRHG-130S-735A-C532.00033.26819.11130.92012.6476.3838.899
SRHG-130S-535A-C632.00011.3083.8713.83116.9338.17310.792
SRHG-130S-585A-C632.00015.7417.1238.67616.9508.18410.810
SRHG-130S-635A-C632.00020.58210.21913.96716.9828.20410.845
SRHG-130S-685A-C632.00025.76613.48719.63416.9638.19210.824
SRHG-130S-735A-C632.00031.34416.98225.73116.9438.17910.802

Model NumberMax torque Nm6 BAR CANTED - Normally closed Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085C-280A-C29.0004.2211.1711.3472.0261.2242.378
SRHG-085C-335A-C29.0007.1072.3122.9452.0081.2112.340
SRHG-085C-385A-C29.000





SRHG-085C-435A-C29.000





SRHG-085C-335A-C39.0005.7081.4121.5123.2661.9593.738
SRHG-085C-385A-C39.0008.8012.6563.2253.2581.9533.722
SRHG-085C-435A-C39.000





SRHG-085C-335A-C59.0005.1481.1751.2023.5382.1604.298
SRHG-085C-385A-C59.0008.2412.4342.9153.5302.1544.281
SRHG-085C-435A-C59.000





SRHG-085C-385A-C69.0007.3751.8642.0214.3152.6205.146
SRHG-085C-435A-C69.000





SRHG-100C-385A-C118.0009.7302.0162.0125.4793.1145.171
SRHG-100C-435A-C118.00013.9323.8094.3405.4743.1105.160
SRHG-100C-485A-C118.000





SRHG-100C-385A-C218.0008.0381.6951.2986.5433.8337.076
SRHG-100C-435A-C218.00011.9773.0133.2576.4243.8177.114
SRHG-100C-485A-C218.000





SRHG-100C-535A-C218.000





SRHG-100C-585A-C218.000





SRHG-100C-535A-C318.000





SRHG-100C-585A-C318.000





SRHG-100C-535A-C418.000





SRHG-100C-585A-C418.000





SRHG-130C-435A-C132.00014.8844.0614.6238.1485.02410.216
SRHG-130C-485A-C132.00021.0446.5128.0358.1205.00410.159
SRHG-130C-535A-C132.00027.9399.22511.8548.1245.00710.167
SRHG-130C-585A-C132.000





SRHG-130C-635A-C132.000





SRHG-130C-385A-C232.000





SRHG-130C-435A-C232.000





SRHG-130C-485A-C232.00019.5395.1985.82010.0646.05911.664
SRHG-130C-535A-C232.00026.4337.9539.63910.0686.06211.672
SRHG-130C-585A-C232.00034.02310.94713.84310.0826.07311.701
SRHG-130C-635A-C232.000





SRHG-130C-485A-C532.00017.1044.4694.94710.8306.75814.097
SRHG-130C-535A-C532.00023.9997.2288.76610.8346.76114.105
SRHG-130C-585A-C532.00031.58810.22112.97010.8496.77214.134
SRHG-130C-635A-C532.000





SRHG-130C-685A-C532.000





SRHG-130C-735A-C532.000





SRHG-130C-535A-C632.00020.9794.5284.52614.5568.80317.123
SRHG-130C-585A-C632.00028.5687.7198.73014.5708.81317.153
SRHG-130C-635A-C632.000





SRHG-130C-685A-C632.000





SRHG-130C-735A-C632.000






Model NumberMax torque Nm6 BAR SYMMETRICAL - Normally closed Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085S-280A-C29.0002.6881.3081.7462.3571.1361.498
SRHG-085S-335A-C29.0004.5262.4643.7552.3361.1231.475
SRHG-085S-385A-C29.0006.4953.6935.9082.3261.1161.464
SRHG-085S-435A-C29.0008.7445.0938.3662.3211.1131.459
SRHG-085S-335A-C39.0003.6351.6401.9903.7971.8112.356
SRHG-085S-385A-C39.0005.6052.8934.1423.7881.8052.345
SRHG-085S-435A-C39.0007.8534.3026.6003.7821.8012.340
SRHG-085S-335A-C59.0003.2781.4061.6004.1202.0162.708
SRHG-085S-385A-C59.0005.2482.6683.7534.1102.0102.698
SRHG-085S-435A-C59.0007.4974.0796.2114.1052.0072.692
SRHG-085S-385A-C69.0004.6962.1482.6525.0212.4383.243
SRHG-085S-435A-C69.0006.9453.5775.1105.0162.4353.238
SRHG-100S-385A-C118.0006.1962.5332.7136.3422.7833.259
SRHG-100S-435A-C118.0008.8724.2775.6386.3362.7793.252
SRHG-100S-485A-C118.00011.8576.1638.8996.3112.7623.225
SRHG-100S-535A-C118.000





SRHG-100S-585A-C118.000





SRHG-100S-385A-C218.0004.9511.3831.3527.4693.5124.490
SRHG-100S-435A-C218.0007.6273.4784.2777.4633.5084.483
SRHG-100S-485A-C218.00010.6125.3797.5397.4383.4924.456
SRHG-100S-535A-C218.00013.9517.47711.1897.4413.4954.460
SRHG-100S-585A-C218.00017.0658.87013.2647.4413.4954.460
SRHG-100S-535A-C318.00012.8546.2468.5289.1394.3865.400
SRHG-100S-585A-C318.00016.2858.22511.8539.1394.3865.400
SRHG-100S-535A-C418.00011.6845.5717.39410.3635.1516.750
SRHG-100S-585A-C418.00015.1157.55010.71910.3635.1516.750
SRHG-130S-435A-C132.0009.4784.5636.0069.4954.7126.439
SRHG-130S-485A-C132.00013.4027.04110.2959.4624.6916.403
SRHG-130S-535A-C132.00017.7939.79015.0959.4664.6946.407
SRHG-130S-585A-C132.00022.62712.80520.3789.4834.7056.426
SRHG-130S-635A-C132.00027.90516.09326.1489.5154.7256.460
SRHG-130S-385A-C232.000





SRHG-130S-435A-C232.0008.5203.2923.29711.7375.6347.387
SRHG-130S-485A-C232.00012.4435.8887.58611.7045.6127.351
SRHG-130S-535A-C232.00016.8348.67112.38611.7085.6157.356
SRHG-130S-585A-C232.00021.66811.70317.66911.7255.6267.374
SRHG-130S-635A-C232.00026.94615.00123.43911.7575.6467.409
SRHG-130S-685A-C232.00032.60418.52929.62311.7385.6347.388
SRHG-130S-485A-C532.00010.8935.0936.46312.6336.3748.884
SRHG-130S-535A-C532.00015.2847.87811.26312.6386.3778.889
SRHG-130S-585A-C532.00020.11710.90916.54612.6556.3888.908
SRHG-130S-635A-C532.00025.39514.20522.31512.6866.4088.942
SRHG-130S-685A-C532.00031.05317.73228.50012.6686.3968.922
SRHG-130S-735A-C532.000





SRHG-130S-535A-C632.00013.3605.5546.07316.9338.17310.792
SRHG-130S-585A-C632.00018.1948.70111.35716.9508.18410.810
SRHG-130S-635A-C632.00023.47212.04417.12616.9828.20410.845
SRHG-130S-685A-C632.00029.13015.59623.31116.9638.19210.824
SRHG-130S-735A-C632.000








Model NumberMax torque Nm7 BAR CANTED - Normally closed Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085C-280A-C29.0005.3491.6201.9712.0261.2242.378
SRHG-085C-335A-C29.0008.7212.9463.8392.0081.2112.340
SRHG-085C-385A-C29.000





SRHG-085C-435A-C29.000





SRHG-085C-335A-C39.0007.3232.0682.4063.2661.9593.738
SRHG-085C-385A-C39.000





SRHG-085C-435A-C39.000





SRHG-085C-335A-C59.0006.7631.8432.0963.5382.1604.298
SRHG-085C-385A-C59.000





SRHG-085C-435A-C59.000





SRHG-085C-385A-C69.000





SRHG-085C-435A-C69.000





SRHG-100C-385A-C118.00012.2683.1323.4185.4793.1145.171
SRHG-100C-435A-C118.000





SRHG-100C-485A-C118.000





SRHG-100C-385A-C218.00010.3132.3062.3356.4293.8217.125
SRHG-100C-435A-C218.000





SRHG-100C-485A-C218.000





SRHG-100C-535A-C218.000





SRHG-100C-585A-C218.000





SRHG-100C-535A-C318.000





SRHG-100C-585A-C318.000





SRHG-100C-535A-C418.000





SRHG-100C-585A-C418.000





SRHG-130C-435A-C132.00019.1435.7606.9828.1485.02410.216
SRHG-130C-485A-C132.00026.3398.59710.9688.1205.00410.159
SRHG-130C-535A-C132.00034.38111.75115.4238.1245.00710.167
SRHG-130C-585A-C132.000





SRHG-130C-635A-C132.000





SRHG-130C-385A-C232.000





SRHG-130C-435A-C232.00017.6374.4204.76710.0926.08011.721
SRHG-130C-485A-C232.00024.8337.3188.75310.0646.05911.664
SRHG-130C-535A-C232.00032.87610.49613.20810.0686.06211.672
SRHG-130C-585A-C232.000





SRHG-130C-635A-C232.000





SRHG-130C-485A-C532.00022.3996.5937.88010.8306.75814.097
SRHG-130C-535A-C532.00030.4419.77012.33510.8346.76114.105
SRHG-130C-585A-C532.000





SRHG-130C-635A-C532.000





SRHG-130C-685A-C532.000





SRHG-130C-735A-C532.000





SRHG-130C-535A-C632.00027.4217.2548.09514.5568.80317.123
SRHG-130C-585A-C632.000





SRHG-130C-635A-C632.000





SRHG-130C-685A-C632.000





SRHG-130C-735A-C632.000






Model NumberMax torque Nm7 BAR SYMMETRICAL - Normally closed Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085S-280A-C29.0003.4061.7622.5312.3571.1361.498
SRHG-085S-335A-C29.0005.5543.1064.8792.3361.1231.475
SRHG-085S-385A-C29.0007.8544.5397.3922.3261.1161.464
SRHG-085S-435A-C29.000





SRHG-085S-335A-C39.0004.6632.2983.1143.7971.8112.356
SRHG-085S-385A-C39.0006.9633.7455.6273.7881.8052.345
SRHG-085S-435A-C39.0009.5875.3848.4963.7821.8012.340
SRHG-085S-335A-C59.0004.3072.0722.7244.1202.0162.708
SRHG-085S-385A-C59.0006.6063.5215.2374.1102.0102.698
SRHG-085S-435A-C59.0009.2305.1628.1064.1052.0072.692
SRHG-085S-385A-C69.0006.0553.0154.1365.0212.4383.243
SRHG-085S-435A-C69.0008.6794.6657.0055.0162.4353.238
SRHG-100S-385A-C118.0007.8133.5984.4796.3422.7833.259
SRHG-100S-435A-C118.00010.9365.5837.8936.3362.7793.252
SRHG-100S-485A-C118.000





SRHG-100S-535A-C118.000





SRHG-100S-585A-C118.000





SRHG-100S-385A-C218.0006.5672.7833.1187.4693.5124.490
SRHG-100S-435A-C218.0009.6904.7966.5327.4633.5084.483
SRHG-100S-485A-C218.00013.1766.99110.3427.4383.4924.456
SRHG-100S-535A-C218.00016.5578.57712.7717.4383.4924.456
SRHG-100S-585A-C218.000





SRHG-100S-535A-C318.00015.7777.93211.3609.1394.3865.400
SRHG-100S-585A-C318.000





SRHG-100S-535A-C418.00014.6077.25710.22610.3635.1516.750
SRHG-100S-585A-C418.000





SRHG-130S-435A-C132.00012.1916.2808.9719.4954.7126.439
SRHG-130S-485A-C132.00016.7749.15313.9819.4624.6916.403
SRHG-130S-535A-C132.00021.89612.35019.5809.4664.6946.407
SRHG-130S-585A-C132.00027.53315.86125.7409.4834.7056.426
SRHG-130S-635A-C132.00033.68519.69132.4669.5154.7256.460
SRHG-130S-385A-C232.0007.1261.8271.77411.7455.6397.396
SRHG-130S-435A-C232.00011.2325.1096.26211.7375.6347.387
SRHG-130S-485A-C232.00015.8158.02811.27211.7045.6127.351
SRHG-130S-535A-C232.00020.93711.24616.87111.7085.6157.356
SRHG-130S-585A-C232.00026.57414.76823.03211.7255.6267.374
SRHG-130S-635A-C232.00032.72618.60529.75711.7575.6467.409
SRHG-130S-685A-C232.00039.33022.71836.97511.7385.6347.388
SRHG-130S-485A-C532.00014.2657.23510.14912.6336.3748.884
SRHG-130S-535A-C532.00019.38710.45215.74812.6386.3778.889
SRHG-130S-585A-C532.00025.02313.97321.90812.6556.3888.908
SRHG-130S-635A-C532.00031.17617.80828.63412.6866.4088.942
SRHG-130S-685A-C532.000





SRHG-130S-735A-C532.000





SRHG-130S-535A-C632.00017.4638.23310.55816.9338.17310.792
SRHG-130S-585A-C632.00023.09911.80916.71916.9508.18410.810
SRHG-130S-635A-C632.00029.25215.67323.44416.9828.20410.845
SRHG-130S-685A-C632.000





SRHG-130S-735A-C632.000








Model NumberMax torque Nm8,5 BAR CANTED - Normally closed Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085C-280A-C29.0007.0412.2872.9092.0261.2242.378
SRHG-085C-335A-C29.000





SRHG-085C-385A-C29.000





SRHG-085C-435A-C29.000





SRHG-085C-335A-C39.000





SRHG-085C-385A-C39.000





SRHG-085C-435A-C39.000





SRHG-085C-335A-C59.000





SRHG-085C-385A-C59.000





SRHG-085C-435A-C59.000





SRHG-085C-385A-C69.000





SRHG-085C-435A-C69.000





SRHG-100C-385A-C118.000





SRHG-100C-435A-C118.000





SRHG-100C-485A-C118.000





SRHG-100C-385A-C218.000





SRHG-100C-435A-C218.000





SRHG-100C-485A-C218.000





SRHG-100C-535A-C218.000





SRHG-100C-585A-C218.000





SRHG-100C-535A-C318.000





SRHG-100C-585A-C318.000





SRHG-100C-535A-C418.000





SRHG-100C-585A-C418.000





SRHG-130C-435A-C132.00025.5318.28010.5218.1485.02410.216
SRHG-130C-485A-C132.00034.28111.71215.3678.1205.00410.159
SRHG-130C-535A-C132.000





SRHG-130C-585A-C132.000





SRHG-130C-635A-C132.000





SRHG-130C-385A-C232.00016.1953.8153.96810.0996.08511.735
SRHG-130C-435A-C232.00024.0266.9978.30610.0926.08011.721
SRHG-130C-485A-C232.00032.77510.45613.15210.0646.05911.664
SRHG-130C-535A-C232.000





SRHG-130C-585A-C232.000





SRHG-130C-635A-C232.000





SRHG-130C-485A-C532.00030.3409.73012.27910.8306.75814.097
SRHG-130C-535A-C532.000





SRHG-130C-585A-C532.000





SRHG-130C-635A-C532.000





SRHG-130C-685A-C532.000





SRHG-130C-735A-C532.000





SRHG-130C-535A-C632.000





SRHG-130C-585A-C632.000





SRHG-130C-635A-C632.000





SRHG-130C-685A-C632.000





SRHG-130C-735A-C632.000






Model NumberMax torque Nm8,5 BAR SYMMETRICAL - Normally closed Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085S-280A-C29.0004.4842.4383.7092.3571.1361.498
SRHG-085S-335A-C29.0007.0964.0676.5652.3361.1231.475
SRHG-085S-385A-C29.0009.8915.8079.6192.3261.1161.464
SRHG-085S-435A-C29.000





SRHG-085S-335A-C39.0006.2063.2704.7993.7971.8112.356
SRHG-085S-385A-C39.0009.0005.0187.8543.7881.8052.345
SRHG-085S-435A-C39.000





SRHG-085S-335A-C59.0005.8493.0464.4104.1202.0162.708
SRHG-085S-385A-C59.0008.6434.7957.4644.1102.0102.698
SRHG-085S-435A-C59.000





SRHG-085S-385A-C69.0008.0924.2976.3635.0212.4383.243
SRHG-085S-435A-C69.000





SRHG-100S-385A-C118.00010.2375.1427.1296.3422.7833.259
SRHG-100S-435A-C118.000





SRHG-100S-485A-C118.000





SRHG-100S-535A-C118.000





SRHG-100S-585A-C118.000





SRHG-100S-385A-C218.0008.9924.3535.7687.4693.5124.490
SRHG-100S-435A-C218.00012.7856.7469.9157.4633.5084.483
SRHG-100S-485A-C218.00016.5148.55312.7307.4633.5084.483
SRHG-100S-535A-C218.000





SRHG-100S-585A-C218.000





SRHG-100S-535A-C318.000





SRHG-100S-585A-C318.000





SRHG-100S-535A-C418.000





SRHG-100S-585A-C418.000





SRHG-130S-435A-C132.00016.2608.83113.4199.4954.7126.439
SRHG-130S-485A-C132.00021.83212.31019.5099.4624.6916.403
SRHG-130S-535A-C132.00028.05116.18426.3079.4664.6946.407
SRHG-130S-585A-C132.00034.89120.44133.7849.4834.7056.426
SRHG-130S-635A-C132.000





SRHG-130S-385A-C232.00010.3134.5105.25811.7455.6397.396
SRHG-130S-435A-C232.00015.3017.70410.71011.7375.6347.387
SRHG-130S-485A-C232.00020.87311.20616.80111.7045.6127.351
SRHG-130S-535A-C232.00027.09215.09223.59811.7085.6157.356
SRHG-130S-585A-C232.00033.93219.35631.07511.7255.6267.374
SRHG-130S-635A-C232.000





SRHG-130S-685A-C232.00049.42028.99748.00411.7385.6347.388
SRHG-130S-485A-C532.00019.32310.41215.67712.6336.3748.884
SRHG-130S-535A-C532.00025.54114.29622.47512.6386.3778.889
SRHG-130S-585A-C532.00032.38218.55929.95212.6556.3888.908
SRHG-130S-635A-C532.000





SRHG-130S-685A-C532.000





SRHG-130S-735A-C532.000





SRHG-130S-535A-C632.00023.61812.13617.28616.9338.17310.792
SRHG-130S-585A-C632.00030.45816.42924.76316.9508.18410.810
SRHG-130S-635A-C632.000





SRHG-130S-685A-C632.000





SRHG-130S-735A-C632.000






Spring Return Normally Open Torque Table

Model NumberMax torque Nm3 BAR CANTED - Normally open Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085C-280A-O29.000





SRHG-085C-335A-O29.0003.8521.0211.1371.255530509
SRHG-085C-385A-O29.0003.8361.0151.1292.1071.2072.158
SRHG-085C-435A-O29.0003.8281.0121.1253.0831.9034.046
SRHG-085C-385A-O39.000





SRHG-085C-435A-O39.0006.2431.6331.8052.3071.1251.271
SRHG-085C-335A-O59.000





SRHG-085C-385A-O59.000





SRHG-085C-435A-O59.0006.7651.8392.0781.997715672
SRHG-085C-385A-O69.000





SRHG-085C-435A-O69.000





SRHG-085C-485A-O69.0008.2362.2112.4812.5991.0781.034
SRHG-100C-385A-O118.000





SRHG-100C-435A-O118.000





SRHG-100C-485A-O118.000





SRHG-100C-385A-O218.000





SRHG-100C-435A-O218.000





SRHG-100C-485A-O218.000





SRHG-100C-535A-O218.00012.2893.1503.4413.9931.2881.191
SRHG-100C-585A-O218.00012.3103.1583.4525.5972.9604.294
SRHG-100C-535A-O318.000





SRHG-100C-585A-O318.000





SRHG-100C-535A-O418.000





SRHG-100C-585A-O418.000





SRHG-130C-435A-O132.000





SRHG-130C-485A-O132.000





SRHG-130C-535A-O132.00015.5884.3254.9464.7692.2402.220
SRHG-130C-585A-O132.00015.6154.3364.9606.8793.8176.301
SRHG-130C-635A-O132.00015.6674.3564.9879.1885.48010.767
SRHG-130C-385A-O232.000





SRHG-130C-435A-O232.000





SRHG-130C-485A-O232.000





SRHG-130C-535A-O232.000





SRHG-130C-585A-O232.00019.3435.1175.6906.0472.1502.019
SRHG-130C-635A-O232.00019.3945.1375.7178.3564.4336.485
SRHG-130C-685A-O232.00019.3635.1255.70110.8086.21811.229
SRHG-130C-485A-O532.000





SRHG-130C-535A-O532.000





SRHG-130C-585A-O532.000





SRHG-130C-635A-O532.00020.8655.9446.9017.0063.5994.795
SRHG-130C-685A-O532.00020.8355.9326.8859.4595.3949.538
SRHG-130C-735A-O532.00020.8025.9196.86812.0977.28514.641
SRHG-130C-535A-O632.000





SRHG-130C-585A-O632.000





SRHG-130C-635A-O632.000





SRHG-130C-685A-O632.000





SRHG-130C-735A-O632.00027.9407.4578.33510.4255.2236.442

Model NumberMax torque Nm3 BAR SYMMETRICAL - Normally open Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085S-280A-O29.000





SRHG-085S-335A-O29.0002.3351.1221.4741.442394384
SRHG-085S-385A-O29.0002.3251.1161.4632.4221.1391.456
SRHG-085S-435A-O29.0002.3201.1131.4583.5441.8492.682
SRHG-085S-335A-O39.000





SRHG-085S-385A-O39.000





SRHG-085S-435A-O39.0003.7821.8012.3392.653924916
SRHG-085S-335A-O59.000





SRHG-085S-385A-O59.000





SRHG-085S-435A-O59.0004.1042.0072.6922.296545526
SRHG-085S-385A-O69.000





SRHG-085S-435A-O69.000





SRHG-100S-385A-O118.000





SRHG-100S-435A-O118.000





SRHG-100S-485A-O118.000





SRHG-100S-535A-O118.0006.3152.7643.2285.8342.2812.317
SRHG-100S-585A-O118.0006.3272.7733.2427.6793.5114.333
SRHG-100S-385A-O218.000





SRHG-100S-435A-O218.000





SRHG-100S-485A-O218.000





SRHG-100S-535A-O218.0007.4413.4954.4604.589998956
SRHG-100S-585A-O218.0007.4543.5034.4746.4342.6942.972
SRHG-100S-535A-O318.000





SRHG-100S-585A-O318.000





SRHG-100S-535A-O418.000





SRHG-100S-585A-O418.000





SRHG-130S-435A-O132.000





SRHG-130S-485A-O132.000





SRHG-130S-535A-O132.0009.4664.6946.4085.4841.6681.640
SRHG-130S-585A-O132.0009.4834.7056.4267.9093.5544.291
SRHG-130S-635A-O132.0009.5154.7256.46110.5645.2537.193
SRHG-130S-385A-O232.000





SRHG-130S-435A-O232.000





SRHG-130S-485A-O232.000





SRHG-130S-535A-O232.000





SRHG-130S-585A-O232.00011.7255.6267.3746.9501.6401.582
SRHG-130S-635A-O232.00011.7575.6467.4099.6054.0404.484
SRHG-130S-685A-O232.00011.7385.6347.38812.4255.8767.566
SRHG-130S-485A-O532.000





SRHG-130S-535A-O532.000





SRHG-130S-585A-O532.000





SRHG-130S-635A-O532.00012.6866.4088.9428.0553.2223.361
SRHG-130S-685A-O532.00012.6686.3968.92210.8745.0816.443
SRHG-130S-735A-O532.00012.6476.3838.89913.9077.0109.758
SRHG-130S-535A-O632.000





SRHG-130S-585A-O632.000





SRHG-130S-635A-O632.000





SRHG-130S-685A-O632.000





SRHG-130S-735A-O632.00016.9428.17910.80111.9844.5894.569



Model NumberMax torque Nm3,5 BAR CANTED - Normally open Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085C-280A-O29.000





SRHG-085C-335A-O29.0003.8521.0211.1371.7029121.374
SRHG-085C-385A-O29.0003.8361.0151.1292.6981.6303.301
SRHG-085C-435A-O29.0003.8281.0121.1253.8372.4365.504
SRHG-085C-385A-O39.0006.2511.6371.8101.922577527
SRHG-085C-435A-O39.0006.2431.6331.8053.0611.6862.730
SRHG-085C-335A-O59.000





SRHG-085C-385A-O59.000





SRHG-085C-435A-O59.0006.7651.8392.0782.7511.4582.130
SRHG-085C-385A-O69.000





SRHG-085C-435A-O69.000





SRHG-085C-485A-O69.0008.2362.2112.4813.5361.8942.847
SRHG-100C-385A-O118.000





SRHG-100C-435A-O118.000





SRHG-100C-485A-O118.00010.4602.4102.4884.7372.3152.631
SRHG-100C-385A-O218.000





SRHG-100C-435A-O218.000





SRHG-100C-485A-O218.000





SRHG-100C-535A-O218.00012.2893.1503.4415.3502.7773.816
SRHG-100C-585A-O218.00012.3103.1583.4527.2204.1427.433
SRHG-100C-535A-O318.000





SRHG-100C-585A-O318.000





SRHG-100C-535A-O418.000





SRHG-100C-585A-O418.000





SRHG-130C-435A-O132.000





SRHG-130C-485A-O132.00015.5814.3234.9424.3241.4591.359
SRHG-130C-535A-O132.00015.5884.3254.9466.5543.5805.672
SRHG-130C-585A-O132.00015.6154.3364.9609.0125.35510.427
SRHG-130C-635A-O132.00015.6674.3564.98711.7027.26415.630
SRHG-130C-385A-O232.000





SRHG-130C-435A-O232.000





SRHG-130C-485A-O232.000





SRHG-130C-535A-O232.00019.3155.1065.6765.7211.5531.390
SRHG-130C-585A-O232.00019.3435.1175.6908.1804.3036.146
SRHG-130C-635A-O232.00019.3945.1375.71710.8696.26211.348
SRHG-130C-685A-O232.00019.3635.1255.70113.7338.31116.887
SRHG-130C-485A-O532.000





SRHG-130C-535A-O532.000





SRHG-130C-585A-O532.00020.8145.9246.8756.8313.4674.455
SRHG-130C-635A-O532.00020.8655.9446.9019.5205.4399.657
SRHG-130C-685A-O532.00020.8355.9326.88512.3847.48915.197
SRHG-130C-735A-O532.00020.8025.9196.86815.4649.67221.156
SRHG-130C-535A-O632.000





SRHG-130C-585A-O632.000





SRHG-130C-635A-O632.000





SRHG-130C-685A-O632.00027.9737.4708.35310.7125.4406.997
SRHG-130C-735A-O632.00027.9407.4578.33513.7937.70812.956

Model NumberMax torque Nm3,5 BAR SYMMETRICAL - Normally open Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085S-280A-O29.000





SRHG-085S-335A-O29.0002.3351.1221.4741.956836946
SRHG-085S-385A-O29.0002.3251.1161.4633.1011.5702.198
SRHG-085S-435A-O29.0002.3201.1131.4584.4112.3923.629
SRHG-085S-335A-O39.000





SRHG-085S-385A-O39.000





SRHG-085S-435A-O39.0003.7821.8012.3393.5191.5651.863
SRHG-085S-335A-O59.000





SRHG-085S-385A-O59.000





SRHG-085S-435A-O59.0004.1042.0072.6923.1631.3291.474
SRHG-085S-385A-O69.000





SRHG-085S-435A-O69.000





SRHG-100S-385A-O118.000





SRHG-100S-435A-O118.000





SRHG-100S-485A-O118.0006.3112.7623.2255.4451.9081.891
SRHG-100S-535A-O118.0006.3152.7643.2287.3943.3274.022
SRHG-100S-585A-O118.0006.3272.7733.2429.5444.7046.372
SRHG-100S-385A-O218.000





SRHG-100S-435A-O218.000





SRHG-100S-485A-O218.000





SRHG-100S-535A-O218.0007.4413.4954.4606.1492.5012.661
SRHG-100S-585A-O218.0007.4543.5034.4748.2993.9115.011
SRHG-100S-535A-O318.0008.7364.3865.4005.3782.0311.492
SRHG-100S-585A-O318.0008.7364.3865.4007.3173.1863.494
SRHG-100S-535A-O418.000





SRHG-100S-585A-O418.0009.9065.1516.7506.1832.5112.324
SRHG-130S-435A-O132.000





SRHG-130S-485A-O132.0009.4624.6926.4034.9721.1241.080
SRHG-130S-535A-O132.0009.4664.6946.4087.5353.3103.882
SRHG-130S-585A-O132.0009.4834.7056.42610.3625.1256.972
SRHG-130S-635A-O132.0009.5154.7256.46113.4547.07410.352
SRHG-130S-385A-O232.000





SRHG-130S-435A-O232.000





SRHG-130S-485A-O232.000





SRHG-130S-535A-O232.000





SRHG-130S-585A-O232.00011.7255.6267.3749.4033.9054.263
SRHG-130S-635A-O232.00011.7575.6467.40912.4955.9227.643
SRHG-130S-685A-O232.00011.7385.6347.38815.7888.01111.242
SRHG-130S-485A-O532.000





SRHG-130S-535A-O532.000





SRHG-130S-585A-O532.00012.6556.3888.9087.8533.0813.140
SRHG-130S-635A-O532.00012.6866.4088.94210.9455.1266.520
SRHG-130S-685A-O532.00012.6686.3968.92214.2377.21810.119
SRHG-130S-735A-O532.00012.6476.3838.89917.7799.44513.990
SRHG-130S-535A-O632.000





SRHG-130S-585A-O632.000





SRHG-130S-635A-O632.000





SRHG-130S-685A-O632.00016.9628.19210.82312.3144.8344.930
SRHG-130S-735A-O632.00016.9428.17910.80115.8567.1988.802



Model NumberMax torque Nm4 BAR CANTED - Normally open Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085C-280A-O29.000





SRHG-085C-335A-O29.0003.8521.0211.1372.1491.2372.239
SRHG-085C-385A-O29.0003.8361.0151.1293.2882.0484.443
SRHG-085C-435A-O29.0003.8281.0121.1254.5912.9686.962
SRHG-085C-385A-O39.0006.2511.6371.8102.5131.2811.669
SRHG-085C-435A-O39.0006.2431.6331.8053.8152.2314.188
SRHG-085C-335A-O59.000





SRHG-085C-385A-O59.0006.7731.8422.0822.2021.0441.069
SRHG-085C-435A-O59.0006.7651.8392.0783.5052.0083.589
SRHG-085C-385A-O69.000





SRHG-085C-435A-O69.0008.2702.2252.4983.0251.5141.859
SRHG-085C-485A-O69.0008.2362.2112.4814.4732.5754.660
SRHG-100C-385A-O118.000





SRHG-100C-435A-O118.00010.5012.4272.5094.1291.5391.455
SRHG-100C-485A-O118.00010.4602.4102.4885.8533.1484.788
SRHG-100C-385A-O218.000





SRHG-100C-435A-O218.000





SRHG-100C-485A-O218.00012.2843.1483.4384.7702.3402.693
SRHG-100C-535A-O218.00012.2893.1503.4416.7073.7726.441
SRHG-100C-585A-O218.00012.3103.1583.4528.8435.30610.572
SRHG-100C-535A-O318.000





SRHG-100C-585A-O318.000





SRHG-100C-535A-O418.000





SRHG-100C-585A-O418.00016.3174.9285.2867.1543.8596.317
SRHG-130C-435A-O132.000





SRHG-130C-485A-O132.00015.5814.3234.9425.7913.0184.196
SRHG-130C-535A-O132.00015.5884.3254.9468.3384.8719.123
SRHG-130C-585A-O132.00015.6154.3364.96011.1466.87014.554
SRHG-130C-635A-O132.00015.6674.3564.98714.2169.04120.492
SRHG-130C-385A-O232.000





SRHG-130C-435A-O232.000





SRHG-130C-485A-O232.000





SRHG-130C-535A-O232.00019.3155.1065.6767.5063.8004.842
SRHG-130C-585A-O232.00019.3435.1175.69010.3145.86110.273
SRHG-130C-635A-O232.00019.3945.1375.71713.3838.06216.210
SRHG-130C-685A-O232.00019.3635.1255.70116.65910.38422.546
SRHG-130C-485A-O532.000





SRHG-130C-535A-O532.00020.7875.9136.8606.1562.9533.151
SRHG-130C-585A-O532.00020.8145.9246.8758.9645.0368.582
SRHG-130C-635A-O532.00020.8655.9446.90112.0347.24014.520
SRHG-130C-685A-O532.00020.8355.9326.88515.3099.56220.855
SRHG-130C-735A-O532.00020.8025.9196.86818.83212.05127.671
SRHG-130C-535A-O632.000





SRHG-130C-585A-O632.000





SRHG-130C-635A-O632.00028.0037.4828.36910.3625.1766.320
SRHG-130C-685A-O632.00027.9737.4708.35313.6377.59512.656
SRHG-130C-735A-O632.00027.9407.4578.33517.16110.13519.471

Model NumberMax torque Nm4 BAR SYMMETRICAL - Normally open Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085S-280A-O29.000





SRHG-085S-335A-O29.0002.3351.1221.4742.4701.1701.508
SRHG-085S-385A-O29.0002.3251.1161.4633.7801.9972.940
SRHG-085S-435A-O29.0002.3201.1131.4585.2782.9344.577
SRHG-085S-335A-O39.000





SRHG-085S-385A-O39.0003.7871.8042.3452.8891.1421.174
SRHG-085S-435A-O39.0003.7821.8012.3394.3862.1222.811
SRHG-085S-335A-O59.000





SRHG-085S-385A-O59.0004.1102.0102.6972.532796784
SRHG-085S-435A-O59.0004.1042.0072.6924.0301.8952.421
SRHG-085S-385A-O69.000





SRHG-085S-435A-O69.0005.0152.4343.2373.4791.3271.321
SRHG-100S-385A-O118.000





SRHG-100S-435A-O118.0006.3362.7793.2524.7461.1651.127
SRHG-100S-485A-O118.0006.3112.7623.2256.7272.8893.293
SRHG-100S-535A-O118.0006.3152.7643.2288.9554.3295.728
SRHG-100S-585A-O118.0006.3272.7733.24211.4105.8828.411
SRHG-100S-385A-O218.000





SRHG-100S-435A-O218.000





SRHG-100S-485A-O218.0007.4383.4924.4565.4821.9481.932
SRHG-100S-535A-O218.0007.4413.4954.4607.7103.5314.367
SRHG-100S-585A-O218.0007.4543.5034.47410.1655.0977.050
SRHG-100S-535A-O318.0008.7364.3865.4006.7942.8742.954
SRHG-100S-585A-O318.0008.7364.3865.4009.0114.1935.241
SRHG-100S-535A-O418.0009.9065.1516.7505.6602.1991.784
SRHG-100S-585A-O418.0009.9065.1516.7507.8773.5184.071
SRHG-130S-435A-O132.000





SRHG-130S-485A-O132.0009.4624.6926.4036.6582.7252.923
SRHG-130S-535A-O132.0009.4664.6946.4089.5874.6326.125
SRHG-130S-585A-O132.0009.4834.7056.42612.8156.6729.653
SRHG-130S-635A-O132.0009.5154.7256.46116.3448.88413.511
SRHG-130S-385A-O232.000





SRHG-130S-435A-O232.000





SRHG-130S-485A-O232.000





SRHG-130S-535A-O232.00011.7085.6157.3568.6283.3703.416
SRHG-130S-585A-O232.00011.7255.6267.37411.8565.5126.945
SRHG-130S-635A-O232.00011.7575.6467.40915.3867.75810.802
SRHG-130S-685A-O232.00011.7385.6347.38819.15110.12714.918
SRHG-130S-485A-O532.000





SRHG-130S-535A-O532.00012.6386.3778.8897.0772.3222.293
SRHG-130S-585A-O532.00012.6556.3888.90810.3054.7145.821
SRHG-130S-635A-O532.00012.6866.4088.94213.8356.9649.679
SRHG-130S-685A-O532.00012.6686.3968.92217.6009.33313.795
SRHG-130S-735A-O532.00012.6476.3838.89921.65111.86818.223
SRHG-130S-535A-O632.000





SRHG-130S-585A-O632.000





SRHG-130S-635A-O632.00016.9818.20410.84411.9124.5124.490
SRHG-130S-685A-O632.00016.9628.19210.82315.6777.0828.606
SRHG-130S-735A-O632.00016.9428.17910.80119.7289.67813.034

Model NumberMax torque Nm4,5 BAR CANTED - Normally open Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085C-280A-O29.000





SRHG-085C-335A-O29.0003.8871.0351.1552.4791.5132890
SRHG-085C-385A-O29.0003.8521.0211.1373.6192.3244904
SRHG-085C-435A-O29.0003.8361.0151.1294.9173.2487197
SRHG-085C-385A-O39.0003.8281.0121.1253.0361.7172716
SRHG-085C-435A-O39.0006.2511.6371.8104.3352.6405010
SRHG-085C-335A-O59.000





SRHG-085C-385A-O59.0006.7891.8482.0902.8121.5582321
SRHG-085C-435A-O59.0006.7731.8422.0824.1112.4814614
SRHG-085C-385A-O69.000





SRHG-085C-435A-O69.0008.2782.2282.5033.6561.9842803
SRHG-085C-485A-O69.0008.2702.2252.4985.1133.0205376
SRHG-100C-385A-O118.000





SRHG-100C-435A-O118.00010.5112.4312.5145.1362.6463572
SRHG-100C-485A-O118.00010.5012.4272.5096.9973.9306852
SRHG-100C-385A-O218.000





SRHG-100C-435A-O218.000





SRHG-100C-485A-O218.00012.3243.1643.4596.0813.2985238
SRHG-100C-535A-O218.00012.3243.1643.4598.1444.7228874
SRHG-100C-585A-O218.00012.3243.1643.45910.4096.28512866
SRHG-100C-535A-O318.00014.3904.1724.2287.4574.0686850
SRHG-100C-585A-O318.00014.3904.1724.2289.7225.63210843
SRHG-100C-535A-O418.00016.3174.9285.2866.4273.3575.035
SRHG-100C-585A-O418.00016.3174.9285.2868.6924.9219.027
SRHG-130C-435A-O132.000





SRHG-130C-485A-O132.000





SRHG-130C-535A-O132.000





SRHG-130C-585A-O132.000





SRHG-130C-635A-O132.000





SRHG-130C-385A-O232.000





SRHG-130C-435A-O232.000





SRHG-130C-485A-O232.000





SRHG-130C-535A-O232.000





SRHG-130C-585A-O232.000





SRHG-130C-635A-O232.000





SRHG-130C-685A-O232.000





SRHG-130C-485A-O532.000





SRHG-130C-535A-O532.000





SRHG-130C-585A-O532.000





SRHG-130C-635A-O532.000





SRHG-130C-685A-O532.000





SRHG-130C-735A-O532.000





SRHG-130C-535A-O632.000





SRHG-130C-585A-O632.000





SRHG-130C-635A-O632.000





SRHG-130C-685A-O632.000





SRHG-130C-735A-O632.000






Model NumberMax torque Nm4,5 BAR SYMMETRICAL - Normally open Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085S-280A-O29.0002.3561.1361.4971.682715741
SRHG-085S-335A-O29.0002.3351.1221.4742.9631.4772062
SRHG-085S-385A-O29.0002.3251.1161.4634.3262.2883468
SRHG-085S-435A-O29.0002.3201.1131.4585.8773.2125070
SRHG-085S-335A-O39.0003.7971.8102.3552.267839571
SRHG-085S-385A-O39.0003.7871.8042.3453.6291.6501977
SRHG-085S-435A-O39.0003.7821.8012.3395.1812.5743578
SRHG-085S-335A-O59.0004.1192.0162.7081.999680294
SRHG-085S-385A-O59.0004.1102.0102.6973.3621.4911700
SRHG-085S-435A-O59.0004.1042.0072.6924.9142.4153302
SRHG-085S-385A-O69.0005.0212.4383.2432.819973466
SRHG-085S-435A-O69.0005.0152.4343.2374.3711.8972067
SRHG-100S-385A-O118.0006.3422.7833.2593.8291.304570
SRHG-100S-435A-O118.0006.3362.7793.2525.6552.3912454
SRHG-100S-485A-O118.0006.3112.7623.2257.7033.6104568
SRHG-100S-535A-O118.0006.3152.7643.2289.9744.9626911
SRHG-100S-585A-O118.0006.3152.7643.22812.4686.4469484
SRHG-100S-385A-O218.000





SRHG-100S-435A-O218.0007.4633.5084.4834.6471.7911414
SRHG-100S-485A-O218.0007.4383.4924.4566.6953.0103528
SRHG-100S-535A-O218.0007.4413.4954.4608.9664.3625871
SRHG-100S-585A-O218.0007.4543.5034.47411.4605.8468444
SRHG-100S-535A-O318.0008.7364.3865.4008.2103.7174415
SRHG-100S-585A-O318.0008.7364.3865.40010.7045.2016988
SRHG-100S-535A-O418.0009.9065.1516.7507.0763.0423.245
SRHG-100S-585A-O418.0009.9065.1516.7509.5704.5265.818
SRHG-130S-435A-O132.000





SRHG-130S-485A-O132.000





SRHG-130S-535A-O132.000





SRHG-130S-585A-O132.000





SRHG-130S-635A-O132.000





SRHG-130S-385A-O232.000





SRHG-130S-435A-O232.000





SRHG-130S-485A-O232.000





SRHG-130S-535A-O232.000





SRHG-130S-585A-O232.000





SRHG-130S-635A-O232.000





SRHG-130S-685A-O232.000





SRHG-130S-485A-O532.000





SRHG-130S-535A-O532.000





SRHG-130S-585A-O532.000





SRHG-130S-635A-O532.000





SRHG-130S-685A-O532.000





SRHG-130S-735A-O532.000





SRHG-130S-535A-O632.000





SRHG-130S-585A-O632.000





SRHG-130S-635A-O632.000





SRHG-130S-685A-O632.000





SRHG-130S-735A-O632.000








Model NumberMax torque Nm5 BAR CANTED - Normally open Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085C-280A-O29.0003.8871.0351.1551.7149211.399
SRHG-085C-335A-O29.0003.8521.0211.1373.0431.8753.969
SRHG-085C-385A-O29.0003.8361.0151.1294.4692.8836.728
SRHG-085C-435A-O29.000





SRHG-085C-385A-O39.0006.2511.6371.8103.6942.1443.954
SRHG-085C-435A-O39.0006.2431.6331.8055.3233.3047.105
SRHG-085C-335A-O59.000





SRHG-085C-385A-O59.0006.7731.8422.0823.3841.9203.354
SRHG-085C-435A-O59.0006.7651.8392.0785.0133.0846.505
SRHG-085C-385A-O69.000





SRHG-085C-435A-O69.0008.2702.2252.4984.5332.6184.776
SRHG-085C-485A-O69.0008.2362.2112.4816.3483.9128.286
SRHG-100C-385A-O118.000





SRHG-100C-435A-O118.00010.5012.4272.5095.9243.2014.926
SRHG-100C-485A-O118.00010.4602.4102.4888.0834.7639.103
SRHG-100C-385A-O218.000





SRHG-100C-435A-O218.000





SRHG-100C-485A-O218.00012.2843.1483.4387.0003.9847.008
SRHG-100C-535A-O218.00012.2893.1503.4419.4225.71711.692
SRHG-100C-585A-O218.00012.3103.1583.45211.9477.34715.577
SRHG-100C-535A-O318.00014.3904.1724.2288.7444.9569.118
SRHG-100C-585A-O318.00014.3904.1724.22811.2606.69313.554
SRHG-100C-535A-O418.00016.3174.9285.2867.7144.2457.302
SRHG-100C-585A-O418.00016.3174.9285.28610.2305.98211.738
SRHG-130C-435A-O132.00015.6344.3434.9705.8843.0884.377
SRHG-130C-485A-O132.00015.5814.3234.9428.7245.1489.869
SRHG-130C-535A-O132.00015.5884.3254.94611.9077.40916.027
SRHG-130C-585A-O132.00015.6154.3364.96015.4139.88522.808
SRHG-130C-635A-O132.00015.6674.3564.98719.24312.58530.217
SRHG-130C-385A-O232.000





SRHG-130C-435A-O232.000





SRHG-130C-485A-O232.00019.3085.1035.6727.8914.0895.587
SRHG-130C-535A-O232.00019.3155.1065.67611.0756.41011.745
SRHG-130C-585A-O232.00019.3435.1175.69014.5818.91218.526
SRHG-130C-635A-O232.00019.3945.1375.71718.41111.62325.936
SRHG-130C-685A-O232.00019.3635.1255.70122.50914.51533.863
SRHG-130C-485A-O532.00020.7805.9116.8576.5423.2493.897
SRHG-130C-535A-O532.00020.7875.9136.8609.7255.58610.054
SRHG-130C-585A-O532.00020.8145.9246.87513.2318.09116.836
SRHG-130C-635A-O532.00020.8655.9446.90117.06110.80124.245
SRHG-130C-685A-O532.00020.8355.9326.88521.16013.69232.172
SRHG-130C-735A-O532.000





SRHG-130C-535A-O632.00027.9257.4518.3288.0532.0911.854
SRHG-130C-585A-O632.00027.9527.4628.34211.5596.0728.636
SRHG-130C-635A-O632.00028.0037.4828.36915.3908.86216.045
SRHG-130C-685A-O632.00027.9737.4708.35319.48811.79423.972
SRHG-130C-735A-O632.00027.9407.4578.33523.89614.91932.500

Model NumberMax torque Nm5 BAR SYMMETRICAL - Normally open Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085S-280A-O29.0002.3561.1361.4971.971845962
SRHG-085S-335A-O29.0002.3351.1221.4743.4991.8202.632
SRHG-085S-385A-O29.0002.3251.1161.4635.1382.8474.425
SRHG-085S-435A-O29.0002.3201.1131.4587.0114.0146.472
SRHG-085S-335A-O39.0003.7971.8102.3552.607876866
SRHG-085S-385A-O39.0003.7871.8042.3454.2472.0332.659
SRHG-085S-435A-O39.0003.7821.8012.3396.1203.2174.706
SRHG-085S-335A-O59.0004.1192.0162.7082.251497477
SRHG-085S-385A-O59.0004.1102.0102.6973.8901.8052.269
SRHG-085S-435A-O59.0004.1042.0072.6925.7642.9934.316
SRHG-085S-385A-O69.0005.0212.4383.2433.3391.1781.168
SRHG-085S-435A-O69.0005.0152.4343.2375.2122.4793.216
SRHG-100S-385A-O118.0006.3422.7833.2594.580988946
SRHG-100S-435A-O118.0006.3362.7793.2526.8092.9443.382
SRHG-100S-485A-O118.0006.3112.7623.2259.2924.5446.096
SRHG-100S-535A-O118.0006.3152.7643.22812.0766.3019.139
SRHG-100S-585A-O118.0006.3152.7643.22814.1617.45411.231
SRHG-100S-385A-O218.000





SRHG-100S-435A-O218.0007.4633.5084.4835.5642.0352.021
SRHG-100S-485A-O218.0007.4383.4924.4568.0473.7484.735
SRHG-100S-535A-O218.0007.4413.4954.46010.8315.5177.778
SRHG-100S-585A-O218.0007.4543.5034.47413.8967.44311.129
SRHG-100S-535A-O318.0008.7364.3865.4009.6264.5605.876
SRHG-100S-585A-O318.0008.7364.3865.40012.3976.2098.735
SRHG-100S-535A-O418.0009.9065.1516.7508.4923.8854.706
SRHG-100S-585A-O418.0009.9065.1516.75011.2635.5347.565
SRHG-130S-435A-O132.0009.4954.7126.4396.7662.7983.041
SRHG-130S-485A-O132.0009.4624.6926.40310.0304.9146.609
SRHG-130S-535A-O132.0009.4664.6946.40813.6907.22210.610
SRHG-130S-585A-O132.0009.4834.7056.42617.7219.74415.015
SRHG-130S-635A-O132.0009.5154.7256.46122.12412.49219.829
SRHG-130S-385A-O232.000





SRHG-130S-435A-O232.000





SRHG-130S-485A-O232.00011.7045.6127.3519.0713.6793.901
SRHG-130S-535A-O232.00011.7085.6157.35612.7316.0737.901
SRHG-130S-585A-O232.00011.7255.6267.37416.7628.62612.307
SRHG-130S-635A-O232.00011.7575.6467.40921.16611.38917.121
SRHG-130S-685A-O232.00011.7385.6347.38825.87814.33422.271
SRHG-130S-485A-O532.00012.6336.3748.8847.5212.7942.777
SRHG-130S-535A-O532.00012.6386.3778.88911.1815.2776.778
SRHG-130S-585A-O532.00012.6556.3888.90815.2117.83211.184
SRHG-130S-635A-O532.00012.6866.4088.94219.61510.59515.997
SRHG-130S-685A-O532.00012.6686.3968.92224.32713.53921.147
SRHG-130S-735A-O532.00012.6476.3838.89929.39516.70026.688
SRHG-130S-535A-O632.000





SRHG-130S-585A-O632.00016.9508.18410.81013.2885.5065.995
SRHG-130S-635A-O632.00016.9818.20410.84417.6928.38010.809
SRHG-130S-685A-O632.00016.9628.19210.82322.40411.37015.959
SRHG-130S-735A-O632.00016.9428.17910.80127.47214.55721.499



Model NumberMax torque Nm5,5 BAR CANTED - Normally open Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085C-280A-O29.0003.8871.0351.1552.0271.1492.003
SRHG-085C-335A-O29.0003.8521.0211.1373.4902.1914.834
SRHG-085C-385A-O29.0003.8361.0151.1295.0603.2997.870
SRHG-085C-435A-O29.000





SRHG-085C-385A-O39.0006.2511.6371.8104.2842.5675.096
SRHG-085C-435A-O39.000





SRHG-085C-335A-O59.0006.7891.8482.0902.4051.2001.460
SRHG-085C-385A-O59.0006.7731.8422.0823.9742.3454.497
SRHG-085C-435A-O59.0006.7651.8392.0785.7673.6187.964
SRHG-085C-385A-O69.0008.2782.2282.5033.4951.8642.767
SRHG-085C-435A-O69.0008.2702.2252.4985.2873.1596.235
SRHG-085C-485A-O69.000





SRHG-100C-385A-O118.00010.5112.4312.5144.6882.2772.536
SRHG-100C-435A-O118.00010.5012.4272.5096.8213.8546.662
SRHG-100C-485A-O118.00010.4602.4102.4889.1995.55911.261
SRHG-100C-385A-O218.000





SRHG-100C-435A-O218.00012.3243.1643.4595.7383.0644.567
SRHG-100C-485A-O218.00012.2843.1483.4388.1164.7869.166
SRHG-100C-535A-O218.00012.2423.4763.52410.7176.49813.408
SRHG-100C-585A-O218.000





SRHG-100C-535A-O318.00014.3904.1724.22810.0305.84411.385
SRHG-100C-585A-O318.00014.3904.1724.22812.7987.75516.265
SRHG-100C-535A-O418.00016.3174.9285.2869.0005.1339.570
SRHG-100C-585A-O418.00016.3174.9285.28611.7687.04414.449
SRHG-130C-435A-O132.00015.6344.3434.9707.0643.9516.659
SRHG-130C-485A-O132.00015.5814.3234.94210.1906.19212.706
SRHG-130C-535A-O132.00015.5884.3254.94613.6918.67119.478
SRHG-130C-585A-O132.00015.6154.3364.96017.54611.39026.935
SRHG-130C-635A-O132.000





SRHG-130C-385A-O232.000





SRHG-130C-435A-O232.00019.3615.1245.7006.2322.4912.377
SRHG-130C-485A-O232.00019.3085.1035.6729.3585.1678.424
SRHG-130C-535A-O232.00019.3155.1065.67612.8597.68915.196
SRHG-130C-585A-O232.00019.3435.1175.69016.71410.42322.653
SRHG-130C-635A-O232.00019.3945.1375.71720.92513.39730.798
SRHG-130C-685A-O232.000





SRHG-130C-485A-O532.00020.7805.9116.8578.0084.3406.733
SRHG-130C-535A-O532.00020.7875.9136.86011.5106.86713.506
SRHG-130C-585A-O532.00020.8145.9246.87515.3659.60220.963
SRHG-130C-635A-O532.00020.8655.9446.90119.57512.57529.108
SRHG-130C-685A-O532.000





SRHG-130C-735A-O532.000





SRHG-130C-535A-O632.00027.9257.4518.3289.8384.7755.306
SRHG-130C-585A-O632.00027.9527.4628.34213.6937.63512.763
SRHG-130C-635A-O632.00028.0037.4828.36917.90410.66720.908
SRHG-130C-685A-O632.00027.9737.4708.35322.41313.86929.631
SRHG-130C-735A-O632.000






Model NumberMax torque Nm5,5 BAR SYMMETRICAL - Normally open Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085S-280A-O29.0002.3561.1361.4972.3301.0791.355
SRHG-085S-335A-O29.0002.3351.1221.4744.0132.1433.194
SRHG-085S-385A-O29.0002.3251.1161.4635.8173.2705.167
SRHG-085S-435A-O29.0002.3201.1131.4587.8784.5547.420
SRHG-085S-335A-O39.0003.7971.8102.3553.1211.3011.428
SRHG-085S-385A-O39.0003.7871.8042.3454.9262.4653.401
SRHG-085S-435A-O39.0003.7821.8012.3396.9873.7605.654
SRHG-085S-335A-O59.0004.1192.0162.7082.7651.0441.038
SRHG-085S-385A-O59.0004.1102.0102.6974.5692.2393.011
SRHG-085S-435A-O59.0004.1042.0072.6926.6303.5375.264
SRHG-085S-385A-O69.0005.0212.4383.2434.0181.7041.911
SRHG-085S-435A-O69.0005.0152.4343.2376.0793.0314.163
SRHG-100S-385A-O118.0006.3422.7833.2595.3881.8481.829
SRHG-100S-435A-O118.0006.3362.7793.2527.8413.6164.510
SRHG-100S-485A-O118.0006.3112.7623.22510.5745.3557.498
SRHG-100S-535A-O118.0006.3152.7643.22813.6367.28010.844
SRHG-100S-585A-O118.0006.3152.7643.22815.8558.46212.978
SRHG-100S-385A-O218.000





SRHG-100S-435A-O218.0007.4633.5084.4836.5962.8023.149
SRHG-100S-485A-O218.0007.4383.4924.4569.3294.5676.137
SRHG-100S-535A-O218.0007.4413.4954.46012.3916.4999.484
SRHG-100S-585A-O218.0007.4413.4954.46014.8477.86211.938
SRHG-100S-535A-O318.0008.7364.3865.40011.0435.4037.337
SRHG-100S-585A-O318.0008.7364.3865.40014.0917.21710.482
SRHG-100S-535A-O418.0009.9065.1516.7509.9094.7286.167
SRHG-100S-585A-O418.0009.9065.1516.75012.9576.5429.312
SRHG-130S-435A-O132.0009.4954.7126.4398.1223.6924.524
SRHG-130S-485A-O132.0009.4624.6926.40311.7165.9808.452
SRHG-130S-535A-O132.0009.4664.6946.40815.7418.50712.852
SRHG-130S-585A-O132.0009.4834.7056.42620.17411.27517.697
SRHG-130S-635A-O132.0009.5154.7256.46125.01514.29322.988
SRHG-130S-385A-O232.000





SRHG-130S-435A-O232.00011.7375.6337.3877.1631.8671.815
SRHG-130S-485A-O232.00011.7045.6127.35110.7574.8005.743
SRHG-130S-535A-O232.00011.7085.6157.35614.7837.37610.144
SRHG-130S-585A-O232.00011.7255.6267.37419.21510.16714.988
SRHG-130S-635A-O232.00011.7575.6467.40924.05613.19620.280
SRHG-130S-685A-O232.00011.7385.6347.38829.24116.43225.947
SRHG-130S-485A-O532.00012.6336.3748.8849.2073.9984.620
SRHG-130S-535A-O532.00012.6386.3778.88913.2326.5839.020
SRHG-130S-585A-O532.00012.6556.3888.90817.6649.37313.865
SRHG-130S-635A-O532.00012.6866.4088.94222.50512.40219.156
SRHG-130S-685A-O532.00012.6686.3968.92227.69015.63724.824
SRHG-130S-735A-O532.00012.6476.3838.89933.26819.11130.920
SRHG-130S-535A-O632.00016.9338.17310.79111.3093.8713.832
SRHG-130S-585A-O632.00016.9508.18410.81015.7417.1248.676
SRHG-130S-635A-O632.00016.9818.20410.84420.58210.21913.968
SRHG-130S-685A-O632.00016.9628.19210.82325.76713.48719.635
SRHG-130S-735A-O632.00016.9428.17910.80131.34416.98325.732

Model NumberMax torque Nm6 BAR CANTED - Normally open Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085C-280A-O29.0003.8871.0351.1552.3391.3742.607
SRHG-085C-335A-O29.0003.8521.0211.1373.9382.5075.699
SRHG-085C-385A-O29.000





SRHG-085C-435A-O29.000





SRHG-085C-385A-O39.0006.2511.6371.8104.8752.9866.239
SRHG-085C-435A-O39.000





SRHG-085C-335A-O59.0006.7891.8482.0902.8521.5332.325
SRHG-085C-385A-O59.0006.7731.8422.0824.5652.7665.639
SRHG-085C-435A-O59.000





SRHG-085C-385A-O69.0008.2782.2282.5034.0852.2953.910
SRHG-085C-435A-O69.0008.2702.2252.4986.0413.6957.693
SRHG-085C-485A-O69.000





SRHG-100C-385A-O118.00010.5112.4312.5145.3912.8073.895
SRHG-100C-435A-O118.00010.5012.4272.5097.7184.5018.397
SRHG-100C-485A-O118.00010.4602.4102.48810.3146.35013.418
SRHG-100C-385A-O218.00012.3343.1683.4644.3081.8671.800
SRHG-100C-435A-O218.00012.3243.1643.4596.6363.7206.303
SRHG-100C-485A-O218.00012.2843.1483.4389.2315.58211.323
SRHG-100C-535A-O218.00012.2423.4763.52412.0037.38615.676
SRHG-100C-585A-O218.000





SRHG-100C-535A-O318.00014.3904.1724.22811.3166.73213.653
SRHG-100C-585A-O318.000





SRHG-100C-535A-O418.00016.3174.9285.28610.2866.02111.837
SRHG-100C-585A-O418.00016.3174.9285.28613.3068.10617.160
SRHG-130C-435A-O132.00015.6344.3434.9708.2444.8038.941
SRHG-130C-485A-O132.00015.5814.3234.94211.6567.23215.542
SRHG-130C-535A-O132.00015.5884.3254.94615.4769.93022.930
SRHG-130C-585A-O132.00015.6154.3364.96019.68012.89231.062
SRHG-130C-635A-O132.000





SRHG-130C-385A-O232.000





SRHG-130C-435A-O232.00019.3615.1245.7007.4123.7294.659
SRHG-130C-485A-O232.00019.3085.1035.67210.8246.22911.260
SRHG-130C-535A-O232.00019.3155.1065.67614.6438.95618.648
SRHG-130C-585A-O232.00019.3435.1175.69018.84811.93226.780
SRHG-130C-635A-O232.000





SRHG-130C-685A-O232.000





SRHG-130C-485A-O532.00020.7805.9116.8579.4755.4069.570
SRHG-130C-535A-O532.00020.7875.9136.86013.2948.13516.957
SRHG-130C-585A-O532.00020.8145.9246.87517.49811.11025.090
SRHG-130C-635A-O532.00020.8655.9446.90122.08914.34733.970
SRHG-130C-685A-O532.000





SRHG-130C-735A-O532.000





SRHG-130C-535A-O632.00027.9257.4518.32811.6226.1198.758
SRHG-130C-585A-O632.00027.9527.4628.34215.8269.17716.890
SRHG-130C-635A-O632.00028.0037.4828.36920.41712.45425.770
SRHG-130C-685A-O632.000





SRHG-130C-735A-O632.000






Model NumberMax torque Nm6 BAR SYMMETRICAL - Normally open Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085S-280A-O29.0002.3561.1361.4972.6891.3091.747
SRHG-085S-335A-O29.0002.3351.1221.4744.5272.4653.756
SRHG-085S-385A-O29.0002.3251.1161.4636.4963.6945.909
SRHG-085S-435A-O29.0002.3201.1131.4588.7455.0948.367
SRHG-085S-335A-O39.0003.7971.8102.3553.6361.6401.990
SRHG-085S-385A-O39.0003.7871.8042.3455.6052.8934.143
SRHG-085S-435A-O39.0003.7821.8012.3397.8544.3026.601
SRHG-085S-335A-O59.0004.1192.0162.7083.2791.4061.600
SRHG-085S-385A-O59.0004.1102.0102.6975.2492.6683.753
SRHG-085S-435A-O59.0004.1042.0072.6927.4974.0796.211
SRHG-085S-385A-O69.0005.0212.4383.2434.6972.1492.653
SRHG-085S-435A-O69.0005.0152.4343.2376.9463.5785.111
SRHG-100S-385A-O118.0006.3422.7833.2596.1962.5332.713
SRHG-100S-435A-O118.0006.3362.7793.2528.8724.2775.638
SRHG-100S-485A-O118.0006.3112.7623.22511.8576.1638.899
SRHG-100S-535A-O118.000





SRHG-100S-585A-O118.000





SRHG-100S-385A-O218.0007.4693.5124.4904.9511.3831.352
SRHG-100S-435A-O218.0007.4633.5084.4837.6273.4784.277
SRHG-100S-485A-O218.0007.4383.4924.45610.6125.3797.539
SRHG-100S-535A-O218.0007.4413.4954.46013.9517.47711.189
SRHG-100S-585A-O218.0007.4413.4954.46016.5408.87013.685
SRHG-100S-535A-O318.0008.7364.3865.40012.4596.2468.798
SRHG-100S-585A-O318.0008.7364.3865.40015.7848.22512.229
SRHG-100S-535A-O418.0009.9065.1516.75011.3255.5717.628
SRHG-100S-585A-O418.0009.9065.1516.75014.6507.55011.059
SRHG-130S-435A-O132.0009.4954.7126.4399.4784.5636.006
SRHG-130S-485A-O132.0009.4624.6926.40313.4027.04110.295
SRHG-130S-535A-O132.0009.4664.6946.40817.7939.78915.094
SRHG-130S-585A-O132.0009.4834.7056.42622.62612.80520.378
SRHG-130S-635A-O132.0009.5154.7256.46127.90516.09326.147
SRHG-130S-385A-O232.000





SRHG-130S-435A-O232.00011.7375.6337.3878.5203.2923.298
SRHG-130S-485A-O232.00011.7045.6127.35112.4435.8887.586
SRHG-130S-535A-O232.00011.7085.6157.35616.8348.67112.386
SRHG-130S-585A-O232.00011.7255.6267.37421.66811.70417.669
SRHG-130S-635A-O232.00011.7575.6467.40926.94615.00123.439
SRHG-130S-685A-O232.00011.7385.6347.38832.60418.52929.623
SRHG-130S-485A-O532.00012.6336.3748.88410.8935.0936.463
SRHG-130S-535A-O532.00012.6386.3778.88915.2847.87811.263
SRHG-130S-585A-O532.00012.6556.3888.90820.11710.90916.546
SRHG-130S-635A-O532.00012.6866.4088.94225.39514.20522.316
SRHG-130S-685A-O532.00012.6686.3968.92231.05317.73228.500
SRHG-130S-735A-O532.000





SRHG-130S-535A-O632.00016.9338.17310.79113.3605.5556.074
SRHG-130S-585A-O632.00016.9508.18410.81018.1948.70111.357
SRHG-130S-635A-O632.00016.9818.20410.84423.47212.04517.127
SRHG-130S-685A-O632.00016.9628.19210.82329.13015.59623.311
SRHG-130S-735A-O632.000








Model NumberMax torque Nm7 BAR CANTED - Normally open Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085C-280A-O29.0003.8871.0351.1552.9641.8193.816
SRHG-085C-335A-O29.0003.8521.0211.1374.8323.1387.429
SRHG-085C-385A-O29.000





SRHG-085C-435A-O29.000





SRHG-085C-385A-O39.0006.2511.6371.8106.0563.8228.524
SRHG-085C-435A-O39.000





SRHG-085C-335A-O59.0006.7891.8482.0903.7462.1814.055
SRHG-085C-385A-O59.0006.7731.8422.0825.7463.6037.924
SRHG-085C-435A-O59.000





SRHG-085C-385A-O69.0008.2782.2282.5035.2673.1446.195
SRHG-085C-435A-O69.000





SRHG-085C-485A-O69.000





SRHG-100C-385A-O118.00010.5112.4312.5146.7973.8366.614
SRHG-100C-435A-O118.00010.5012.4272.5099.5135.78211.869
SRHG-100C-485A-O118.000





SRHG-100C-385A-O218.00012.3343.1683.4645.7143.0464.519
SRHG-100C-435A-O218.00012.3243.1643.4598.4305.0129.774
SRHG-100C-485A-O218.000





SRHG-100C-535A-O218.000





SRHG-100C-585A-O218.000





SRHG-100C-535A-O318.000





SRHG-100C-585A-O318.000





SRHG-100C-535A-O418.00016.3174.9285.28612.8597.79716.372
SRHG-100C-585A-O418.000





SRHG-130C-435A-O132.00015.6344.3434.97010.6036.48513.505
SRHG-130C-485A-O132.00015.5814.3234.94214.5899.30521.215
SRHG-130C-535A-O132.00015.5884.3254.94619.04512.44529.833
SRHG-130C-585A-O132.000





SRHG-130C-635A-O132.000





SRHG-130C-385A-O232.00019.3755.1295.7076.2002.4312.315
SRHG-130C-435A-O232.00019.3615.1245.7009.7715.4689.223
SRHG-130C-485A-O232.00019.3085.1035.67213.7578.32816.934
SRHG-130C-535A-O232.00019.3155.1065.67618.21211.48325.551
SRHG-130C-585A-O232.000





SRHG-130C-635A-O232.000





SRHG-130C-685A-O232.000





SRHG-130C-485A-O532.00020.7805.9116.85712.4087.50615.243
SRHG-130C-535A-O532.00020.7875.9136.86016.86310.66123.861
SRHG-130C-585A-O532.00020.8145.9246.87521.76514.11933.344
SRHG-130C-635A-O532.000





SRHG-130C-685A-O532.000





SRHG-130C-735A-O532.000





SRHG-130C-535A-O632.00027.9257.4518.32815.1918.71915.661
SRHG-130C-585A-O632.00027.9527.4628.34220.09312.22425.144
SRHG-130C-635A-O632.000





SRHG-130C-685A-O632.000





SRHG-130C-735A-O632.000






Model NumberMax torque Nm7 BAR SYMMETRICAL - Normally open Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085S-280A-O29.0002.3561.1361.4973.4071.7632.533
SRHG-085S-335A-O29.0002.3351.1221.4745.5553.1074.880
SRHG-085S-385A-O29.0002.3251.1161.4637.8554.5397.394
SRHG-085S-435A-O29.000





SRHG-085S-335A-O39.0003.7971.8102.3554.6642.2993.114
SRHG-085S-385A-O39.0003.7871.8042.3456.9633.7455.628
SRHG-085S-435A-O39.0003.7821.8012.3399.5885.3848.496
SRHG-085S-335A-O59.0004.1192.0162.7084.3072.0722.724
SRHG-085S-385A-O59.0004.1102.0102.6976.6073.5225.238
SRHG-085S-435A-O59.0004.1042.0072.6929.2315.1628.106
SRHG-085S-385A-O69.0005.0212.4383.2436.0553.0164.137
SRHG-085S-435A-O69.0005.0152.4343.2378.6804.6667.006
SRHG-100S-385A-O118.0006.3422.7833.2597.8133.5984.479
SRHG-100S-435A-O118.0006.3362.7793.25210.9365.5837.893
SRHG-100S-485A-O118.000





SRHG-100S-535A-O118.000





SRHG-100S-585A-O118.000





SRHG-100S-385A-O218.0007.4693.5124.4906.5672.7833.118
SRHG-100S-435A-O218.0007.4633.5084.4839.6904.7966.532
SRHG-100S-485A-O218.0007.4383.4924.45613.1766.99110.342
SRHG-100S-535A-O218.000





SRHG-100S-585A-O218.000





SRHG-100S-535A-O318.0008.7364.3865.40015.2917.93211.721
SRHG-100S-585A-O318.000





SRHG-100S-535A-O418.0009.9065.1516.75014.1577.25710.551
SRHG-100S-585A-O418.000





SRHG-130S-435A-O132.0009.4954.7126.43912.1916.2808.971
SRHG-130S-485A-O132.0009.4624.6926.40316.7749.15213.981
SRHG-130S-535A-O132.0009.4664.6946.40821.89612.35019.579
SRHG-130S-585A-O132.0009.4834.7056.42627.53215.86125.740
SRHG-130S-635A-O132.0009.5154.7256.46133.68519.69132.466
SRHG-130S-385A-O232.00011.7455.6397.3967.1261.8271.775
SRHG-130S-435A-O232.00011.7375.6337.38711.2325.1096.263
SRHG-130S-485A-O232.00011.7045.6127.35115.8158.02911.272
SRHG-130S-535A-O232.00011.7085.6157.35620.93711.24616.871
SRHG-130S-585A-O232.00011.7255.6267.37426.57414.76923.032
SRHG-130S-635A-O232.00011.7575.6467.40932.72718.60629.757
SRHG-130S-685A-O232.00011.7385.6347.38839.33022.71836.976
SRHG-130S-485A-O532.00012.6336.3748.88414.2657.23610.149
SRHG-130S-535A-O532.00012.6386.3778.88919.38710.45215.748
SRHG-130S-585A-O532.00012.6556.3888.90825.02313.97321.908
SRHG-130S-635A-O532.00012.6866.4088.94231.17617.80828.634
SRHG-130S-685A-O532.000





SRHG-130S-735A-O532.000





SRHG-130S-535A-O632.00016.9338.17310.79117.4648.23410.559
SRHG-130S-585A-O632.00016.9508.18410.81023.10011.81016.720
SRHG-130S-635A-O632.00016.9818.20410.84429.25315.67323.445
SRHG-130S-685A-O632.000





SRHG-130S-735A-O632.000








Model NumberMax torque Nm8,5 BAR CANTED - Normally open Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085C-280A-O29.0003.8871.0351.1553.9012.4825.629
SRHG-085C-335A-O29.000





SRHG-085C-385A-O29.000





SRHG-085C-435A-O29.000





SRHG-085C-385A-O39.000





SRHG-085C-435A-O39.000





SRHG-085C-335A-O59.0006.7891.8482.0905.0883.1376.650
SRHG-085C-385A-O59.000





SRHG-085C-435A-O59.000





SRHG-085C-385A-O69.000





SRHG-085C-435A-O69.000





SRHG-085C-485A-O69.000





SRHG-100C-385A-O118.00010.5112.4312.5148.9055.35010.693
SRHG-100C-435A-O118.000





SRHG-100C-485A-O118.000





SRHG-100C-385A-O218.00012.3343.1683.4647.8224.5768.598
SRHG-100C-435A-O218.000





SRHG-100C-485A-O218.000





SRHG-100C-535A-O218.000





SRHG-100C-585A-O218.000





SRHG-100C-535A-O318.000





SRHG-100C-585A-O318.000





SRHG-100C-535A-O418.000





SRHG-100C-585A-O418.000





SRHG-130C-435A-O132.00015.6344.3434.97014.1428.98920.350
SRHG-130C-485A-O132.00015.5814.3234.94218.98912.40629.725
SRHG-130C-535A-O132.000





SRHG-130C-585A-O132.000





SRHG-130C-635A-O132.000





SRHG-130C-385A-O232.00019.3755.1295.7078.9724.8857.677
SRHG-130C-435A-O232.00019.3615.1245.70013.3108.00916.069
SRHG-130C-485A-O232.00019.3085.1035.67218.15611.44325.443
SRHG-130C-535A-O232.000





SRHG-130C-585A-O232.000





SRHG-130C-635A-O232.000





SRHG-130C-685A-O232.000





SRHG-130C-485A-O532.00020.7805.9116.85716.80710.62123.753
SRHG-130C-535A-O532.00020.7875.9136.86022.21614.43734.216
SRHG-130C-585A-O532.000





SRHG-130C-635A-O532.000





SRHG-130C-685A-O532.000





SRHG-130C-735A-O532.000





SRHG-130C-535A-O632.00027.9257.4518.32820.54412.54426.016
SRHG-130C-585A-O632.000





SRHG-130C-635A-O632.000





SRHG-130C-685A-O632.000





SRHG-130C-735A-O632.000






Model NumberMax torque Nm8,5 BAR SYMMETRICAL - Normally open Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085S-280A-O29.0002.3561.1361.4974.4852.4393.710
SRHG-085S-335A-O29.0002.3351.1221.4747.0984.0686.566
SRHG-085S-385A-O29.0002.3251.1161.4639.8925.8079.620
SRHG-085S-435A-O29.000





SRHG-085S-335A-O39.0003.7971.8102.3556.2063.2714.800
SRHG-085S-385A-O39.0003.7871.8042.3459.0005.0187.854
SRHG-085S-435A-O39.000





SRHG-085S-335A-O59.0004.1192.0162.7085.8503.0474.410
SRHG-085S-385A-O59.0004.1102.0102.6978.6444.7967.465
SRHG-085S-435A-O59.000





SRHG-085S-385A-O69.0005.0212.4383.2438.0934.2986.364
SRHG-085S-435A-O69.000





SRHG-100S-385A-O118.0006.3422.7833.25910.2375.1427.129
SRHG-100S-435A-O118.000





SRHG-100S-485A-O118.000





SRHG-100S-535A-O118.000





SRHG-100S-585A-O118.000





SRHG-100S-385A-O218.0007.4693.5124.4908.9924.3535.768
SRHG-100S-435A-O218.0007.4633.5084.48312.7856.7469.915
SRHG-100S-485A-O218.000





SRHG-100S-535A-O218.000





SRHG-100S-585A-O218.000





SRHG-100S-535A-O318.000





SRHG-100S-585A-O318.000





SRHG-100S-535A-O418.000





SRHG-100S-585A-O418.000





SRHG-130S-435A-O132.0009.4954.7126.43916.2608.83113.419
SRHG-130S-485A-O132.0009.4624.6926.40321.83212.31019.509
SRHG-130S-535A-O132.0009.4664.6946.40828.05116.18326.307
SRHG-130S-585A-O132.0009.4834.7056.42634.89120.44133.784
SRHG-130S-635A-O132.000





SRHG-130S-385A-O232.00011.7455.6397.39610.3144.5105.258
SRHG-130S-435A-O232.00011.7375.6337.38715.3017.70410.710
SRHG-130S-485A-O232.00011.7045.6127.35120.87311.20616.801
SRHG-130S-535A-O232.00011.7085.6157.35627.09215.09223.598
SRHG-130S-585A-O232.00011.7255.6267.37433.93319.35731.075
SRHG-130S-635A-O232.000





SRHG-130S-685A-O232.00011.7385.6347.38849.42028.99748.004
SRHG-130S-485A-O532.00012.6336.3748.88419.32310.41215.677
SRHG-130S-535A-O532.00012.6386.3778.88925.54114.29622.475
SRHG-130S-585A-O532.00012.6556.3888.90832.38218.55929.952
SRHG-130S-635A-O532.000





SRHG-130S-685A-O532.000





SRHG-130S-735A-O532.000





SRHG-130S-535A-O632.00016.9338.17310.79123.61812.13717.286
SRHG-130S-585A-O632.00016.9508.18410.81030.45916.42924.763
SRHG-130S-635A-O632.000





SRHG-130S-685A-O632.000





SRHG-130S-735A-O632.000






OMAL STANDARD PAINT SPECIFICATION
The Painting of the Heavy Duty Actuqtors (Standard OMAL), mentioned in the Tab, allows th outdoor installation of the actuators; chemical plants, gas pipelines, refineries and Off-Shore applications. On request are available painting cycles according to customer’s specifications

SURFACE PREPARATION  SANDBLASTING TO GRADE SA 2.1/2
CoatType of paint DRY FILM THICKNESS
Primer coatInorganic zinc primer 75 µ
 Iintermediate coatEpoxy110 µ
Final coatPolyurethan40 µ

TOTAL DRY FILM THICKNESS 225 µ
Standard paint: RAL 5010

CENTRAL BODY - AVAILABLE CONFIGURATION

Canted design
Very high Break to Open Torque, with a huge drop during the final step of the opening operation (ETO). Break to Close Torque much lower than the Break to Open Torque.

Symmetrical design
The curve of the Torque is more balanced; the BTO (break to open) – ETO (end to open) –BTC (break to close) – ETC (end to close) values are similar.

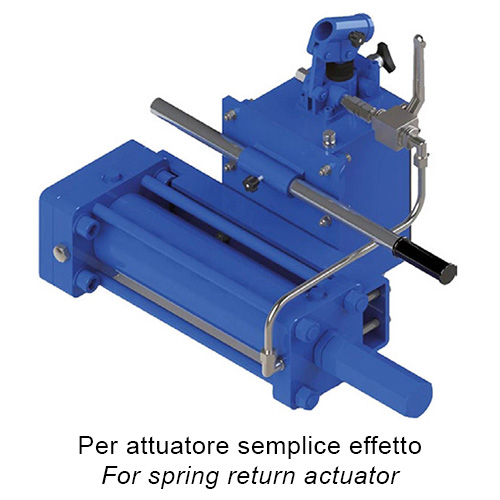

Compact pump
Hydraulic cylinder
Oil tank
Check valve
Relief valve

MANUAL HYDRAULIC OVERRIDE

Spool piece – Stem extension

The actuator design has taken into consideration mounting pad connections conforming to the latest international standards for easy and direct assemblage onto valves and ancillaries. Omal completes its service with customized mounting kits, spool piece and stem extension.

Modular Constuction Design

Heavy Duty Omal actuators modular design ensures a complete versatility application.
Modular construction allows assembling the components according with the application requirements.

X CLOSE

NEXT EVENT

Hydrogen Technology Expo Europe 2024
Hydrogen Technology Expo Europe 2024
Hamburg (Germany), 23rd - 24th October 2024
