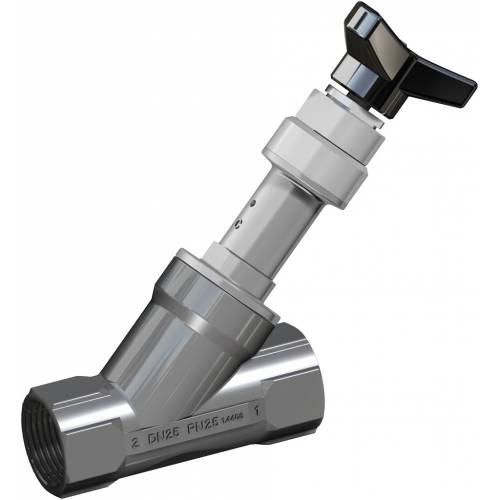

Ares manual drive pneumatic valve with blocking device

  • features
  • dimensions
  • materials
  • documents

GENERAL FEATURES:
Body valve material: A351-CF8M (316 S.S.).
Valve ends: see code plan.
Assembling is possible in all positions: upright, flat or angled.
Range available from DN 10 to DN 50.
Locking device version available
2014/34/EU ATEX configuration to request at time of order.
On request: versions for vacuum and oxygen service

OPERATING MEDIA:

Air, water, alcohol, oil, petroleum products, saline solutions, steam, etc. (as long as compatible with A 351 CF8M(316) e PTFE).
Pressure from 0 to 25 bar (steam from 180°C, from 0 to 10 bar) depending on the model chosen.
Temperature from –10°C to 180°C.
Max. viscosity 600 cst (mm2 /s).

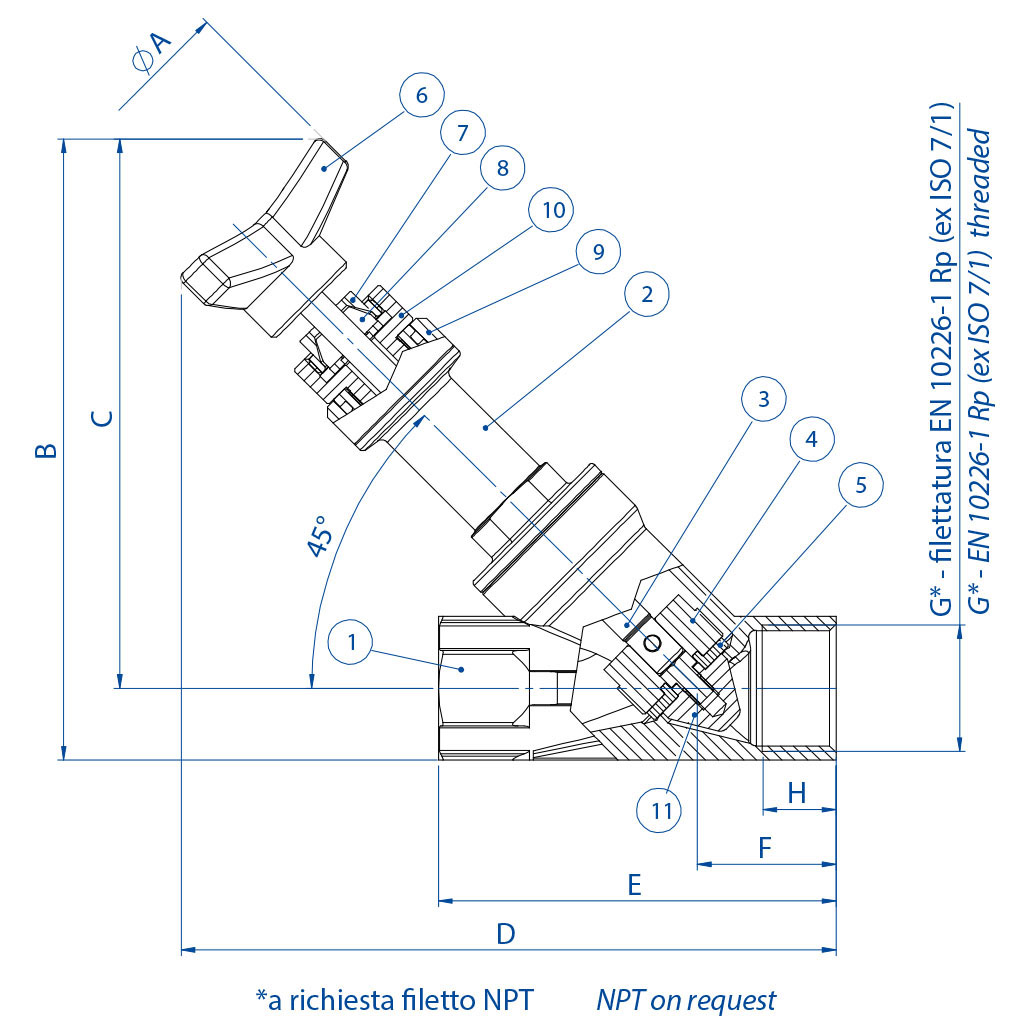

DIMENSIONS
DN [mm]
G * [inch]
øA
B
C
D
E
F
H
15
3/8”
63
138,5
126
169
85
34,5
12
15
1/2”
63
138,5
126
169
85
34,5
15
20
3/4”
63
148,5
133
176,2
95
34,7
16,3
25
1”
63
152
133
178,1
105
36,6
19,5
32
11/4”
100
191,5
168
222,5
120
40,5
19
40
11/2”
100
197
170
225
130
41
18
50
2”
100
213
180
239,5
150
45,5
20
*  NPT on request

   MATERIALS

Description
Materials
1
Valve body
CF8M
2
leeve
CF8M
3
Stem
316L S.S.
4
Plug
316L S.S.
5
Plug seals
PTFE
6
Hand grip
Tecnopolymer
7
Locking nut
304 S.S.
8
Pliers
Brass
9
Bush
Aluminium Alloy
10
Gland Nut
304 S.S.
11
Ogive
304 S.S.
