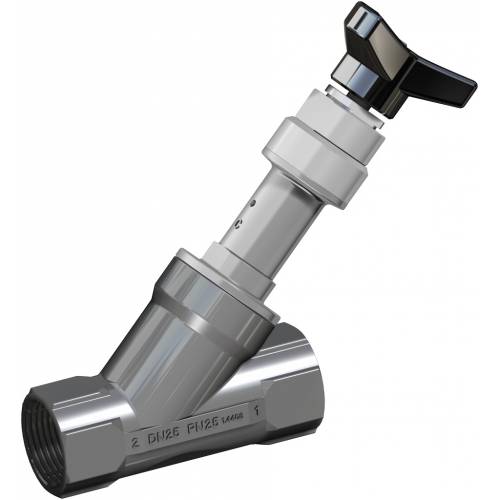

GENERAL FEATURES: Body valve material: A351-CF8M (316 S.S.). Valve ends: see code plan. Assembling is possible in all positions: upright, flat or angled. Range available from DN 10 to DN 50. Locking device version available 2014/34/EU ATEX configuration to request at time of order. On request: versions for vacuum and oxygen service OPERATING MEDIA: Air, water, alcohol, oil, petroleum products, saline solutions, steam, etc. (as long as compatible with A 351 CF8M(316) e PTFE). Pressure from 0 to 25 bar (steam from 180°C, from 0 to 10 bar) depending on the model chosen. Temperature from –10°C to 180°C. Max. viscosity 600 cst (mm2 /s).
