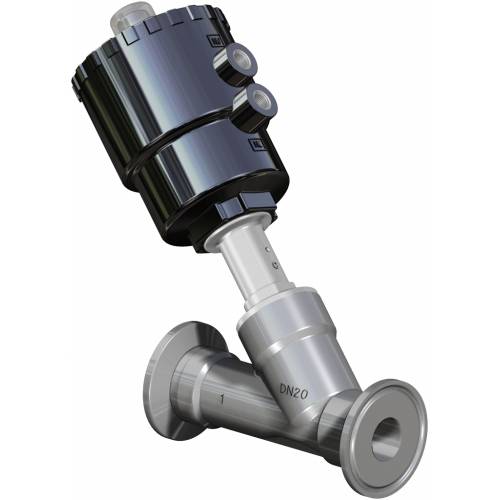

Ares clamp 3A pneumatic valve

  • features
  • dimensions
  • specifications
  • accessories
  • documents

GENERAL FEATURES:
Body valve material: A351-CF3M (316L S.S.).
Valve ends: see code plan.
Assembling is possible in all positions: upright, flat or angled.
Range available from DN 15 to DN 50 in the Double Acting versions, Spring
Return N.C. from above and below the plug, Spring Return N.O. from below the plug.
The performance and the pressure’s diagrams are the same as per Standard versions but limited at PN16
On request: versions for vacuum and oxygen service 2014/34/EU ATEX configuration to request at time of order.

CONTROL MEDIA:
Driving media: compressed air, lubricated or dry, gas or neutral media.
Ambient temperature: -10°C to +60°C

OPERATING MEDIA:
Air, water, alcohol, oil, petroleum products, saline solutions, steam, etc. (as long as compatible with CF3M (316L S.S.) or PTFE).
Pressure from 0 to 16 bar (steam from 180°C, from 0 to 10 bar) depending on the size and model chosen see following pages.
Temperature from –10°C to 180°C.
Max. viscosity 600 cst (mm2/s).

ISO 2852 version on request

Working pressure up to 16 bar (for details see diagrams).

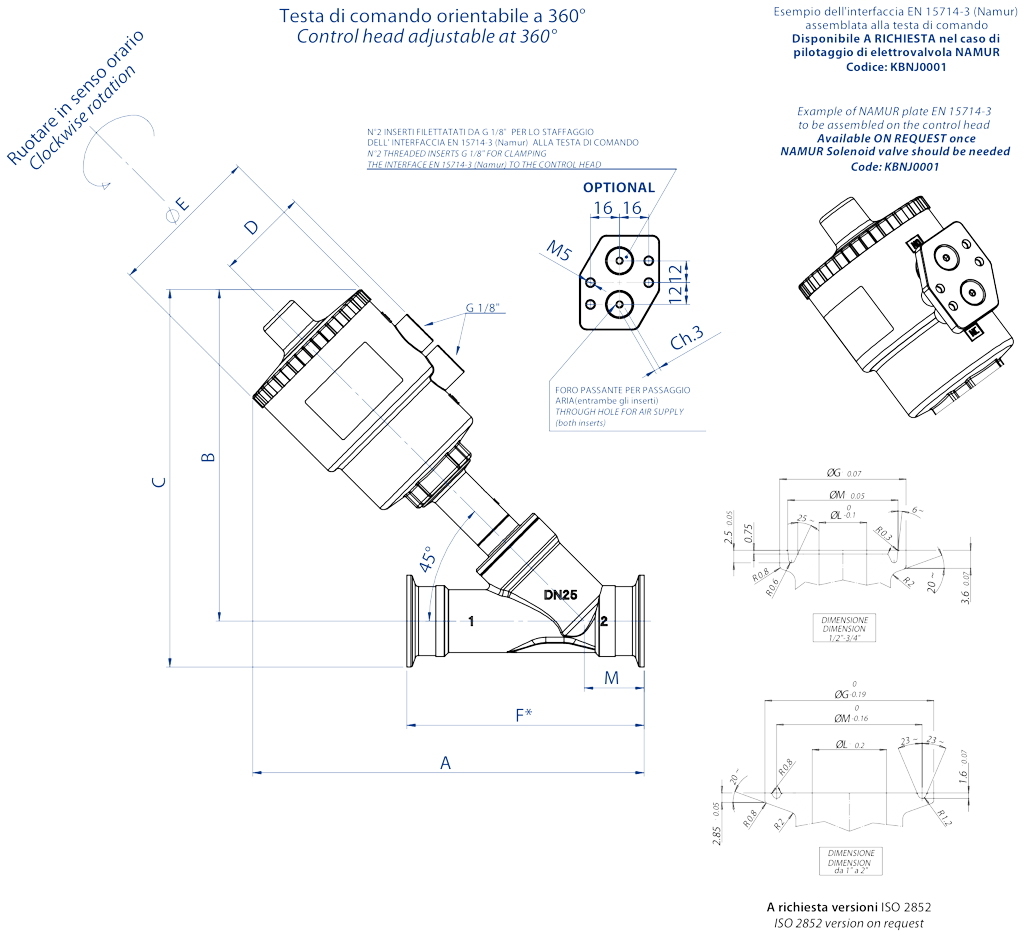

   DIMENSIONS
Size
Control head
Bore (mm)
A
B
C
D
øE
F *
øG
øH
øL
M
1/2”
Ø 50
9,5(*)
179
156
168,6
44
70
88,9
25,2
19
9,5
22
3/4”
Ø 50
15
181,5
156
168,6
44
70
101,6
25,2
19
15,8
22
1”
Ø 50
20
189,3
160
185,3
44
70
114,3
50,5
32
22,2
43,5
1”
Ø 63
20
207,3
178
203,3
50,5
84,4
114,3
50,5
23
22,2
43,5
1”1/2
Ø 63
32
214,6
186
211,3
50,5
84,4
139,7
50,5
38
34,9
43,5
1”1/2
Ø 90
32
254,6
226
251,3
66,2
116,4
139,7
50,5
38
34,9
43,5
1”1/2
Ø 110
32
290,6
261
286,3
77,4
140,6
139,7
50,5
38
34,9
43,5
2”
Ø 63
40
224,7
190
222
50,5
84,4
158,8
64
54
47,6
56,5
2”
Ø 90
40
264,7
230
262
66,2
116,4
158,8
64
54
47,6
56,5
2”
Ø 110
40
300,7
266
298
77,4
140,6
158,8
64
54
47,6
56,5
(*) The valve bore is 15 mm, reduction to 9,5 mm is due to clamp bore
     Suggested executions are in bold. Other combinations on request.

METHODS OF USE

Stroke limiter
It allows to limit the plug run in opening phase, therefore it regulates the flow. Available on all versions. In spring return normally open version it can be used as an emergency control.

Control
 A mm
Code
∅ 50 25,5
KLJL0016
∅ 63 21,5
KLJL0018
∅ 90 5,2
KLJL0021
∅ 1105,9
KLJL0023

Not available with ∅ 40 head.

Emergency manual override
It allows to open the valve in emergency cases (lack of pilot fluid, machinery damaged, lack of piloting signal). It is available on all normally closed valves.

Control
A
mm

Code
∅ 50
35,8
KLJA0016
∅ 63
35,8
KLJA0018
∅ 90
29,5
KLJA0021
∅ 110
29,5
KLJA0023

Not available with ∅ 40 head

Electro-pilot 3/2 - Solenoid valve 3/2 - 5/2

Control solenoid valve
Electro-pilot 3/2 for direct assembling.
Body and reel positionable at 360°.
Standard manual control.
Solenoid valve (NAMUR) sets for selection between function 5/3 or 3/2, achievable by rotating the interconnecting plate to 180°.
Room temperature: from –10°c to +50°C.

Voltage24 Vac115 Vac230 Vac12 Vdc24 Vdc
Electro-pilotEP415024EP415110EP415220EP412010EP412024

Voltage24 Vac115 Vac230 Vac12 Vdc24 Vdc
NAMUR Solenoid valve*ER8188A2ER8188A4ER8188A5ER8188C1ER8188C2
NAMUR interfaceKBNJ0001

* To be usedy with NAMUR interface only

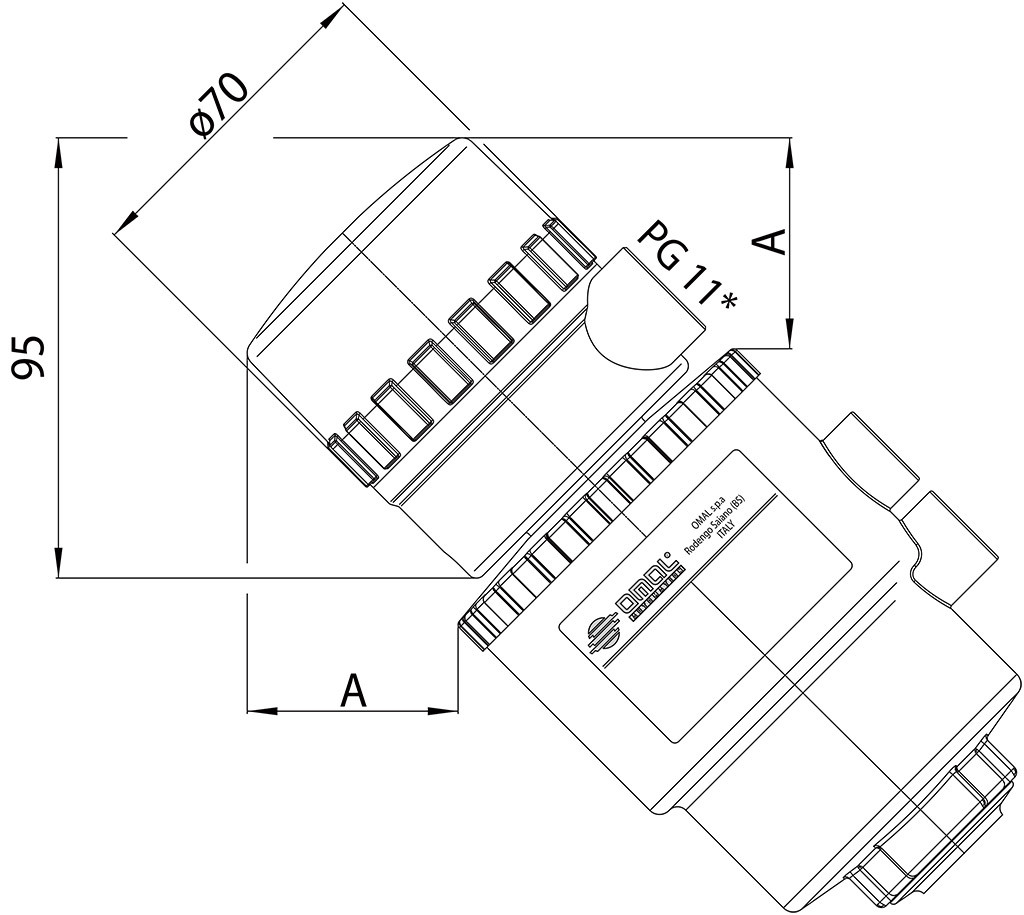

Limit switch box
The control box to check the open/close positions with two mechanical limit switches is suitable for assembling on all the range of valves with actuators ∅50 - ∅63 - ∅90 - ∅110.
The terminals to connect the solenoid valve and the visual indicators provided with led are optional.
Level of protection: IP 65.
Room temperature: from –20° C to +70°C.
Access lead nr. 1 PG11.
Body material: polyamide (cap in trasparent polymethacrylate).

  Control
 A
mm
∅ 50
52,1
∅ 63
47,5
∅ 90
37,7
∅ 110
29,5

AVAILABLE LIMIT SWITCH

Inductive limit switches NAMUR EExia
Nominal voltage: 8 Vdc
Consumes: working ≤1mA; resting ≥3 mA
Working temperature: from –20°C to +70°C

ConfigurationCode
1 Limit switch at the top: open valveKSIN9A0xx
1 Limit switch at the bottom: close valve.KSIN9C0xx
2 Limit switch open and close valveKSIN920xx

Proximity limit switches
Nominal voltage: 10÷30 Vdc
Consumes: 15mA;
Working temperature: from –20°C to +70°C

ConfigurationCode
1 Limit switch at the top: open valveKSI09A0xx
1 Limit switch at the bottom: close valve.KSI09C0xx
2 Limit switch open and close valveKSI0920xx

Mechanical limit switches
Limit switch at the top: open valve
Limit switch at the bottom: close valve
Max. capacity: 5A 250 Vac; 1A 250 Vdc

ConfigurationCode
2 Limit switchKSM0C20xx

xx = Ø  control heads
16 = Ø50
18 = Ø63
21 = Ø90
23 = Ø110
