ATEX Proximity limit switch (kit to be ordered separately*)

II 1G Ex ia IIC T6... T1 Ga

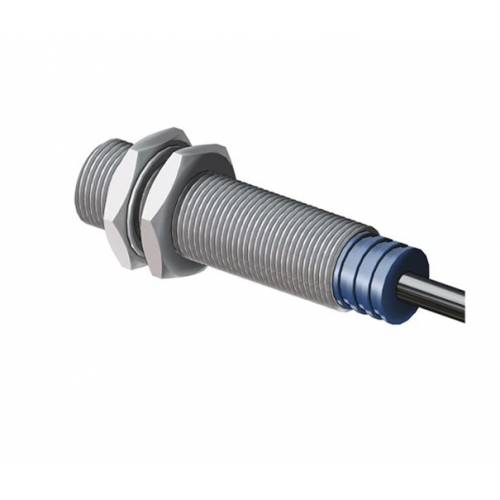

PROXIMITY LIMIT SWITCH

TECHNICAL FEATURES

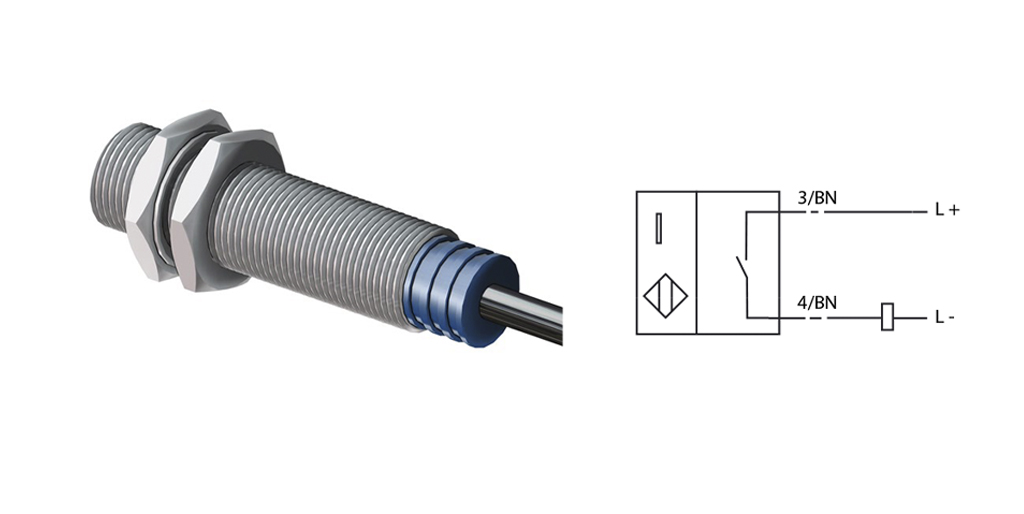

- 2-wire DC M12 inductive limit switch.
- Supply voltage: 8V DC.
- Current consumption: 1 mA close, 3 mA open.
- Protection rate: IP 66/67.
- Working temperature: from -25°C to +100°C.
- Limit switch working signalled by ring LED.
- According to EN 60947-5-6.
- Mounting kit to be ordered depending on the height of the actuator shaft.*
- For the version with connector, you can order also the cable.*
- ATEX II 1G Ex ia IIC T6... T1 Ga
- Usable ut to SIL 2 according to IEC61508.

* For mounting kit (code: KBF85...) and connection cable, to be ordered separately, see page 83 of the accessories catalogue.
