KFN2 ATEX Pneumatic limit switch

II2GD

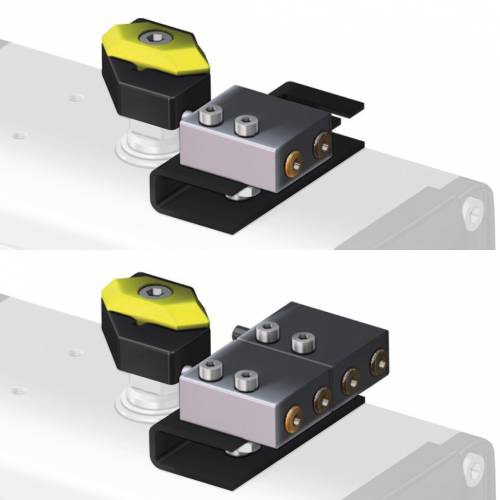

ATEX II 2 GD KIT + LIMIT SWITCH

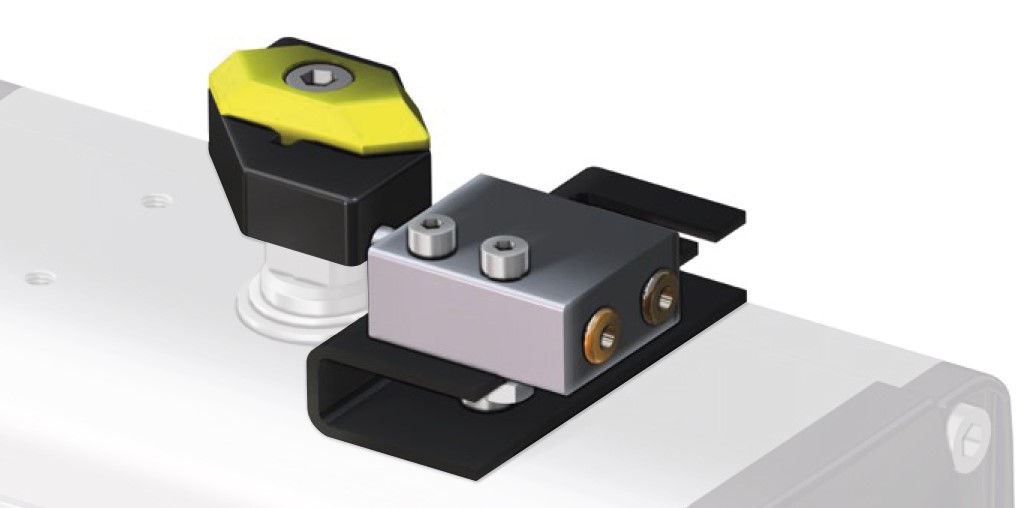

Example Kit with 1 Limit Switch

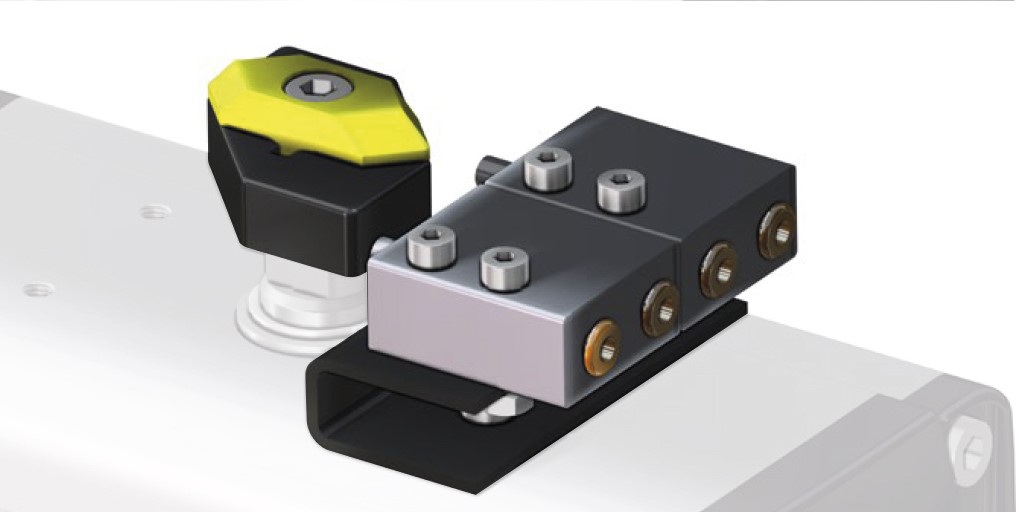

Example Kit with 2 Limit Switch

CODES TABLE - KIT+LIMIT SWITCHES
Actuator
DAN15÷DAN120
SRN15 ÷ SRN60
DAN180÷DAN480
SRN90÷SRN240
DAN720 ÷ DAN1920
SRN360 ÷ SRN960
Code kit with 1 limit switch
KFN21015
KFN21120
KFN21720
Code kit with 2 limit switches
KFN22015
KFN22120
KFN22720

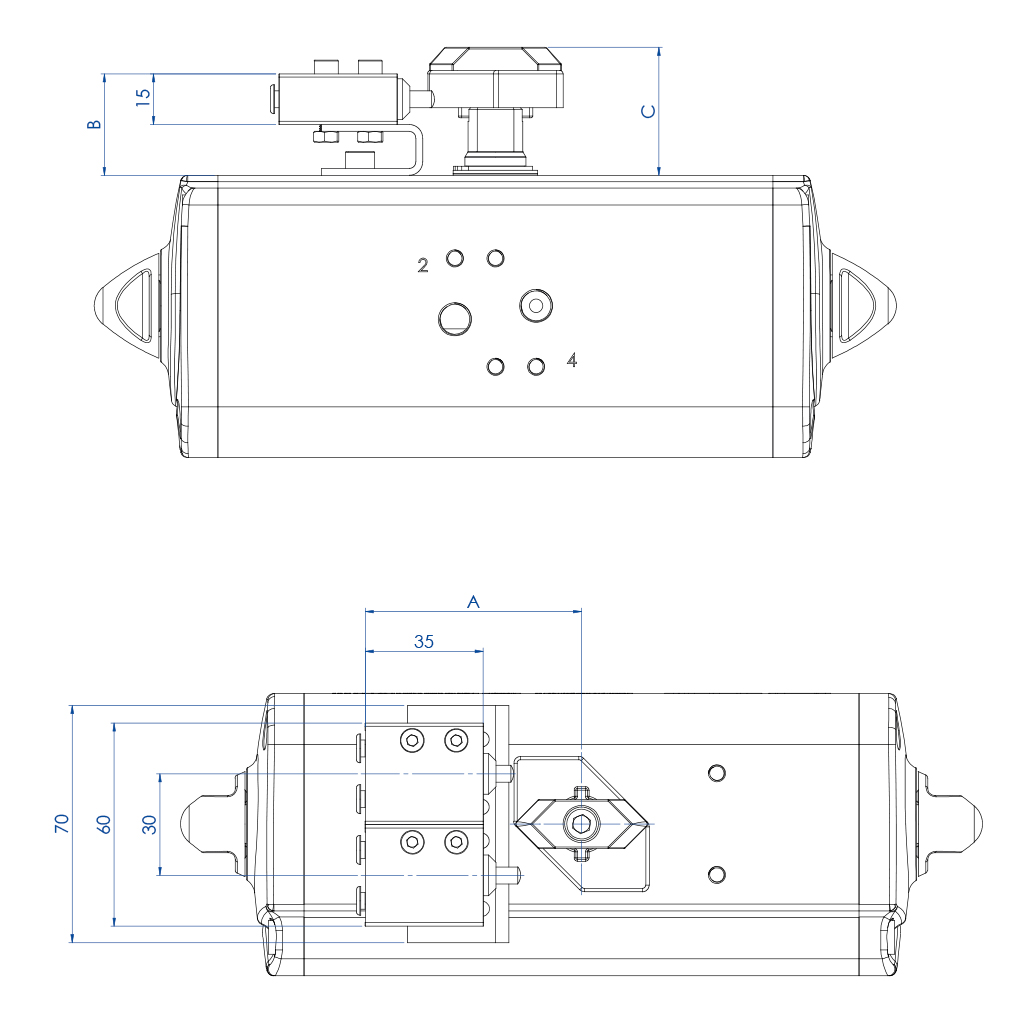

A mm.
606070
B mm.
32,5
4040
C mm.
384848
D mm.
607070

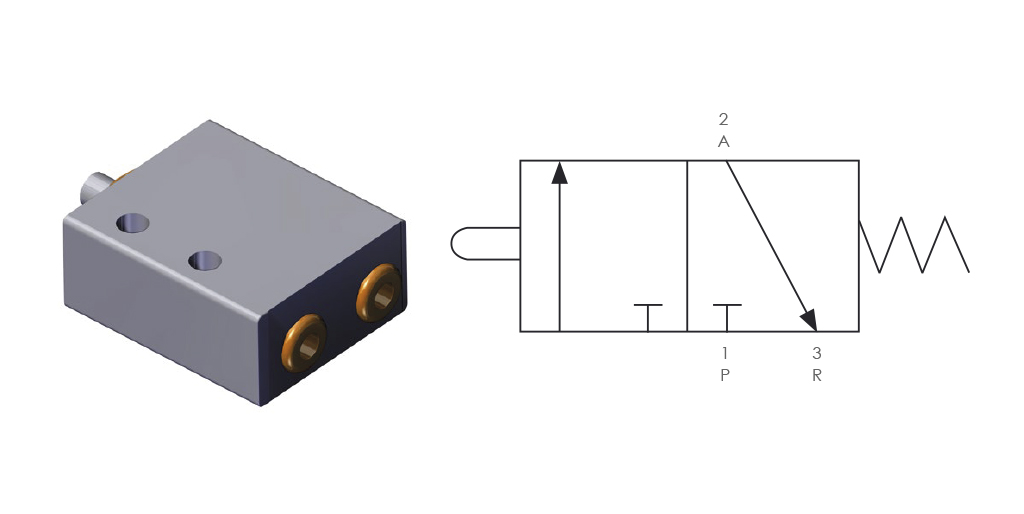

TEX PNEUMATIC LIMIT SWITCH - FP210000

CODES TABLE - LIMIT SWITCHES
Actuator
DAN15÷DAN120
SRN15 ÷ SRN60
DAN180÷DAN480 SRN90÷SRN240
DAN720 ÷ DAN1920
SRN360 ÷ SRN960
CodeFP210000
Supplier code
VMW3501000100 (Metal work)

TECHNICAL FEATURES
- Miniaturized pneumatic limit switch with cartridge connections; pipe ø4 and M5 (axial or sideward)
- Working temperature: from -10°C to +60°C
- Max working pressure: 10 bar
- Operating media: lubricated and filtered air at a temperature of 50°C max.
- Flow at 6 bar with Δp=1: 60 Nl/min.
- Bore: 2,5 mm.
- In compliance to ATEX II2GD.
- It can be mounted onto DAN or SRN models using a kit which contains a mounting plate and a cam fixed to the actuator body
