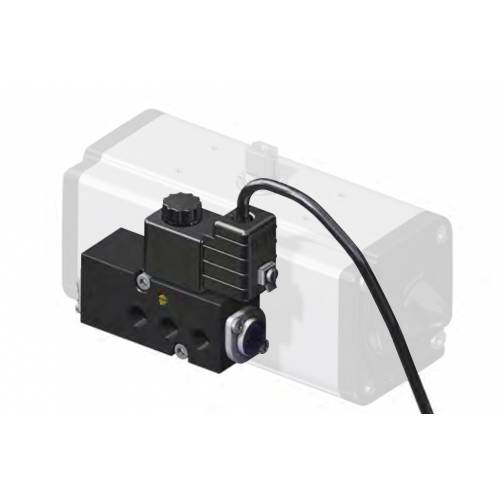

3/2 - 5/2 NAMUR monostable solenoid valve with ATEX coil

FOR ACTUATORS DAN15÷DAN1920, SRN15÷SRN960
3/2 - 5/2 NAMUR monostable solenoid valve with ATEX coil

For DA8 actuators the connection KBN10008 is required

TECHNICAL FEATURES
- Solenoid valve monostable 3/2 - 5/2 as per NAMUR
- This solenoid valve is designed for the selection of the functions 5/2 and 3/2, which is realized using one of the two plates of the solenoid valve.
- Integrated exhaust to spring (ETS) feature in 3/2 position.

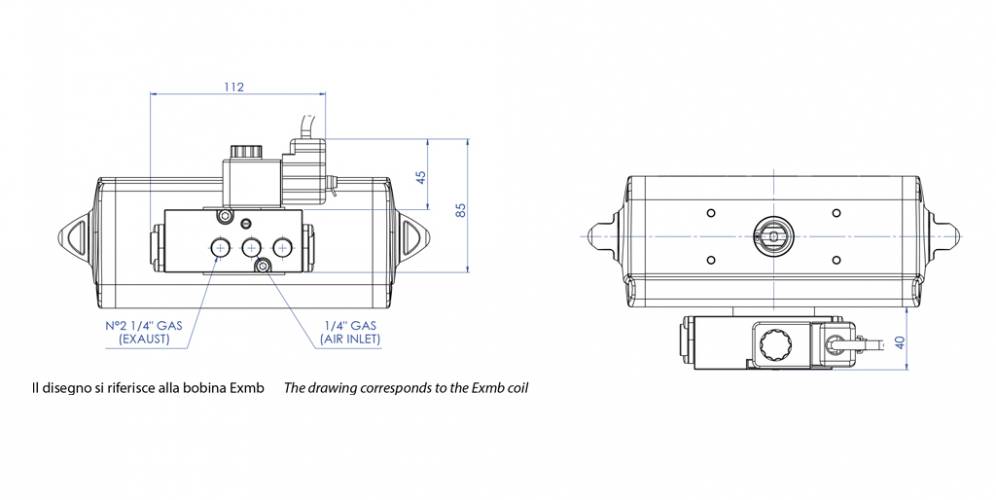

- Pneumatic connections: inlet 1/4”; exaust 1/4” ISO 228
- Screwdriver manual override.
- Max. pressure: from 3 to 10 bar
- Ambient temperature: see single coil
- Flow rate: 1000 l/min (at Δp.1 bar)

CERTIFICATES
- ATEX certificates depending on coil.

COILS

II2GD Exmb T6

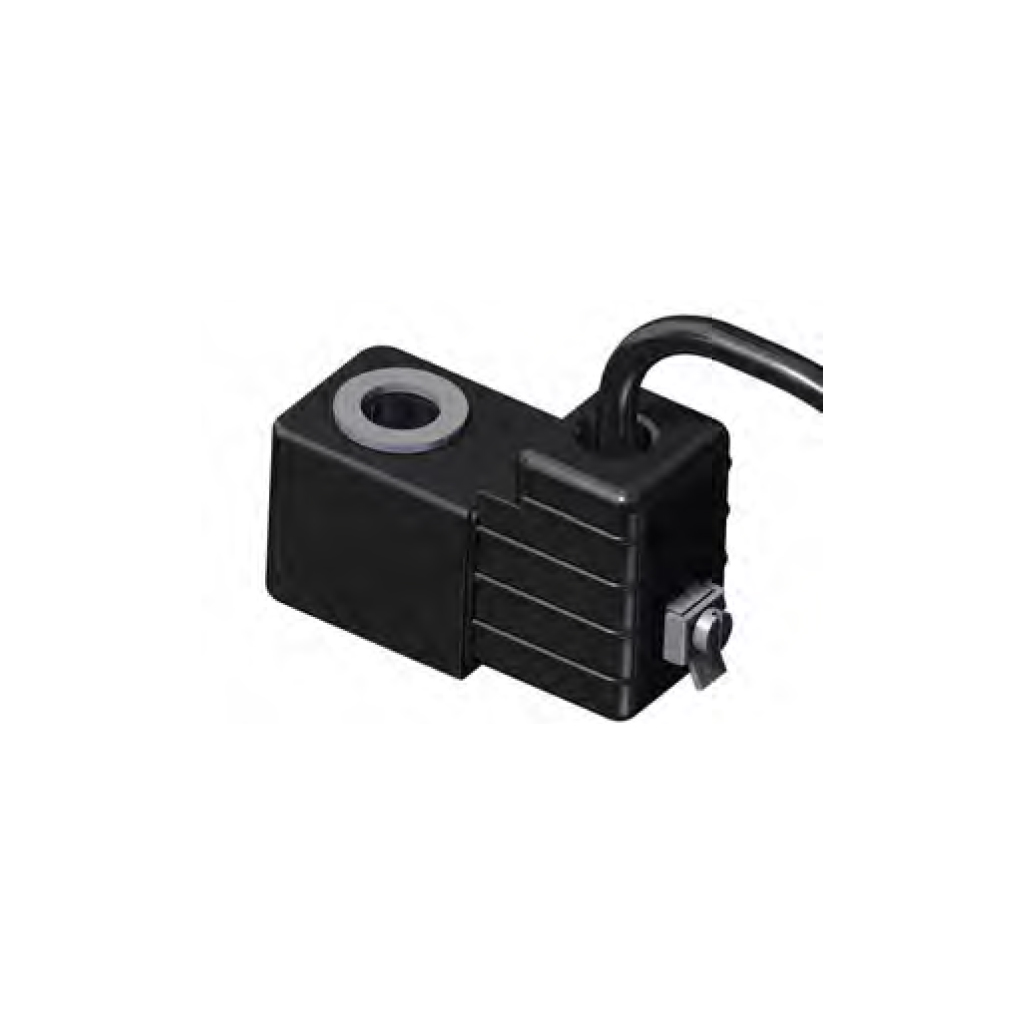

COIL FOR ATEX SOLENOID VALVE ER8188

TECHNICAL FEATURES
- Power consumption: 3.,2 W (DC)
- Power consumption: 6 VA (15 VA max.) (AC)
- Supply voltage tolerance: ±10%
- Coil insulation: H class
- Yield (duty cycle): 100%
- Protection rate: IP65
- Electrical connection: Cable length 3m
- Temperature: -20°C to +40°C

MATERIALS
- Body: technopolymer loaded glass
- Spire: copper clad class H

CERTIFICATES
- ATEX II2GD Exmb T6
- FM, CSA, NEMA 4,4X, UL on request

II3GD ExnA T5

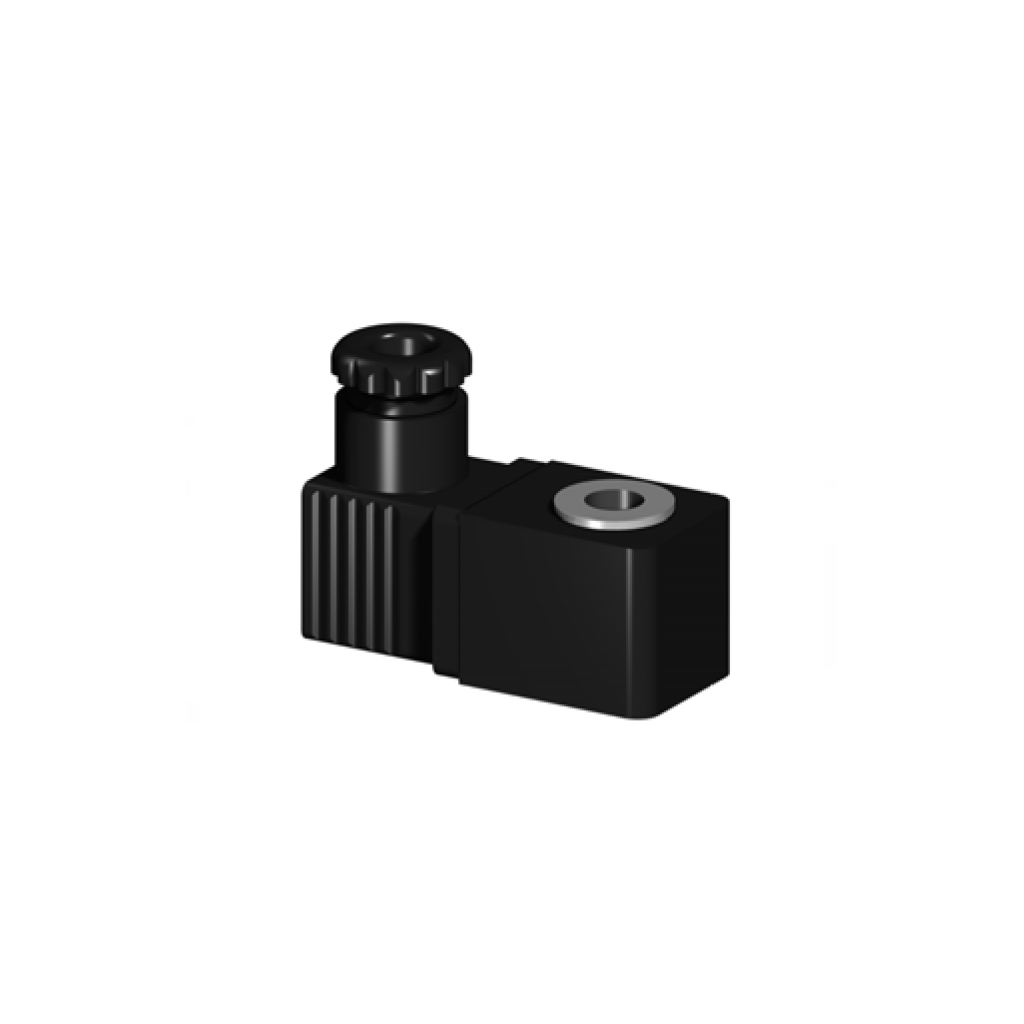

COIL (MC30 - PLUG AND SOCKET) FOR ATEX SOLENOID VALVE ER8188

TECHNICAL FEATURES
- Power consumption: 2.1 W (DC)
- Power consumption: 4 VA (AC)
- Supply voltage tolerance: ±10%
- Coil insulation: F class
- Efficiency (duty cycle): 100%
- Protection rate: IP65
- Electrical connection: PG.9
- Temperature: -20°C to +50°C

MATERIALS
- Body: technopolymer loaded glass
- Spire: copper clad class H

CERTIFICATES
- ATEX II3GD ExnA T5

II2GD Exd mb T5

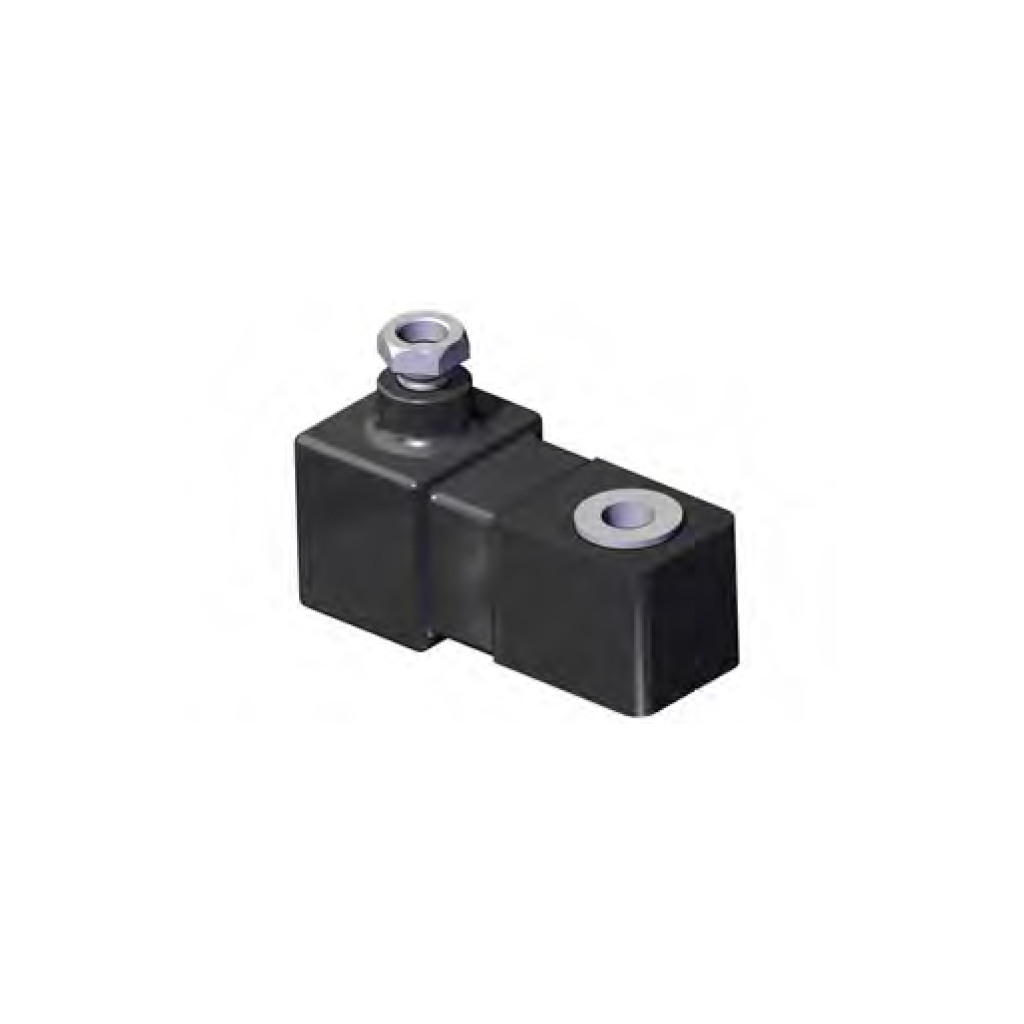

COIL FOR ATEX SOLENOID VALVE ER8188

TECHNICAL FEATURES
- Supply voltage tolerance: ±10%
- Coil insulation: F class
- Efficiency (duty cycle): 100%
- Protection: IP66
- Electrical connection: PG 9
- Operating temperature: from -20°C to + 50°C

MATERIALS
- Body: technopolymer loaded glass
- Spire: copper clad class H

CERTIFICATES
- ATEX II2GD Exd mb T5
