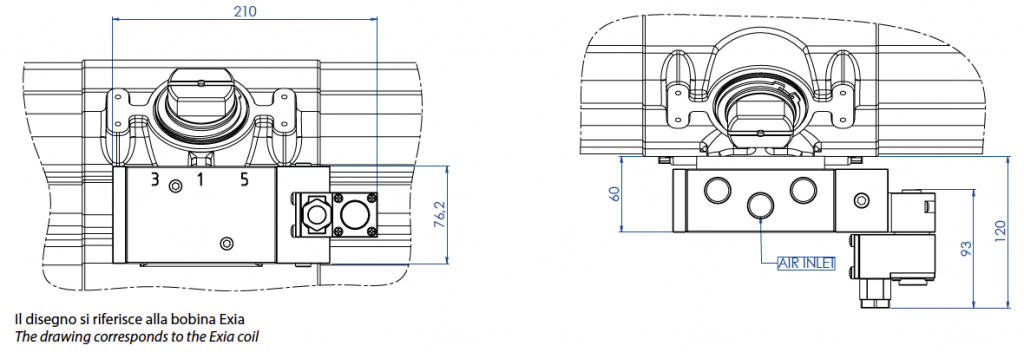

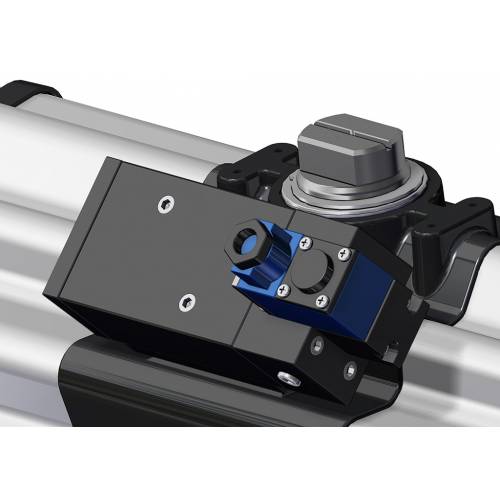

NAMUR II solenoid valve with CNOMO coil ATEX

FOR DA2880÷DA8000 , SR1440÷4000 ACTUATORS
NAMUR II solenoid valve with CNOMO coil ATEX

TECHNICAL FEATURES
• Solenoid valve monostable or bistable 3/2 - 5/2 as per NAMUR with CNOMO interface for coils
• This solenoid valve is designed for the selection of the functions 5/2 and 3/2, which is realized using one of the two plates.
• Integrated exhaust to spring (ETS) feature in 3/2 position.
• Protection with connector: IP65
• Capacity: 3534 l/min at 6 bar Ap 1 bar
• Pneumatic connections: inlet and exaust 1/2” ISO 228
• Electrical connection: see single coil
• Scerwdriver manual override
• Max. pressure: from 3 to 10 bar
• Ambient temperature: from -20°C to +60°C

MATERIALS
- Body and plug: DURAL anodized aluminium; 316 stainless steel on request
- Spool: anodized aluminium, impregnated PTFE
- Seals: NBR
- Spring: stainless steel
- Screws: stainless steel
- 3/2 – 5/2 Conversion plate: nylon 66 with glass (30%)

CERTIFICATES
- ATEX according to the coil
- CE Declaration on request
- More on request

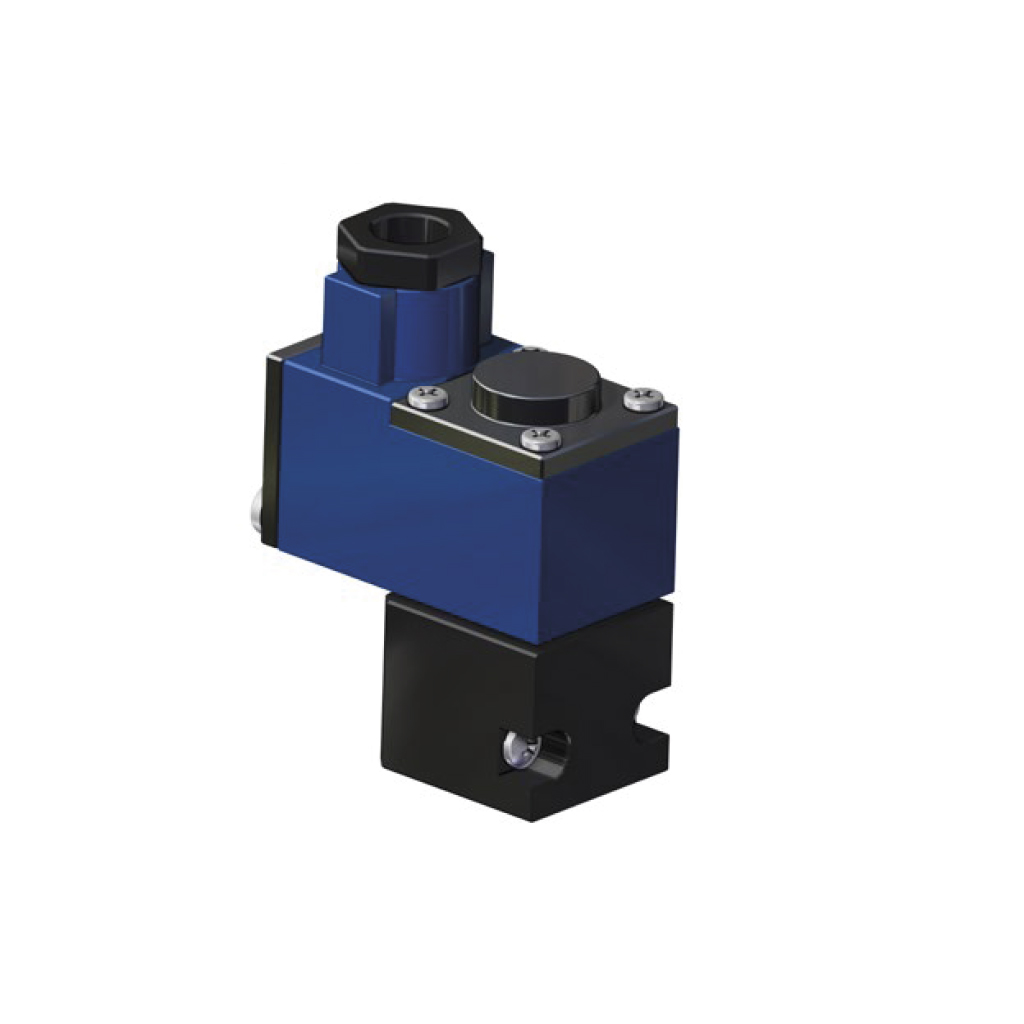

COILS

ExNA IIC T4
CNOMO COIL FOR ATEX SOLENOID VALVE ER85 - ER86 - ER8187

TECHNICAL FEATURES
- Power consumption: 2.4 W (DC) 5VA (10VA max) (AC)
- Supply voltage tolerance: ±10%
- Yield (duty cycle): 100%
- Protection rate: IP65
- Electrical connection: PG 9 (M20x1,5 on request)
- Temperature: -20°C to +60°C

MATERIALS
- Body: light alloy painted (stainless steel epoxy powder coated on request)
- Spire: copper clad class H

CERTIFICATES
- ATEX ExNA IIC T4

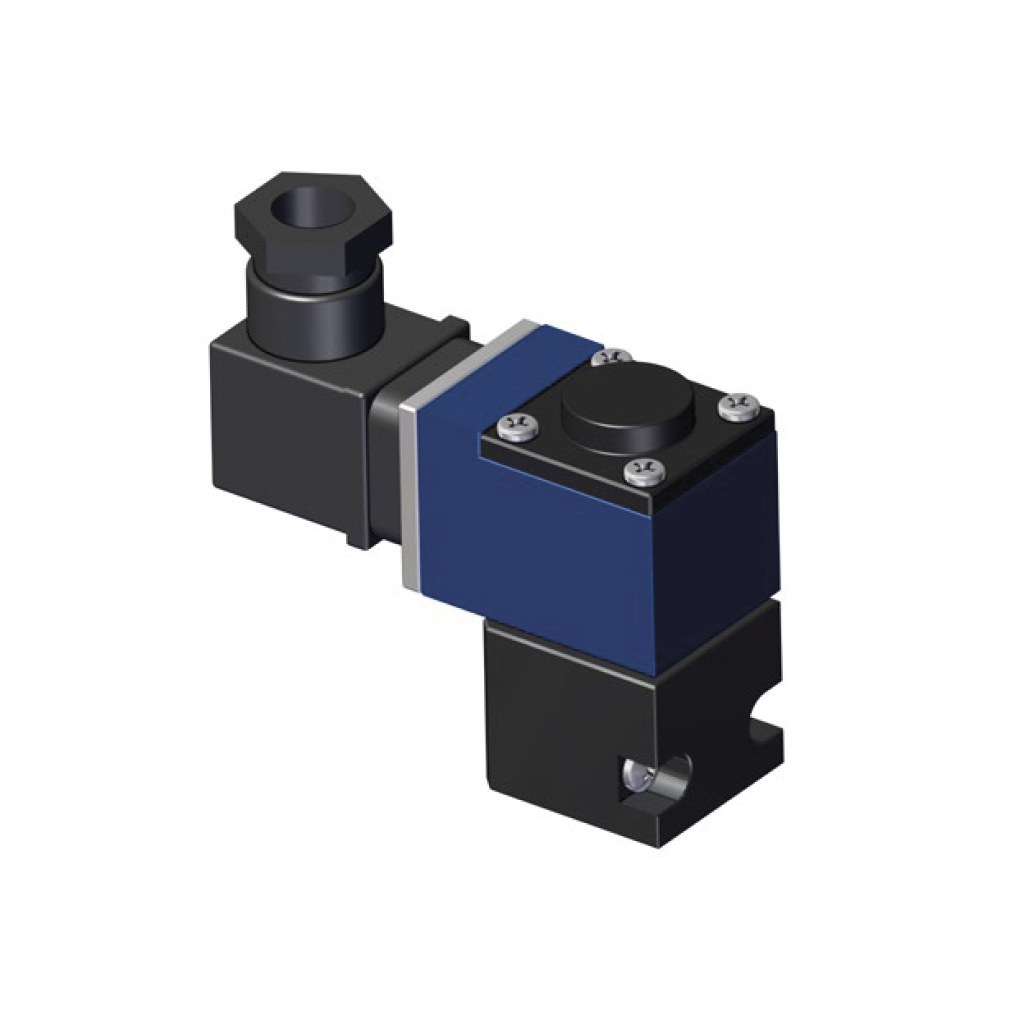

II 1 GD Exia IIC T6*
CNOMO COIL FOR ATEX SOLENOID VALVE ER85 - ER86 - ER8187

TECHNICAL FEATURES
- Power consumption: 0.4W max
- Supply voltage tolerance: ±10%
- Efficiency (duty cycle): 100%
- Protection: IP65
- Electrical connection: PG 9 (M20x1,5 on request)
- Ambient temperature: from -20°C to + 55°C

MATERIALS
- Body: light alloy painted
- Spire: copper clad class H

CERTIFICATES
- ATEX II 1 GD Ex ia IIC T6
- IECEX, NEPSI, FM for USA and CANADA on request

* To be ATEX Exia, coil must be barriered by proper safety devices, not included.

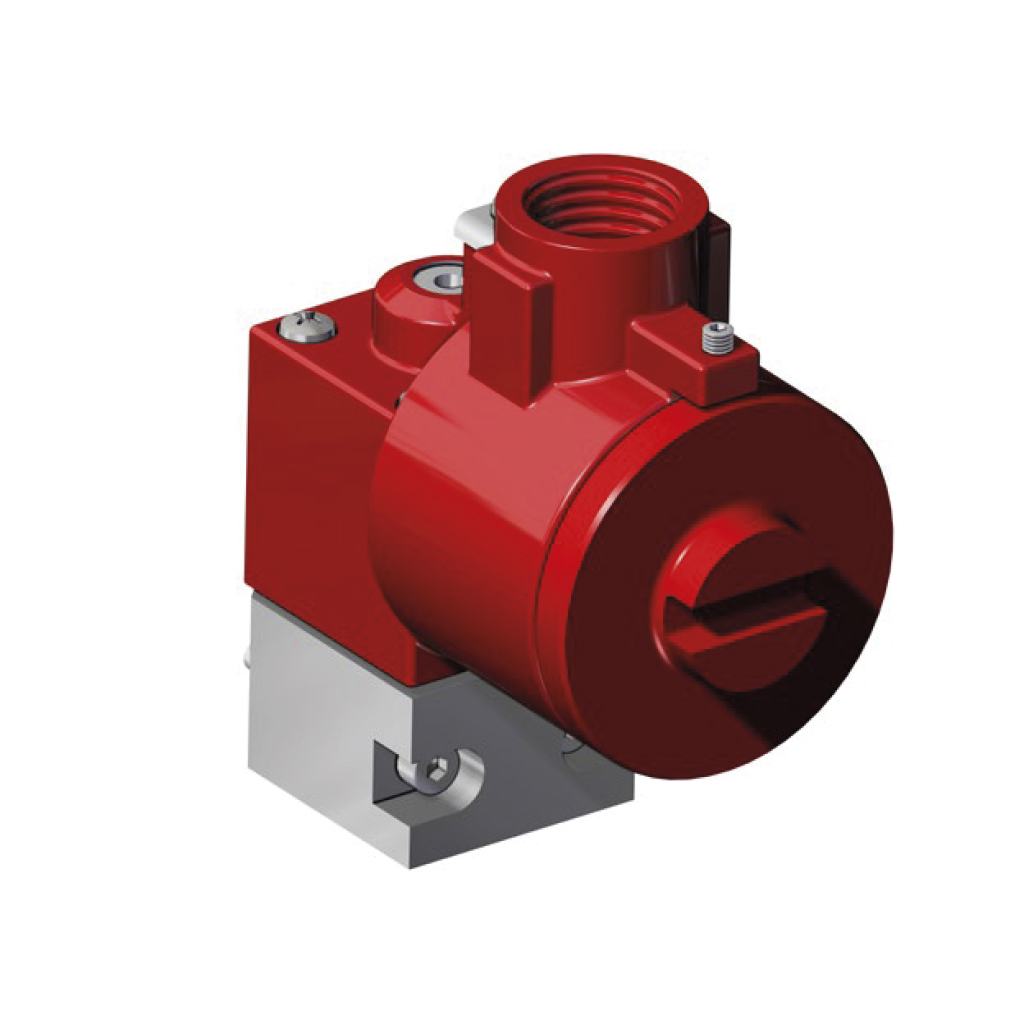

II2GD Exd IIC T4 - T6
CNOMO COIL FOR ATEX SOLENOID VALVE ER85 - ER86 - ER8187

TECHNICAL FEATURES
- Power consumption: 9,5 VA (AC) 1,3 W (24Vdc)
- Supply voltage tolerance: ±10%
- Yield (duty cycle): 100%
- Protection rate: IP66
- Electrical connection: M20x1,5 (1/2” NPT on request)
- Temperature: from-20°C to +55°C

MATERIALS
- Body: stainless steel epoxy powder coated
- Spire: copper clad class H

CERTIFICATES
- ATEX II2GD Exd IIC T4 - T6
- IEC Ex, NEPSI, EAC CU-TR on request
