KFIN Proximity limit switch

Macro Actuator accessories

Category Safe area

Subcategory EXTERNAL LIMIT SWITCH AND POSITION INDICATORS

SEARCH CODE

REQUEST INFORMATION

DOWNLOAD CATALOGUE KFIN PROXIMITY LIMIT SWITCH

KFIN1-KFIN2 KIT + LIMIT SWITCH

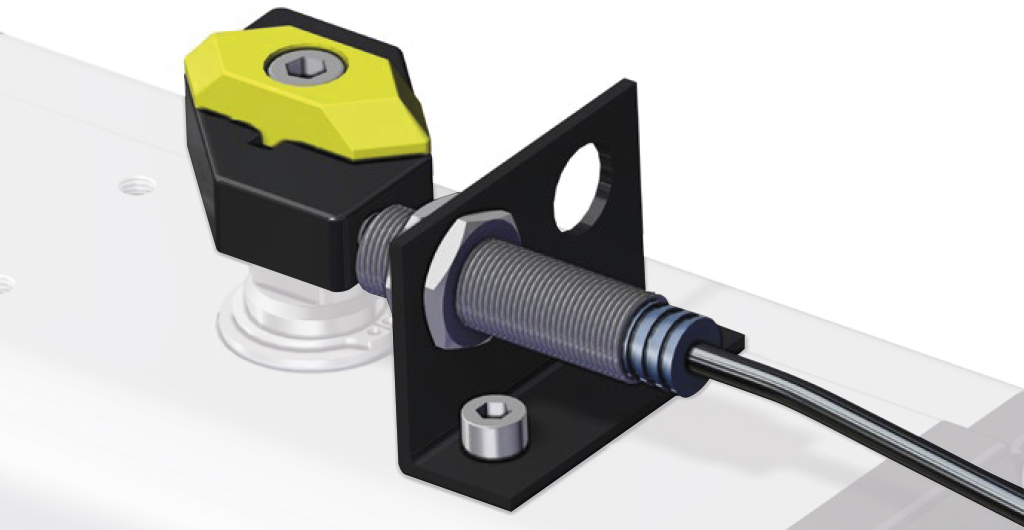

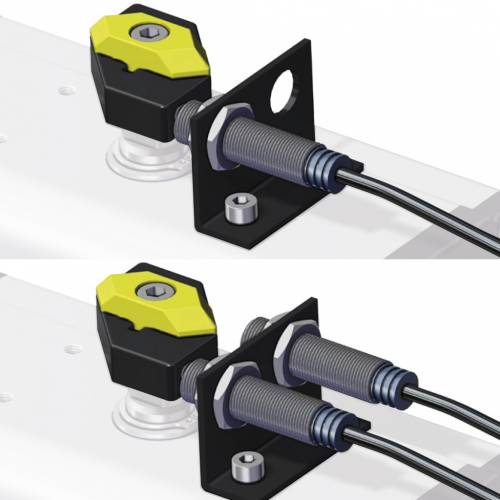

Example Kit with 1 Limit Switch

KFIN Proximity limit switch - data accessoriattuatori -

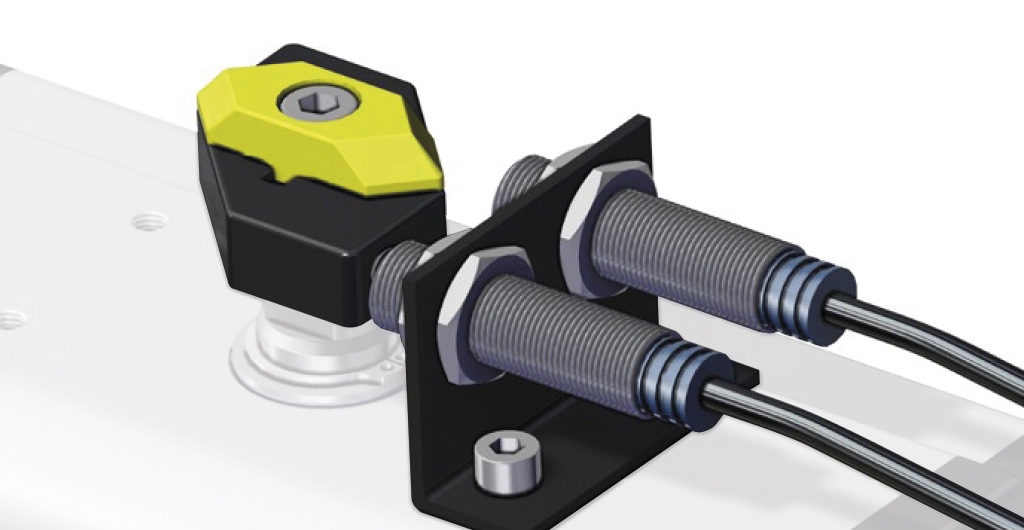

Example Kit with 2 Limit Switch

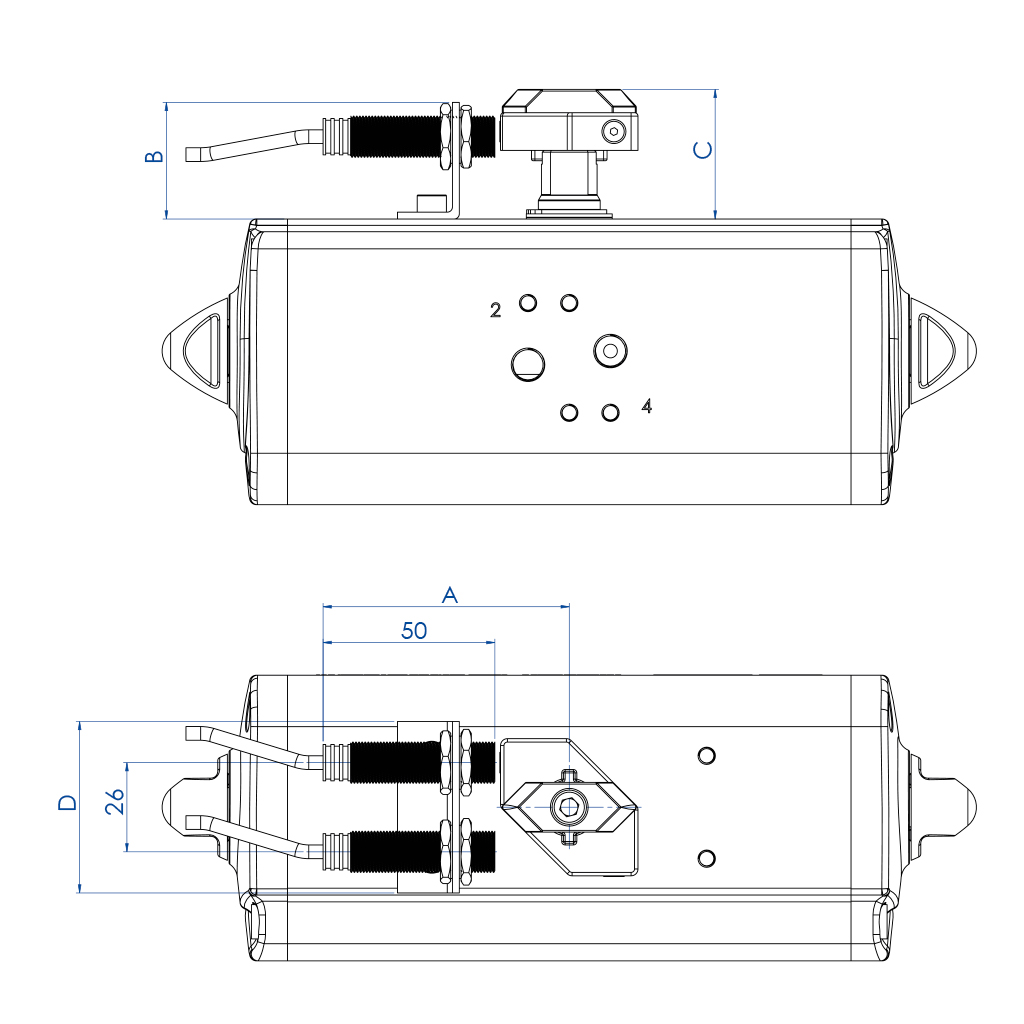

CODES TABLE - KIT + LIMIT SWITCHES
Code kit with1 limit switch	KFIN1008	KFIN1015	KFIN1060	KFIN1960
Code kit with 2 limit switches	KFIN2008	KFIN2015	KFIN2060	KFIN2960
Actuator	DA8	DAN15÷DAN120 SRN15 ÷ SRN60	DAN180÷DAN480 SRN90÷SRN240	DAN720 ÷ DAN1920 SRN360 ÷ SRN960
A (mm)	71	71	71	81
B (mm)	34	34	44	44
C (mm)	38	38	48	48
D (mm)	50	50	50	50

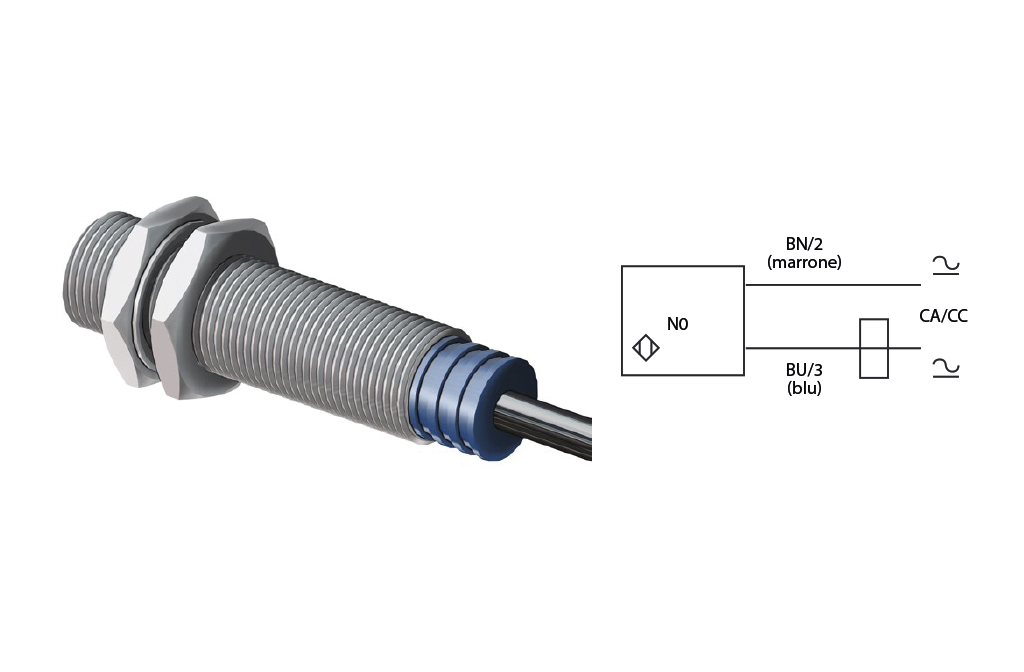

PROXIMITY LIMIT SWITCH - FI380012

CODES TABLE - LIMIT SWITCHES
Actuator	DA8	DAN15÷DAN120 SRN15 ÷ SRN60	DAN180÷DAN480 SRN90÷SRN240	DAN720 ÷ DAN1920 SRN360 ÷ SRN960
Code	FI380012
Supplier code	XS1-M12MA230 - Telemecanique

TECHNICAL FEATURES
- M12 proximity limit switch with NO wire connection. Supply voltage: 24÷240V AC; 24÷210V DC.
- Commutable current: 0,2A max.
- Protection rate: IP 68.
- Cable length: 3m.
- Working temperature: from -25°C to +70°C.
- Limit switch working signalled by ring LED.
- On request it is available an inductive limit switch M18.
