KFN1 Pneumatic limit switch

KFN11 - KFN12 KIT + LIMIT SWITCH

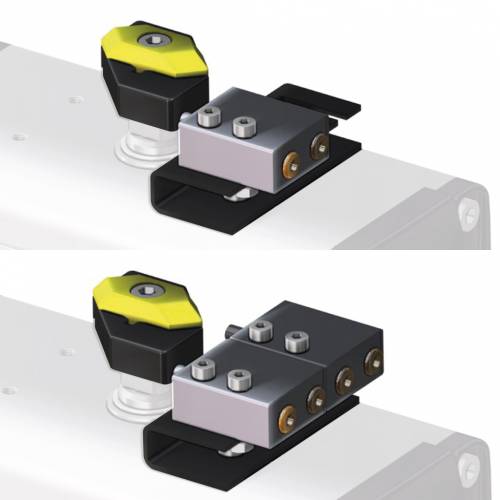

Example Kit with 1 Limit Switch

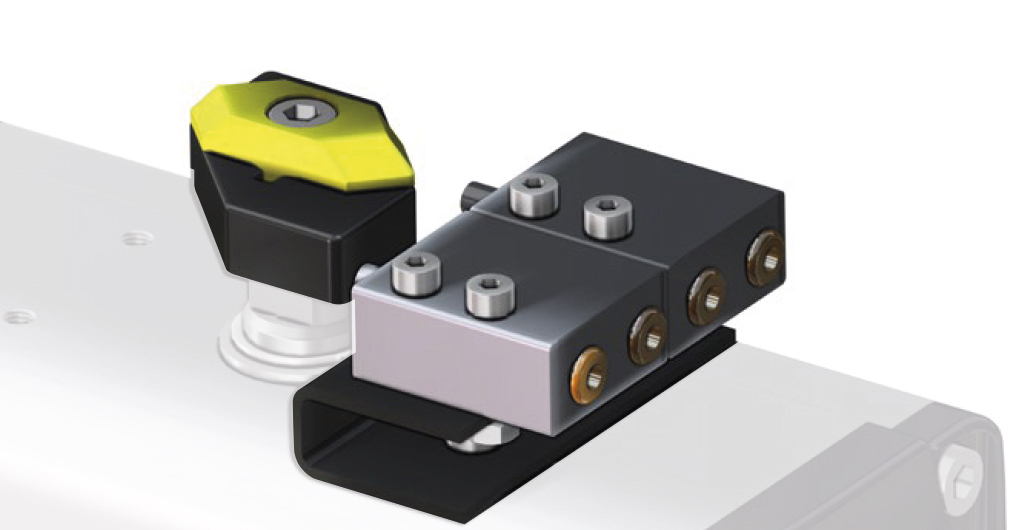

Example Kit with 2 Limit Switch

CODES TABLE - KIT + LIMIT SWITCHES
Actuator
DAN15÷DAN120
SRN15 ÷ SRN60
DAN180÷DAN480
SRN90÷SRN240
DAN720 ÷ DAN1920
SRN360 ÷ SRN960
Code kit with 1 limit switch
KFN11015
KFN11060  KFN11960
Code kit with 2 limit switches
KFN12015
KFN12060  KFN12960

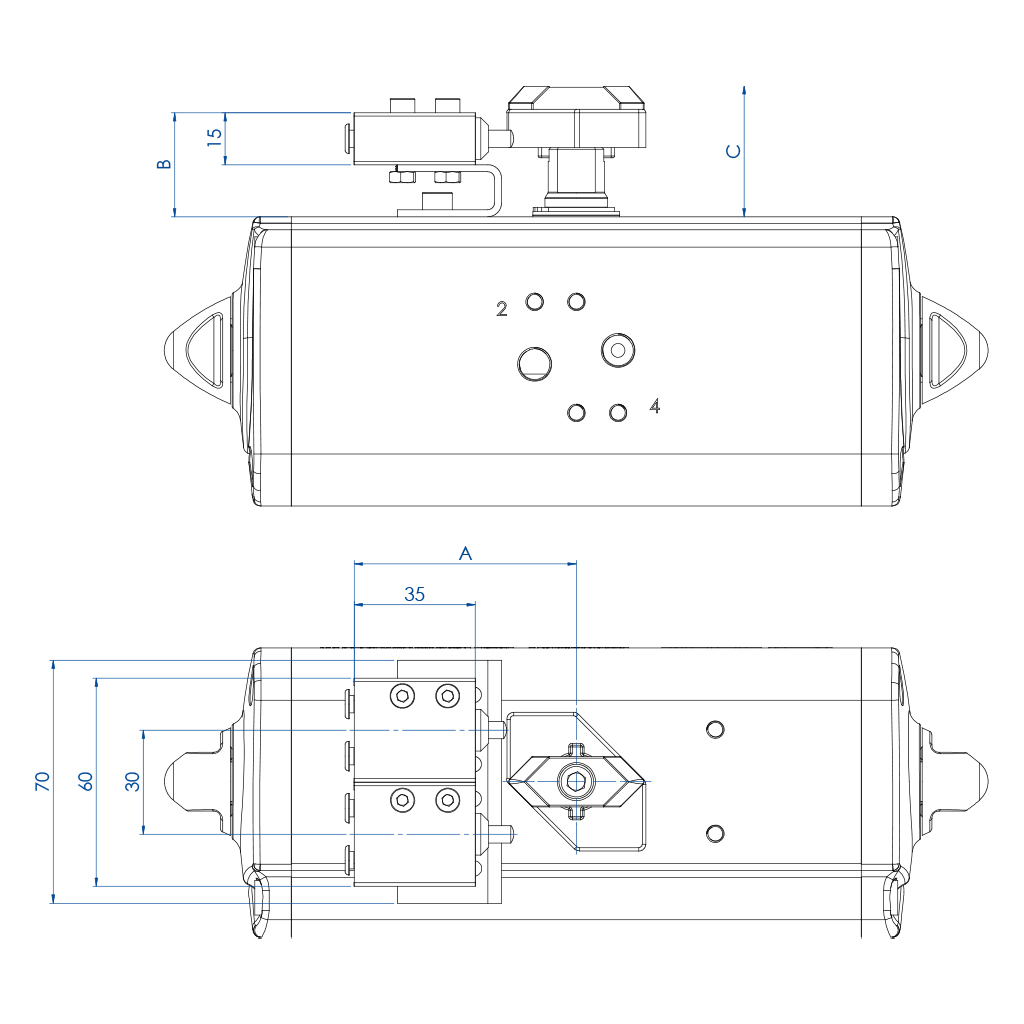

A mm.656575
B mm.32,54040
C mm.384848
D mm.607070

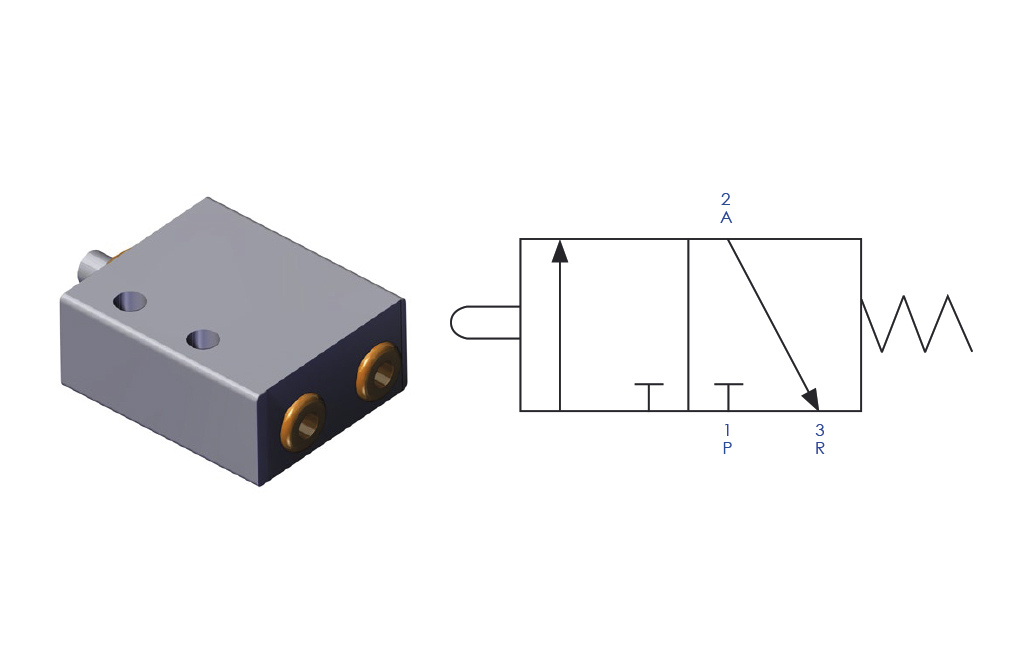

PNEUMATIC LIMIT SWITCH - FP210000

CODES TABLE - LIMIT SWITCHES
Actuator
DAN15÷DAN120
SRN15 ÷ SRN60
DAN180÷DAN480
SRN90÷SRN240
DAN720 ÷ DAN1920
SRN360 ÷ SRN960
CodeFP210000
Supplier code
VMW3501000100 - Metal Work

TECHNICAL FEATURES
- Miniaturized pneumatic limit switch with cartridge connections pipe 4x2
- Working temperature: from +5°C to +70°C
- Max working pressure: 10 bar
- Operating media: lubricated and filtered air at a temperature of max 50°C.
- Flow at 6 bar. with Δp=1:90 NI/min
- Bore: 2,2 mm
- Mounting kit included on DAN and SRN models. It is composed by a plate fixed on the body of the actuator and a cam mounted on its shaft
