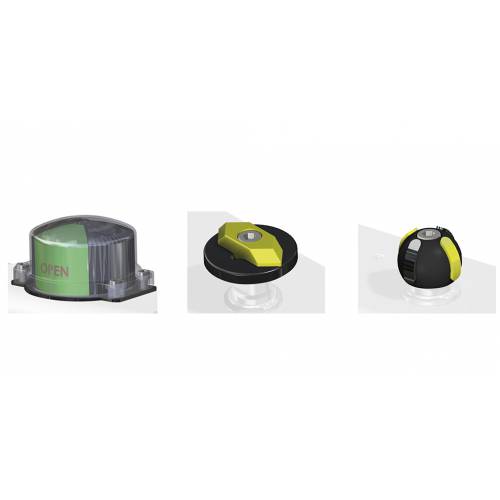

Position indicator

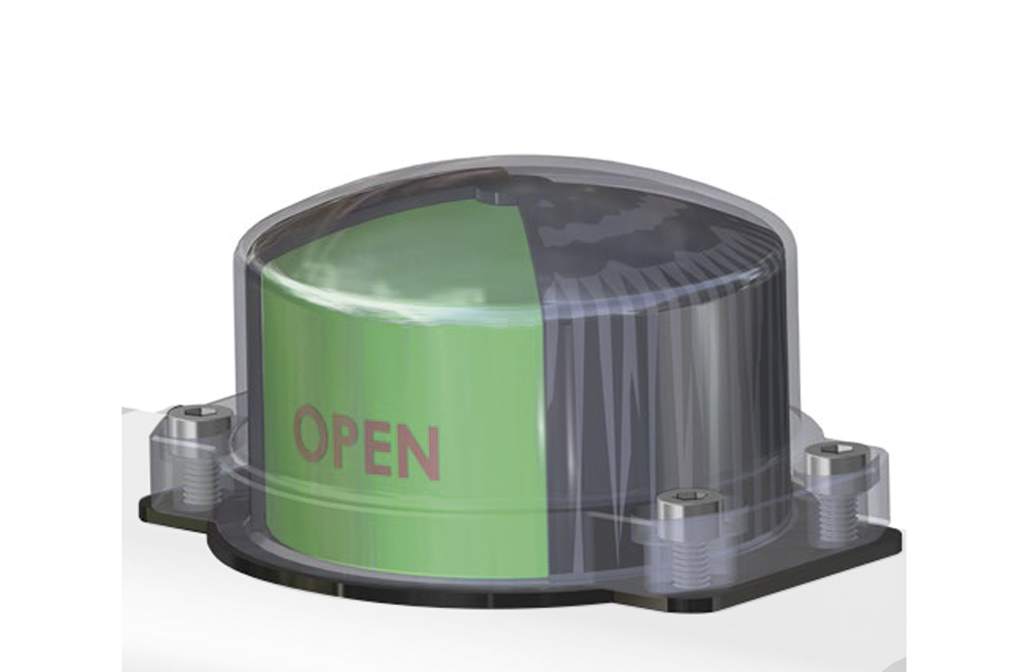

RED-GREEN INDICATOR

DESCRIPTION
Red-green execution. Direct mounting on actuators as per VDI/VDE 3845 specification.

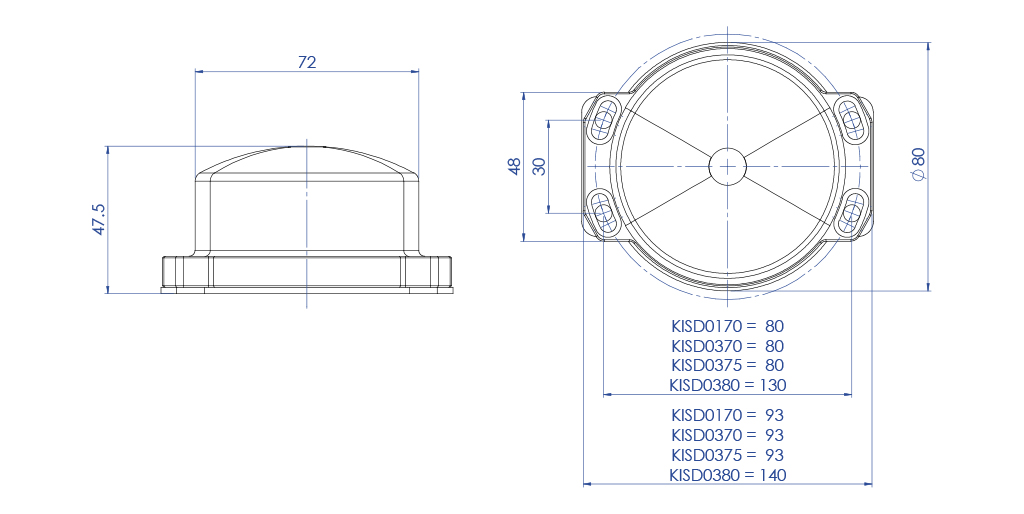

DIMENSION TABLE red-green indicator NAMUR execution
Actuator

DAN15 ÷ DAN120

DAN180 ÷ DAN240
DAN360 ÷ DAN1920
DA 2880 ÷ DA 8000
Actuator
SRN15 ÷ SRN60
SRN90÷SRN240  SRN180 ÷ SRN960
SR 1440 ÷ SR 4000
CODEKISD0170*
KISD0370  KISD0375  KISD0380

* Indicator protruding from the actuator

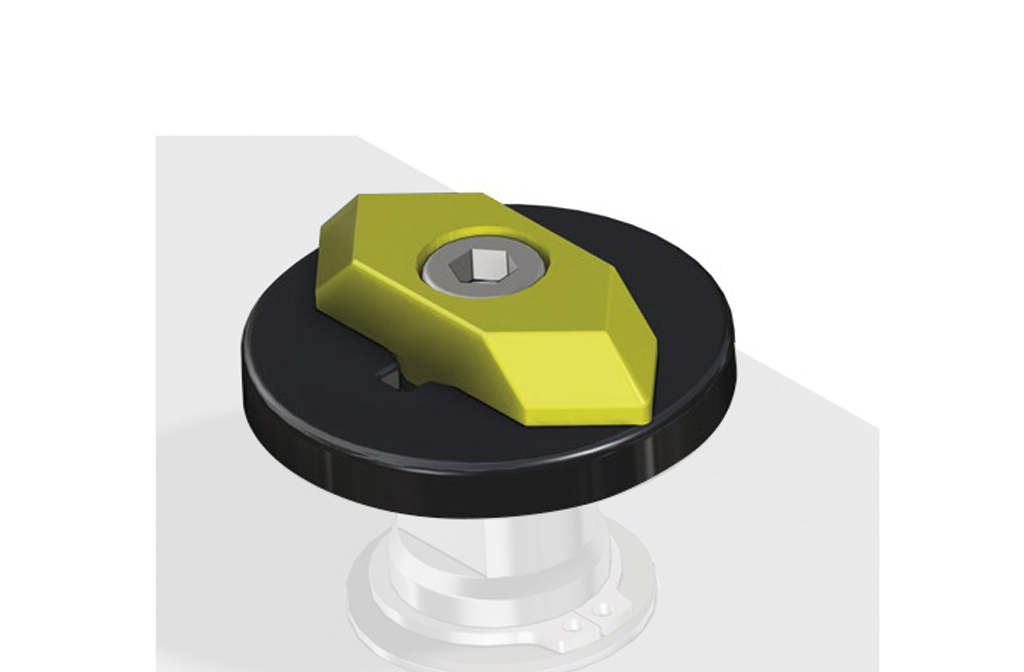

METAL INDICATOR

DESCRIPTION
Metal execution: Disc in black painted aluminium; arrow in yellow painted aluminium. NOTE: the arrow can be positioned so as to indicate Normally Open or Normally Closed valves.

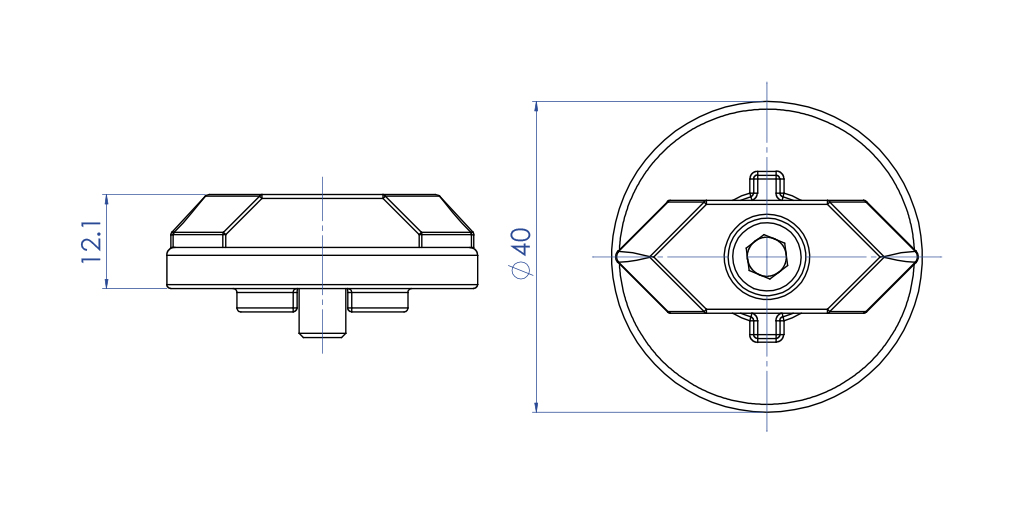

DIMENSION TABLE metal indicator NAMUR execution
Actuator
DAN15 ÷ DA8000
Actuator
SRN15 ÷ SR4000
CODEKI01VR14

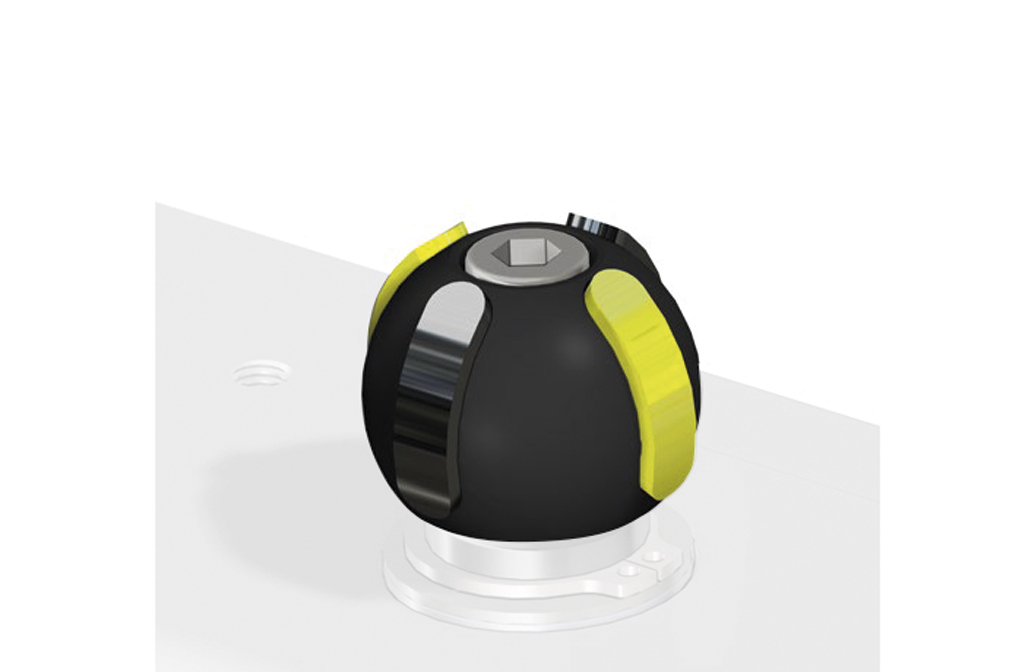

PLASTIC INDICATOR

DESCRIPTION
Plastic execution as per Namur: Ball in black plastic; indicating bands in yellow. NOTE: Bands can be combined so as to indicate Normally Open or Normally Closed valves, as well as 3-way valves with “L” or “T” port.

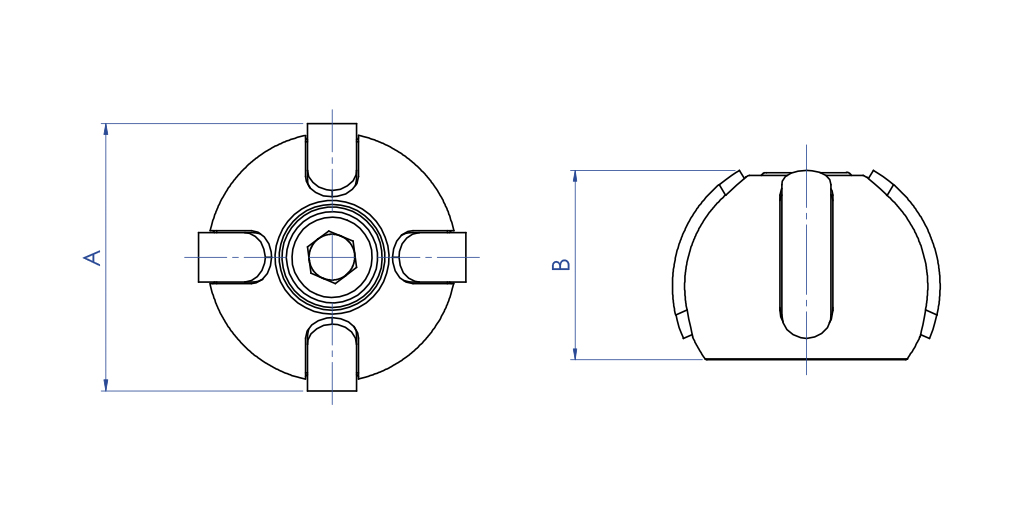

DIMENSION TABLE plastic indicator NAMUR execution
Actuator
DAN15 ÷ DAN120
DAN180 ÷ DAN720
Actuator
SRN15 ÷ SRN60
SRN90 ÷ SRN360
CODEKI02PP10
KI02PP16
3 way “T” indicator
KI03PP10
KI03PP16
3 way “L” indicator
KI04PP10
KI04PP16
A mm.3150
B mm.2236
