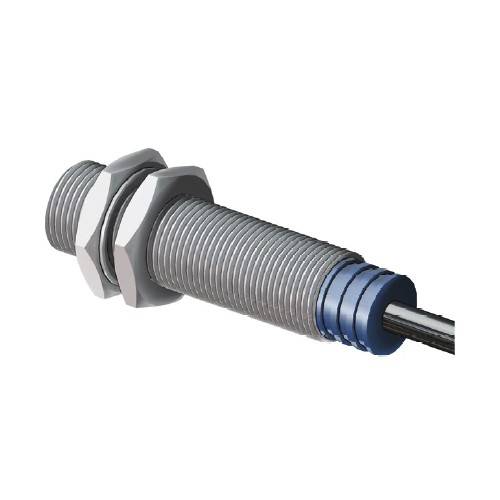

Proximity limit switch (kit to be ordered separately*)

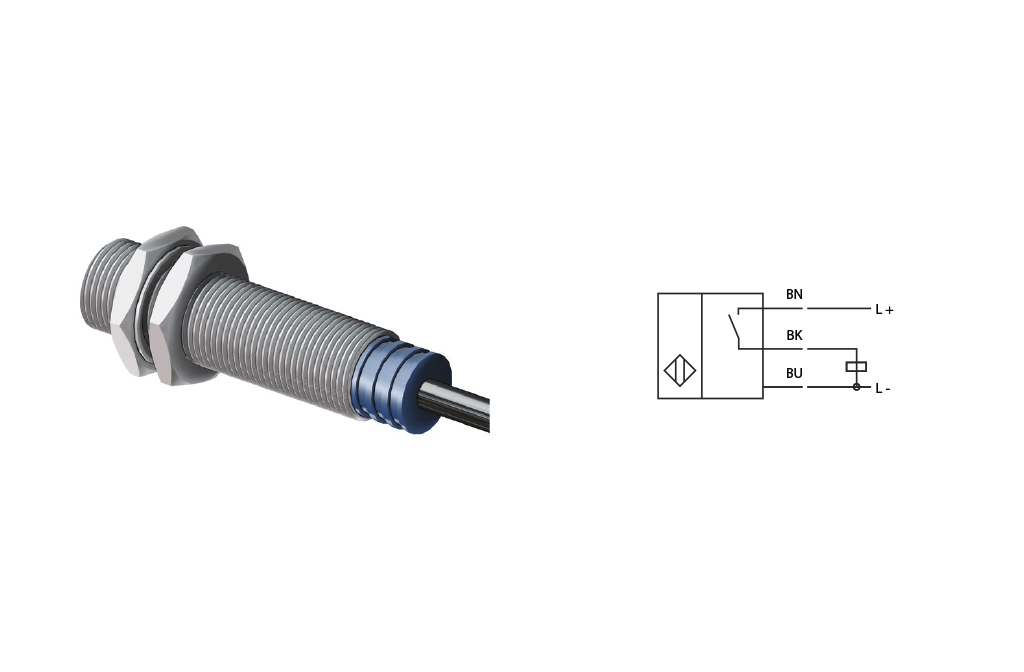

PROXIMITY LIMIT SWITCH

TECHNICAL FEATURES
- 3-wire DC PNP M12 inductive limit switch.
- Suppy voltage: 10÷30 V DC.
- Current consumption: 0÷12 mA.
- Protection rate IP 67.
- Working temperature: from -25°C to +70°C.
- Limit switch working signalled by ring LED.
- According to EN 60947-5-2.
- Mounting kit to be ordered depending on the height of the actuator shaft.*
- For the version with connector, you can order also the cable.*

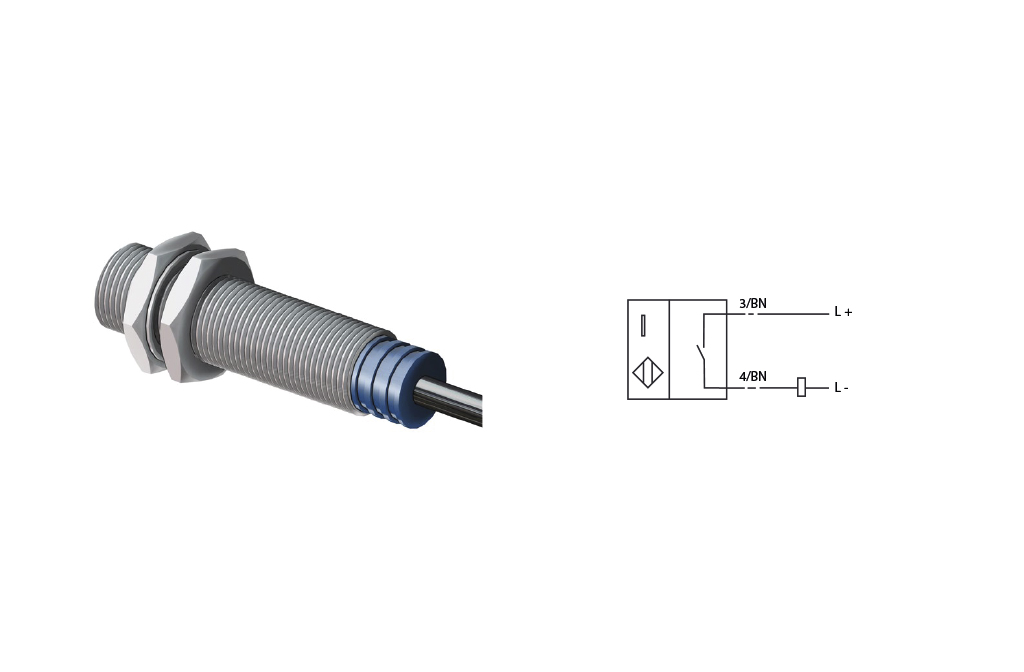

PROXIMITY LIMIT SWITCH

TECHNICAL FEATURES
- 2-wire DC M12 inductive limit switch.
- Supply voltage: 6 to 60 V DC.
- Current consumption: 4 to 100 mA.
- Protection rate: IP 67.
- Working temperature: from -25°C to +70°C.
- Limit switch working signalled by ring LED.
- According to EN 60947-5-2.
- Mounting kit to be ordered depending on the height of the actuator shaft.*
- For the version with connector, you can order also the cable.*

* For mounting kit (code: KBF85...) and connection cable, to be ordered separately, see page 29 on accessories catalogue.
