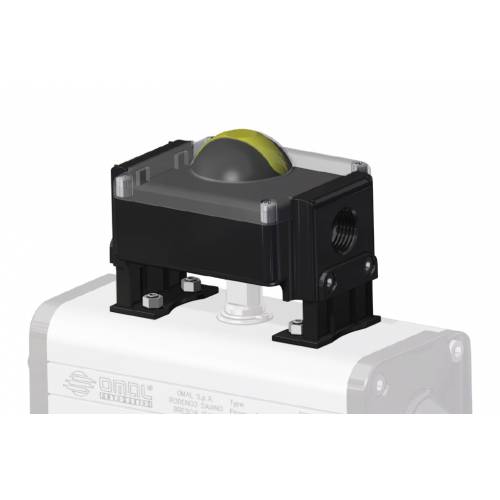

KSSP thermoplastic with optical indicator

KSSP thermoplastic with optical indicator

TECHNICAL FEATURES
- Made to easily verify the visual and electrical position of each valve even from long distances.
- Built according to VDI / VDE 3845 standards. (EN15714-3).
- It can contain two limit switches either mechanical "SPDT" or proximity.
- The cam of limit switch cannot slide since their regulation or other tools.
- The pre-wiring is realized means of numbered terminals: n°6 for the two microswitches, and extra poles for eventual solenoid wiring (see wiring diagrams).
- N. 1 threaded electrical connection for cable gland.
- Operating temperature:
from -20°C to + 80°C for Limit Switch code "01"
from -20°C to +70°C for Limit Switch code "73"
- Protection rate: IP65 (IP 67 on request).

MATERIALS
- Body: reinforced polyphenylene ether flame retardant V0.
- Cover and Indicator: UV-resistant and self-extinguishing polycarbonate class VO.
- Shaft: reinforced polymer.
- Screws: stainless steel.

CERTIFICATIONS
- CE declaration of conformity on request.
- Up to SIL 3 Certified

TYPES OF LIMIT SWITCHES CONTAINED IN BOX KSSP

CODE*DESCRIPTION
VERSION
WIRING DIAGRAM
01SPDT Electromechanical microswitches with silver plated contacts (CHERRY)

Max: 250 Vac 5A -24 Vdc 3A; Min: 250 Vac 50 mA - 24 Vdc 50 mA. (resisive load)
Standard
733-wire amplified proximity microswitches PNP NO P+F NBB2 V3 E2,

10÷30 VDC; 200 Ma - opereting current 0 - 100 mA
On request

* The symbol that identifies the type of limit switches used, appears in the code box in the 6th and 7th position.
