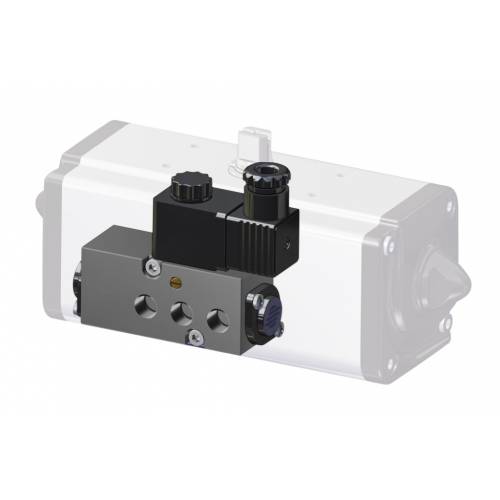

3/2 - 5/2 NAMUR monostable solenoid valve with coil

FOR ACTUATORS DAN15 - DAN1920 / SRN15 - SRN960

For DA08 actuators the connection KBN10008 is required

TECHNICAL FEATURES
- Solenoid valve monostable 3/2 - 5/2 as per NAMUR
- This solenoid valve is designed for the selection of the functions 5/2 and 3/2, which is realized using one of the two plates of the solenoid valve.
- Integrated exhaust to spring (ETS) feature in 3/2 position.
- Coil MC30 plug and socket
- Full-working input power - D.C.: 2 W
- Full-working input power - A.C.: 5 VA (9 VA max.)
- Supply voltage tolerances: ± 10%
- Coil insulation: H-class
- Protection with connector: IP65
- Electric connection: PG 9

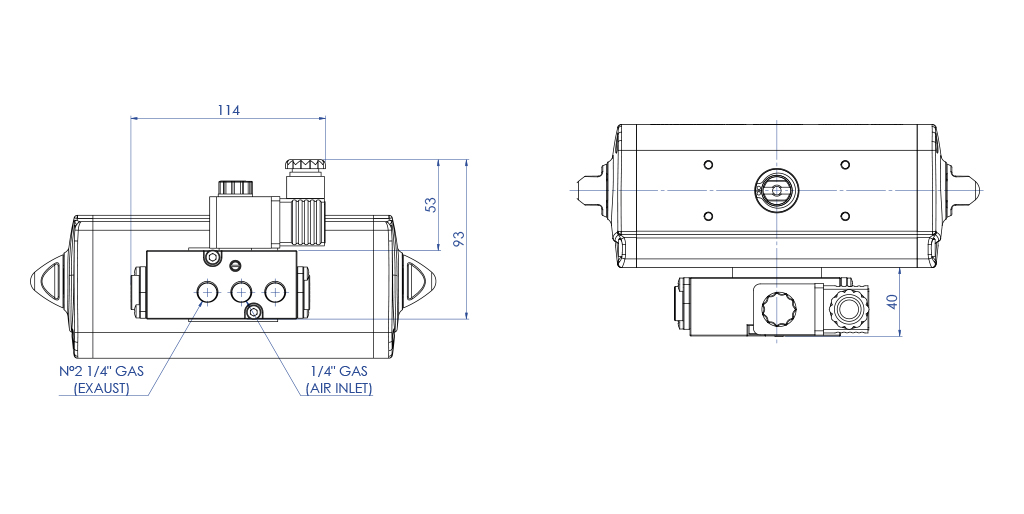

- Pneumatic connections: inlet 1/4”; exaust 1/4” ISO 228
- Screwdriver manual override.
- Working pressure: from 3 to 10 bar
- Ambient temperature: from -20°C to +80°C
- Flow rate: 1000 l/min (at Δp.1 bar)

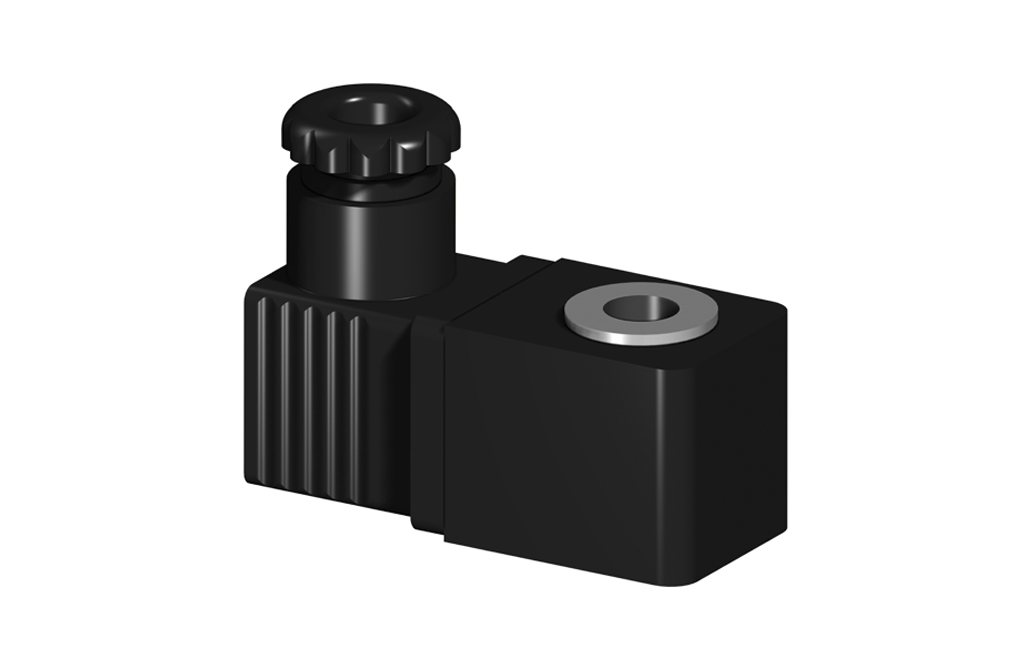

COIL (MC30 - PLUG AND SOCKET) FOR SOLENOID VALVE ER8188

ENCODING

COIL CODE
DESCRIPTION
BBR22024
Supply 24 Vdc
BBR21024
Supply 24 Vac 50/60 Hz
BBR21110
Supply 110 Vac 50/60 Hz
BBR21220
Supply 230 Vac 50/60 Hz

TECHNICAL FEATURES
- Power consumption: 2 W (DC)
- Power consumption: 5 VA (9 VA max.) (AC)
- Supply voltage tolerance: ±10%
- Coil insulation: H class
- Yield (duty cycle): 100%
- Protection rate: IP65
- Electrical connection: PG.9
- Temperature: -20°C to +80°C

MATERIALS
- Body: Polymer
- Spire: copper clad class H
