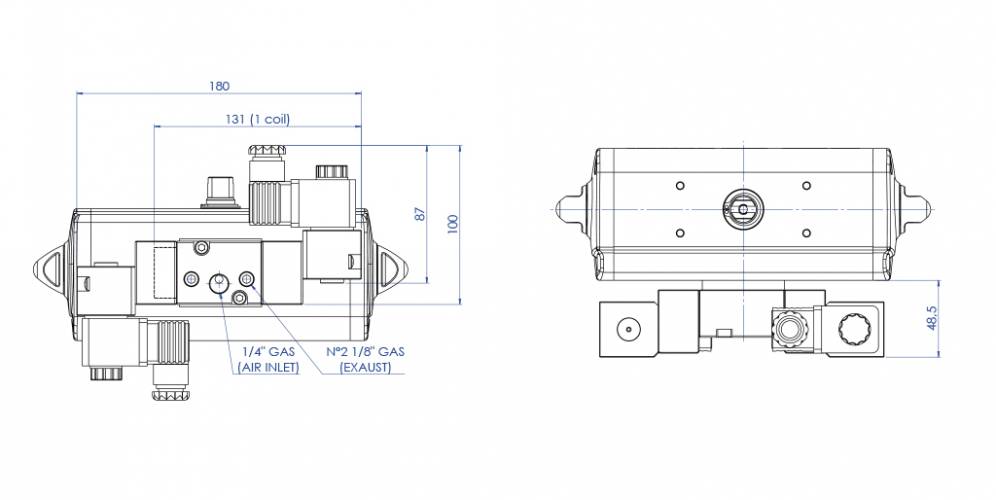

3/2 - 5/2 NAMUR solenoid valve with CNOMO coil

3/2 - 5/2 NAMUR solenoid valve with CNOMO coil

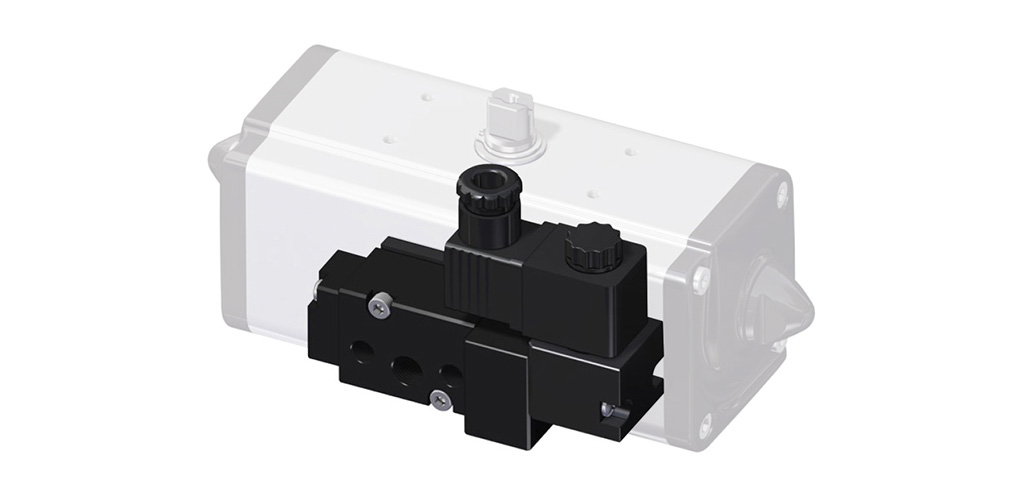

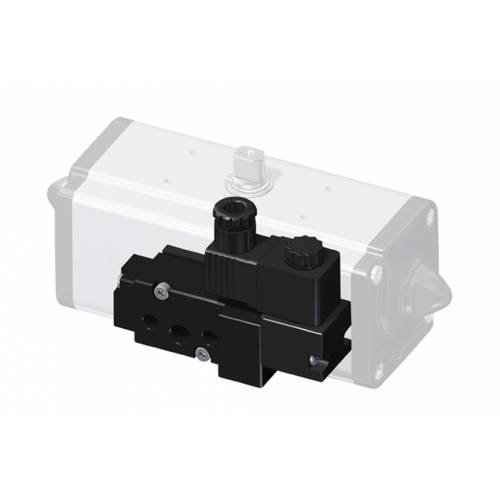

Example with 1 solenoid valve (Monostable)

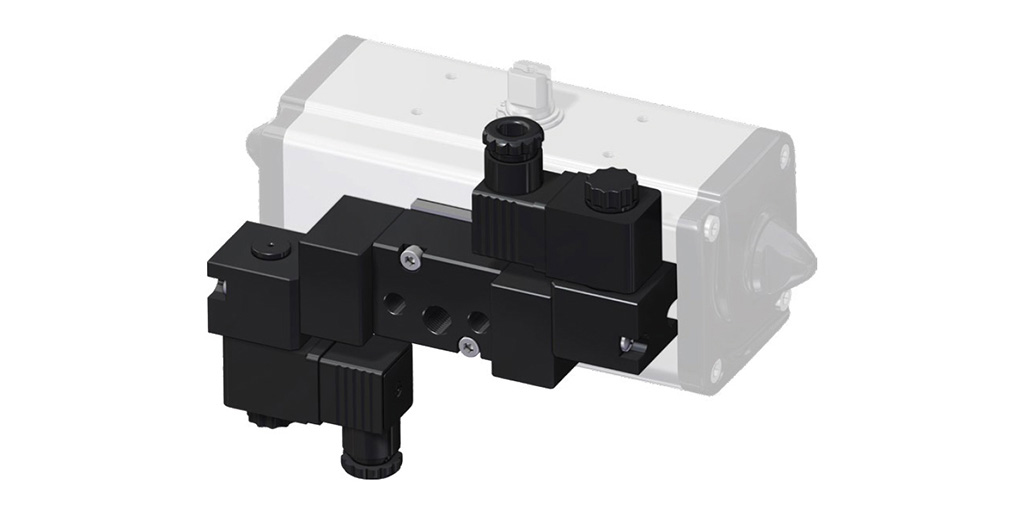

Example with 2 solenoid valve (Bistable)

TECHNICAL FEATURES
- Monostable or bistable 3/2 - 5/2 as per NAMUR with CNOMO interface for coils.
- The solenoid valve is designed for the selection between the 5/2 and 3/2 function which is realized by using one of 2 different interfacing plates.
- Integrated exhaust to spring (ETS) feature in 3/2 position.
- Protection with connector: IP65
- Capacity: 675 l / min at 6 bar Ap 1 bar
- Pneumatic connections: inlet 1/4 ", exaust 1/8" ISO 228
- Command bistable screw
- Working pressure: from 3 to 10 bar
- Ambient temperature: from -20°C to 80°C
- Up to SIL 2 Certified
- Up to SIL 3 Certified in 3/2 function

MATERIALS
- Body and caps: anodized aluminum DURAL; 316 stainless steel on request
- Spool: PTFE impregnated anodized aluminum
- Seals: nitrile
- Spring: stainless steel
- Screws: stainless steel
- 3/2 conversion plate - 5/2 fiberglass reinforced nylon 66 (30%)

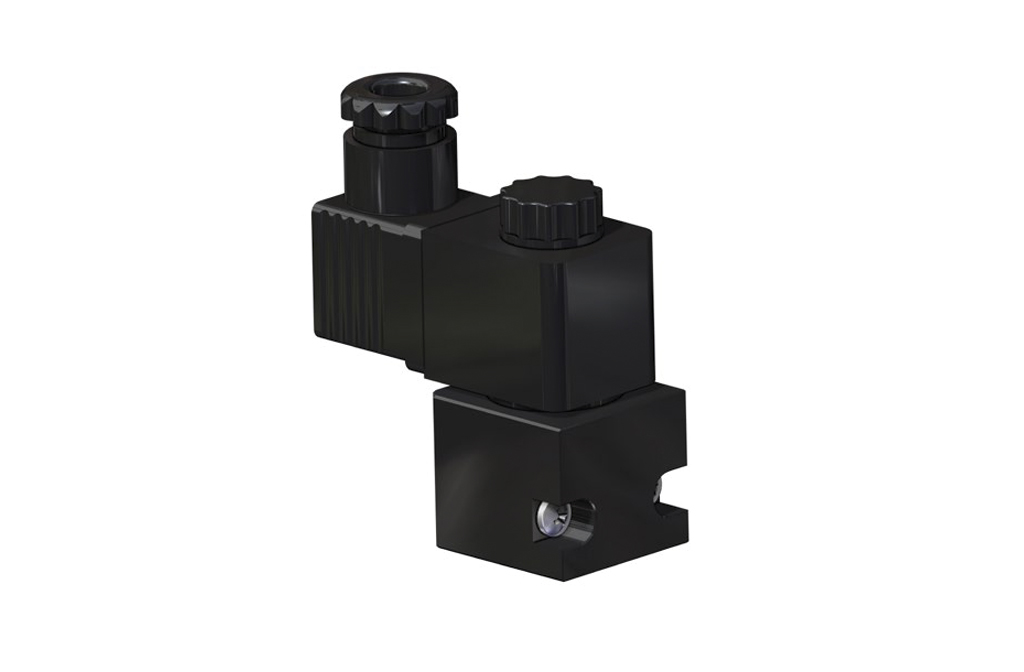

COIL CNOMO (MC30 - PLUG AND SOCKET) FOR SOLENOID VALVE ER85 - ER86 - ER8187

ENCODING

COIL CODE
DESCRIPTION
BBR92024
Supply 24 Vdc
BBR91024
Supply 24 Vac 50/60 Hz
BBR91110
Supply 110 Vac 50/60 Hz
BBR91220
Supply 230 Vac 50/60 Hz

TECHNICAL FEATURES
- Input power: 2 W (DC)
- Input power: 5 VA (9 VA max. in AC)
- Supply voltage tolerance: ±10 %
- Coil insulation: F-class
- Yield (duty cycle): 100%
- Protection rate: IP65
- Electrical connection: PG.9
- Temperature: -20°C to +60°C

MATERIALS
- Body: Thermoplastic
