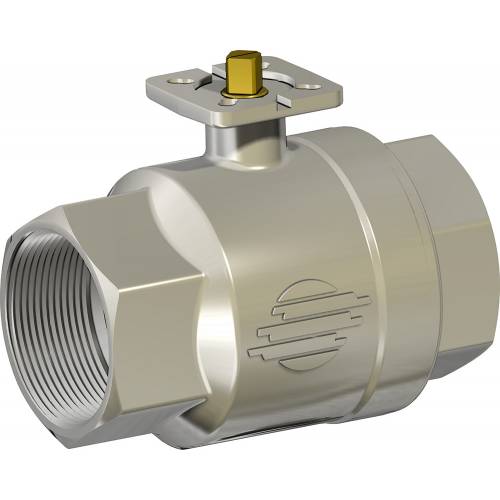

Item 100 brass ball valve

Item 100 brass ball valve

2-way full-bore threaded-ends brass ball valve

CONFIGURE START UP
REQUEST INFORMATION
PAGE PRINT
  • features
  • dimensions
  • materials
  • diagrams and breakaway torque
  • documents

GENERAL FEATURES:
• The valve is suitable for low pressures on condition that non aggressive fluids are used.
• Working temperature: from -20°C to +150°C for fluids.
• Working pressure: see diagram.
• Fluid range: water, oil, gas and light applications.
• Threaded ends as per EN 10226-1 Rp (Ex ISO 7/1) specifications.
• Head of the valve as per ISO 5211 specifications

ON REQUEST:
• For other applications, please contact our technical department.

CERTIFICATIONS:
• According to 2014/68/EU “PED”

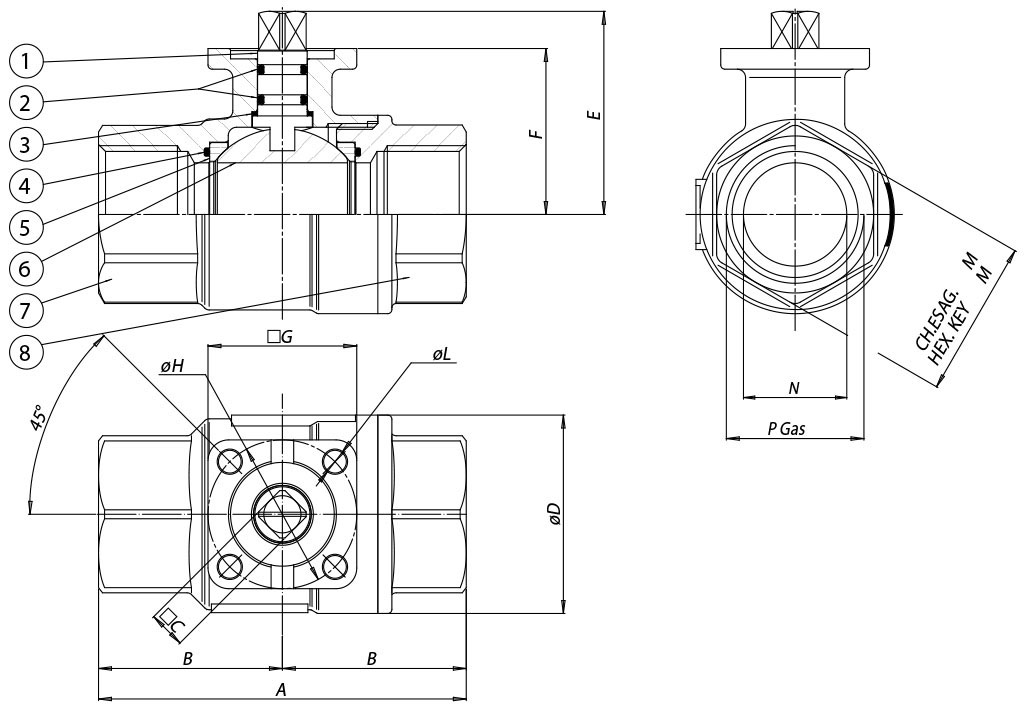

  DIMENSIONS
SIZE
A
B
C
øD
E
F
☐G
øH
øL
ch.M
N
DN [mm]
[inch]
DN 10
3/8"
69
34,5
9
31,8
38,5
29,5
36
36
5,5
25
10
DN 15
1/2"
69
34,5
9
31,8
38,5
29,5
36
36
5,5
25
15
DN 20
3/4"
77
38,5
9
40
45,3
36,3
36
36
5,5
31
20
DN 25
1"
89
44,5
9
48
49,2
40,2
36
36
5,5
38
25
DN 32
1" 1/4
103
51,5
11
62
59,6
50,5
42
36
5,5
47
32
DN 40
1" 1/2
114
57
11
72,6
66,2
57
42
36
5,5
54
40
DN 50
2"
134
67
11
88,5
75,5
64,3
46
36/42
5,5
66
50

 MATERIALS
1
Shaft
Brass
EN 12164 CW614N
2
O-ring
FKM

3
Antifriction rings
P.T.F.E.

4
O-ring
FKM

5
Seals
P.T.F.E.

6
Ball
Brass chromium plated
EN 12164 CW614N
7
Body*
Brass
EN 12165 CW617N
8
Threaded end*
Brass
EN 12165 CW617N
* Surface treatment: bright nickel plating

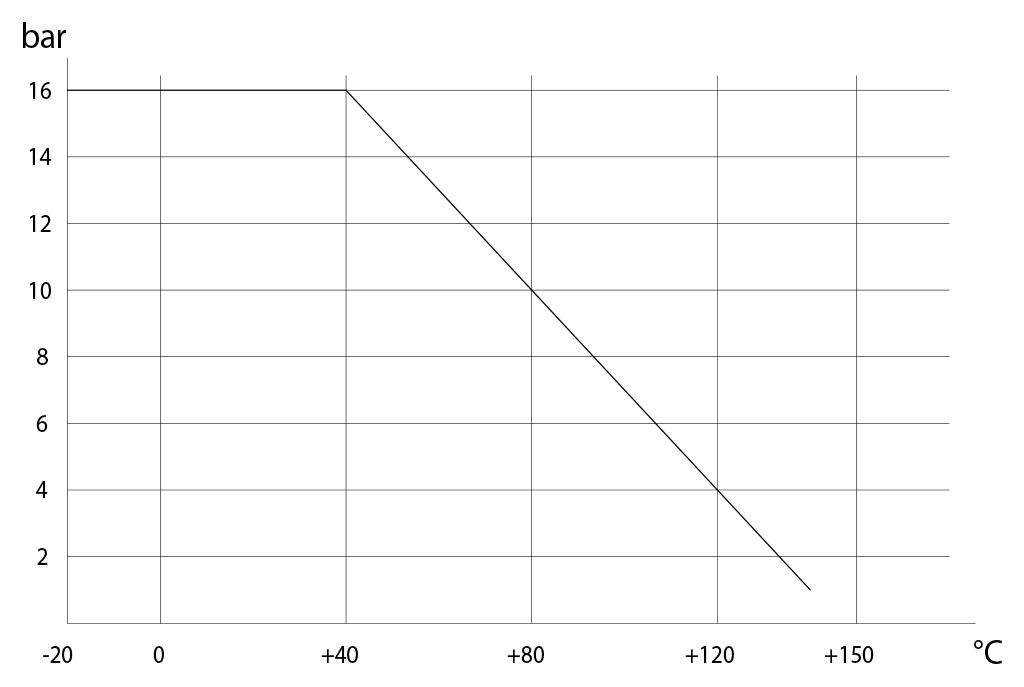

Pressure/temperature diagram

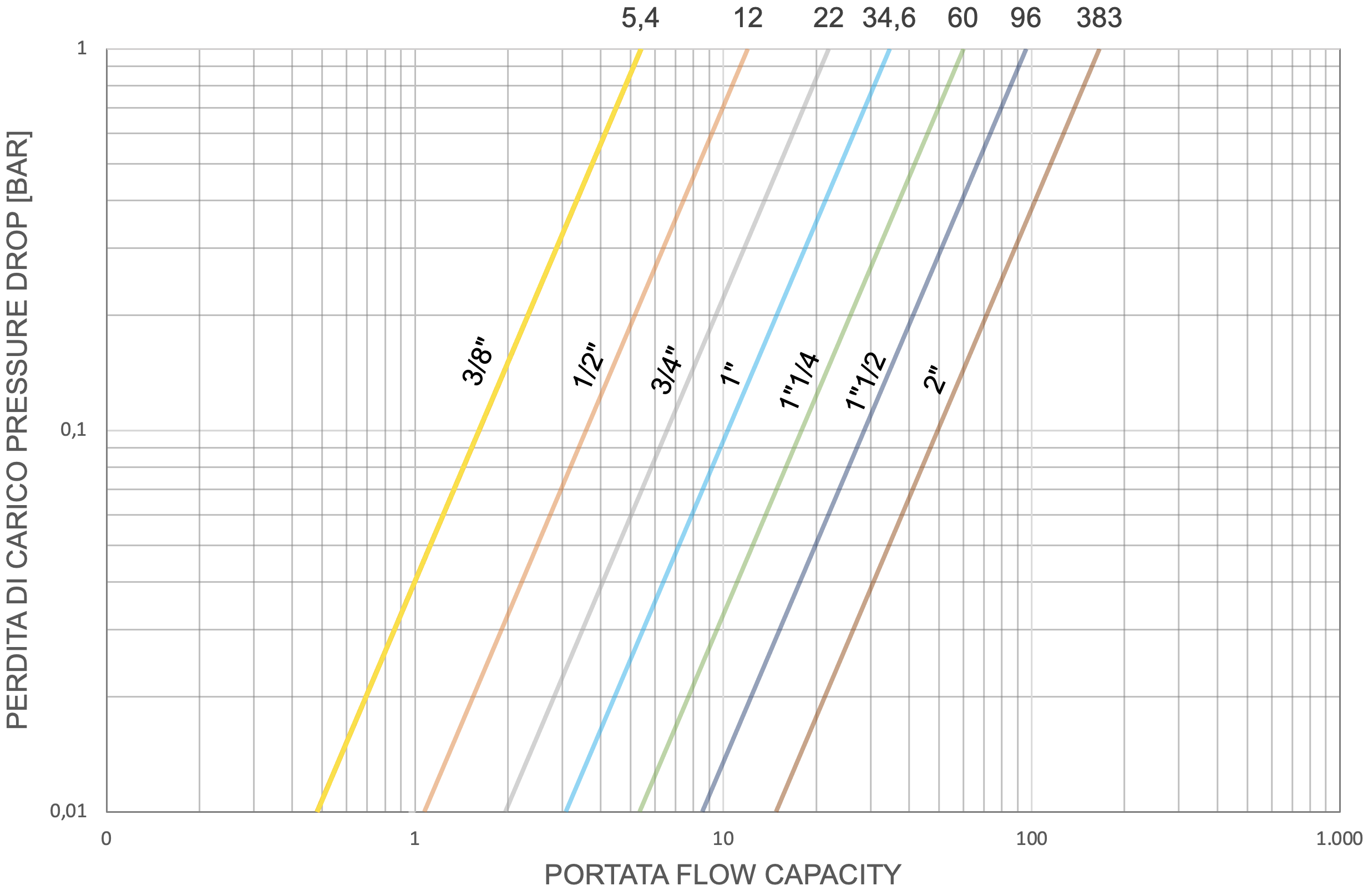

Flow/pressure loss diagram and Kv nominal coefficient

Kv is the coefficient, expressed in m3/h (with water at 15°C) causing a pressure loss of 1 bar.

 BREAKAWAY TORQUES Nm
 SIZE
DN 10
3/8"
DN 15
1/2"
DN 20
3/4"
DN 25
1"
DN 32
1"1/4
DN 40
1"1/2
DN 50
2"
PN 16 bar
3
3
4
5
7
9
15


Torque can vary depending on temperature and type of fluid; a safety factor of 1.4 must be applied. Torque can drop on high frequency of operations. The actuator/valve sizing, indicated on the following pages, are based for valves to be used with liquids or gaseous fluids, clean, and for medium temperatures. For further information, or different uses please contact our technical department.
