Item 160-161 brass ball valve

Item 160-161 brass ball valve
Macro Ball valves

3 way 4 seals brass ball valve - threaded-ends “T” or “L” port
ITEM 160
Valve "T" port
ITEM 161
Valve "L" port

CONFIGURE Drive
REQUEST INFORMATION
PAGE PRINT
  • features
  • dimensions
  • materials
  • diagrams and breakaway torque
  • specifications

GENERAL FEATURES:
Valve with 4 ball seats. Inlet from any of the 3 ends, see plane
• Working temperature: from -15°C to + 120°C
• Working pressure: see table.
• Fluid range: water, air, gas, vacuum, petroleum and petrochemical products. Not suitable for aggressive media.
• Threaded ends as per ISO 7/1 specifications.

ON REQUEST:
• For other applications, please contact our sales department.

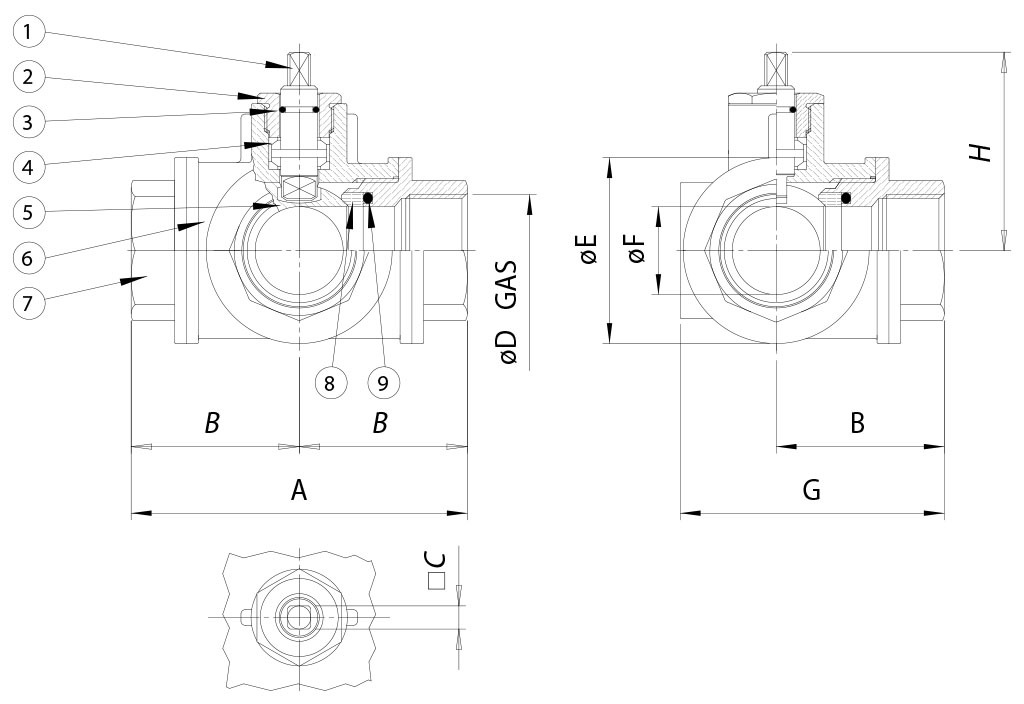

  DIMENSIONS
SIZE
A
B
□C
øD
øE
øF
G
H
DN [mm]
[inch]
DN 15
1/2"
80
40
7
1/2”
38
13
61
43,2
DN 20
3/4"
96
48
10
3/4”
48
18
74
52,9
DN 25
1"
113
56,5
10
1”
58
23
88
57,3
DN 32
1" 1/4
130
65
14
1" 1/4
67
29
99
74,5
DN 40
1" 1/2
147
73,5
14
1" 1/2
78
35
114
79
DN 50
2"
169
84,5
17
2”
95
44
132
94,2

    MATERIALS
1
Shaft*
Brass
EN 12164 CW614N
2
Gland nut*
Brass
EN 12164 CW614N
3
O-ring
FKM

4
Seals
P.T.F.E.

5
Ball
Brass chromium plated
EN 12164 CW614N
6
Body*
Brass
EN 12165 CW617N
7
Threaded end*
Brass
EN 12165 CW617N
8
Seals
P.T.F.E.

9
O-ring
FKM

* Surface treatment: bright nickel plating

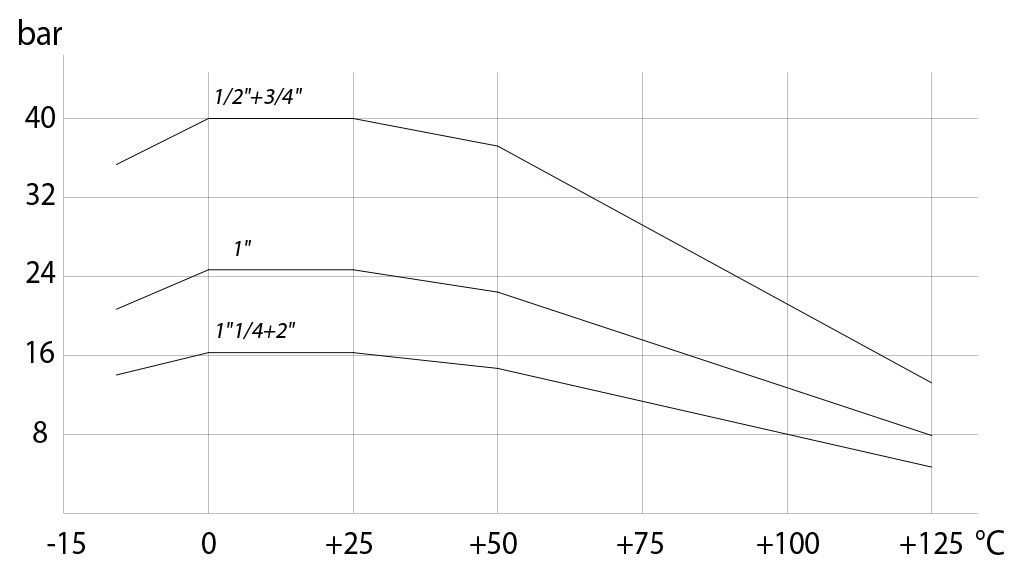

Pressure/temperature diagram

BREAKAWAY TORQUES Nm
SIZE
DN 15
1/2"
DN 20
3/4"
DN 25
1"
DN 32
1"1/4
DN 40
1"1/2
DN 50
2"
PN 16 bar



31
43
74
PN 25 bar


20



PN 40 bar
8
14






Torque can vary depending on temperature and type of fluid; a safety factor of 1.4 must be applied. Torque can drop on high frequency of operations. The actuator/valve sizing, indicated on the following pages, are based for valves to be used with liquids or gaseous fluids, clean, and for medium temperatures. For further information, or different uses please contact our sales department.

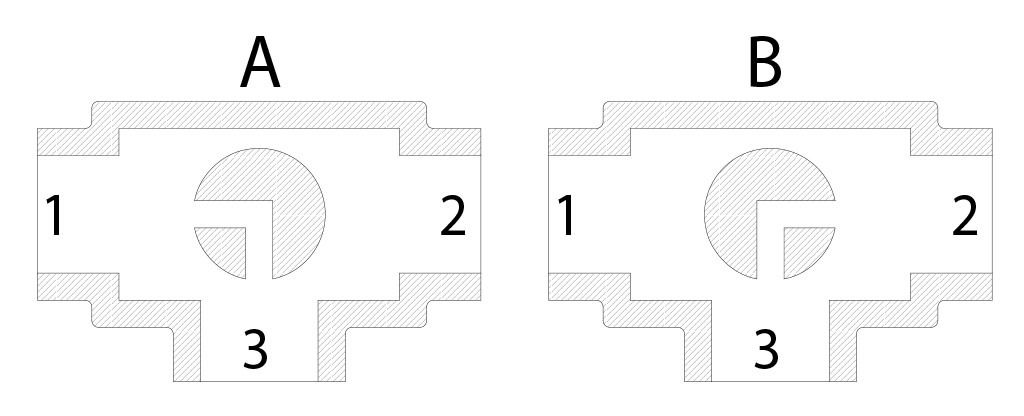

Plan for "L" port

N.B.:
A” must be the rest position of the ball with SR FAIL CLOSE actuator.
B” must be the rest position of the ball with SR FAIL OPEN actuator.

View from above

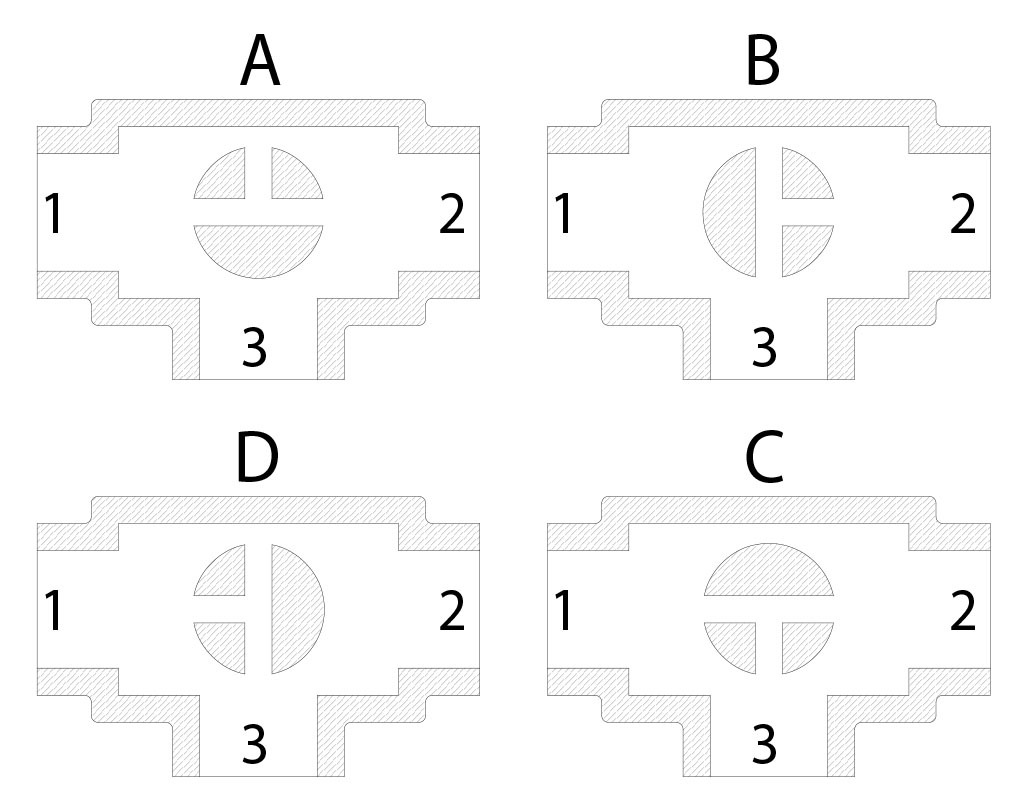

 Plan for "T" port

With actuator 2 positions with 90° rotation are possible only: the configuration of the ball must always be communicated at our sales department.
N.B.:
Choose the rest position of the ball with SR FAIL CLOSE actuator; whenever supplied with air, actuator turns in an anticlockwise direction.
Choose the rest position of the ball with SR FAIL OPEN actuator; whenever supplied with air, actuator turns in a clockwise direction.

View from above
