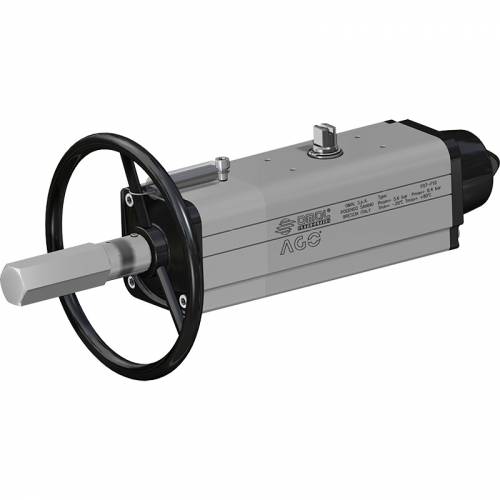

AGO HANDWHEEL - SR with integrated handwheel

Category AGO HANDWHEEL - Actuators with integrated handwheel

SIZE SELECTION

PAGE PRINT

DOWNLOAD CATALOGUE 4-4: AGO HANDWHEEL - ACTUATORS SR WITH INTEGRATED HANDWHEEL

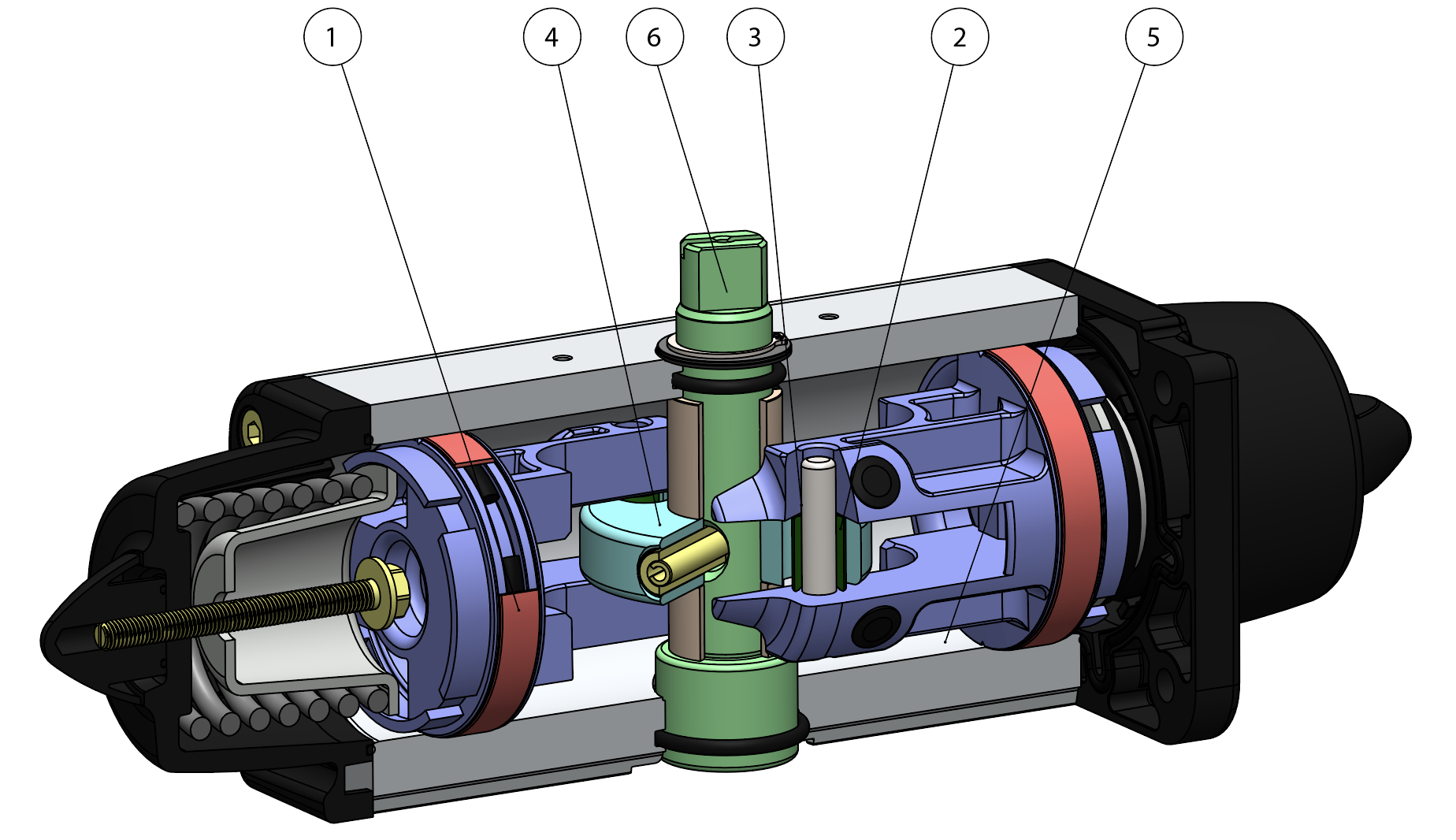

AGO HANDWHEEL - SR with integrated handwheel - benefits -

1.Energized and self-lubricated strips
Less friction between piston and cylinder
It prevents the bonding of the seal to the cylinder even after long periods of inactivity

2.Slots, bushes and pins made by steel with hardness higher than 50 HRC
Higher resistance to the forces inside the actuator

3.Rolling friction between piston and slot
Less friction

4.Scotch yoke with rolling friction (transforming rotary motion into linear motion using piston and shaft without teeths/gears)
Reduced friction between piston and shaft with consequently less wear on the relevant parts
Empowered Breakaway Torque (BTO & BTC)
Smaller volume/size than rack and pinion actuators (with the same torque) therefore less space required for installation
Less weight than the rack and pinion (-30% kg / Nm), with consequent savings on the construction sizing of the plant/equipment
Lower air consumption compared to the rack and pinion actuators (-40% air cm3/Nm for Double Acting and -20% air cm3/Nm for Spring Return) therefore less load on the compressor or the possibility of using a smaller compressor's size.

5.Rolled cylinder
Less wear of the energized ties thanks to the low roughness of the surface

6. Stainless Steel shaft
Higher corrosion resistance

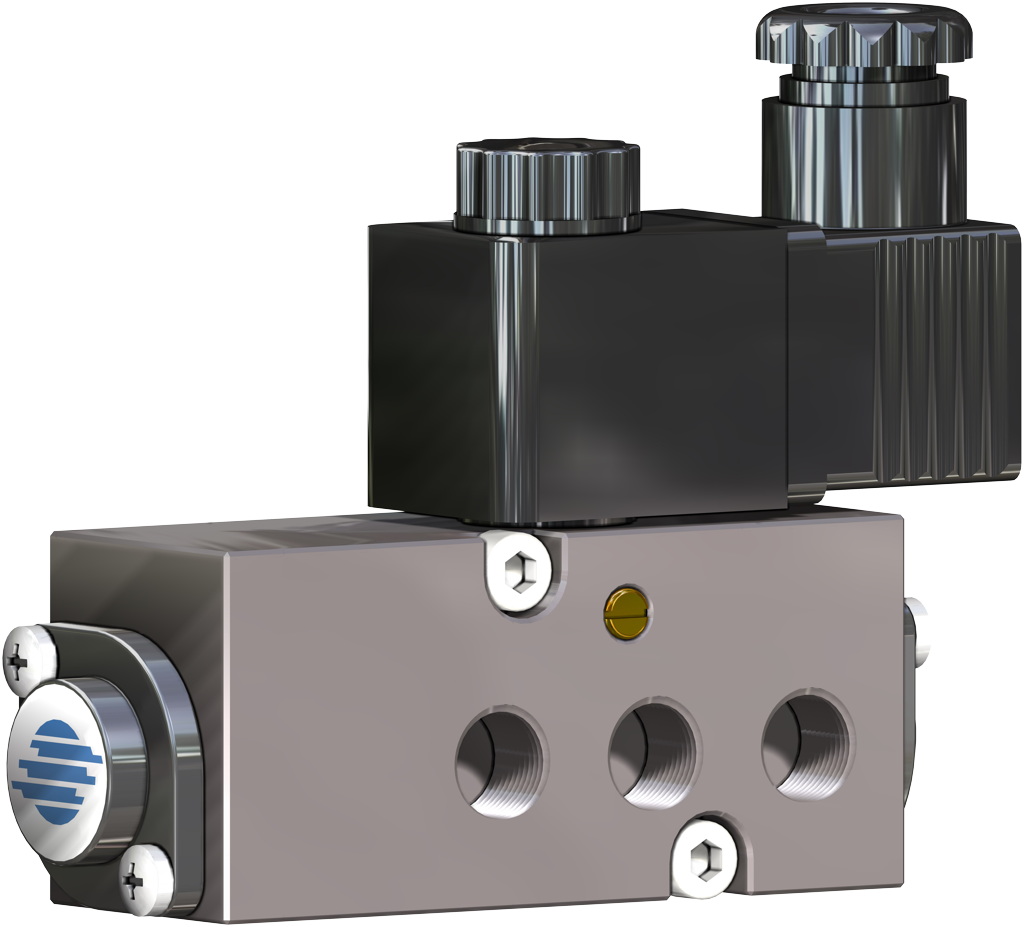

From sizes bigger than DAN15, NAMUR interface for solenoid valve is already integrated.
No need for extra plate.

100% in- house manufacturing process technology
Maximum control and accuracy in all the stages of the manufacturing process

ATEX Certificate
Installation is allowed in a potential explosive environment

Up to SIL 3 Certified
Guarantee of the high level of functional safety.

TECHNICAL FEATURES
Torque from 30 Nm to 1920 Nm.
Mounting flange according to EN ISO 5211
F05 - F07 - F10 - F12 - F14 - F16.
In compliance with EN 15714-3
Rotation angle: 92° (-1°, +91°)
Torque: the return torque depends on spring action only notwithstanding the air supply. The spring is provided in four different sizes (see table).
The code numbers after the letters SRNV, always correspond to the breakaway torque in Nm by 5,6 bar air supply.

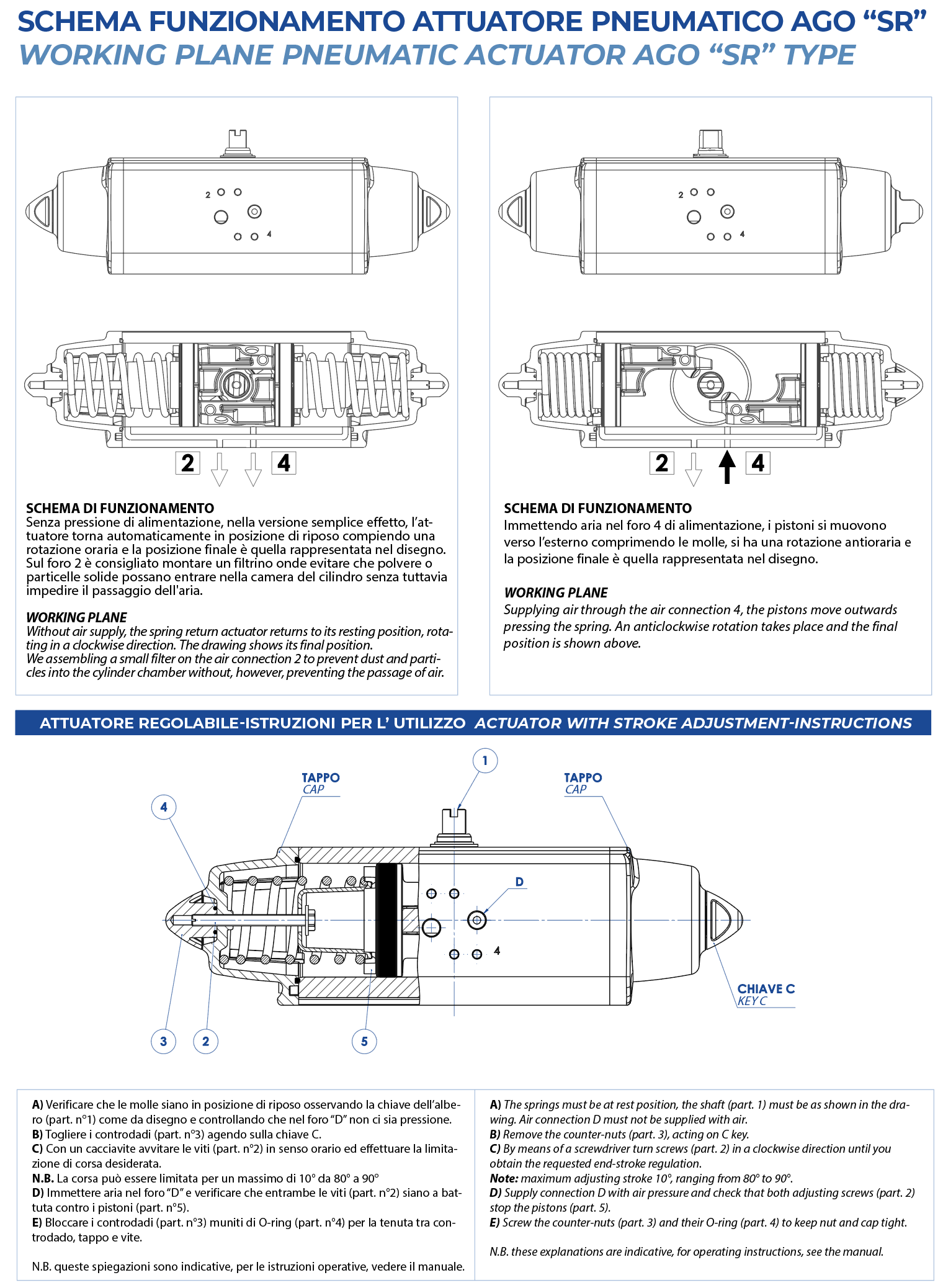

The actuator automatic closing takes place in clockwise direction by means of its springs. ATEX version in conformity with directive 2014/34/EU. Please add YX at the end of the code for ATEX version.

WORKING CONDITION
Temperature: from -20°C to +80°C. (Special versions: high temperature: -20°C +150°C; low temperature: -50°C +60°)
Air supply: 5,6 bar; maximum 8,4 bar.
Actuating media: filtered dry compressed air, not necessarily lubricated.
In case of lubricated air, either non detergent oil, NBR compatible oil, must be used.

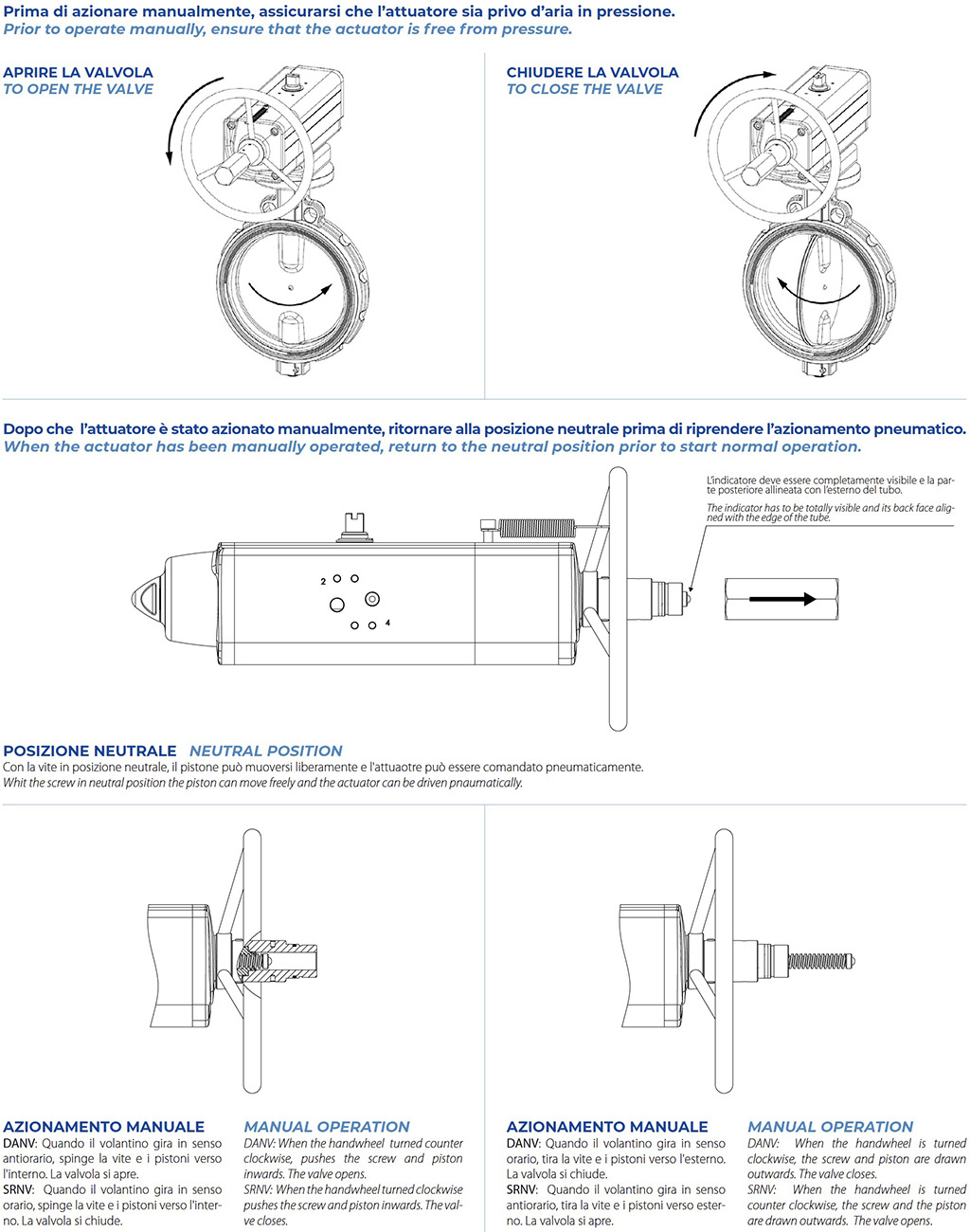

Once required the quarter turn pneumatic actuator can be equipped with a manual
handwheel.
The device can be integrated either in Double Acting and Spring Return versions. For the proper functioning of the system and for the mechanical integrity of the device is essential to ensure that the pneumatic actuator is disconnected from the power lines of compressed air before performing any operation using the manual handwheel.
The manual handwheel acts on the transmission of the primary mechanical transmission of the pneumatic actuator and with torques applied to the handwheel according to EN 12570 it releases output torque of equal value of the nominal torque of the actuator.

SRNV 30 ÷ SRNV 240

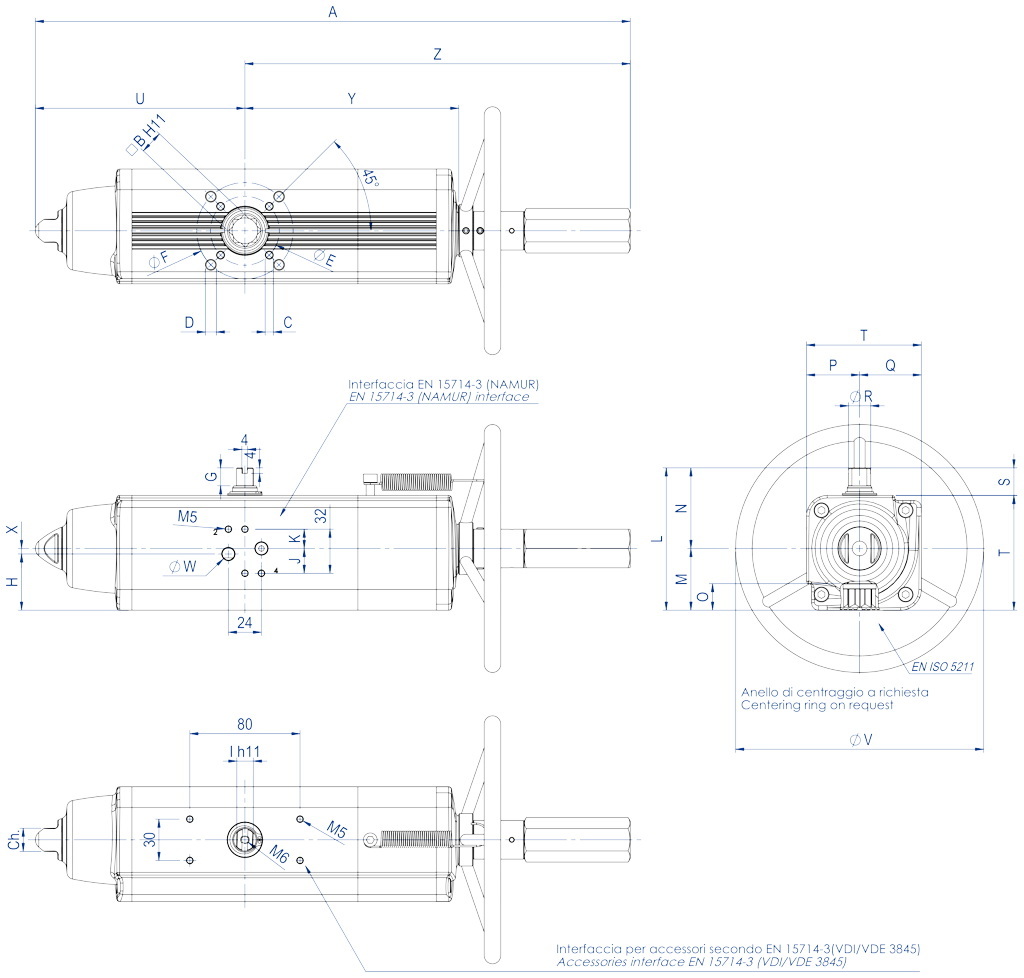

DATA SHEET SRNV 30 ÷ SRNV 240
Code	SRNV0030401S	SRNV0030402S	SRNV0053401S	SRNV0060401S	SRNV0090401S	SRNV0120401S	SRNV0180401S	SRNV0240401S
Spare Seals	KGGI0016VX	KGGI0016VX	KGGI0060VX	KGGI0018VX	KGGI0019VX	KGGI0020VX	KGGI0021VX	KGGI0022VX
Size	SRNV 30	SRNV 30	SRNV 53	SRNV 60	SRNV 90	SRNV 120	SRNV 180	SRNV 240
ISO	F04	F05/F07	F05/F07	F05/F07	F07/F10	F07/F10	F07/F10	F10/F12
A	392,7	392,7	431,4	457,7	534,9	558,5	635	700,8
B	14	14	17	17	22	22	22	27
C x depth	M5x8	M6x9	M6x9	M6x9	M8x12	M8x12	M8x12	M10x15
D x depth	-	M8x12	M8x12	M8x12	M10x15	M10x15	M10x15	M12x18
E	42	50	50	50	70	70	70	102
F	-	70	70	70	102	102	102	125
G	13	13	13	13	16	17	19	19
H	33,7	33,7	40,8	42,8	52,5	56,1	58	57,4
J	18	18	18	18	18	18	18	16
K	14	14	14	14	14	14	14	16
I	10	10	12	12	15	15	19	19
L	90,4	90,4	103,3	107	137,5	141,1	148	164,9
M	37,7	37,7	44,8	46,8	56,5	60,1	62	72,9
N	52,7	52,7	58,5	60,2	81	81	86	92
O	16,5	16,5	19,3	19,3	24,8	24,8	24,3	29,5
P	32,7	32,7	38,5	40,2	51	51	56	62
Q	37,7	37,7	44,8	46,8	56,5	60,1	62	72,9
R	14,5	14,5	16,2	18	20,2	22,5	25,5	29
S	20	20	20	20	30	30	30	30
T	70,4	70,4	83,3	87	107,5	111,1	118	134,9
U	129,4	129,4	152,1	169,3	196,8	204,8	237	260,2
V	180	180	180	180	220	220	300	300
W (Gas)	1/8"	1/8"	1/8"	1/8"	1/8"	1/8"	1/8"	1/4"
X	4	4	4	4	4	4	4	-
Y	137,6	137,6	154,8	163,9	183,5	199,1	220,8	236,4
Z	263,3	263,3	279,3	288,4	338,1	353,7	398	440,6
Ch	13	13	17	17	22	22	22	27
N°of turns*	11	11	13	14	16	18	15	16
Weight (Kg)	3,2	3,2	4,5	5,3	6,8	9	11,7	15,2
Air (dm3/cycle)	0,17	0,17	0,3	0,33	0,55	0,8	1	1,5

* Theoretical n° of turns to close/open starting from neutral position.

DATA SHEET SRNV 360 ÷ SRNV 960
Code	SRNV0360401S	SRNV0480401S	SRNV0480402S	SRNV0720401S	SRNV0720402S	SRNV0960401S	SRNV0960402S
Spare Seals	KGGI0023VX	KGGI0024VX	KGGI0024VX	KGGI0025VX	KGGI0025VX	KGGI0026VX	KGGI0026VX
Size	SRNV 360	SRNV 480	SRNV 480	SRNV 720	SRNV 720	SRNV 960	SRNV 960
ISO	F10/F12	F10/F12	F14	F14	F12	F14	F12/F16
A	810,1	842,4	842,4	1035,4	1035,4	1067,7	1067,7
B	27	36	36	36	36	46	46
C x depth	M10x15	M10x15	M16x24	M16x24	M12x18	M16x24	M12x18
D x depth	M12x18	M12x18	-	-	-	-	M20x30
E	102	102	140	140	125	140	125
F	125	125	-	-	-	-	165
G	19,5	19,5	19,5	19,5	19,5	18,5	18,5
H	61,5	78	78	86,5	86,5	99,2	99,2
J	16	16	16	16	16	16	16
K	16	16	16	16	16	16	16
I	22	24	24	27	27	32	32
L	178	198	198	216	216	237,7	237,7
M	78,5	93,5	93,5	101,5	101,5	114,7	114,7
N	99,5	104,5	104,5	114,5	114,5	123	123
O	29,5	38,5	38,5	38,5	38,5	48,5	48,5
P	69,5	74,5	74,5	84,5	84,5	93	93
Q	78,5	93,5	93,5	101,5	101,5	114,7	114,7
R	31,8	36,5	36,5	41	41	46	46
S	30	30	30	30	30	30	30
T	148	168	168	186	186	207,7	207,7
U	306,6	324,1	324,1	399	399	414	414
V	350	350	350	400	400	400	400
W (Gas)	1/4"	1/4"	1/4"	1/4"	1/4"	1/4"	1/4"
X	-	-	-	-	-	-	-
Y	282,3	297,1	297,1	365,6	365,6	382,9	382,9
Z	503,5	518,3	518,3	636,4	636,4	653,7	653,7
Ch	27	27	27	36	36	36	36
N°of turns*	19	20	20	25	25	26	26
Weight (Kg)	19,5	28,1	28,1	38,8	38,8	50,6	50,6
Air (dm3/cycle)	2	2,8	2,8	4,2	4,2	5,9	5,9

* Theoretical n° of turns to close/open starting from neutral position.

SRNV 1920

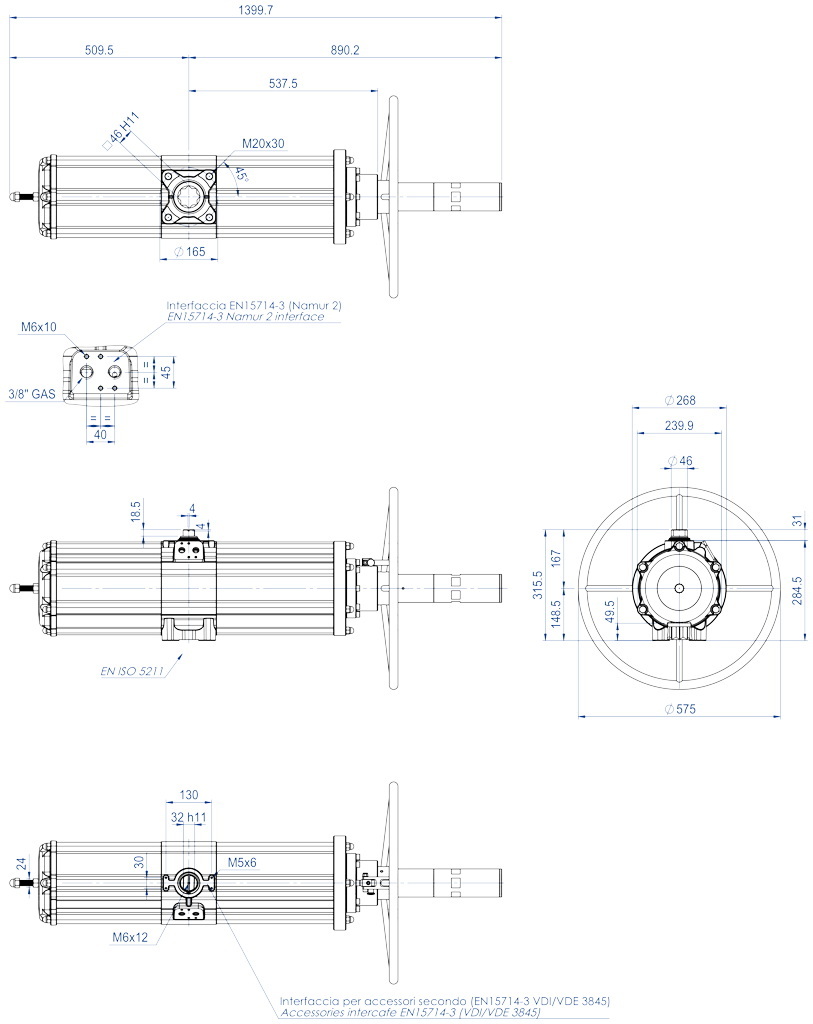

DATA SHEET SRNV 1920
Code	SRNV1920E1608A
Spare Seals	KGGI0230VX
Size	SRNV 1920
ISO	F16
N°of turns*	30
Weight (Kg)	91
Air (dm3/cycle)	12,5

* Theoretical n° of turns to close/open starting from neutral position.

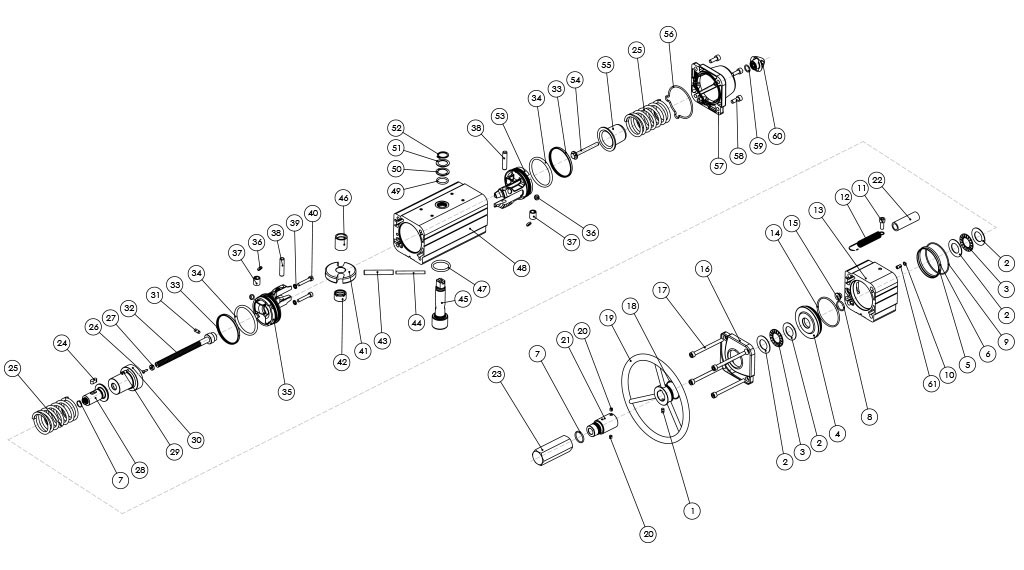

SPRING RETURN ACTUATOR COMPONENTS WITH MANUAL INTEGRATED HANDWHEEL - SIZES: UP TO SRNV960

AGO HANDWHEEL - SR with integrated handwheel - materials - SPRING RETURN ACTUATOR COMPONENTS...

MATERIALS UP TO SRNV960
Pos	Denomination	Q.	Material
1	Screw	1	Stainless Steel
2*	Washer for roller bearings	4	Steel alloy
3*	Roller bearings	2	Steel alloy
4	Flange	1	Aluminium alloy
5	Centering ring (Only for SRNV360)	1	Aluminium alloy
6*	O'ring (Only for SRNV360)	1	Nitrilic rubber
7*	O'ring	2	Nitrilic rubber
8*	O'ring	1	Nitrilic rubber
9*	O'ring	1	Nitrilic rubber
10*	O'ring	1	Nitrilic rubber
11	Screw	1	Stainless Steel
12	Spring	1	Stainless Steel
13	Cylinder spacer	1	Aluminium alloy
14*	O'ring	1	Nitrilic rubber
15*	Seal cap	1	Brass+Nitrilic rubber
16	Cap (modified)	1	Aluminium alloy
17	Screw	4	Stainless Steel
18*	O'ring	1	Nitrilic rubber
19	Handwheel for maneuever	1	Steel alloy
20	Set screw	2	Stainless Steel
21	Protecting tube	1	Aluminium alloy
22	Trasparent tube	1	PVC
23	Protecting cap	1	Aluminium alloy
24	Key	1	Steel alloy
25	Spring	2	Steel alloy
26*	Rivet	1	Steel alloy
27*	Indicator	1	Polypropylene
28	Lead nut maneuever	1	Steel alloy
29	Threaded bush (Only for SRNV240)	2	Stainless Steel
30	Special spring cap	1	Aluminium alloy
31	Pin	1	Steel alloy
32	Screw maneuever	1	Steel alloy
33*	Dynamic seal (Piston)	2	Polyurethane
34*	Piston o'ring	2	Nitrilic rubber
35	Piston (modified)	1	Aluminium alloy
36*	Piston's support	4	P.T.F.E. carbo-graphite filled
37	Bush	2	Steel alloy
38	Rotative sleeve	2	Steel alloy
39*	Bounded	2	Steel alloy+Nitrilic rubber
40	Screw	2	Stainless Steel
41	Scotch yoke	1	Steel alloy
42	Shaft support	1	Acetalic resin
43	External elastic pin of the yoke	1	Steel alloy
44	Internal elastic pin of the yoke	1	Steel alloy
45	Shaft	1	Stainless Steel
46	Support bush	1	Acetalic resin
47	Lower sealing shaft	1	FKM
48	Cylinder	1	Aluminium alloy
49	Upper sealing shaft	1	FKM
50	External support ring	1	Acetalic resin
51	Washer	1	Stainless Steel
52	Seeger	1	Stainless Steel
53	Piston (Standard)	1	Aluminium alloy
54	Spring loading screw	1	Stainless Steel
55	Spring cap (Standard)	1	Steel alloy or Aluminium alloy
56*	Cap o'ring	1	Nitrilic rubber
57	Cap (Standard)	1	Aluminium alloy
58	Screw	4	Stainless Steel
59*	O'ring	1	Nitrilic rubber
60	Nut	1	Aluminium alloy
61	Insert for o'ring (Only for SRNV53-120-180-360)	1	Stainless Steel
* Components of spare part kit

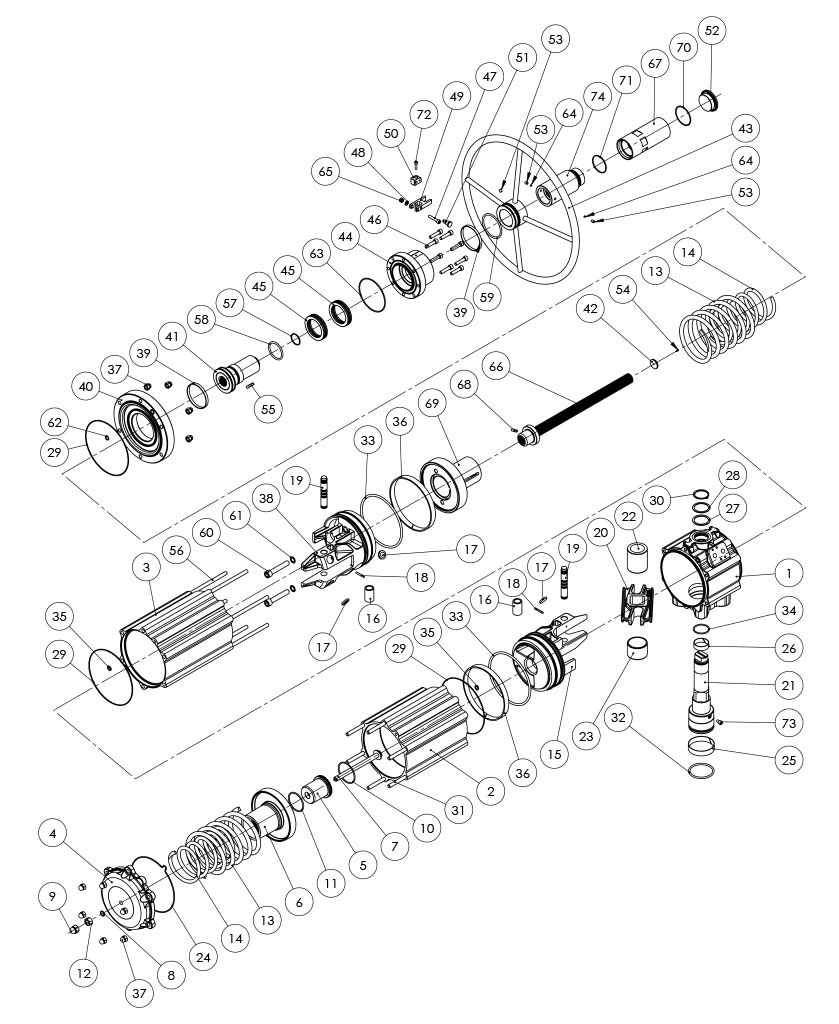

SPRING RETURN ACTUATOR COMPONENTS WITH MANUAL INTEGRATED HANDWHEEL - SIZE: SRNV1920

MATERIALS SRNV1920
Pos	Denomination	Q.ty	Material
1	Cylinder	1	Aluminium alloy
2	Cylinder	1	Aluminium alloy
3	Cylinder	1	Aluminium alloy
4	Cap (Standard)	1	Aluminium alloy
5	Internal spring support	1	Aluminium alloy
6	External spring support	1	Aluminium alloy
7	Spring loading screw	1	Stainless Steel
8*	O'ring	1	Nitrilic rubber
9	Cap Nut	1	Stainless Steel
10	O'ring	1	Nitrilic rubber
11	O'ring	1	Nitrilic rubber
12	Nut	1	Stainless Steel
13	External spring	2	Steel alloy
14	Internal spring	2	Steel alloy
15	Piston (Standard)	1	Aluminium alloy
16	Bush	2	Steel alloy
17*	Piston's support	4	Acetalic resin
18	Pin	2	Steel alloy
19	Rotative sleeve	2	Steel alloy
20	Scotch yoke	1	Steel alloy
21	Shaft	1	Stainless Steel
22	Support bush	1	Acetalic resin
23	Shaft support	1	Acetalic resin
24*	Cap o'ring	1	Nitrilic rubber
25*	Bearing (shaft bottom)	1	P.T.F.E. carbo-graphite filled
26*	Bearing (shaft top)	1	P.T.F.E. carbo-graphite filled
27*	External support ring	1	Acetalic resin
28	Washer	1	Stainless Steel
29*	O'ring	3	Nitrilic rubber
30	Seeger	1	Stainless Steel
31	Screw	6	Stainless Steel
32*	Lower sealing shaft	1	FKM
33*	Piston o'ring	2	Nitrilic rubber
34*	Upper sealing shaft	1	FKM
35*	O'ring	2	Nitrilic rubber
36*	Bearing (piston head)	2	P.T.F.E. Carbo-Graphite filled
37	Nut	12	Stainless Steel
38	Piston (modified)	1	Aluminium alloy
39*	Bearings (Handwheel)	2	Poliuretano
40	Cap (modified)	1	Aluminium alloy
41	Lead nut maneuever	1	Steel alloy
42*	Indicator	1	Polypropylene
43	Handwheel for maneuever	1	Steel alloy
44	Flange	1	Aluminium alloy
45*	Thrust bearings	2	Steel alloy
46	Screw	8	Stainless Steel
47	Screw	1	Stainless Steel
48	Washer	1	Stainless Steel
49	Closing fork	1	Aluminium alloy
50	Fork support	1	Aluminium alloy
51	Lock wheel	1	Stainless Steel
52	Protecting cap	1	Aluminium alloy
53	Screw	3	Stainless Steel
54*	Rivet	1	Stainless Steel
55	Key	1	Stainless Steel
56	Screw	6	Steel alloy
57*	O'ring	1	Nitrilic rubber
58*	O'ring	1	Nitrilic rubber
59*	O'ring	1	Nitrilic rubber
60	Screw	2	Stainless Steel
61*	Bounded	2	Steel alloy+Nitrilic rubber
62*	O'ring	1	Nitrilic rubber
63*	O'ring	1	Nitrilic rubber
64*	Plug	2	P.T.F.E
65	Nut	1	Stainless Steel
66	Screw maneuever	1	Stainless Steel
67	Protecting removable tube	1	Aluminium alloy
68	Pin	1	Stainless Steel
69	Special spring cap	1	Steel alloy
70*	O'ring	1	Nitrilic rubber
71*	O'ring	1	Nitrilic rubber
72	Screw	1	Stainless Steel
73	Safety screw	1	Stainless Steel
74	Protecting tube	1	Aluminium alloy
* Components of spare part kit
